The BE1-851E is an enhanced overcurrent protection system based on the design of
the BE1-851, a multifunction, numeric relay that provides three phase, ground, and
negative sequence overcurrent protection with four shot recloser, breaker failure,
breaker monitoring, control, and metering functions in an integrated system.
• Includes two additional Control Outputs as compared to the BE1-851.
• Allows the user to select the optimal response characteristic separately for phase
and ground elements. Choose between fundamental, RMS, or average sensing
algorithms.
• BESTlogic provides the user with complete flexibility in configuring a protection
and control system. User programmable variable and switch names make these
relays completely self documenting.
• Programmable LCD display allows the relay to replace local indication and control
functions, such as panel metering, alarm annunciation, and control switches.
• Three independent communication ports with protocol support allows integration
with distributed control systems.
• Real Time Clock with 8 hour capacitor ride through and optional battery backup.
• Available in a fully drawout case configuration.
WINDOWS
Interface for setting and communicating with Basler protection products
Request BESTCOMS for BE1-851E (includes "settings compare" feature)
An evaluation copy of BESTWAVEPlus program and manual for viewing
oscillography files stored in COMTRADE format are provided with the relay.
Validation and updates of the program may be obtained from
www.BESTWAVEPLUS.com.
ADDITIONAL INFORMATION
INSTRUCTION MANUAL
Request publication 9289900790
ADVANTAGES
SOFTWARE
®
MODBUS
Request publication 9289900791
DNP 3.0 INSTRUCTION MANUAL
Request publication 9289900792
P. O. BOX 269 HIGHLAND, ILLINOIS, U.S.A. 62249 PHONE 618-654-2341 FAX 618-654-2351
PROTECTION SYSTEM
INSTRUCTION MANUAL
BE1-851E
ENHANCED
OVERCURRENT
DEVICE FUNCTIONS
43 50 51 62
BF 79 101
FEATURES
Pages 2 and 3
APPLICATIONS
Page 3
FUNCTIONAL
DESCRIPTION
Pages 4-7
BESTlogic
Page 8
SPECIFICATIONS
Pages 9 and 10
ORDERING
INFORMATION
Page 11
UHW-3
BE1-851E
Modbus
Option
DNP 3
Option
11-09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Basler BE1-851E
Summary of Contents for Basler BE1-851E

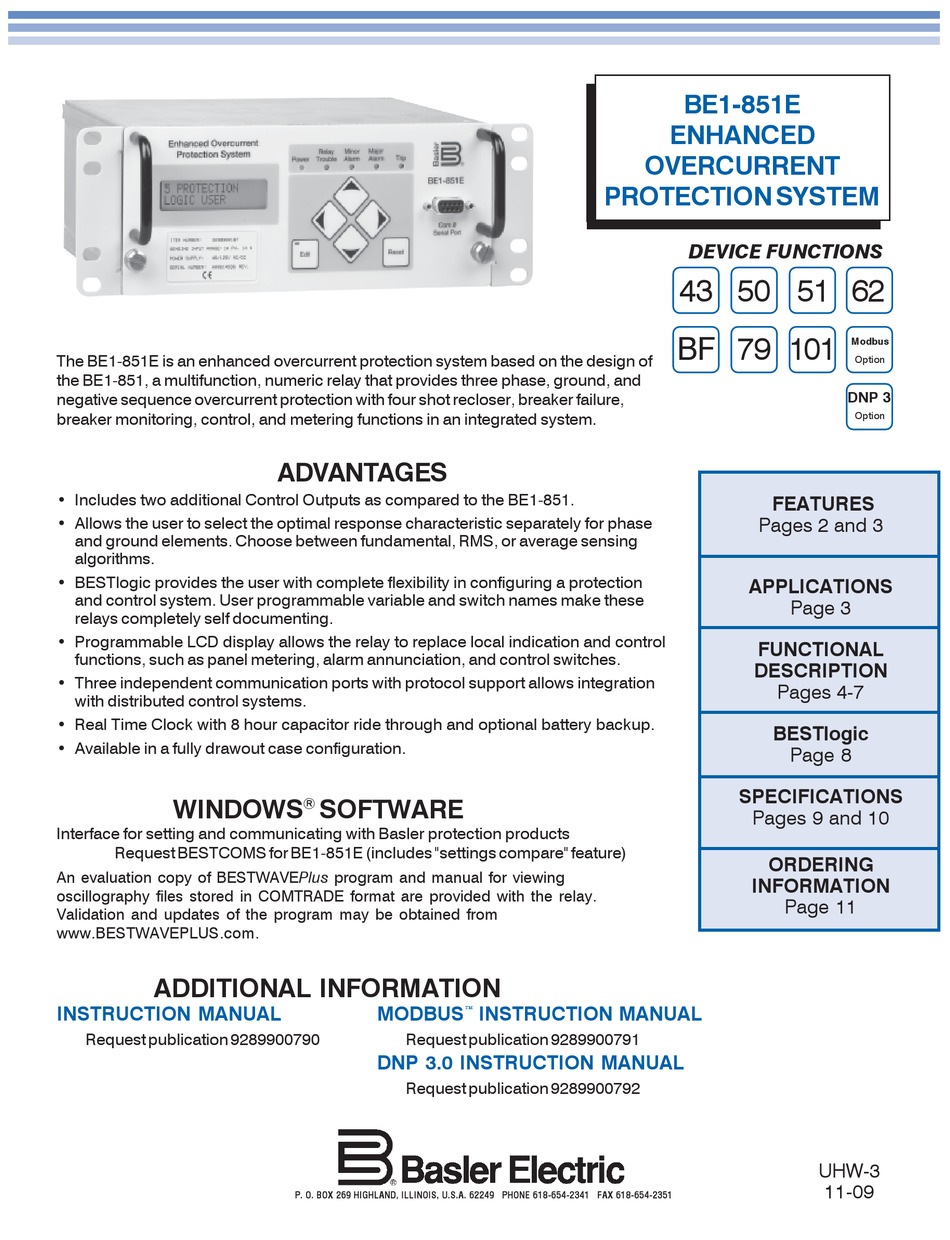

- Page 1 DEVICE FUNCTIONS 43 50 51 62 BF 79 101 Modbus The BE1-851E is an enhanced overcurrent protection system based on the design of Option the BE1-851, a multifunction, numeric relay that provides three phase, ground, and DNP 3 negative sequence overcurrent protection with four shot recloser, breaker failure, breaker monitoring, control, and metering functions in an integrated system.
- Page 2 BE1-851E FEATURES PROTECTION COMMUNICATION PORTS • Phase, Neutral, and Negative Sequence • Three independent general purpose communica- Instantaneous Overcurrent elements with settable tion ports time delay: 50TP, 150TP, 50TN, 150TN, 50TQ, - Front RS-232 ASCII communications - Rear RS-232 ASCII communications...
- Page 3 Figure 1 - Advanced HMI (Human Machine Interface) APPLICATIONS The BE1-851E Enhanced Overcurrent Protection System provides three phase, ground, and negative sequence overcurrent protection and is intended for use in any non-directional overcurrent protection application. Its unique capabilities make it ideally suited for applications with the following requirements: •...
-
Page 4: Functional Description
BE1-851E is implemented as an independent function block that is equivalent to its single function, discrete The BE1-851E has the unique ability to provide specific device counterpart. Each independent function block current response characteristics. It does this in three... - Page 5 BE1-851E FUNCTIONAL DESCRIPTION, continued Figure 2A - Typical External Sensing Connections - Feeder Breaker Application Figure 2B - Typical External Sensing Connections - Figure 2C - Alternate Connections for I Transformer Backup Application...
- Page 6 BE1-851E FUNCTIONAL DESCRIPTION, continued Figure 3 - Typical External Connections Figure 4 - Typical Application Single Line...
- Page 7 BE1-851E FUNCTIONAL DESCRIPTION, continued Figure 5 - BE1-851E Rear Panel Connections...
- Page 8 BE1-851E Figure 6 - BESTlogic Function Blocks...
-
Page 9: General Specifications
BE1-851E GENERAL SPECIFICATIONS 5 Amp CURRENT INPUTS • IEEE C37.90.1-1989 Standard Surge Withstand Continuous: 20 Amps Capability Tests for Relays and Relay Systems One Sec. Rating: 400 Amps Associated with Electric Power Apparatus Saturation limit: 150 Amps • IEC 255-22-1 1MHz Burst Disturbance Tests for Max. -
Page 10: Performance Specifications
BE1-851E PERFORMANCE SPECIFICATIONS INSTANTANEOUS OVERCURRENT WITH Constants Curve SETTABLE DELAY (50TP, 150TP, 50TN, 150TN, Type 50TQ, 150TQ) 0.2663 0.03393 1.000 1.2969 0.028 0.5000 Pickup: 5A CT: 0.5-150.0A 0.0286 0.02080 1.000 0.9844 0.028 0.0940 1A CT: 0.1-30.0A 5.6143 2.18592 1.000 1.000 0.028... -
Page 11: Sample Style Number
SAMPLE STYLE NUMBER The style number identification chart below defines the electrical characteristics and operation features included in the BE1-851E relay. For example, if the style number is BE1-851E H5N1K0U00, the device has the following: BE1-851E Overcurrent Protection System 3-Phase, Neutral, and Negative Sequence Protection... - Page 12 BE1-851E P .A.E. Les Pins, 67319 Wasselonne Cedex FRANCE Route 143, Box 269, Highland, Illinois U.S.A. 62249 No. 59 Heshun Road Loufeng District (N), Tel +33 3.88.87.1010 Fax +33 3.88.87.0808 Tel +1 618.654.2341 Fax +1 618.654.2351 Suzhou Industrial Park, 215122, Suzhou, P .R.China Tel +86(0)512 6346 1730 Fax +86(0)512 8227 2888 e-mail: beifrance@basler.com...
