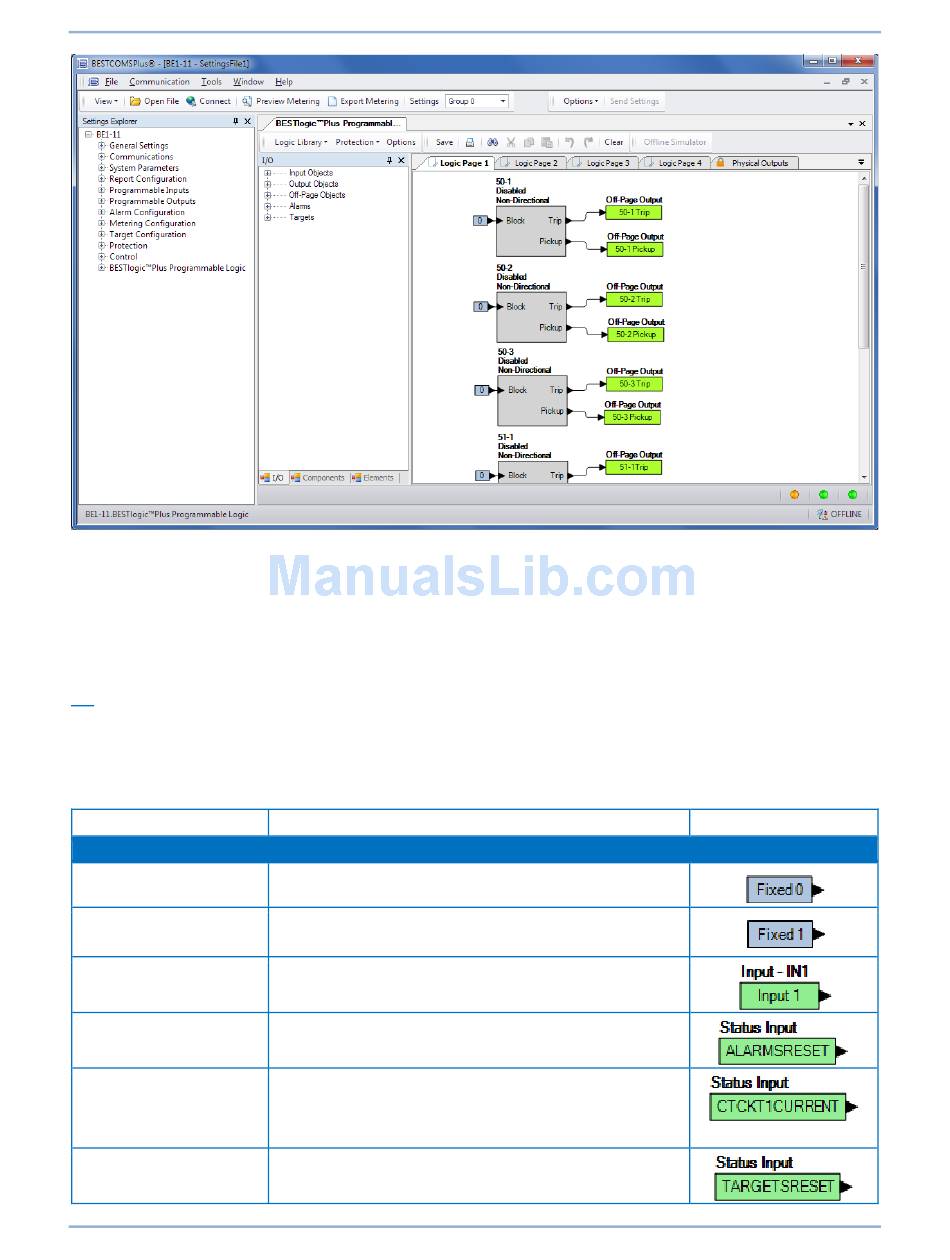

Figure 242. BESTlogicPlus Programmable Logic Tree Branch
BESTlogic™Plus Composition
There are three main groups of objects used for programming BESTlogicPlus. These groups are I/O,
Components, and Elements. For details on how these objects are used to program BESTlogicPlus, see
the paragraphs on Programming BESTlogicPlus.
I/O
This group contains Input Objects, Output Objects, Off-Page Objects, and Alarms. Input objects can be
logically connected to any logic block input. Output objects can be logically connected to any logic block
output. Table 103 lists the names and descriptions of the objects in the I/O group.
Name
Logic 0
Logic 1
Physical Inputs
IN1 – IN10
Status Inputs
Alarm Reset
Status Inputs
CT Circuit 1 and CT
Circuit 2 Current
Detected
Status Inputs
Target Reset
BESTlogic™Plus
Table 103. I/O Group, Names and Descriptions
Description
Input Objects
Always false (Low). Double-click or right-click on the
object to change the fixed state from 0 to 1.
Always true (High). Double-click or right-click on the object
to change the fixed state from 1 to 0.
True when Physical Input x is active.
The Alarm Reset status input goes momentarily high
when the Major, Minor, and Logic alarms are cleared.
The CT Circuit 1 Current Detected status input goes high
when ac current is greater than 5% of nominal as
determined by the fast current detector.
The Target Reset status input goes momentarily high
when the targets are cleared.
9424200994 Rev U
Symbol
BE1-11g
