The 43-1 switch action is performed three times in this test. To
illustrate the action of the timer mode, step 4 should be executed as
quickly as possible for the second 43-1 switch action (within 15
second duration of the pickup time delay). Perform step 4 again for the
third 43-1 switch action after at least 15 seconds (the pickup timer
setting) have elapsed but before the 20 second dropout time delay
expires. This will illustrate the action of the timer mode. The time delay
settings can be increased if difficulty is encountered with repeating the
43-1 switch actions.
Block
Initiate
62-x
Step 8: (Optional.) Repeat steps 1 through 7 for 62-1, 62-2, 62-3, 62-4, 62-5, 62-6, 62-7, and 62-8.
Step 9: (Optional.) Repeat steps 1 through 8 for settings group 1, 2, and 3.
Oscillator Mode
Because this operating mode is not intended for general use, no testing procedure is available.
Information about Oscillator mode is available in the Logic Timers (62) chapter.
Integrating Timer Mode
Step 1: Use BESTCOMSPlus to send the operational settings in Table 249 to the BE1-11g. Retain the
logic settings from Figure 335.
Setting
62-1 Mode
62-1 Time Delay 1
(T1)
62-1 Time Delay 2
(T2)
43-1 Mode
62-1 Target
Step 2: Steps 3 through 5 supply the 62-1 timer with a block input by changing the 43-1 switch state to
ON. You can view the state changes of the 43-1 switch at the Metering > Control > Virtual
Switches screen on the front-panel display.
BE1-11g

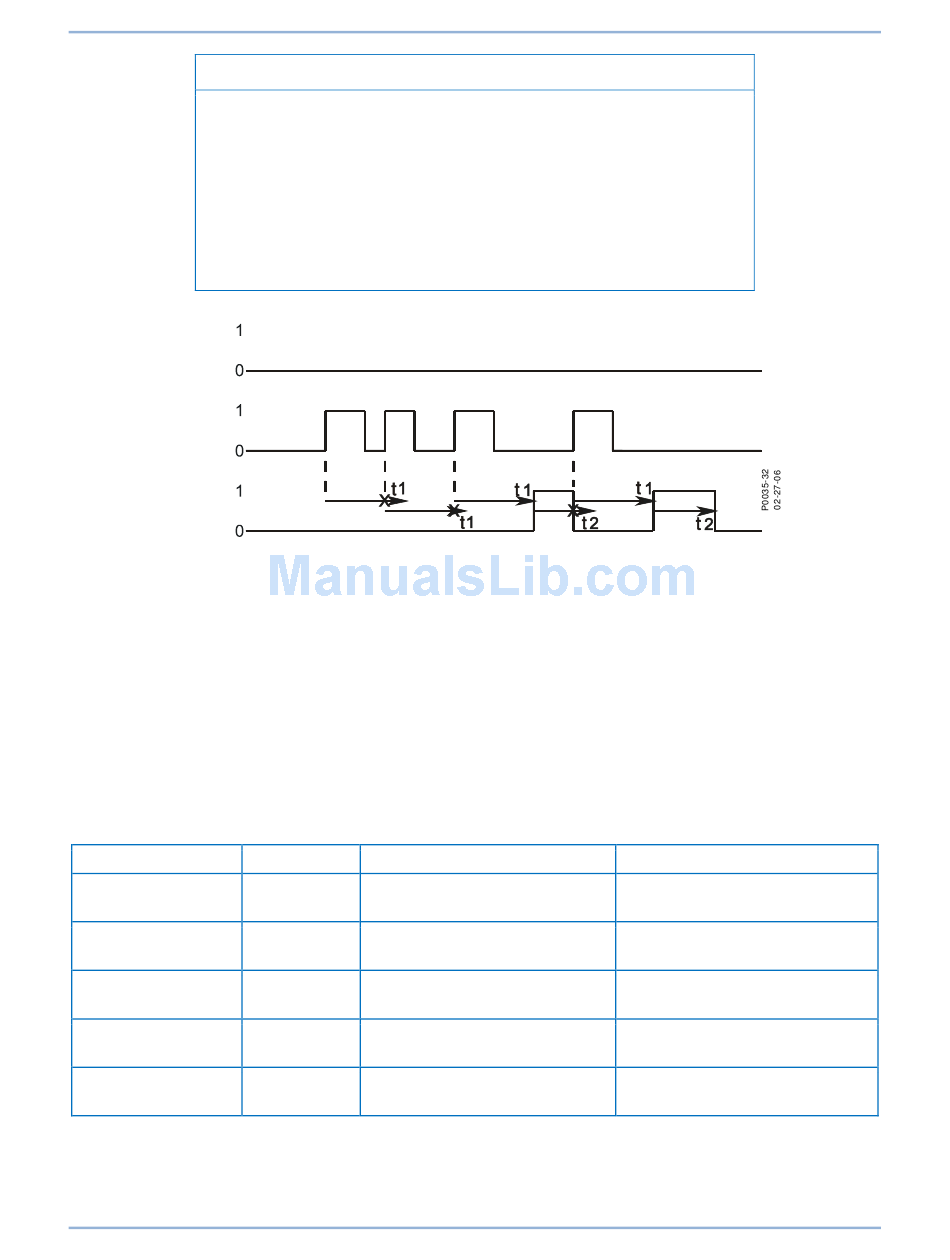

Figure 339. One-Shot/Retriggerable Mode
Table 249. Operational Settings (Integrating Timer Mode)
Value BESTCOMSPlus Screen
Integrating Control, Logic Timers (62)
Timer
15,000 ms Control, Logic Timers (62)
5,000 ms Control, Logic Timers (62)
Switch Control, Virtual Control
Switches (43)
Enabled Target Configuration, Targets
screen.
Note
Sets 62-1 to Integrating Timer
mode
Sets 62-1 pickup time delay to
15,000 ms
Sets 62-1 dropout time delay to
5,000 ms
Sets 43-1 to Switch mode
Enables 62-1 target
553
Description
Logic Timers (62) Test
