9424200994 Rev U

Power Quality

The BE1-11g offers class B power quality measurement performance as defined by IEC 610004-30.
Power quality data consists of voltage, distortion, dips/swells, and harmonics. Power quality is reported
through BESTCOMSPlus®, the front-panel interface, and the web page interface. Refer to the
BESTnet™Plus chapter for information on viewing the demands through the web page interface.

Power Quality Settings

BESTCOMSPlus Navigation Path: Settings Explorer, Metering Configuration, Power Quality
HMI Navigation Path: Settings Explorer, Metering Configuration, Power Quality
Settings are made using BESTCOMSPlus. Use the Settings Explorer to open the Metering Configuration,
Power Quality tree branch. The Power Quality screen is illustrated in Figure 166.
Table 92 summarizes the power quality settings.
Setting
Reference Mode
Dip Hysteresis
Dip Ratio
Swell Hysteresis
Swell Ratio

Retrieving Power Quality Data

BESTCOMSPlus Navigation Path: Metering Explorer, Power Quality
HMI Navigation Path: Metering Explorer, Power Quality
Power quality data can be viewed using BESTCOMSPlus, through the front-panel interface, and through
the web page interface. To view data using BESTCOMSPlus, use the Metering Explorer to open the
Power Quality tree branch.
BE1-11g

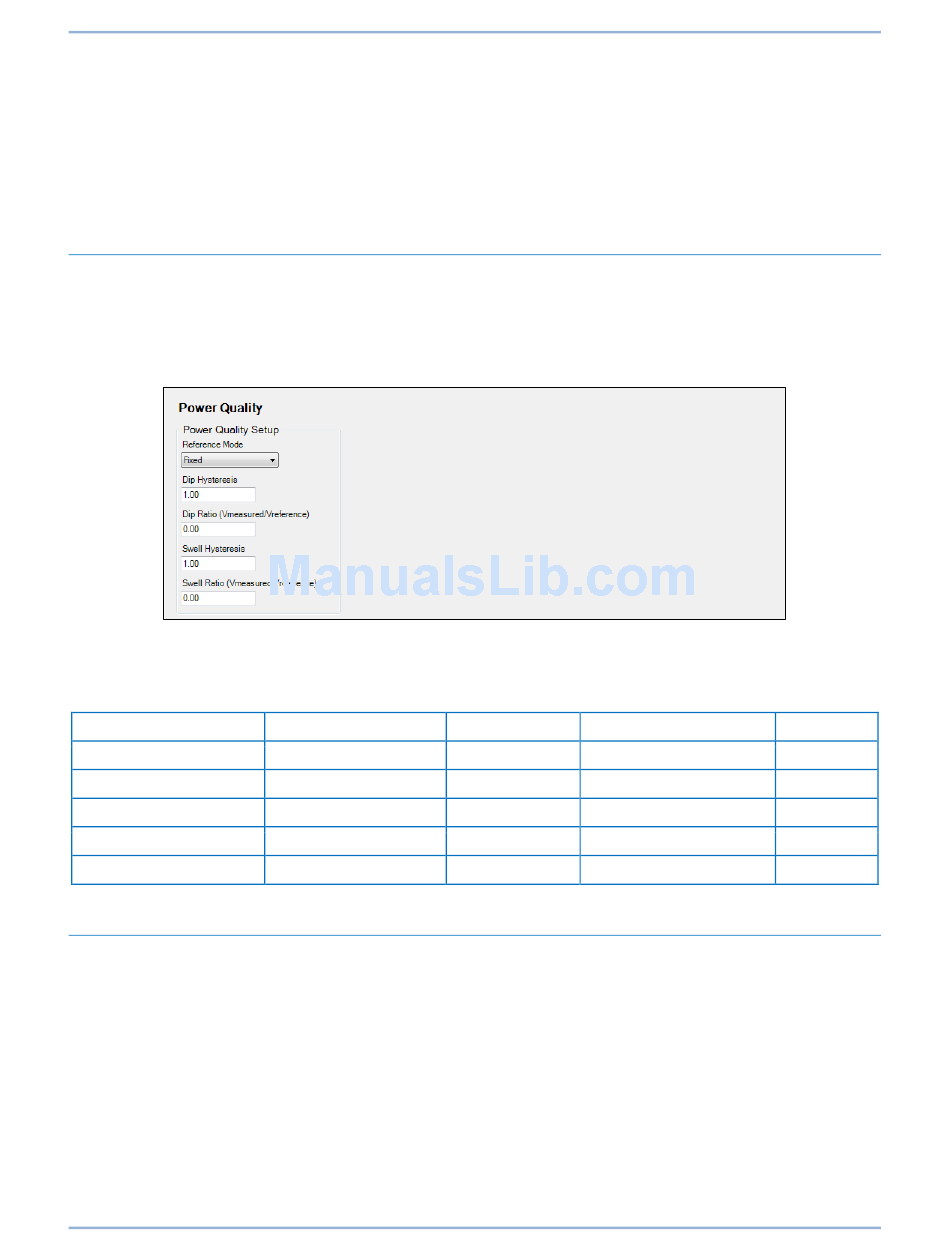

Figure 166. Metering Configuration, Power Quality Screen
Table 92. Power Quality Settings
Range
Fixed or Sliding
1 to 1.3
0 or 0.7 to 1
0.7 to 1
0 or 1 to 1.3
Increment
Unit of Measure
n/a
0.01
0.01
0.01
0.01
Default
n/a
Fixed
units
1
units
0
units
1
units
0
Power Quality
239
