Remote Analog Outputs Configuration - Basler BE1-11g Instruction Manual

9424200994 Rev U
Table 262 summarizes the configuration settings for remote analog inputs.
Setting
Label Up to 64 alphanumeric characters
Type
Param Min
Param Max
Min Input Current
Max Input Current
Min Input Voltage
Max Input Voltage

Remote Analog Outputs Configuration

The RTD module provides four analog outputs. The BE1-11g supports two RTD modules at once.
Configuration Settings
BESTCOMSPlus Navigation Path: Settings Explorer, Programmable Outputs, Remote Analog Outputs
HMI Navigation Path: Settings Explorer, Analog Outputs
Configuration settings are made using the BE1-11 plugin for BESTCOMSPlus. To program the
configuration settings, use the Settings Explorer to open the Programmable Outputs, Remote Analog
Outputs tree branch and select the module and output to be modified. Refer to Figure 407. Use the drop-
down menu under Param Selection to select a parameter. Select the Output Type. The analog outputs
are always monitored and their status is displayed on the appropriate metering screens.
Ranges must be set for the selected output type. Param Min correlates to Min Output Current or Min
Output Voltage and Param Max correlates to Max Output Current or Max Output Voltage.
Table 263 summarizes the configuration settings for remote analog outputs.
BE1-11g

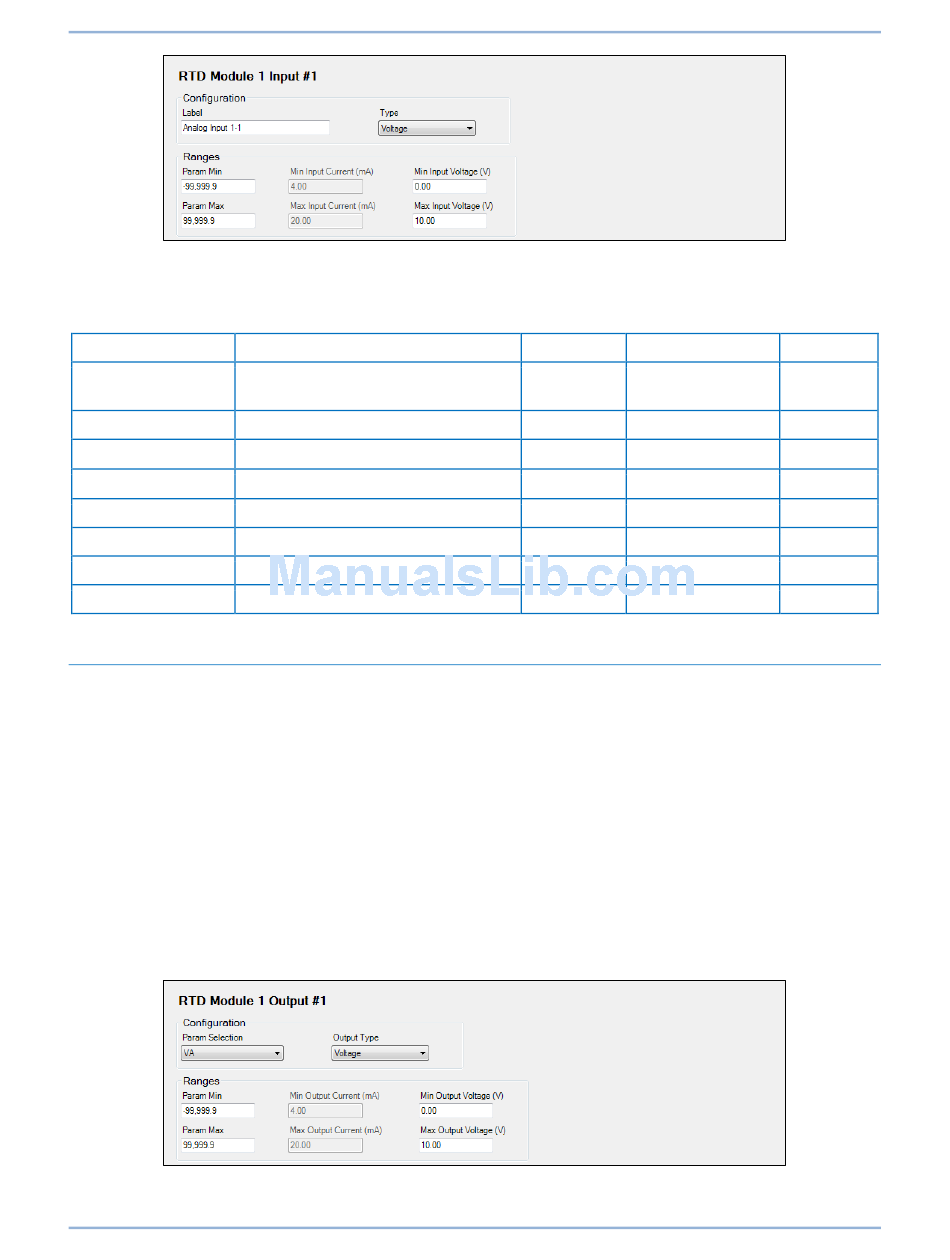

Figure 406. Module 1 Input #1 Screen
Table 262. Configuration Settings for Remote Analog Inputs
Range
Voltage or Current
–99,999.9 to 99,999.9
–99,999.9 to 99,999.9
4 to 20
4 to 20
0 to 10
0 to 10
Figure 407. Module 1 Output #1 Screen
Increment Unit of Measure
n/a n/a
n/a n/a
0.1 n/a
0.1 n/a
0.01 milliamps
0.01 milliamps
0.01 volts
0.01 volts
653
Default
Module 1
Input 1
Voltage
–99,999.9
–99,999.9
4
20
0
10
RTD Module
