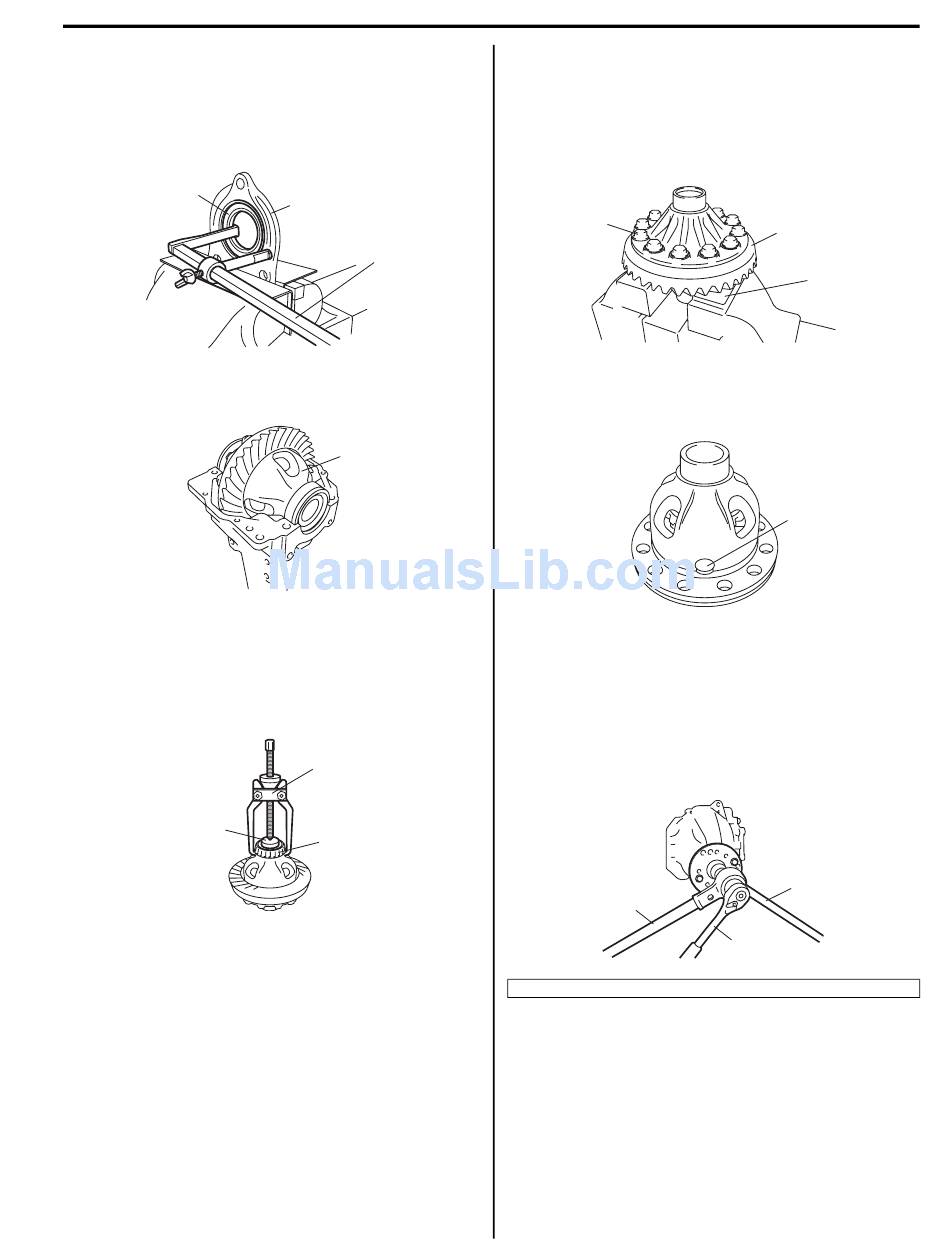

5) Support differential side right retainer (1) with soft
jawed vise and remove oil seal (2) from differential
side right retainer using special tool, if necessary.
Special tool
(A): 09913–50121
2
6) Take out differential assembly (1), outer race and
shim all at once.
7) Pull out differential side bearing (1) using special
tools.
Special tool
(A): 09913–65135
(B): 09925–86010
(B)
1
(A)
I5JB0A321011-01
1
I5JB0A321012-02
(A)
1
I5JB0A321013-02
8) Remove drive bevel gear (hypoid gear), differential
gears, differential pinions and pinion shaft as follows.
a) With aluminum plates (2) placed on vise first,
grip differential case with it and remove drive
bevel gear (hypoid gear) (3) by removing its bolts
(1).
1
b) Remove pinion shaft (1), differential gears,
washers, differential pinions, spring washers and
thrust washers.
9) Remove drive bevel pinion (hypoid gear) assembly
as follows.
a) Hold joint flange with special tool and then
remove flange nut by using power wrench (4 –
10 magnification) (2).
Special tool
(A): 09922–66021
2
1. Socket wrench
Differential: Front 3B-6
3
2
I5JB0A321014-02
1
I5JB0A321015-02
(A)
1
I5JB0A321016-02
