CYLINDER HEAD/VALVE
Install the water hose joint by aligning the bolt holes
in the stopper plate and cylinder head.
Install and tighten the bolt securely.
Rear cylinder head
Connect the vacuum hose.
only:
Install the engine into the frame (page 8-7).
Install the following:
- Camshaft (page 9-26)
- Cylinder head
~over
(page 9-31)
- Intake manifold (page 6-23)

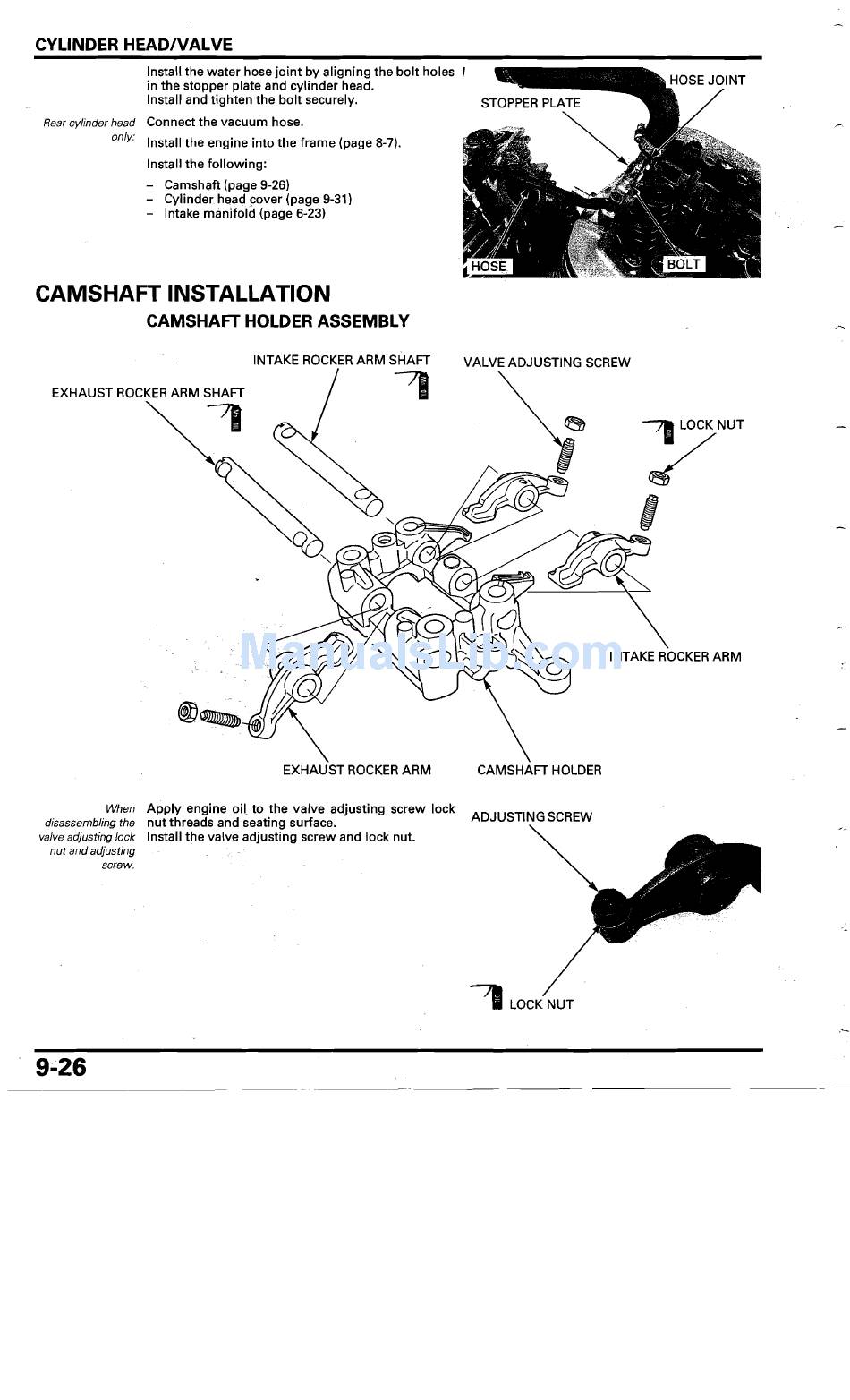

CAMSHAFT INSTALLATION
CAMSHAFT HOLDER ASSEMBLY
EXHAUST ROCKER ARM SHAFT
-,
INTAKE ROCKER ARM SHAFT
,
EXHAUST ROCKER ARM
VALVE ADJUSTING SCREW
~ LOCKNUT
~
I
CAMSHAFT HOLDER
When
Apply engine oit to the valve adjusting screw lock
disassembling the
nut threads and seating surface.
valve adjusting lock
Install the valve adjusting screw and lock nut.
nut and adjusting
screw.
ADJUSTING SCREW
~
LOCKNUT
