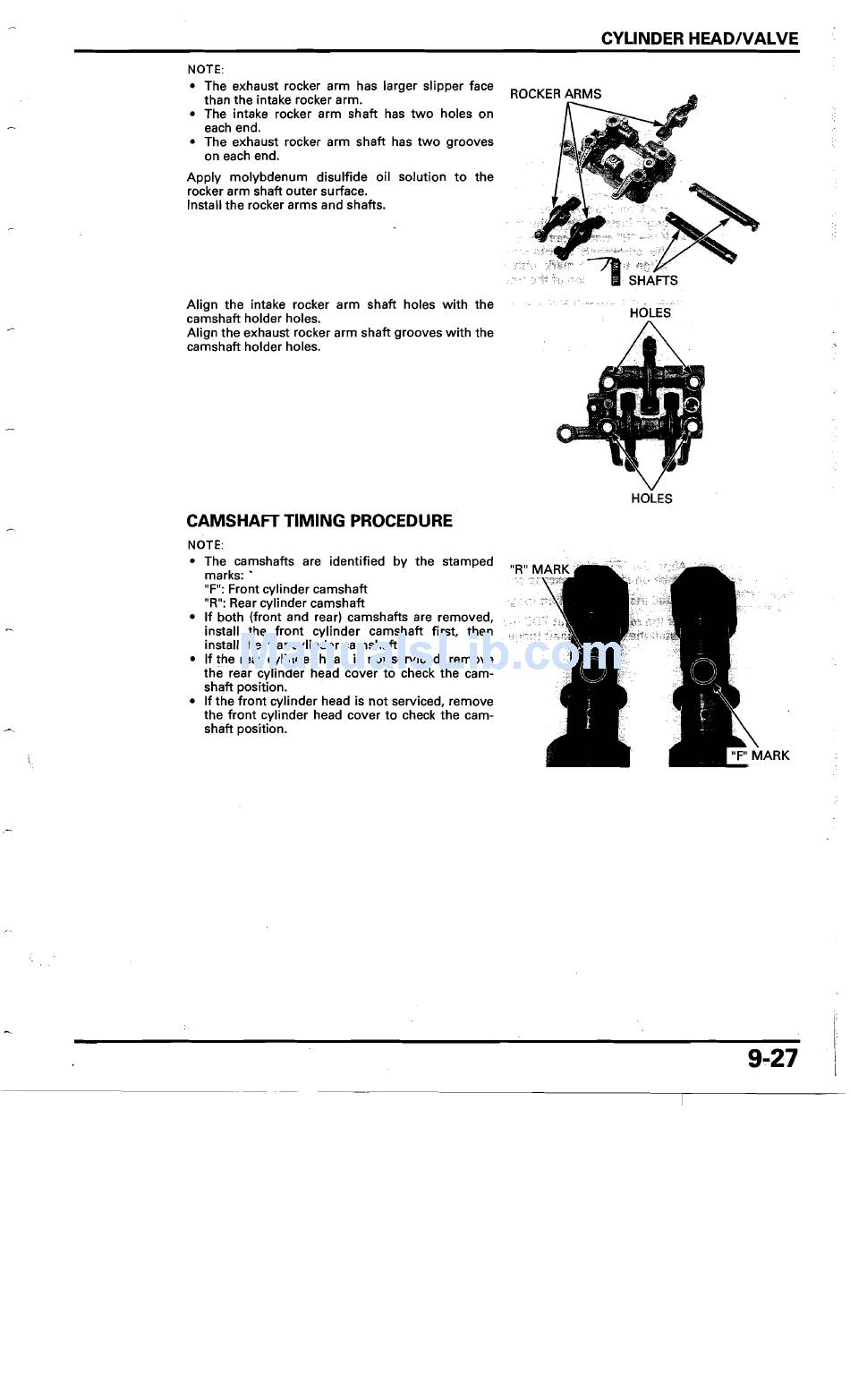

CYLINDER HEAD/VALVE
NOTE:
• The exhaust rocker arm has larger slipper face
than the intake rocker arm.
• The intake rocker arm shaft has two holes on
each end.
• The exhaust rocker arm shaft has two grooves
on each end.
Apply molybdenum disulfide oil solution to the
rocker arm shaft outer surface.
Install the rocker arms and shafts.
Align the intake rocker arm shaft holes with the
HOLES
camshaft holder holes.
Align the exhaust rocker arm shaft grooves with the
camshaft holder holes.
CAMSHAFT TIMING PROCEDURE
NOTE:
• The camshafts are identified by the stamped
marks: •
"F": Front cylinder camshaft
"R": Rear cylinder camshaft
• If both (front and rear) camshafts are removed,
install the front cylinder camshaft first, then
install the rear cylinder camshaft.
• If the rear cylinder head is not serviced, remove
the rear cylinder head cover to check the cam ­
shaft position.
• If the front cylinder head is not serviced, remove
the front cylinder head cover to check the cam­
shaft position.
HOLES
9-27
