Gather Tools and Supplies

Obtain the following tools and equipment:

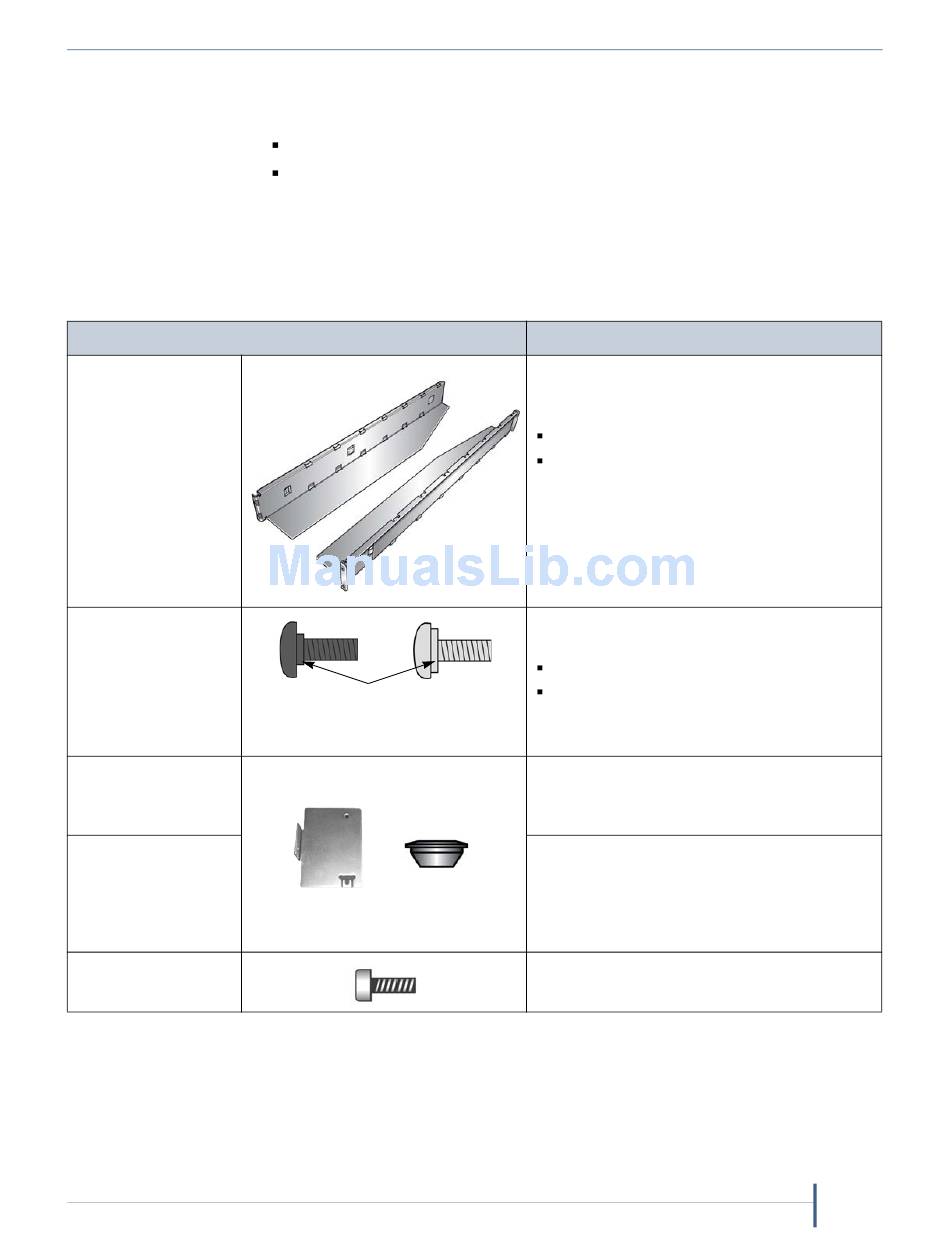

Identify the Rack-mount Kit Components
Unpack the rack-mount kit and identify the components listed in the
following table.
Component
Rail assemblies
Qty = 2
M6 screws
Qty = 16 (8 each)
Mounting brackets
Qty = 2
Guide pulleys
Qty = 2
M5 x 12 screws
Qty = 2
December 2008
#2 Phillips screwdriver, magnetic if available
Level (recommended)
Front
Shoulder
Bracket Pulleys
These pieces are attached to the
library when it is shipped.
Use
Support the chassis in the rack. Each rail is
Back
pre-assemble and consists of the following
components.
Adjustable slider
Rails (2)
Attach the rail assemblies to the rack. Size
used depends on rack type.
M6 x 8mm (small shoulder)
M6 x 8mm (large shoulder)
Use the screws with the larger shoulder for
racks with square holes.
Secure the library to the rack.
M3 x 6 Torx screws are used to attach the
brackets to the library.
Position the library on rail shelves.
M3 x 8 screws are used to attach the
pulleys to the library.
Secure the library mounting brackets to
the rack.
Install the Library
Spectra T50e library
