Magazine Handles. The magazine handles let you slide individual
magazines into and out of the library. The magazines must be unlocked
from the user interface before they can be removed. See
Components
Access Port. The bottom front slot of the lower left magazine functions as
the access port. To learn more about the access port, see
page

Interior Components

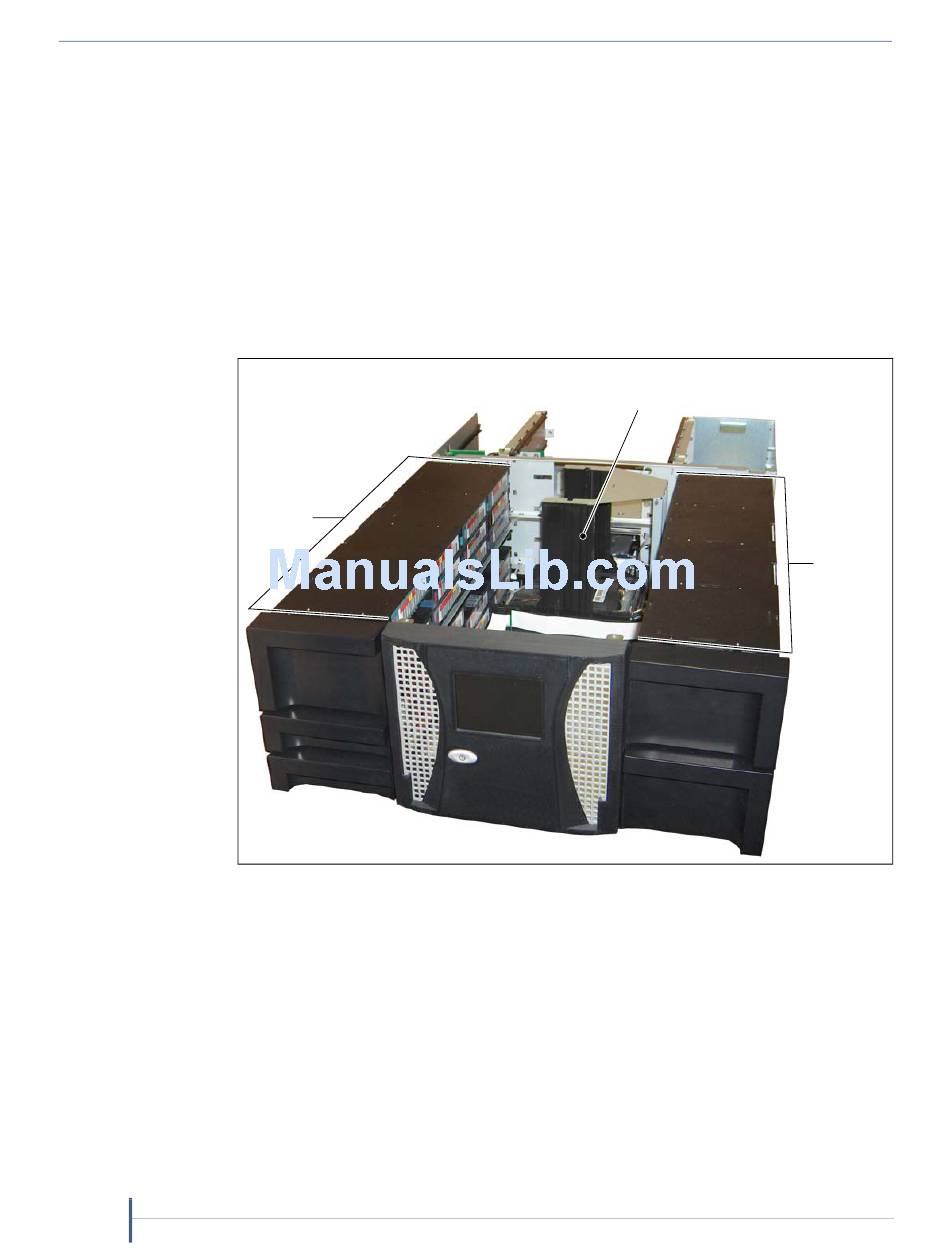

Figure 2
Figure 2 Library interior components.
Magazine Slots. Magazines along each side of the library contain slots for
storing cartridges. The two magazines on the right side of the library and
the top left magazine each contain twelve slots. The lower left magazine
has eleven slots, leaving space for the one-slot access port at the front of the
library.
18
User Guide
for information about the magazines.
23.
shows the interior components of the library.
Magazine
slots (23)
The interior components of the library are shown for reference
only. They are not user accessible.
Interior
Access Port on
Transporter with
bar code reader
Magazine
slots (24)
