Chapter 5 — Cartridge Use
2. Using a #3 Phillips screwdriver, remove one of the tape drive cover
3. Insert the cartridge into the expansion slot with the bar code label
4. Slide the sled directly into the library and tighten the finger screws.
114
User Guide
plates. Set the plate and screws aside for future use.
Screw (2x)
Plate

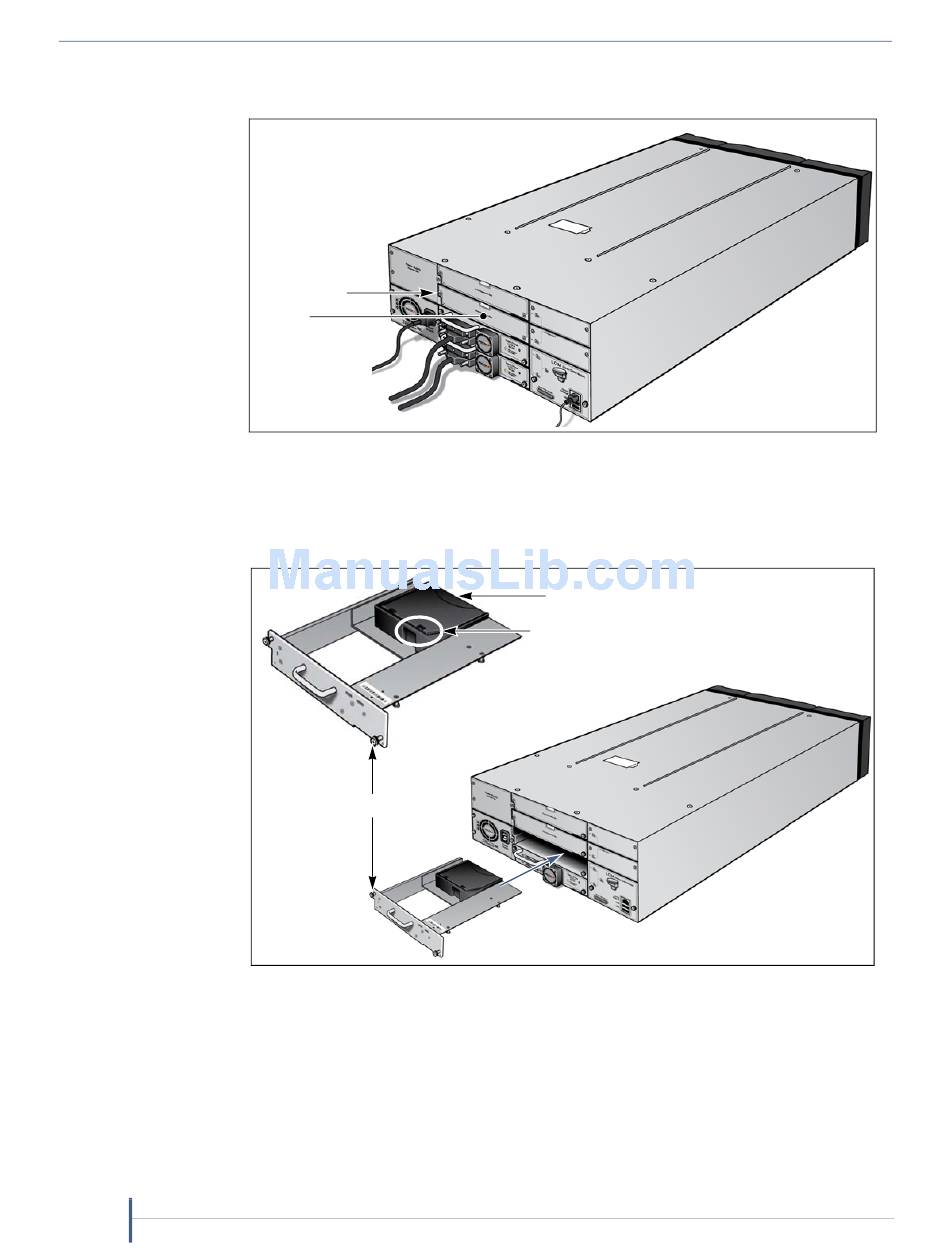

Figure 87 Adding a Cartridge Capacity Sled.
facing toward the inside of the library and the open triangle toward the
top.
Screw (2x)
Figure 88 Adding a Cartridge Capacity Sled.
Bar code label
facing out
Triangle
90970015
