Secure digital input/output interface (SDIO)
31.3 SDIO functional description
The SDIO consists of two parts:
•
The SDIO adapter block provides all functions specific to the MMC/SD/SD I/O card
such as the clock generation unit, command and data transfer.
•
The APB2 interface accesses the SDIO adapter registers, and generates interrupt and
DMA request signals.
By default SDIO_D0 is used for data transfer. After initialization, the host can change the
databus width.
If a MultiMediaCard is connected to the bus, SDIO_D0, SDIO_D[3:0] or SDIO_D[7:0] can be
used for data transfer. MMC V3.31 or previous, supports only 1 bit of data so only SDIO_D0
can be used.
If an SD or SD I/O card is connected to the bus, data transfer can be configured by the host
to use SDIO_D0 or SDIO_D[3:0]. All data lines are operating in push-pull mode.
SDIO_CMD has two operational modes:
•
Open-drain for initialization (only for MMCV3.31 or previous)
• Push-pull for command transfer (SD/SD I/O card MMC4.2 use push-pull drivers also for
initialization)
SDIO_CK is the clock to the card: one bit is transferred on both command and data lines
with each clock cycle.
The SDIO uses two clock signals:
•
SDIO adapter clock SDIOCLK up to 50 MHz (48 MHz when in use with USB)
•
APB2 bus clock (PCLK2)
PCLK2 and SDIO_CK clock frequencies must respect the following condition:
The signals shown in
1022/1749

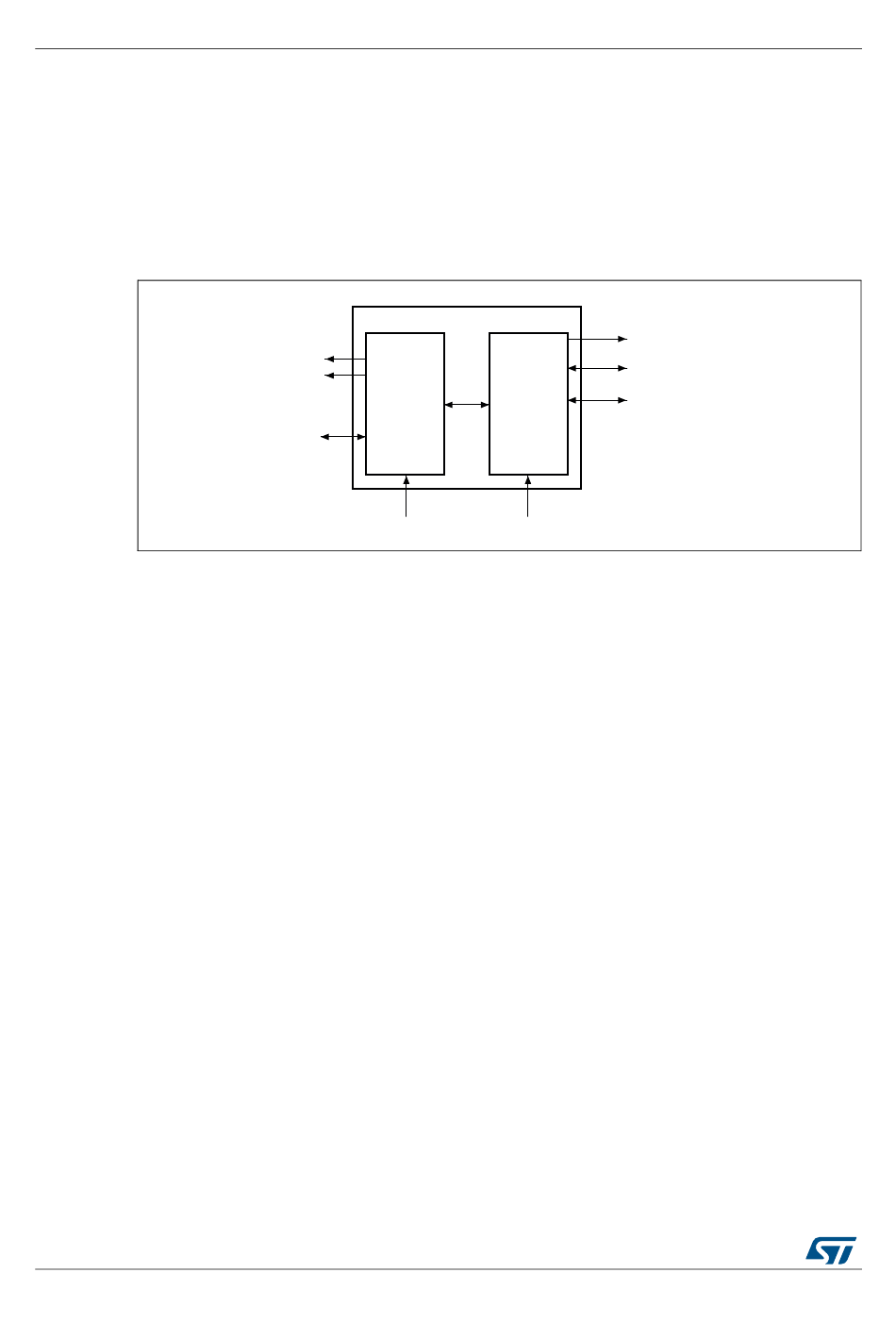

Figure 326. SDIO block diagram

Interrupts and
DMA request
APB2
interface
APB2 bus
PCLK2
(
Frequenc PCLK2
Table 150 are used on the MultiMediaCard/SD/SD I/O card bus.
RM0090 Rev 18
SDMMC
SDMMC
adapter
SDMMCCLK
) 3 ≥ ⁄ × (
8 Frequency SDIO_CK
RM0090
SDMMC_CK
SDMMC_CMD
SDMMC_D[7:0]
)
ai15898b
