3.4 Product nameplate

Note:

This is an example of the nameplate of standard Goodrive350 products. The CE/TUV/IP20
marking on the top right will be marked according to actual certification conditions.

Scan the QR code on the bottom right to download mobile APP and operation manual.

3.5 Type designation key

The type designation key contains product information. You can find the type designation key on the
nameplate and simple nameplate of the VFD.
Field Sign
Abbreviation
of product
series
Rated power
Voltage level
Note:
The braking unit has been built in the 380V 37kW and lower VFD models as a standard
configuration.
The braking unit is not a standard configuration for the 380V 45–110kW VFD models (but you can
choose to purchase the built-in braking unit, and then the VFD model has a suffix "B", for
example, GD350-045G-4-B).
Model:GD350-004G-4
Power(Output):4kW
Input:AC 3PH 380V(-15%)-440V(+10%) 13.5A 47Hz-63Hz
Output:AC 3PH 0V-Uinput 9.5A 0Hz-400Hz
S/N:
Shenzhen INVT Electric Co.,Ltd

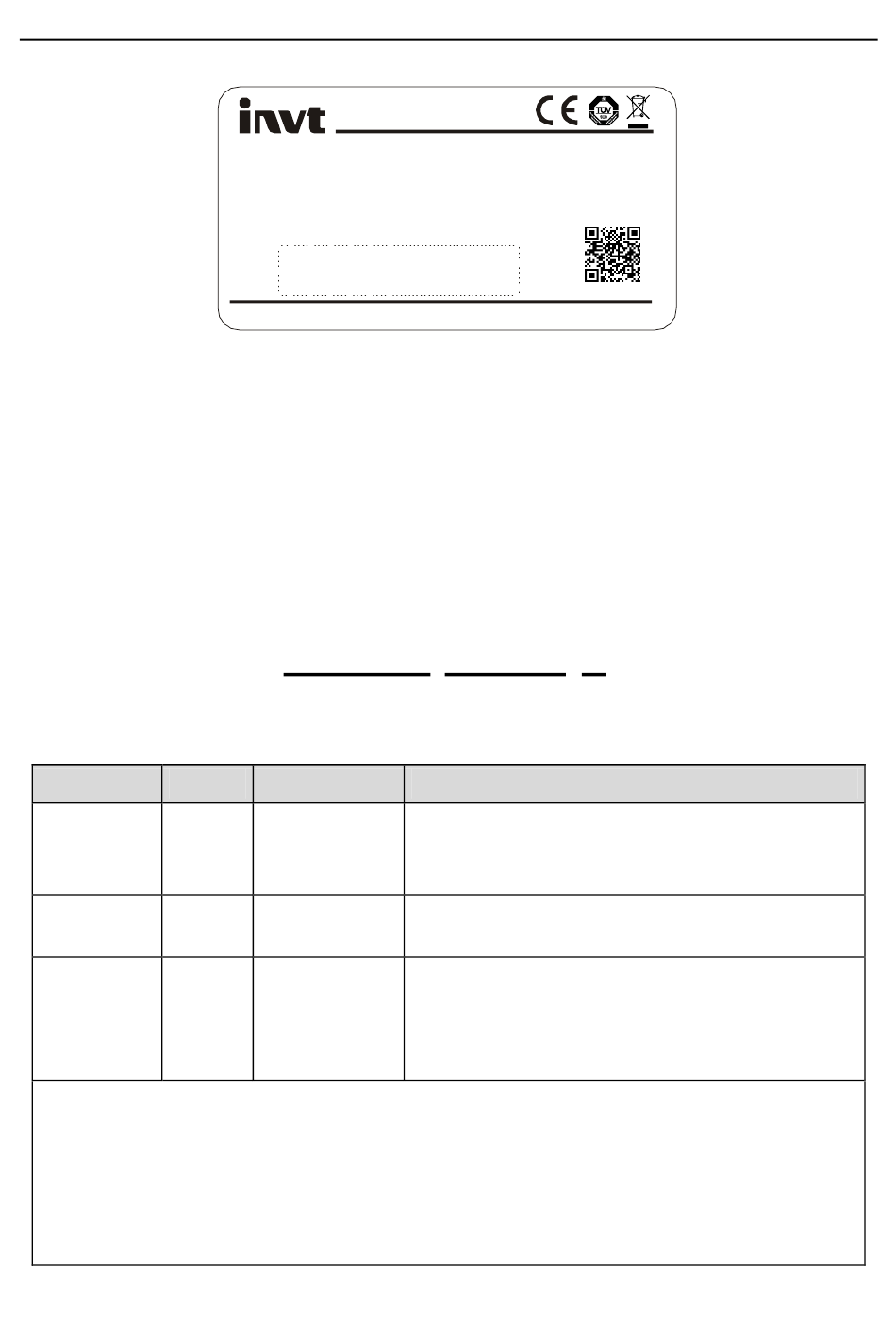

Figure 3.5 Product nameplate
GD350-5R5G-4
①
Figure 3.6 Type designation key
Description
Abbreviation of
①
product series
Power range +
②
load type
③
Voltage level
Made in China
② ③
GD350: Goodrive350 series high-performance
multi-function VFD
5R5: 5.5kW
G: Constant torque load
4: AC 3PH 380V (-15%)–440V (+10%)
Rated voltage: 380V
6: AC 3PH 520V (-15%)–690V (+10%)
Rated voltage: 660V
