Goodrive350 series high-performance multifunction VFD Dimension drawings

Appendix C Dimension drawings

C.1 What this chapter contains
This chapter describes the dimension drawings of Goodrive350 series VFDs. The dimension unit
used in the drawings is mm.
C.2 Keypad structure

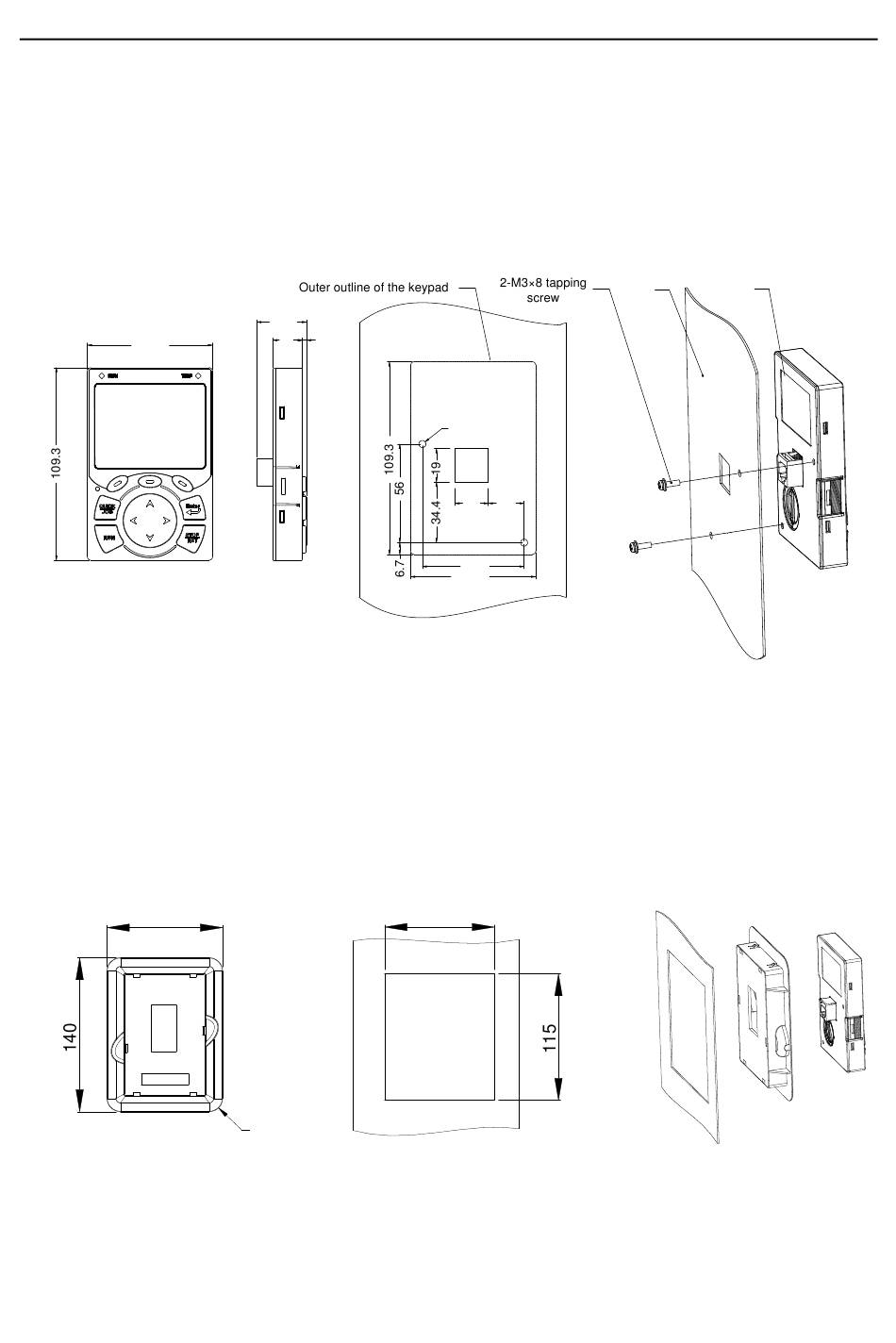

C.2.1 Structure diagram
Panel
Keypad
28.5
2.5
71.3
16.8
2- ø4
19 20.4
58
71.3
Installation hole dimensions and diagram for key installation without bracket
Figure C.1 Keypad structure diagram
C.2.2 Keypad installation bracket
Note: When installing an external keypad, you can directly use threaded screws or a keypad bracket.
For VFDs of 380 V, 1.5 to 75 kW, you need to use optional keypad installation brackets. For those of
380 V, 90 to 500 kW and 660 V, 22 to 630 kW, you can use optional brackets or use the standard
keypad brackets externally.
103
98
4-R12
Keypad adapter bracket Installation dimensions
Figure C.2 Keypad installation bracket (optional) for 380V 1.5–500kW and 660V 22–630kW models
