Goodrive350 series high-performance multifunction VFD
4.2.7 Tilted installation
Note: During tilted installation, it is a must to ensure the air inlet duct and air outlet duct are separated
from each other to avoid mutual interference.
Cold
air
Cold
air
Cold
air

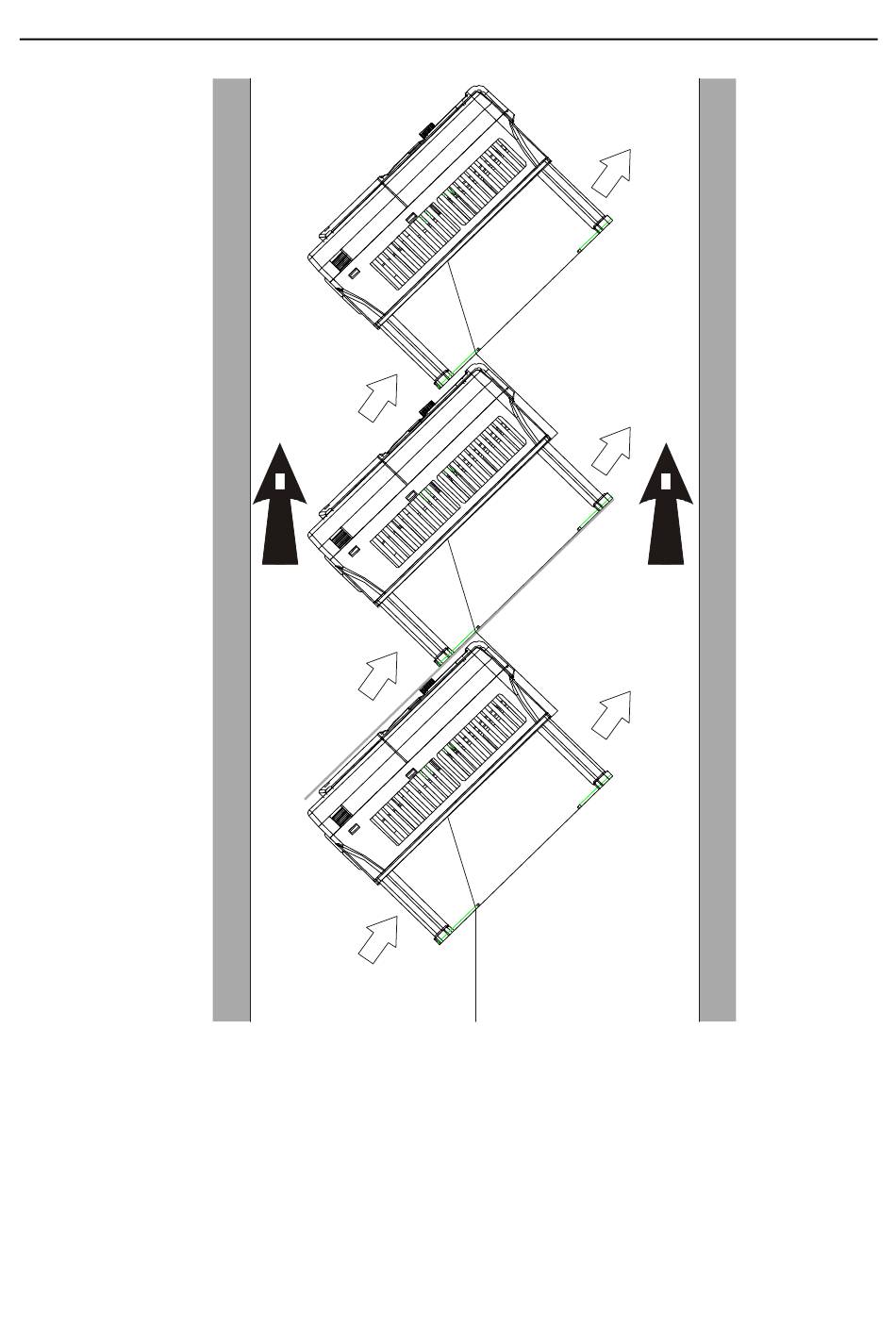

Figure 4.6 Tilted installation
-20-
Installation guide
Hot
air
Hot
air
Hot
air
