Multi-Function Incremental Pg Card--Ec - INVT Goodrive350 Series Operation Manual

Goodrive350 series high-performance multifunction VFD

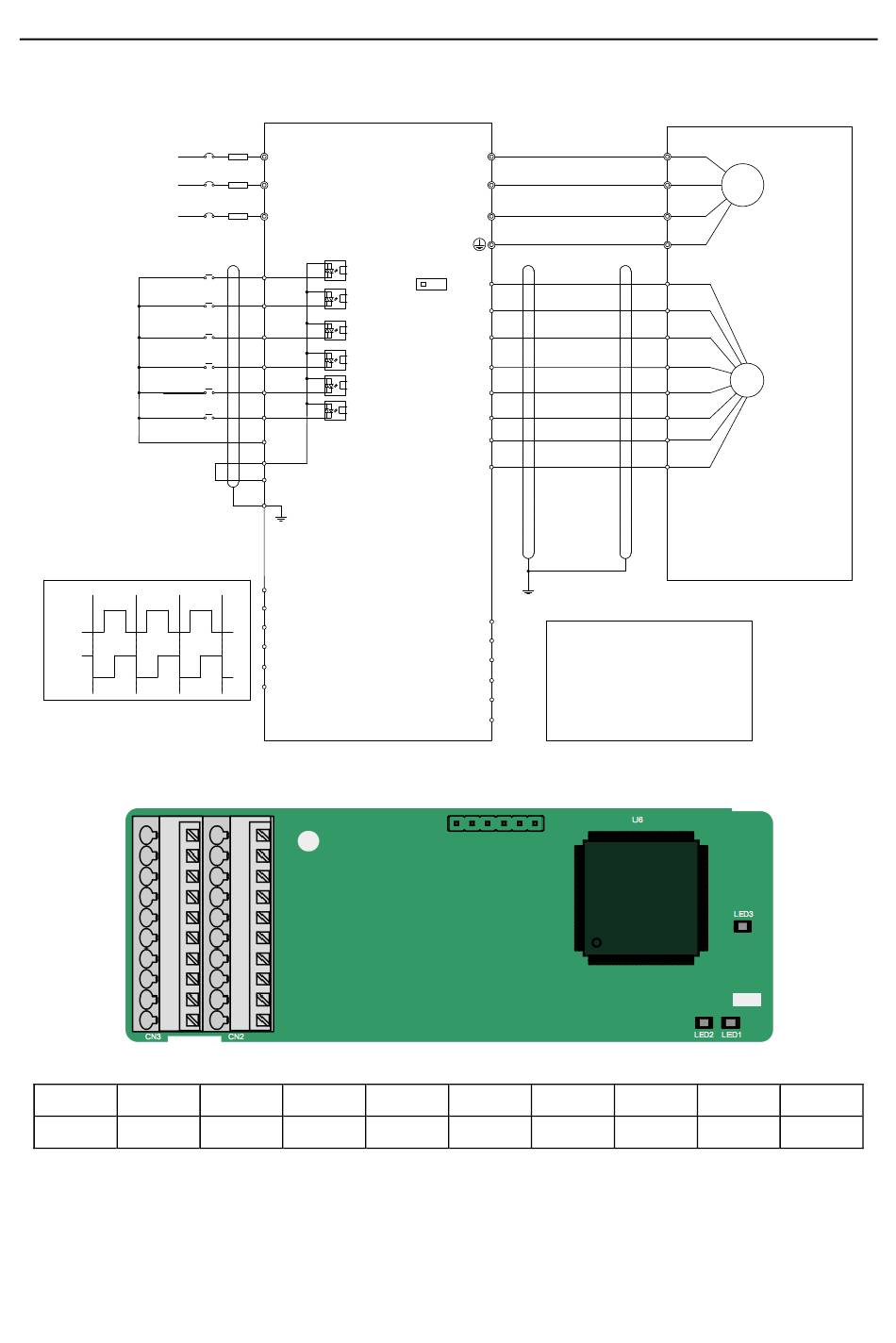

The following figure shows the external wiring of the extension card used in combination with a
differential encoder.
FWD run
FWD jog
Fault reset
pulse A
pulse B
A.7.5 24 V multi-function incremental PG card——EC-PG505-24
The terminals are arranged as follows:
PE AO
GND PGND
R
S
T
S1
S2
S3
S4
HDIA
HDIB
COM
PW
+24V
PE
AO+
AO-
BO+
BO-
ZO+
ZO-
BO A1+ B1+
ZO A1- B1-
U
V
W
SW1
PWR
5V
12V
PGND
A1+
A1-
B1+
B1-
Z1+
Z1-
A2+
A2-
B2+
B2-
Z2+
Z2-
Z1+ A2+
Z1- A2-
-319-
Extension cards
U
V
M3~
W
PG
CNC
PLC
Upper computer
B2+ Z2+
B2- Z2-
PWR
PGND
