4.2.5 Multiple-unit installation
A
B
A
Note:
When you install VFDs in different sizes, align the top of each VFD before installation for the
convenience of future maintenance.
For clearances B, D and C, each must be at least 100mm.
D
B

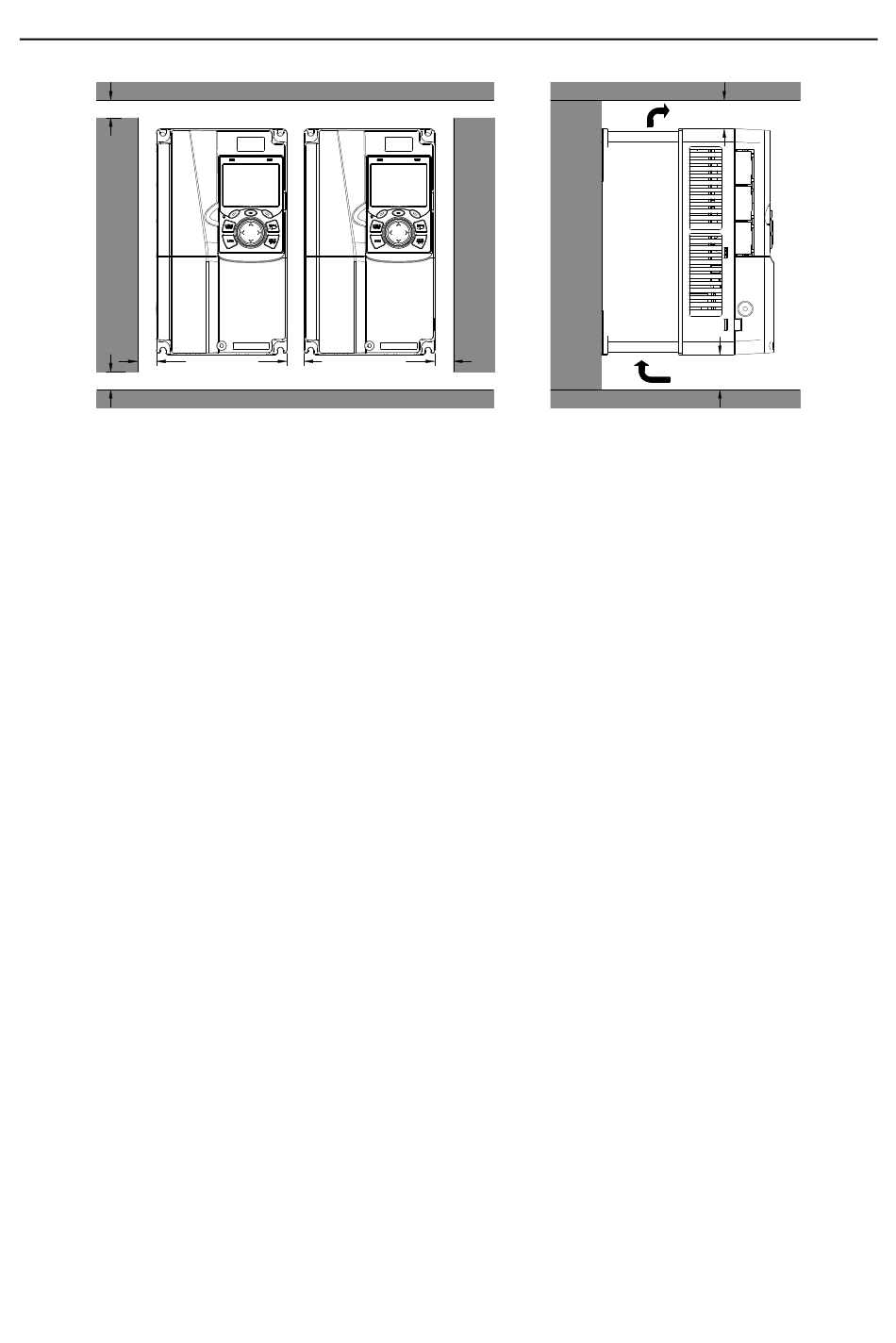

Figure 4.4 Parallel installation
-18-
Installation guide
Hot air
C
Cold air
C
