Goodrive350 series high-performance multifunction VFD

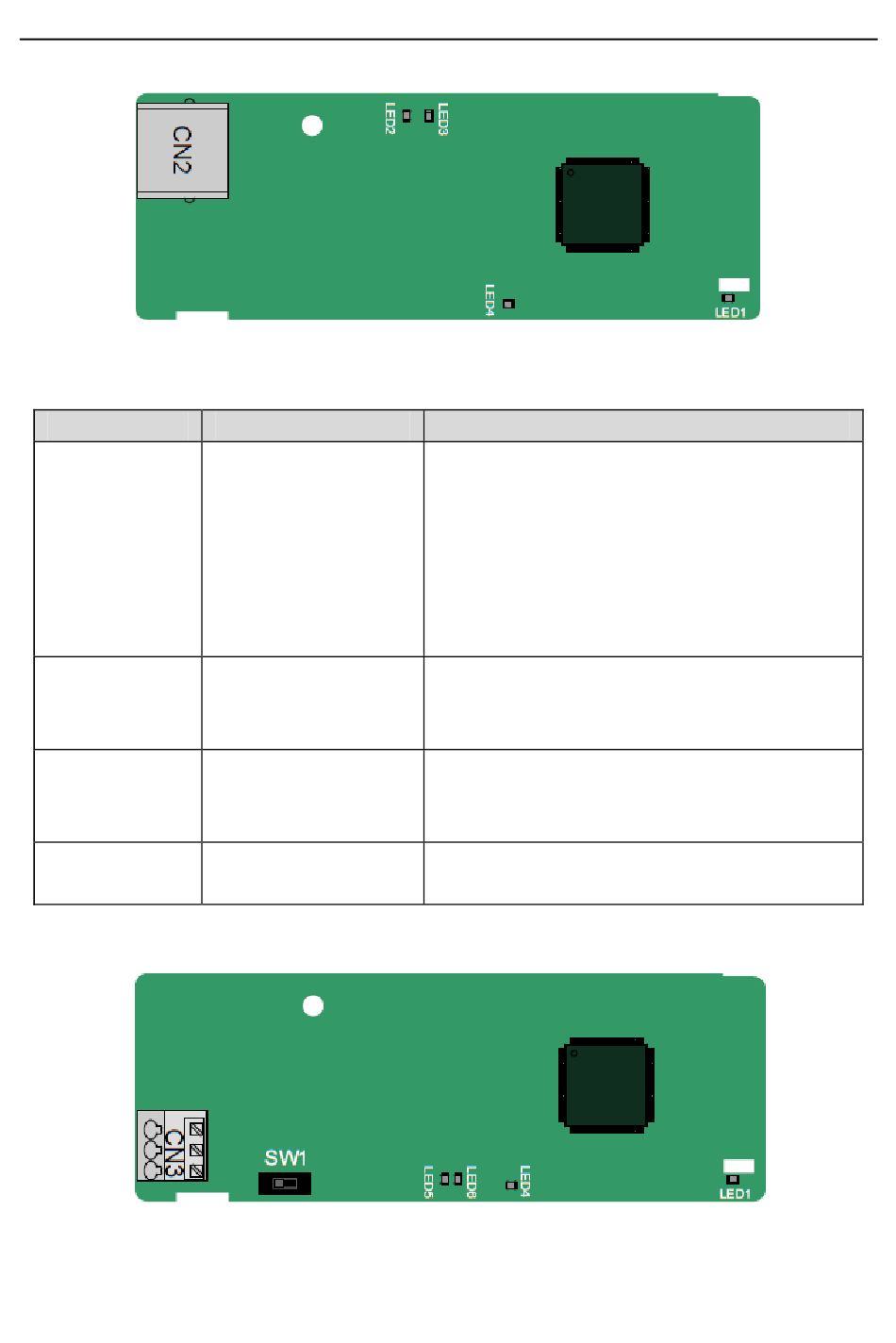

A.6.3 Ethernet communication card––EC-TX504
The EC-TX504 communication card adopts standard RJ45 terminals.
Indicator definition:
Indicator No.
LED1
LED2
LED3
LED4
A.6.4 CANopen communication

communication card EC-TX511

The EC-TX505 communication card is user-friendly, adopting spring terminals.
Definition
State indicator
Network connection
status indicator
Network
communication status
indicator
Power indicator
card––EC-TX505
This indicator is on when the extension card is
establishing a connection with the control board;
it blinks periodically after the extension card is
properly connected to the control board (the
period is 1s, on for 0.5s, and off for the other
0.5s); and it is off when the extension card is
disconnected from the control board.
This indicator is on when the physical connection
to the upper computer is normal; it is off when
the upper computer is disconnected.
This indicator is on when there is data exchange
with the upper computer; it is off when there is no
data exchange with the upper computer.
This indicator is on after the control board feeds
power to the communication card.
and
-305-
Extension cards
Function
CAN master/slave control
