Cable Arrangement; Insulation Inspection - INVT Goodrive350 Series Operation Manual

Goodrive350 series high-performance multifunction VFD
VFD model
GD350-200G-6
GD350-220G-6
GD350-250G-6
GD350-280G-6
GD350-315G-6
GD350-355G-6
GD350-400G-6
GD350-450G-6
GD350-500G-6
GD350-560G-6
GD350-630G-6
Note:

Cables of the sizes recommended for the main circuit can be used in scenarios where the
ambient temperature is lower than 40° C, the wiring distance is shorter than 100 m, and the
current is the rated current.

The terminals P1, (+), and (-) are used to connect to DC reactors and brake accessories.
D.4.4 Cable arrangement
Motor cables must be arranged away from other cables. The motor cables of several VFDs can be
arranged in parallel. It is recommended that you arrange the motor cables, input power cables, and
control cables separately in different trays. The output dU/dt of the VFDs may increase
electromagnetic interference on other cables. Do not arrange other cables and the motor cables in
parallel.
If a control cable and power cable must cross each other, ensure that the angle between them is 90
degrees.
The cable trays must be connected properly and well grounded. Aluminum trays can implement local
equipotential.

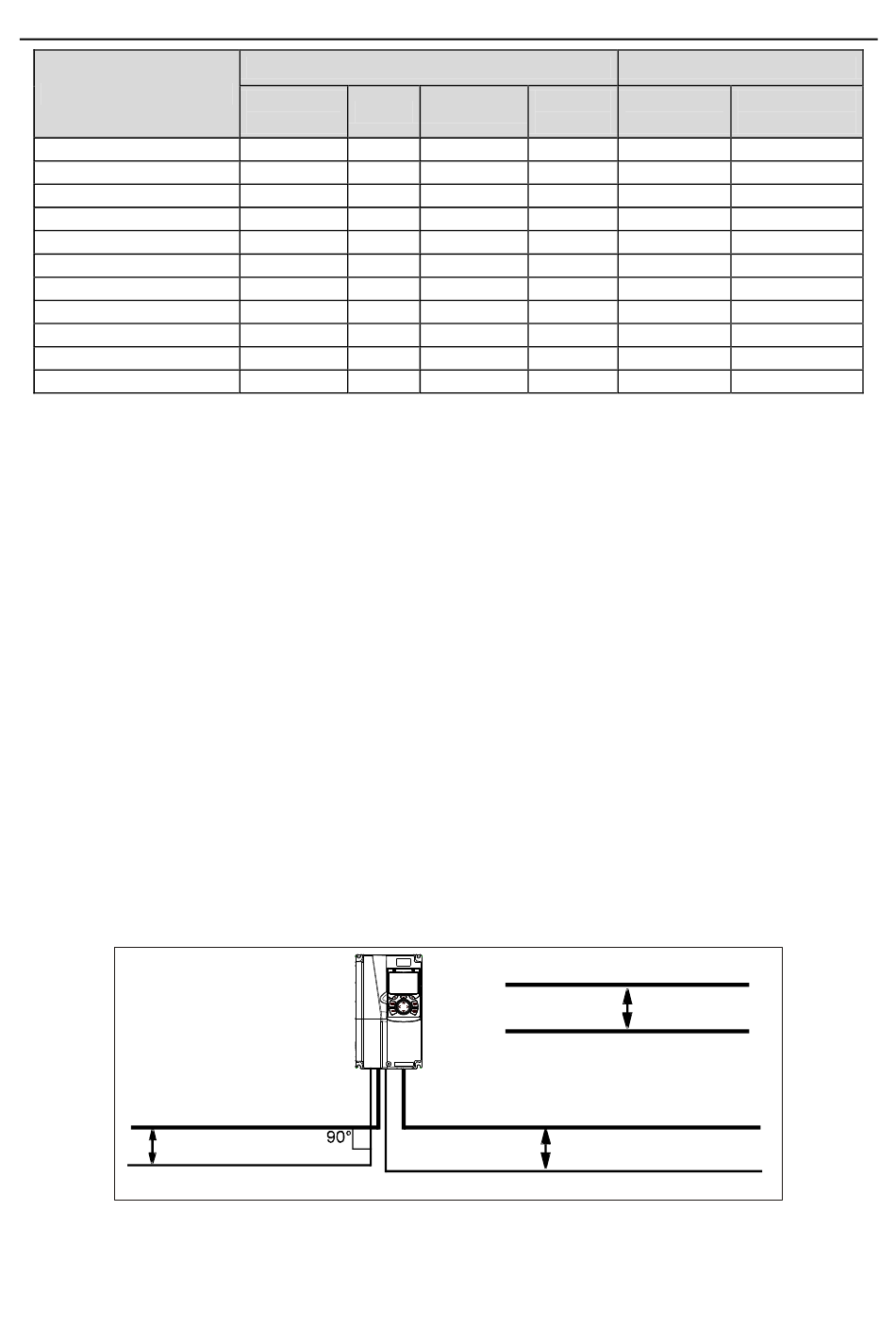

The following figure shows the cable arrangement distance requirements.
Input power cable
Min. distance:
Control cable
D.4.5 Insulation inspection
Check the motor and the insulation conditions of the motor cable before running the motor.
Recommended cable size (mm² )
R, S, T
U, V, W
70
95
95
120
150
185
2×70
2×95
2×120
2×150
2×150
200 mm
Cable arrangement distances
PE P1, (+)
35 70
50 95
50 95
70 120
70 150
95 185
70 2×70
95 2×95
120 2×120
150 2×150
150 2×150
Motor cable
Power cable
-342-
Optional peripheral accessories
PB, (+), Terminal
(-) screw
70 M12
95 M12
95 M12
120 M12
150 M12
185 M12
2×70 M12
2×95 M12
2×120 M12
2×150 M12
2×150 M12
Min. distance:
300 mm
Motor cable
Min. distance: 500 mm
Control cable
Screw
Fastening
torque (Nm)
31–40
31–40
31–40
31–40
31–40
31–40
31–40
31–40
31–40
31–40
31–40
