Goodrive350 series high-performance multifunction VFD
R
S
T
PE
R
S
T
PE
Note:

The 132kW and higher VFD models can be connected to external DC reactors. Before
connection, remove the copper bar between P1 and (+). The 132kW and higher VFD models can
be connected to external braking unit. DC reactors and braking units are optional parts.

The 18.5kW–110kW (inclusive) VFD models are equipped with built-in DC reactors.

The 37kW and lower VFD models carry built-in braking units, which are optional for the 45kW–
110kW (inclusive) models. The models with built-in braking units can also be connected to
external braking resistors. Braking resistors are optional parts.

The 660V VFD models can be connected to external DC reactors. Before connection, remove the
copper bar between P1 and (+). These models can be connected to external braking unit. DC
reactors and braking units are optional parts.
（+）
DC reactor
P1

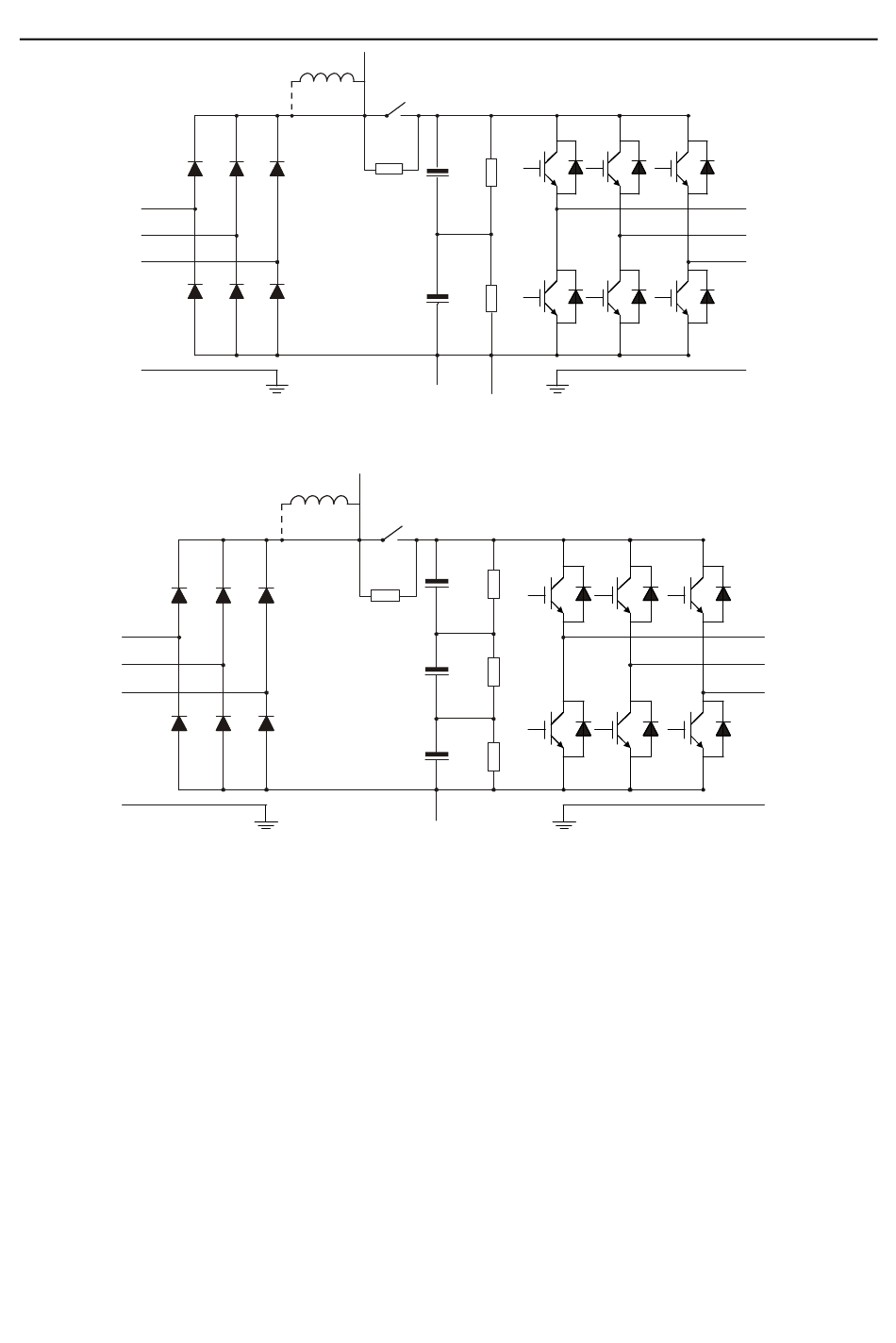

Figure 3.3 380V (132kW and higher) main circuit diagram
（+）
DC reactor
P1
Figure 3.4 660V main circuit diagram
（-）
（-）
-8-
Product overview
U
V
W
PE
U
V
W
PE
