Goodrive350 series high-performance multifunction VFD
2
No.
1 Upper cover
2 Keypad
3 Lower cover
4 Extension card
5 Baffle of control board
6 Cooling fan
7 Keypad interface
8 Nameplate
9 Control terminals
Cover plate of heat emission
10
hole
11 Main circuit terminal
12 POWER indicator
13 GD350 product series label
1
4
3

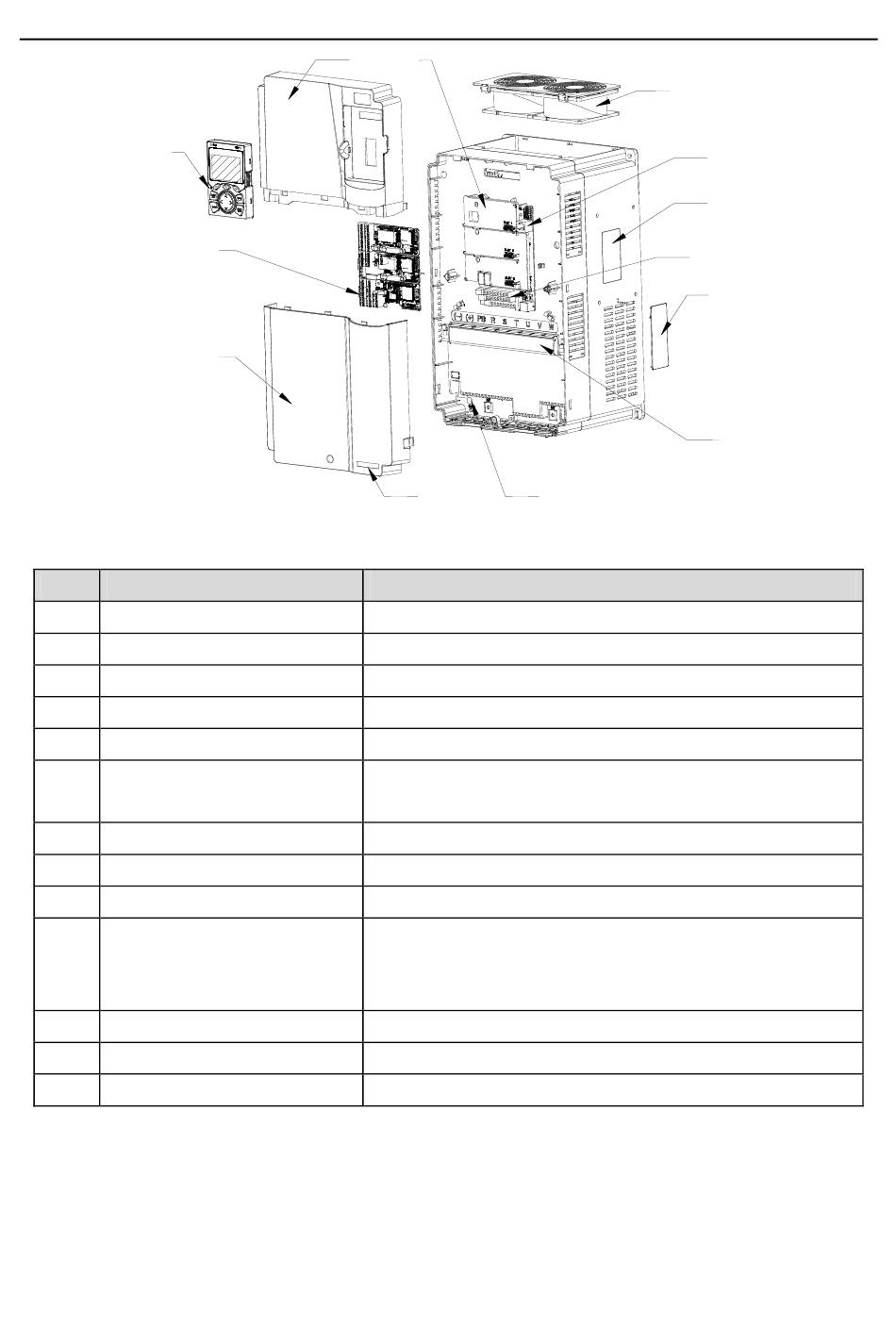

Figure 3.7 Structure diagram
Item
Protects internal components and parts.
For details, see section 5.4 Keypad operation.
Protects internal components and parts.
Optional. For details, see Appendix A Extension cards.
Protects the control board and install extension card.
For details, see chapter 8 Maintenance and hardware
fault diagnosis.
Connects the keypad.
For details, see section 3.4 Product nameplate.
For details, see chapter 4 Installation guide.
Optional. Cover plate can upgrade protection level,
however, as it will also increase internal temperature,
derated use is required.
For details, see chapter 4 Installation guide.
Power indicator.
For details, see section 3.5 Type designation key.
5
13
12
Description
-14-
Product overview
6
7
8
9
10
11
