INVT Goodrive350 Series Operation Manual page 168

Goodrive350 series high-performance multifunction VFD
Function
Name
code
P05.09 Digital filter time
Virtual terminal
P05.10
setting
2/3 Wire control
P05.11
mode
Description
When the bit is set to 0, input terminal polarity is
positive;
When the bit is set to 1, input terminal polarity is
negative;
0x000–0x3F
Set S1–S4, filter time of HDI terminal sampling. In
cases where interference is strong, increase the
value of this parameter to avoid mal-operation.
0.000–1.000s
0x000–0x3F (0: disable, 1: enable)
BIT0: S1 virtual terminal
BIT1: S2 virtual terminal
BIT2: S3 virtual terminal
BIT3: S4 virtual terminal
BIT4: HDIA virtual terminal
BIT5: HDIB virtual terminal

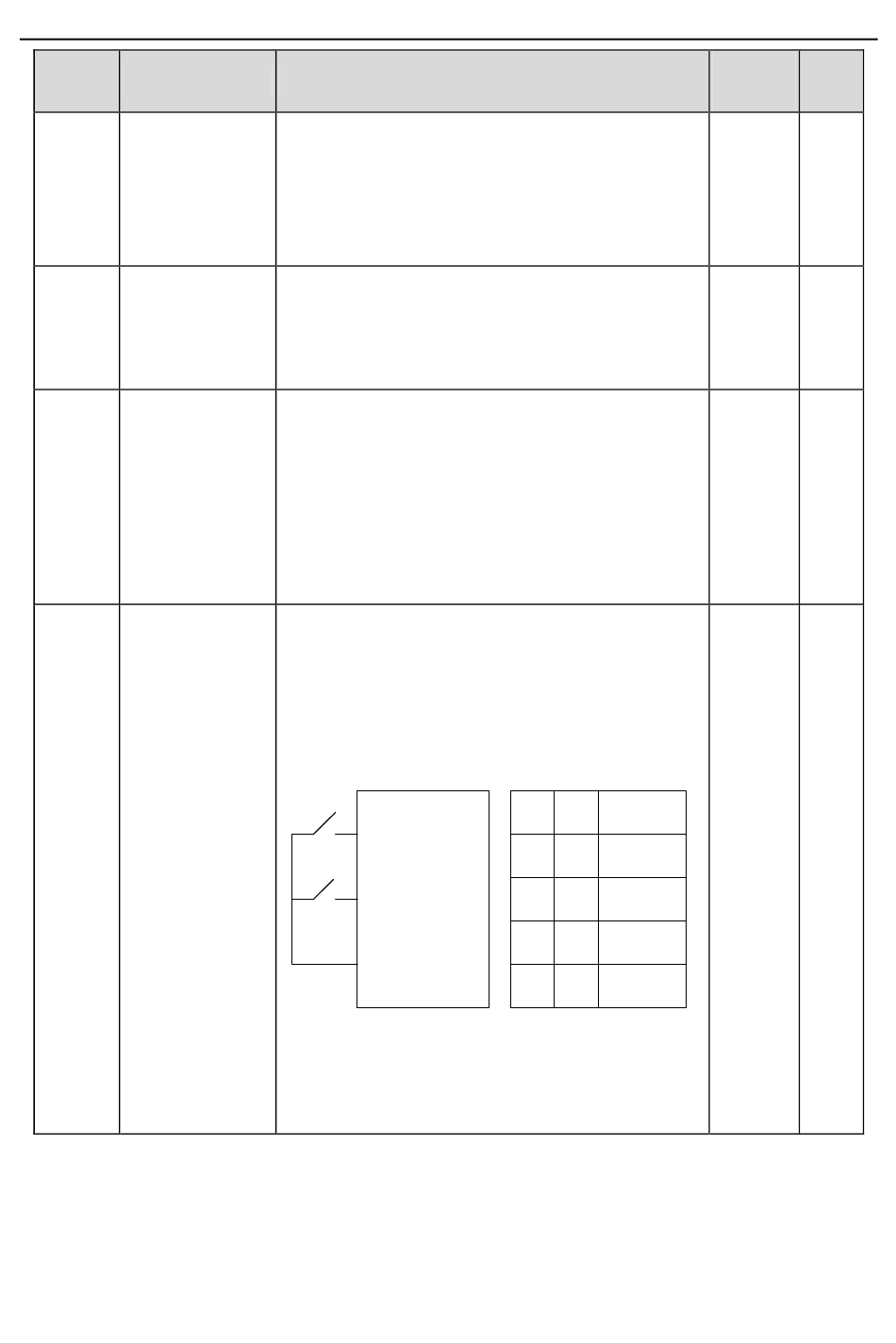

This function code is used to set the 2/3 Wire
control mode.
0: 2-Wire control 1; integrate enabling function with
direction. This mode is the most popular dual-line
mode. Direction of motor rotation is determined by
the defined FWD/REV terminal command.
FWD
K1
REV
K2
COM
1: 2-wire control 2; separate enabling function with
direction. In this mode, the defined FWD is
enabling terminal, and the direction is determined
by the state of REV.
-159-
Function parameter list
Running
FWD REV
command
OFF OFF Stop
Forward
ON OFF
running
Reverse
OFF ON
running
ON ON
Hold
Default
Modify
value
○
0.010s
◎
0x00
◎
0
