Goodrive350 series high-performance multifunction VFD
W1
H1

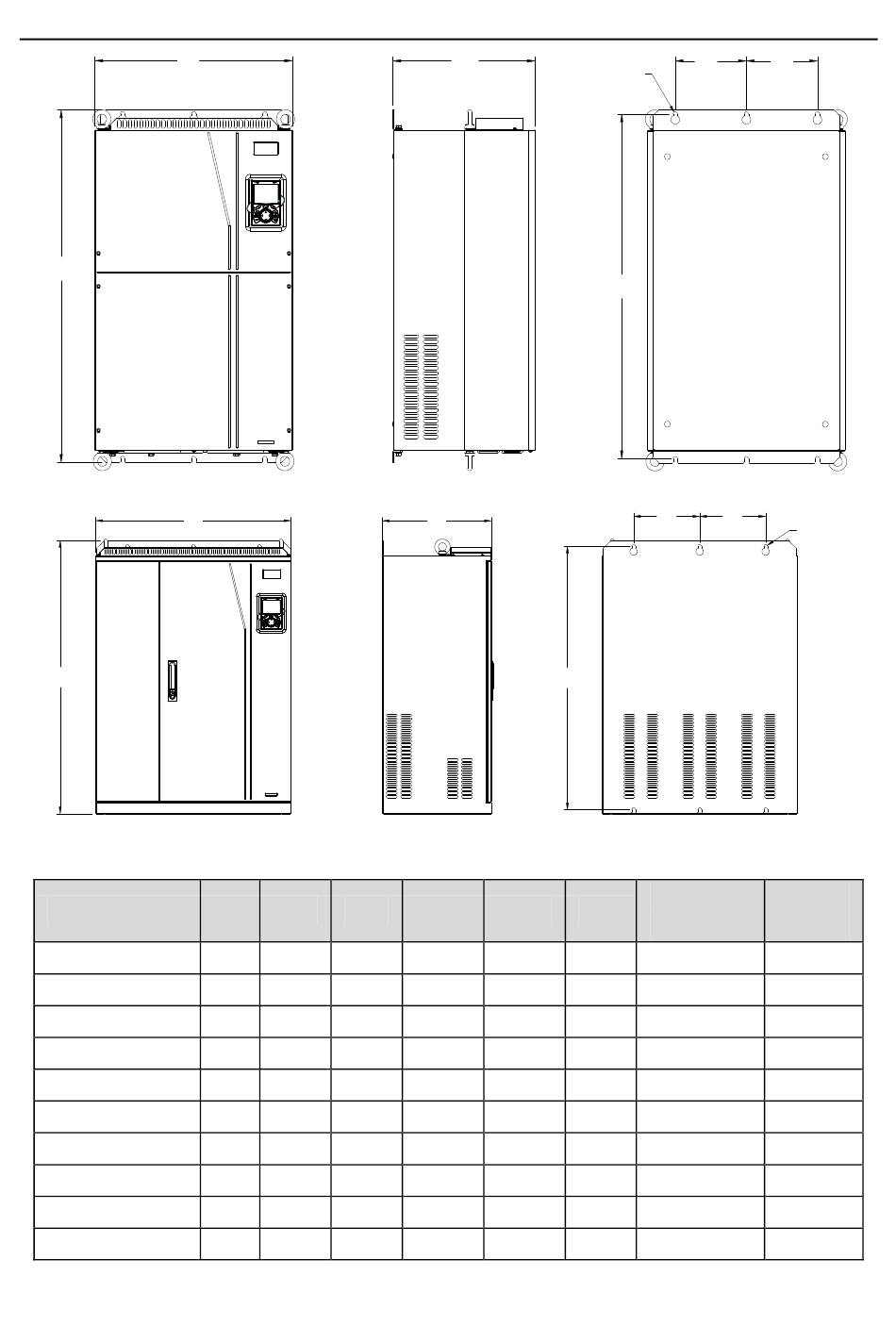

Figure C.7 Wall-mounting diagram for 380V 132–200kW models
W1
H1
Figure C.8 Wall-mounting diagram for 380V 220–315kW models
Table C.1 Wall-mounting dimensions of 380V VFD models (unit: mm)
VFD model
1.5kW–2.2kW
4kW–5.5kW
7.5kW
11kW–15kW
18.5kW–22kW
30kW–37kW
45kW–75kW
90kW–110kW
132kW–200kW
220kW–315kW
W1 W2 W3
126 115 -
126 115 -
146 131 -
170 151 -
200 185 -
250 230 -
282 160 226
338 200 -
500 180 -
680 230 -
D1
D1
H2
H1 H2 D1
186 175 185
186 175 201
256 243.5 192
320 303.5 220
340.6 328.6 208
400 380 223
560 542 258
554 535 330
870 850 360
960 926 380
-330-
Dimension drawings
W2
6- ø11.0
H2
W2 W2
Installation
hole
Ø 5
Ø 5
Ø 6
Ø 6
Ø 6
Ø 6
Ø 9
Ø 10
Ø 11
Ø 13
W2
6- ø13.0
Fixing
screw
M4
M4
M5
M5
M5
M5
M8
M8
M10
M12
