REJ09B0259-0700

16

Rev. 7.00

Revision Date: Sep 21, 2005

The revision list can be viewed directly by

clicking the title page.

The revision list summarizes the locations of

revisions and additions. Details should always

be checked by referring to the relevant text.

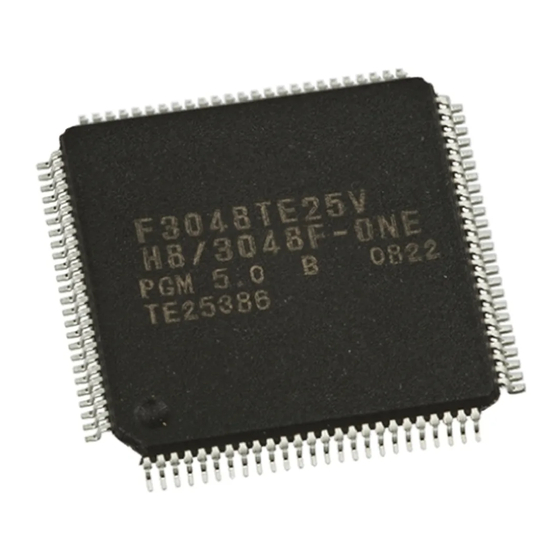

H8/3048

Renesas 16-Bit Single-Chip Microcomputer

, H8/3048 F-ZTAT

Group

H8 Family/H8/300H Series

H8/3048

H8/3047

H8/3045

H8/3044

H8/3048F HD64F3048

Hardware Manual

HD6473048,

HD6433048

HD6433047

HD6433045

HD6433044

Table of Contents

Advertisement

Need help?

Need help?

Do you have a question about the F-ZTAT H8 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Renesas F-ZTAT H8 Series

Page 1 The revision list summarizes the locations of revisions and additions. Details should always be checked by referring to the relevant text. H8/3048 , H8/3048 F-ZTAT Group Hardware Manual Renesas 16-Bit Single-Chip Microcomputer H8 Family/H8/300H Series H8/3048 HD6473048, HD6433048 H8/3047 HD6433047...
Page 2 (iii) prevention against any malfunction or mishap. Notes regarding these materials 1. These materials are intended as a reference to assist our customers in the selection of the Renesas Technology Corp. product best suited to the customer's application; they do not convey any license under any intellectual property rights, or any other rights, belonging to Renesas Technology Corp.
Page 3 This manual describes the H8/3048 Group hardware. For details of the instruction set, refer to the H8/300H Series Programming Manual. Notes: 1. ZTAT™ (Zero Turn-Around-Time) is a trademark of Renesas Technology, Corp. 2. F-ZTAT™ (Flexible ZTAT) is a trademark of Renesas Technology, Corp.
Page 4 Rev. 7.00 Sep 21, 2005 page iv of xxiv...
Page 5 Comparison of H8/3048 Group Product Specifications There are seven members of the H8/3048 Group; the H8/3048F-ZTAT (H8/3048F * , H8/3048F- ONE * ), H8/3048ZTAT, H8/3048 mask ROM version, H8/3047 mask ROM version, H8/3045 mask ROM version, and H8/3044 mask ROM version. The specifications of each model is compared below.
Page 6 Hardware Manual H8/3048 Group H8/3048F-ONE ROM Type ZTAT Mask ROM F-ZTAT ROM Capacity 128 kbytes H8/3048: 128 kbytes 128 kbytes 128 kbytes H8/3047: 96 kbytes H8/3045: 64 kbytes H8/3044: 32 kbytes Flash Memory — — Refer to section 19, Refer to section 18, ROM (H8/3048F).
Page 7: Sample Program
Page Revision (See Manual for Details)  All references to Hitachi, Hitachi, Ltd., Hitachi Semiconductors, and other Hitachi brand names changed to Renesas Technology Corp. Designation for categories changed from “series” to “group” 13.2.6 Serial Control Table amended Register (SCR)
Page 8 Item Page Revision (See Manual for Details) 19.5.6 Erasing Figure amended Flowchart and : 4 µs 5. t Sample Program Set top address in block 5 to 10 µs as verify address : 2 µs Flowchart for Wait initial value setting x = 6.25 ms Erasing One Block 6.
Page 9 Item Page Revision (See Manual for Details) 19.5.6 Erasing Figure amended Flowchart and Sample Program Notes: 1. Use a byte transfer instruction. Write H'00 to flash memory 2. Set the watchdog timer overflow (flash memory latches interval by setting CKS2 = 0, Prewrite Flowchart write address and write data) CKS1 = 0 and CKS0 = 1.
Page 10 Item Page Revision (See Manual for Details) 19.5.6 Erasing Figure amended Flowchart and 5. t : 4 µs Sample Program Wait initial value setting x = 6.25 ms 5 to 10 µs : 2 µs Flowchart for Enable watchdog timer Erasing Multiple Select erase mode (E bit = 1 in FLMCR) 6.
Page 11: Table Of Contents
Contents Section 1 Overview ......................Overview........................... Block Diagram ........................Pin Description........................1.3.1 Pin Arrangement ....................1.3.2 Pin Assignments in Each Mode ................10 1.3.3 Pin Functions ....................... 15 Differences between H8/3048F and H8/3048F-ONE ............20 Section 2 ........................25 Overview........................... 25 2.1.1 Features ........................
Page 12 2.8.5 Bus-Released State....................60 2.8.6 Reset State......................60 2.8.7 Power-Down State ....................60 Basic Operational Timing ....................61 2.9.1 Overview......................61 2.9.2 On-Chip Memory Access Timing................ 61 2.9.3 On-Chip Supporting Module Access Timing............62 2.9.4 Access to External Address Space ............... 63 Section 3 MCU Operating Modes ................
Page 13 Section 5 Interrupt Controller ..................91 Overview........................... 91 5.1.1 Features ........................ 91 5.1.2 Block Diagram ..................... 92 5.1.3 Pin Configuration....................93 5.1.4 Register Configuration..................93 Register Descriptions ......................94 5.2.1 System Control Register (SYSCR) ..............94 5.2.2 Interrupt Priority Registers A and B (IPRA, IPRB)..........95 5.2.3 IRQ Status Register (ISR)..................
Page 14 Operation .......................... 133 6.3.1 Area Division....................... 133 6.3.2 Chip Select Signals ....................134 6.3.3 Data Bus....................... 136 6.3.4 Bus Control Signal Timing .................. 137 6.3.5 Wait Modes......................145 6.3.6 Interconnections with Memory (Example) ............151 6.3.7 Bus Arbiter Operation..................153 Usage Notes ........................
Page 15 Register Descriptions (Short Address Mode)..............203 8.2.1 Memory Address Registers (MAR) ..............203 8.2.2 I/O Address Registers (IOAR) ................204 8.2.3 Execute Transfer Count Registers (ETCR) ............205 8.2.4 Data Transfer Control Registers (DTCR) ............206 Register Descriptions (Full Address Mode)..............209 8.3.1 Memory Address Registers (MAR) ..............
Page 16 9.2.2 Register Descriptions ................... 262 Port 2..........................264 9.3.1 Overview......................264 9.3.2 Register Descriptions ................... 265 Port 3..........................268 9.4.1 Overview......................268 9.4.2 Register Descriptions ................... 268 Port 4..........................270 9.5.1 Overview......................270 9.5.2 Register Descriptions ................... 271 Port 5..........................274 9.6.1 Overview......................
Page 17 10.2 Register Descriptions ......................327 10.2.1 Timer Start Register (TSTR)................327 10.2.2 Timer Synchro Register (TSNC) ................. 328 10.2.3 Timer Mode Register (TMDR) ................330 10.2.4 Timer Function Control Register (TFCR)............333 10.2.5 Timer Output Master Enable Register (TOER) ........... 335 10.2.6 Timer Output Control Register (TOCR) ..............
Page 18 11.2.1 Port A Data Direction Register (PADDR) ............415 11.2.2 Port A Data Register (PADR)................415 11.2.3 Port B Data Direction Register (PBDDR) ............416 11.2.4 Port B Data Register (PBDR) ................416 11.2.5 Next Data Register A (NDRA) ................417 11.2.6 Next Data Register B (NDRB)................
Page 19 Section 13 Serial Communication Interface ..............451 13.1 Overview........................... 451 13.1.1 Features ........................ 451 13.1.2 Block Diagram ..................... 453 13.1.3 Input/Output Pins ....................454 13.1.4 Register Configuration..................454 13.2 Register Descriptions ......................455 13.2.1 Receive Shift Register (RSR)................455 13.2.2 Receive Data Register (RDR) ................455 13.2.3 Transmit Shift Register (TSR) ................
Page 20 14.3.6 Transmitting and Receiving Data ................ 524 14.4 Usage Notes ........................531 Section 15 A/D Converter ....................535 15.1 Overview........................... 535 15.1.1 Features........................ 535 15.1.2 Block Diagram..................... 536 15.1.3 Input Pins ......................537 15.1.4 Register Configuration..................538 15.2 Register Descriptions ......................539 15.2.1 A/D Data Registers A to D (ADDRA to ADDRD) ..........
Page 21 17.2 System Control Register (SYSCR) ................... 567 17.3 Operation........................... 568 Section 18 ROM (H8/3048ZTAT and Mask-ROM Versions) ....... 569 18.1 Overview........................... 569 18.1.1 Block Diagram ..................... 570 18.2 PROM Mode........................571 18.2.1 PROM Mode Setting.................... 571 18.2.2 Socket Adapter and Memory Map ............... 571 18.3 PROM Programming ......................
Page 22 19.5.8 Protect Modes ...................... 625 19.5.9 NMI Input Masking ..................... 628 19.6 Flash Memory Emulation by RAM................... 629 19.7 Flash Memory PROM Mode..................... 631 19.7.1 PROM Mode Setting.................... 631 19.7.2 Socket Adapter and Memory Map ............... 632 19.7.3 Operation in PROM Mode................... 634 19.8 Flash Memory Programming and Erasing Precautions (Dual-Power Supply) ....
Page 23 21.5.2 Exit from Hardware Standby Mode ..............673 21.5.3 Timing for Hardware Standby Mode ..............673 21.6 Module Standby Function ....................674 21.6.1 Module Standby Timing ..................674 21.6.2 Read/Write in Module Standby................674 21.6.3 Usage Notes ......................675 21.7 System Clock Output Disabling Function................. 676 Section 22 Electrical Characteristics ................
Page 24 Function ..........................764 Appendix C I/O Port Block Diagrams ................. 844 Port 1 Block Diagram ....................... 844 Port 2 Block Diagram ....................... 845 Port 3 Block Diagram ....................... 846 Port 4 Block Diagram ....................... 847 Port 5 Block Diagram ....................... 848 Port 6 Block Diagrams......................
Page 25: Section 1 Overview
The F-ZTAT™ version H8/3048F-ONE includes the on-chip emulator E10T. Table 1.1 summarizes the features of the H8/3048 Group. Notes: 1. ZTAT (Zero Turn-Around Time) is a trademark of Renesas Technology Corp. 2. F-ZTAT (Flexible ZTAT) is a trademark of Renesas Technology Corp.
Page 26 Section 1 Overview Table 1.1 Features Feature Description Upward-compatible with the H8/300 CPU at the object-code level • General-register machine  Sixteen 16-bit general registers (also usable as sixteen 8-bit registers + eight 16-bit registers or eight 32- bit registers) •...
Page 27 Section 1 Overview Feature Description Memory • H8/3048, H8/3048F  ROM: 128 kbytes  RAM: 4 kbytes • H8/3047  ROM: 96 kbytes  RAM: 4 kbytes • H8/3045  ROM: 64 kbytes  RAM: 2 kbytes • H8/3044  ROM: 32 kbytes ...
Page 28 Section 1 Overview Feature Description DMA controller • Short address mode (DMAC)  Maximum four channels available  Selection of I/O mode, idle mode, or repeat mode  Can be activated by compare match/input capture A interrupts from ITU channels 0 to 3, transmit-data-empty and receive-data-full interrupts from SCI channel 0, or external requests •...
Page 29 Section 1 Overview Feature Description Serial • Selection of asynchronous or synchronous mode communication • Full duplex: can transmit and receive simultaneously interface (SCI), • On-chip baud-rate generator 2 channels • Smart card interface functions added (SCI0 only) A/D converter •...
Page 30 Section 1 Overview Feature Description Other features • On-chip clock pulse generator Product lineup Model (5 V) Model (3 V) Package HD64F3048TF HD64F3048VTF 100-pin TQFP (TFP-100B) Flash memory HD64F3048F HD64F3048VF 100-pin QFP (FP-100B) HD6473048TF HD6473048VTF 100-pin TQFP (TFP-100B) PROM HD6473048F HD6473048VF 100-pin QFP (FP-100B) HD6433048TF...
Page 31: Block Diagram
Section 1 Overview Block Diagram Figure 1.1 shows an internal block diagram. Port 3 Port 4 Address bus Data bus (upper) Data bus (lower) EXTAL XTAL φ H8/300H CPU STBY /RESO * Interrupt controller /LWR DMA controller (DMAC) /HWR (mask ROM, PROM, or flash /BACK memory)
Page 32: Pin Description
Section 1 Overview Pin Description 1.3.1 Pin Arrangement Figure 1.2 shows the pin arrangement of the H8/3048 Group. The pin arrangement of the H8/3048 Group is shown in figure 1.2. Differences in the H8/3048 Group pin arrangements are shown in table 1.2. Except for the differences shown in table 1.2, the pin arrangements are the same.
Page 33 Section 1 Overview Top view /RFSH/IRQ /IRQ (FP-100B, TFP-100B) /IRQ /IRQ /TEND /TCLKA /TEND /TCLKB /TIOCA /TCLKC /TIOCB /TCLKD /TIOCA /TIOCB /TIOCA /TIOCB Note: * For the mask ROM version, this pin is also used as the RESO terminal. For the PROM version and the flash memory version dual power method, this pin is also used as the RESO/V terminal.
Page 34: Pin Assignments In Each Mode
Section 1 Overview 1.3.2 Pin Assignments in Each Mode Table 1.3 lists the pin assignments in each mode. Table 1.3 Pin Assignments in Each Mode (FP-100B or TFP-100B) Pin Name PROM Mode Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7...
Page 35 Section 1 Overview Pin Name PROM Mode Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 EPROM Flash Remarks RESO RESO RESO RESO RESO RESO RESO 10 * Mask version, PROM version and flash memory version with dual power...
Page 36 Section 1 Overview Pin Name PROM Mode Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 EPROM Flash Remarks WAIT WAIT WAIT WAIT WAIT WAIT BREQ BREQ BREQ BREQ BREQ BREQ BACK BACK BACK BACK BACK BACK φ...
Page 37 Section 1 Overview Pin Name PROM Mode Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 EPROM Flash Remarks /IRQ RFSH/ RFSH/ RFSH/ RFSH/ RFSH/ RFSH/ /IRQ /IRQ /IRQ TEND TEND TEND TEND TEND TEND TEND TCLKA TCLKA...
Page 38 Section 1 Overview Pin Name PROM Mode Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 EPROM Flash Remarks TIOCA TIOCA TIOCA TIOCA TIOCA TIOCA TIOCA TIOCB TIOCB TIOCB TIOCB TIOCB TIOCB TIOCB TIOCA TIOCA TIOCA TIOCA TIOCA...
Page 39: Pin Functions
Section 1 Overview 1.3.3 Pin Functions Table 1.4 summarizes the pin functions. Table 1.4 Pin Functions Type Symbol Pin No. Name and Function Power 1, 35, 68 Input Power: For connection to the power supply. Connect all V pins to the system power supply.
Page 40 Section 1 Overview Type Symbol Pin No. Name and Function System control Input Reset input: When driven low, this pin resets the chip RESO Output Reset output: For the mask ROM version, outputs a reset signal to external devices Also used as a power supply for on-board (RESO/V programming of the flash memory version with dual power supply.
Page 41 Section 1 Overview Type Symbol Pin No. Name and Function RFSH Refresh Output Refresh: Indicates a refresh cycle controller Row address strobe RAS RAS: Row address Output strobe signal for DRAM connected to area 3 Column address strobe CAS CAS: Column Output address strobe signal for DRAM connected to area 3;...
Page 42 Section 1 Overview Type Symbol Pin No. Name and Function Programmable to TP 9 to 2, Output TPC output 15 to 0: Pulse output timing pattern 100 to 93 controller (TPC) Serial , TxD 13, 12 Output Transmit data (channels 0 and 1): communication SCI data output interface (SCI)
Page 43 Section 1 Overview Type Symbol Pin No. Name and Function I/O ports to P6 72 to 69, Input/ Port 6: Seven input/output pins. The 60 to 58 output direction of each pin can be selected in the port 6 data direction register (P6DDR). to P7 85 to 78 Input...
Page 44: Differences Between H8/3048F And H8/3048F-One
Section 1 Overview Differences between H8/3048F and H8/3048F-ONE Table 1.5 shows the differences between the H8/3048F (dual power supply model) and H8/3048F- ONE (single power supply model). Table 1.5 Differences between H8/3048F and H8/3048F-ONE Models with Dual Power Supply: Models with Single Power Supply: H8/3048F-ONE * Item H8/3048F...
Page 45 Section 1 Overview Models with Dual Power Supply: Models with Single Power Supply: H8/3048F-ONE * H8/3048F Item Write Before writing, sets the block with the No setting processing address to be written to EBR1/EBR2 FLMCR FLMCR (H'FF40) FLMCR1 (H'FF40) — —...
Page 46 Section 1 Overview Models with Dual Power Supply: Models with Single Power Supply: H8/3048F-ONE * Item H8/3048F Division of RAM On-chip RAM Flash memory On-chip RAM Flash memory emulation block H'EF10 H'00000 H'EF10 H'00000 H'F000 H'00400 H'F1FF H'F000 H'00800 H'00C00 H'1EFFF H'01000 H'F3FF...
Page 47 Section 1 Overview Models with Dual Power Supply: Models with Single Power Supply: H8/3048F-ONE * H8/3048F Item Clock oscillator Setting of standby timer select Setting of standby timer select settling time bits 2 to 0 bits 2 to 0 (SYSCR STS2– STS2 STS1 STS0...
Page 48 Section 1 Overview Rev. 7.00 Sep 21, 2005 page 24 of 878 REJ09B0259-0700...
Page 49: Section 2 Cpu
Section 2 CPU Section 2 CPU Overview The H8/300H CPU is a high-speed central processing unit with an internal 32-bit architecture that is upward-compatible with the H8/300 CPU. The H8/300H CPU has sixteen 16-bit general registers, can address a 16-Mbyte linear address space, and is ideal for realtime control. 2.1.1 Features The H8/300H CPU has the following features.
Page 50: Differences From H8/300 Cpu
Section 2 CPU 18 MHz (H8/3048ZTAT, H8/3048 mask ROM, H8/3047 mask ROM, H8/3045 mask ROM, H8/3044 mask ROM) 16 MHz (H8/3048F)  8/16/32-bit register-register add/subtract: 111 ns @ 18 MHz/125 ns @ 16 MHz  8 × 8-bit register-register multiply: 778 ns @ 18 MHz/875 ns @ 16 MHz ...
Page 51: Cpu Operating Modes
Section 2 CPU CPU Operating Modes The H8/300H CPU has two operating modes: normal and advanced. Normal mode supports a maximum 64-kbyte address space. Advanced mode supports up to 16 Mbytes. See figure 2.1. The H8/3048 Group can be used only in advanced mode. (Information from this point on will apply to advanced mode unless otherwise stated.) Maximum 64 kbytes, program Normal mode...
Page 52: Address Space
Section 2 CPU Address Space The maximum address space of the H8/300H CPU is 16 Mbytes. The H8/3048 Group has various operating modes (MCU modes), some providing a 1-Mbyte address space, the others supporting the full 16 Mbytes. Figure 2.2 shows the address ranges of the H8/3048 Group. For further details see section 3.6, Memory Map in Each Operating Mode.
Page 53: Register Configuration
Section 2 CPU Register Configuration 2.4.1 Overview The H8/300H CPU has the internal registers shown in figure 2.3. There are two types of registers: general registers and control registers. Figure 2.3 CPU Internal Registers Rev. 7.00 Sep 21, 2005 page 29 of 878 REJ09B0259-0700...
Page 54: General Registers
Section 2 CPU 2.4.2 General Registers The H8/300H CPU has eight 32-bit general registers. These general registers are all functionally alike and can be used without distinction between data registers and address registers. When a general register is used as a data register, it can be accessed as a 32-bit, 16-bit, or 8-bit register. When the general registers are used as 32-bit registers or as address registers, they are designated by the letters ER (ER0 to ER7).
Page 55: Control Registers
Section 2 CPU General register ER7 has the function of stack pointer (SP) in addition to its general-register function, and is used implicitly in exception handling and subroutine calls. Figure 2.5 shows the stack. Free area SP (ER7) Stack area Figure 2.5 Stack 2.4.3 Control Registers...
Page 56: Initial Cpu Register Values
Section 2 CPU When the ADD.L, SUB.L, CMP.L, or NEG.L instruction is executed, the H flag is set to 1 if there is a carry or borrow at bit 27, and cleared to 0 otherwise. • Bit 4—User Bit (U): Can be written and read by software using the LDC, STC, ANDC, ORC, and XORC instructions.
Page 57: Data Formats
Section 2 CPU Data Formats The H8/300H CPU can process 1-bit, 4-bit (BCD), 8-bit (byte), 16-bit (word), and 32-bit (longword) data. Bit-manipulation instructions operate on 1-bit data by accessing bit n (n = 0, 1, 2, …, 7) of byte operand data. The DAA and DAS decimal-adjust instructions treat byte data as two digits of 4-bit BCD data.
Page 58 Section 2 CPU General Data Type Register Data Format Word data Word data Longword data Legend ERn: General register General register E General register R RnH: General register RH RnL: General register RL MSB: Most significant bit LSB: Least significant bit Figure 2.7 General Register Data Formats (2) Rev.
Page 59: Memory Data Formats
Section 2 CPU 2.5.2 Memory Data Formats Figure 2.8 shows the data formats on memory. The H8/300H CPU can access word data and longword data on memory, but word or longword data must begin at an even address. If an attempt is made to access word or longword data at an odd address, no address error occurs but the least significant bit of the address is regarded as 0, so the access starts at the preceding address.
Page 60: Instruction Set
Section 2 CPU Instruction Set 2.6.1 Instruction Set Overview The H8/300H CPU has 62 types of instructions, which are classified in table 2.1. Table 2.1 Instruction Classification Function Instruction Types MOV, PUSH * , POP * , MOVTPE * , MOVFPE * Data transfer Arithmetic operatiozns ADD, SUB, ADDX, SUBX, INC, DEC, ADDS, SUBS, DAA, DAS, MULXU, MULXS, DIVXU, DIVXS, CMP, NEG, EXTS,...
Page 61: Instructions And Addressing Modes
Section 2 CPU 2.6.2 Instructions and Addressing Modes Table 2.2 indicates the instructions available in the H8/300H CPU. Table 2.2 Instructions and Addressing Modes Addressing Modes Function Instruction Data — — — — transfer POP, PUSH — — — — —...
Page 62: Tables Of Instructions Classified By Function
Section 2 CPU Note: * Not availabe in the H8/3048 Group. 2.6.3 Tables of Instructions Classified by Function Tables 2.3 to 2.10 summarize the instructions in each functional category. The operation notation used in these tables is defined next. Operation Notation General register (destination)* General register (source)* General register*...
Page 63 Section 2 CPU Table 2.3 Data Transfer Instructions Instruction Size* Function (EAs) → Rd, Rs → (EAd) B/W/L Moves data between two general registers or between a general register and memory, or moves immediate data to a general register. (EAs) → Rd MOVFPE Cannot be used in the H8/3048 Group.
Page 64 Section 2 CPU Table 2.4 Arithmetic Operation Instructions Instruction Size* Function Rd ± Rs → Rd, Rd ± #IMM → Rd ADD, SUB B/W/L Performs addition or subtraction on data in two general registers, or on immediate data and data in a general register. (Immediate byte data cannot be subtracted from data in a general register.
Page 65 Section 2 CPU Instruction Size* Function Rd ÷ Rs → Rd DIVXU Performs unsigned division on data in two general registers: either 16 bits ÷ 8 bits → 8-bit quotient and 8-bit remainder or 32 bits ÷ 16 bits → 16-bit quotient and 16-bit remainder. Rd ÷...
Page 66 Section 2 CPU Table 2.5 Logic Operation Instructions Instruction Size* Function Rd ∧ Rs → Rd, Rd ∧ #IMM → Rd B/W/L Performs a logical AND operation on a general register and another general register or immediate data. Rd ∨ Rs → Rd, Rd ∨ #IMM → Rd B/W/L Performs a logical OR operation on a general register and another general register or immediate data.
Page 67 Section 2 CPU Table 2.7 Bit Manipulation Instructions Instruction Size* Function 1 → (<bit-No.> of <EAd>) BSET Sets a specified bit in a general register or memory operand to 1. The bit number is specified by 3-bit immediate data or the lower 3 bits of a general register.
Page 68 Section 2 CPU Instruction Size* Function C ∨ (<bit-No.> of <EAd>) → C ORs the carry flag with a specified bit in a general register or memory operand and stores the result in the carry flag. C ∨ [¬ (<bit-No.> of <EAd>)] → C BIOR ORs the carry flag with the inverse of a specified bit in a general register or memory operand and stores the result in the carry flag.
Page 69 Section 2 CPU Table 2.8 Branching Instructions Instruction Size Function — Branches to a specified address if a specified condition is true. The branching conditions are listed below. Mnemonic Description Condition BRA (BT) Always (true) Always BRN (BF) Never (false) Never C ∨...
Page 70 Section 2 CPU Table 2.9 System Control Instructions Instruction Size* Function TRAPA — Starts trap-instruction exception handling — Returns from an exception-handling routine SLEEP — Causes a transition to the power-down state (EAs) → CCR Moves the source operand contents to the condition code register. The condition code register size is one byte, but in transfer from memory, data is read by word access.
Page 71: Basic Instruction Formats
Section 2 CPU Table 2.10 Block Transfer Instruction Instruction Size Function if R4L ≠ 0 then EEPMOV.B — @ER5+ → @ER6+, R4L – 1 → R4L repeat until R4L = 0 else next; if R4 ≠ 0 then EEPMOV.W — @ER5+ →...
Page 72: Notes On Use Of Bit Manipulation Instructions
Section 2 CPU Figure 2.9 shows examples of instruction formats. Operation field only NOP, RTS, etc. Operation field and register fields ADD.B Rn, Rm, etc. Operation field, register fields, and effective address extension MOV.B @(d:16, Rn), Rm EA (disp) Operation field, effective address extension, and condition field EA (disp) BRA d:8 Figure 2.9 Instruction Formats...
Page 73 Section 2 CPU to P4 are set as output pins, and are in the low-level output state. In this example, the BCLR instruction is used to make P4 an input port. Before Execution of BCLR Instruction Input/output Input Input Output Output Output Output...
Page 74: Addressing Modes And Effective Address Calculation
Section 2 CPU Addressing Modes and Effective Address Calculation 2.7.1 Addressing Modes The H8/300H CPU supports the eight addressing modes listed in table 2.11. Each instruction uses a subset of these addressing modes. Arithmetic and logic instructions can use the register direct and immediate modes.
Page 75 Section 2 CPU 4 Register Indirect with Post-Increment or Pre-Decrement—@ERn+ or @–ERn: • Register indirect with post-increment—@ERn+ The register field of the instruction code specifies an address register (ERn) the lower 24 bits of which contain the address of a memory operand. After the operand is accessed, 1, 2, or 4 is added to the address register contents (32 bits) and the sum is stored in the address register.
Page 76: Effective Address Calculation
Section 2 CPU 7 Program-Counter Relative—@(d:8, PC) or @(d:16, PC): This mode is used in the Bcc and BSR instructions. An 8-bit or 16-bit displacement contained in the instruction code is sign- extended to 24 bits and added to the 24-bit PC contents to generate a 24-bit branch address. The PC value to which the displacement is added is the address of the first byte of the next instruction, so the possible branching range is –126 to +128 bytes (–63 to +64 words) or –32766 to +32768 bytes (–16383 to +16384 words) from the branch instruction.
Page 77 Section 2 CPU Table 2.13 Effective Address Calculation Addressing Mode and Effective Address Instruction Format Calculation Effective Address Register direct (Rn) Operand is general register contents rm rn Register indirect (@ERn) General register contents Register indirect with displacement @(d:16, ERn)/@(d:24, ERn) General register contents disp Sign extension...
Page 78 Section 2 CPU Addressing Mode and Effective Address Instruction Format Calculation Effective Address Absolute address @aa:8 @aa:8 H'FFFF @aa:16 16 15 Sign exten- sion @aa:24 Immediate Operand is immediate #xx:8, #xx:16, or #xx:32 data Program-counter relative @(d:8, PC) or @(d:16, PC) PC contents Sign disp...
Page 79 Section 2 CPU Addressing Mode and Effective Address Instruction Format Calculation Effective Address Memory indirect @@aa:8 • Normal mode H'0000 16 15 Memory H'00 contents • Advanced mode H'0000 Memory contents Legend: r, rm, rn: Register field Operation field disp: Displacement IMM: Immediate data...
Page 80: Processing States
Section 2 CPU Processing States 2.8.1 Overview The H8/300H CPU has five processing states: the program execution state, exception-handling state, power-down state, reset state, and bus-released state. The power-down state includes sleep mode, software standby mode, and hardware standby mode. Figure 2.11 classifies the processing states.
Page 81: Program Execution State
Section 2 CPU 2.8.2 Program Execution State In this state the CPU executes program instructions in normal sequence. 2.8.3 Exception-Handling State The exception-handling state is a transient state that occurs when the CPU alters the normal program flow due to a reset, interrupt, or trap instruction. The CPU fetches a starting address from the exception vector table and branches to that address.
Page 82 Section 2 CPU Reset External interrupts Exception Interrupt sources Internal interrupts (from on-chip supporting modules) Trap instruction Figure 2.12 Classification of Exception Sources End of bus release Bus request Program execution state End of bus SLEEP release instruction with SSBY = 0 request Exception Bus-released state...
Page 83: Exception-Handling Sequences
Section 2 CPU 2.8.4 Exception-Handling Sequences Reset Exception Handling: Reset exception handling has the highest priority. The reset state is entered when the RES signal goes low. Reset exception handling starts after that, when RES changes from low to high. When reset exception handling starts the CPU fetches a start address from the exception vector table and starts program execution from that address.
Page 84: Bus-Released State
Section 2 CPU 2.8.5 Bus-Released State In this state the bus is released to a bus master other than the CPU, in response to a bus request. The bus masters other than the CPU are the DMA controller, the refresh controller, and an external bus master.
Page 85: Basic Operational Timing
Section 2 CPU Basic Operational Timing 2.9.1 Overview The H8/300H CPU operates according to the system clock (φ). The interval from one rise of the system clock to the next rise is referred to as a “state.” A memory cycle or bus cycle consists of two or three states.
Page 86: On-Chip Supporting Module Access Timing
Section 2 CPU φ Address bus Address High High impedance to D Figure 2.16 Pin States during On-Chip Memory Access 2.9.3 On-Chip Supporting Module Access Timing The on-chip supporting modules are accessed in three states. The data bus is 8 or 16 bits wide, depending on the register being accessed.
Page 87: Access To External Address Space
Section 2 CPU φ Address bus Address High High impedance to D Figure 2.18 Pin States during Access to On-Chip Supporting Modules 2.9.4 Access to External Address Space The external address space is divided into eight areas (areas 0 to 7). Bus-controller settings determine whether each area is accessed via an 8-bit or 16-bit bus, and whether it is accessed in two or three states.
Page 88 Section 2 CPU Rev. 7.00 Sep 21, 2005 page 64 of 878 REJ09B0259-0700...
Page 89: Section 3 Mcu Operating Modes
Section 3 MCU Operating Modes Section 3 MCU Operating Modes Overview 3.1.1 Operating Mode Selection The H8/3048 Group has seven operating modes (modes 1 to 7) that are selected by the mode pins to MD ) as indicated in table 3.1. The input at these pins determines the size of the address space and the initial bus mode.
Page 90: Register Configuration
Section 3 MCU Operating Modes Modes 5 and 6 are externally expanded modes that enable access to external memory and peripheral devices and also enable access to the on-chip ROM. Mode 5 supports a maximum address space of 1 Mbyte. Mode 6 supports a maximum address space of 16 Mbytes. Mode 7 is a single-chip mode that operates using the on-chip ROM, RAM, and internal I/O registers, and makes all I/O ports available.
Page 91: System Control Register (Syscr)
Section 3 MCU Operating Modes Bits 2 to 0—Mode Select 2 to 0 (MDS2 to MDS0): These bits indicate the logic levels at pins to MD (the current operating mode). MDS2 to MDS0 correspond to MD to MD . MDS2 to MDS0 are read-only bits.
Page 92 Section 3 MCU Operating Modes Bits 6 to 4—Standby Timer Select (STS2 to STS0): These bits select the length of time the CPU and on-chip supporting modules wait for the internal clock oscillator to settle when software standby mode is exited by an external interrupt. When using a crystal oscillator, set these bits so that the waiting time will be at least 7 ms at the system clock rate.
Page 93: Operating Mode Descriptions
Section 3 MCU Operating Modes Operating Mode Descriptions 3.4.1 Mode 1 Ports 1, 2, and 5 function as address pins A to A , permitting access to a maximum 1-Mbyte address space. The initial bus mode after a reset is 8 bits, with 8-bit access to all areas. If at least one area is designated for 16-bit access in ABWCR, the bus mode switches to 16 bits.
Page 94: Mode 6
Section 3 MCU Operating Modes 3.4.6 Mode 6 Ports 1, 2, and 5 and part of port A function as address pins A to A , permitting access to a maximum 16-Mbyte address space, but following a reset they are input ports. To use ports 1, 2, and 5 as an address bus, the corresponding bits in their data direction registers (P1DDR, P2DDR, and P5DDR) must be set to 1.
Page 95: Memory Map In Each Operating Mode
Section 3 MCU Operating Modes Memory Map in Each Operating Mode Figure 3.1 shows a memory map of the H8/3048. Figure 3.2 shows a memory map of the H8/3047. Figure 3.3 shows a memory map of the H8/3044. Figure 3.4 shows a memory map of the H8/3045. The address space is divided into eight areas.
Page 96 Section 3 MCU Operating Modes Modes 1 and 2 Modes 3 and 4 (1-Mbyte expanded modes with (16-Mbyte expanded modes with on-chip ROM disabled) on-chip ROM disabled) H'00000 H'000000 Vector area Vector area H'000FF H'0000FF H'07FFF H'007FFF Area 0 Area 0 H'1FFFF H'20000 H'1FFFFF...
Page 97 Section 3 MCU Operating Modes Mode 5 Mode 6 Mode 7 (1-Mbyte expanded mode with (16-Mbyte expanded mode with (single-chip advanced mode) on-chip ROM enabled) on-chip ROM enabled) H'00000 H'000000 H'00000 Vector area Vector area Vector area H'000FF H'0000FF H'000FF On-chip ROM On-chip ROM On-chip ROM...
Page 98 Section 3 MCU Operating Modes Modes 1 and 2 Modes 3 and 4 (1-Mbyte expanded modes with (16-Mbyte expanded modes with on-chip ROM disabled) on-chip ROM disabled) H'00000 H'000000 Vector area Vector area H'000FF H'0000FF H'07FFF H'007FFF Area 0 Area 0 H'1FFFF H'20000 H'1FFFFF...
Page 99 Section 3 MCU Operating Modes Mode 5 Mode 6 Mode 7 (1-Mbyte expanded mode with (16-Mbyte expanded mode with (single-chip advanced mode) on-chip ROM enabled) on-chip ROM enabled) H'00000 H'000000 H'00000 Vector area Vector area Vector area H'000FF H'0000FF H'000FF On-chip ROM On-chip ROM On-chip ROM...
Page 100 Section 3 MCU Operating Modes Modes 1 and 2 Modes 3 and 4 (1-Mbyte expanded modes with (16-Mbyte expanded modes with on-chip ROM disabled) on-chip ROM disabled) H'00000 H'000000 Vector area Vector area H'000FF H'0000FF H'07FFF H'007FFF Area 0 Area 0 H'1FFFF H'20000 H'1FFFFF...
Page 101 Section 3 MCU Operating Modes Mode 5 Mode 6 Mode 7 (1-Mbyte expanded mode with (16-Mbyte expanded mode with (single-chip advanced mode) on-chip ROM enabled) on-chip ROM enabled) H'00000 H'000000 H'00000 Vector area Vector area Vector area H'000FF H'0000FF H'000FF On-chip ROM On-chip ROM On-chip ROM...
Page 102 Section 3 MCU Operating Modes Modes 1 and 2 Modes 3 and 4 (1-Mbyte expanded modes with (16-Mbyte expanded modes with on-chip ROM disabled) on-chip ROM disabled) H'00000 H'000000 Vector area Vector area H'000FF H'0000FF H'07FFF H'007FFF Area 0 Area 0 H'1FFFF H'20000 H'1FFFFF...
Page 103 Section 3 MCU Operating Modes Mode 5 Mode 6 Mode 7 (1-Mbyte expanded mode with (16-Mbyte expanded mode with (single-chip advanced mode) on-chip ROM enabled) on-chip ROM enabled) H'00000 H'000000 H'00000 Vector area Vector area Vector area H'000FF H'0000FF H'000FF On-chip ROM On-chip ROM On-chip ROM...
Page 104 Section 3 MCU Operating Modes Rev. 7.00 Sep 21, 2005 page 80 of 878 REJ09B0259-0700...
Page 105: Section 4 Exception Handling
Section 4 Exception Handling Section 4 Exception Handling Overview 4.1.1 Exception Handling Types and Priority As table 4.1 indicates, exception handling may be caused by a reset, trap instruction, or interrupt. Exception handling is prioritized as shown in table 4.1. If two or more exceptions occur simultaneously, they are accepted and processed in priority order.
Page 106: Exception Vector Table
Section 4 Exception Handling 4.1.3 Exception Vector Table The exception sources are classified as shown in figure 4.1. Different vectors are assigned to different exception sources. Table 4.2 lists the exception sources and their vector addresses. • Reset External interrupts: NMI, IRQ to IRQ Exception •...
Page 107 Section 4 Exception Handling Table 4.2 Exception Vector Table Exception Source Vector Number Vector Address Reset H'0000 to H'0003 Reserved for system use H'0004 to H'0007 H'0008 to H'000B H'000C to H'000F H'0010 to H'0013 H'0014 to H'0017 H'0018 to H'001B External interrupt (NMI) H'001C to H'001F Trap instruction (4 sources)
Page 108: Reset
Section 4 Exception Handling Reset 4.2.1 Overview A reset is the highest-priority exception. When the RES pin goes low, all processing halts and the chip enters the reset state. A reset initializes the internal state of the CPU and the registers of the on-chip supporting modules.
Page 109 Section 4 Exception Handling Figure 4.2 Reset Sequence (Modes 1 and 3) Rev. 7.00 Sep 21, 2005 page 85 of 878 REJ09B0259-0700...
Page 110 Section 4 Exception Handling Internal Vector fetch processing Prefetch of first program instruction φ Address bus High to D (1), (3) Address of reset vector: (1) = H'000000, (3) = H'000002 (2), (4) Start address (contents of reset vector) Start address First instruction of program Note: After a reset, the wait-state controller inserts three wait states in every bus cycle.
Page 111: Interrupts After Reset
Section 4 Exception Handling Prefetch of Internal first program processing Vector fetch instruction φ Internal address bus Internal read signal Internal write signal Internal data bus (16 bits wide) (1), (3) Address of reset vector ((1) = H'000000, (2) = H'000002) (2), (4) Start address (contents of reset vector) Start address...
Page 112: Interrupts
Section 4 Exception Handling Interrupts Interrupt exception handling can be requested by seven external sources (NMI, IRQ to IRQ ) and 30 internal sources in the on-chip supporting modules. Figure 4.5 classifies the interrupt sources and indicates the number of interrupts of each type. The on-chip supporting modules that can request interrupts are the watchdog timer (WDT), refresh controller, 16-bit integrated timer unit (ITU), DMA controller (DMAC), serial communication interface (SCI), and A/D converter.
Page 113: Trap Instruction
Section 4 Exception Handling Trap Instruction Trap instruction exception handling starts when a TRAPA instruction is executed. If the UE bit is set to 1 in the system control register (SYSCR), the exception handling sequence sets the I bit to 1 in CCR.
Page 114: Notes On Stack Usage
Section 4 Exception Handling Notes on Stack Usage When accessing word data or longword data, the H8/3048 Group regards the lowest address bit as 0. The stack should always be accessed by word access or longword access, and the value of the stack pointer (SP:ER7) should always be kept even.
Page 115: Section 5 Interrupt Controller
Section 5 Interrupt Controller Section 5 Interrupt Controller Overview 5.1.1 Features The interrupt controller has the following features: • Interrupt priority registers (IPRs) for setting interrupt priorities Interrupts other than NMI can be assigned to two priority levels on a module-by-module basis in interrupt priority registers A and B (IPRA and IPRB).
Page 116: Block Diagram
Section 5 Interrupt Controller 5.1.2 Block Diagram Figure 5.1 shows a block diagram of the interrupt controller. ISCR IPRA, IPRB input IRQ input IRQ input section ISR Interrupt request Priority decision logic Vector number ADIE Interrupt controller SYSCR Legend ISCR: IRQ sense control register IER: IRQ enable register...
Page 117: Pin Configuration
Section 5 Interrupt Controller 5.1.3 Pin Configuration Table 5.1 lists the interrupt pins. Table 5.1 Interrupt Pins Name Abbreviation Function Nonmaskable interrupt Input Nonmaskable interrupt, rising edge or falling edge selectable to IRQ External interrupt request Input Maskable interrupts, falling edge or 5 to 0 level sensing selectable 5.1.4...
Page 118: Register Descriptions
Section 5 Interrupt Controller Register Descriptions 5.2.1 System Control Register (SYSCR) SYSCR is an 8-bit readable/writable register that controls software standby mode, selects the action of the UI bit in CCR, selects the NMI edge, and enables or disables the on-chip RAM. Only bits 3 and 2 are described here.
Page 119: Interrupt Priority Registers A And B (Ipra, Iprb)
Section 5 Interrupt Controller Bit 3—User Bit Enable (UE): Selects whether to use the UI bit in CCR as a user bit or an interrupt mask bit. Bit 3: UE Description UI bit in CCR is used as interrupt mask bit UI bit in CCR is used as user bit (Initial value) Bit 2—NMI Edge Select (NMIEG): Selects the NMI input edge.
Page 120 Section 5 Interrupt Controller Interrupt Priority Register A (IPRA): IPRA is an 8-bit readable/writable register in which interrupt priority levels can be set. IPRA7 IPRA6 IPRA5 IPRA4 IPRA3 IPRA2 IPRA1 IPRA0 Initial value Read/Write Priority level A0 Selects the priority level of ITU channel 2 interrupt...
Page 121 Section 5 Interrupt Controller Bit 7—Priority Level A7 (IPRA7): Selects the priority level of IRQ interrupt requests. Bit 7: IPRA7 Description interrupt requests have priority level 0 (low priority) (Initial value) interrupt requests have priority level 1 (high priority) Bit 6—Priority Level A6 (IPRA6): Selects the priority level of IRQ interrupt requests.
Page 122 Section 5 Interrupt Controller Bit 2—Priority Level A2 (IPRA2): Selects the priority level of ITU channel 0 interrupt requests. Bit 2: IPRA2 Description ITU channel 0 interrupt requests have priority level 0 (low priority) (Initial value) ITU channel 0 interrupt requests have priority level 1 (high priority) Bit 1—Priority Level A1 (IPRA1): Selects the priority level of ITU channel 1 interrupt requests.
Page 123 Section 5 Interrupt Controller Interrupt Priority Register B (IPRB): IPRB is an 8-bit readable/writable register in which interrupt priority levels can be set. IPRB7 IPRB6 IPRB5 — IPRB3 IPRB2 IPRB1 — Initial value Read/Write Reserved bit Priority level B1 Selects the priority level of A/D converter interrupt request Priority level B2...
Page 124 Section 5 Interrupt Controller Bit 7—Priority Level B7 (IPRB7): Selects the priority level of ITU channel 3 interrupt requests. Bit 7: IPRB7 Description ITU channel 3 interrupt requests have priority level 0 (low priority) (Initial value) ITU channel 3 interrupt requests have priority level 1 (high priority) Bit 6—Priority Level B6 (IPRB6): Selects the priority level of ITU channel 4 interrupt requests.
Page 125 Section 5 Interrupt Controller Bit 3—Priority Level B3 (IPRB3): Selects the priority level of SCI channel 0 interrupt requests. Bit 3: IPRB3 Description SCI0 interrupt requests have priority level 0 (low priority) (Initial value) SCI0 interrupt requests have priority level 1 (high priority) Bit 2—Priority Level B2 (IPRB2): Selects the priority level of SCI channel 1 interrupt requests.
Page 126: Irq Status Register (Isr)
Section 5 Interrupt Controller 5.2.3 IRQ Status Register (ISR) ISR is an 8-bit readable/writable register that indicates the status of IRQ to IRQ interrupt requests. — — IRQ5F IRQ4F IRQ3F IRQ2F IRQ1F IRQ0F Initial value Read/Write — — R/(W) * R/(W) * R/(W) * R/(W) *...
Page 127: Irq Enable Register (Ier)
Section 5 Interrupt Controller 5.2.4 IRQ Enable Register (IER) IER is an 8-bit readable/writable register that enables or disables IRQ to IRQ interrupt requests. — — IRQ5E IRQ4E IRQ3E IRQ2E IRQ1E IRQ0E Initial value Read/Write IRQ to IRQ enable Reserved bits These bits enable or disable IRQ to IRQ interrupts IER is initialized to H'00 by a reset and in hardware standby mode.
Page 128: Irq Sense Control Register (Iscr)
Section 5 Interrupt Controller 5.2.5 IRQ Sense Control Register (ISCR) ISCR is an 8-bit readable/writable register that selects level sensing or falling-edge sensing of the inputs at pins IRQ to IRQ — — IRQ5SC IRQ4SC IRQ3SC IRQ2SC IRQ1SC IRQ0SC Initial value Read/Write IRQ to IRQ sense control Reserved bits...
Page 129: Interrupt Sources
Section 5 Interrupt Controller Interrupt Sources The interrupt sources include external interrupts (NMI, IRQ to IRQ ) and 30 internal interrupts. 5.3.1 External Interrupts There are seven external interrupts: NMI, and IRQ to IRQ . Of these, NMI, IRQ , IRQ , and IRQ can be used to exit software standby mode.
Page 130: Internal Interrupts
Section 5 Interrupt Controller Figure 5.3 shows the timing of the setting of the interrupt flags (IRQnF). φ IRQn input pin IRQnF Note: n = 5 to 0 Figure 5.3 Timing of Setting of IRQnF Interrupts IRQ to IRQ have vector numbers 12 to 17. These interrupts are detected regardless of whether the corresponding pin is set for input or output.
Page 131 Section 5 Interrupt Controller Table 5.3 Interrupt Sources, Vector Addresses, and Priority Vector Interrupt Source Origin Number Vector Address* Priority External pins H'001C to H'001F — High ↑ H'0030 to H'0033 IPRA7  H'0034 to H0037 IPRA6  H'0038 to H'003B IPRA5 ...
Page 132 Section 5 Interrupt Controller Vector Number Interrupt Source Origin Vector Address* Priority IMIA2 ITU channel 2 H'0080 to H'0083 IPRA0 High (compare match/ ↑ input capture A2)   IMIB2 H'0084 to H'0087  (compare match/  input capture B2) ...
Page 133 Section 5 Interrupt Controller Vector Number Interrupt Source Origin Vector Address* Priority ERI0 SCI channel 0 H'00D0 to H'00D3 IPRB3 High (receive error 0) ↑  RXI0 H'00D4 to H'00D7  (receive data full 0)  TXI0 (transmit data H'00D8 to H'00DB ...
Page 134: Interrupt Operation
Section 5 Interrupt Controller Interrupt Operation 5.4.1 Interrupt Handling Process The H8/3048 Group handles interrupts differently depending on the setting of the UE bit. When UE = 1, interrupts are controlled by the I bit. When UE = 0, interrupts are controlled by the I and UI bits.
Page 135 Section 5 Interrupt Controller Program execution state Interrupt requested? Pending Priority level 1? I = 0 Save PC and CCR ← Read vector address Branch to interrupt service routine Figure 5.4 Process Up to Interrupt Acceptance when UE = 1 Rev.
Page 136 Section 5 Interrupt Controller • If an interrupt condition occurs and the corresponding interrupt enable bit is set to 1, an interrupt request is sent to the interrupt controller. • When the interrupt controller receives one or more interrupt requests, it selects the highest- priority request, following the IPR interrupt priority settings, and holds other requests pending.
Page 137 Section 5 Interrupt Controller ← All interrupts are Only NMI, IRQ , and ← ← 1, UI unmasked IRQ are unmasked Exception handling, ← ← or I 1, UI ← ← Exception handling, ← or UI All interrupts are masked except NMI Figure 5.5 Interrupt Masking State Transitions (Example) Figure 5.6 is a flowchart showing how interrupts are accepted when UE = 0.
Page 138 Section 5 Interrupt Controller Program execution state Interrupt requested? Pending Priority level 1? I = 0 I = 0 UI = 0 Save PC and CCR ← ← 1, UI Read vector address Branch to interrupt service routine Figure 5.6 Process Up to Interrupt Acceptance when UE = 0 Rev.
Page 139: Interrupt Sequence
Section 5 Interrupt Controller 5.4.2 Interrupt Sequence Figure 5.7 shows the interrupt sequence in mode 2 when the program code and stack are in an external memory area accessed in two states via a 16-bit bus. Figure 5.7 Interrupt Sequence (Mode 2, Two-State Access, Stack in External Memory) Rev.
Page 140: Interrupt Response Time
Section 5 Interrupt Controller 5.4.3 Interrupt Response Time Table 5.5 indicates the interrupt response time from the occurrence of an interrupt request until the first instruction of the interrupt service routine is executed. Table 5.5 Interrupt Response Time External Memory 8-Bit Bus 16-Bit Bus On-Chip...
Page 141: Usage Notes
Section 5 Interrupt Controller Usage Notes 5.5.1 Contention between Interrupt and Interrupt-Disabling Instruction When an instruction clears an interrupt enable bit to 0 to disable the interrupt, the interrupt is not disabled until after execution of the instruction is completed. If an interrupt occurs while a BCLR, MOV, or other instruction is being executed to clear its interrupt enable bit to 0, at the instant when execution of the instruction ends the interrupt is still enabled, so its interrupt exception handling is carried out.
Page 142: Instructions That Inhibit Interrupts
Section 5 Interrupt Controller 5.5.2 Instructions that Inhibit Interrupts The LDC, ANDC, ORC, and XORC instructions inhibit interrupts. When an interrupt occurs, after determining the interrupt priority, the interrupt controller requests a CPU interrupt. If the CPU is currently executing one of these interrupt-inhibiting instructions, however, when the instruction is completed the CPU always continues by executing the next instruction.
Page 143 Section 5 Interrupt Controller • Occurrence conditions 1. When IRQaF = 1, for the IRQaF flag to clear, ISR register read is executed. Thereafter interrupt processing is carried out and IRQbF flag clears. 2. IRQaF flag clear and IRQbF flag generation compete (IRQaF flag setting). (The ISR read needed for IRQaF flag clear was at IRQbF = 0 but in the time taken for ISR write, IRQbF = 1 was reached.) In all of the setting conditions 1 to 3 and occurrence conditions 1 and 2 are generated, IRQbF...
Page 144: Notes On Non-Maskable Interrupts (Nmi)
Section 5 Interrupt Controller In this situation, conduct one of the following countermeasures. Countermeasure 1: When clears IRQaF flag, do not use the bit manipulation instruction, read the ISR in bytes. Then write a value in bytes which sets IRQnF flag to 0 and other bits to 1. For example, if a = 0 MOV.B @ISR,R0L MOV.B #HFE,R0L...
Page 145 Section 5 Interrupt Controller usually undefined. Therefore, if the CPU accidentally executes the instruction, the chip will perform exceptional processing and will enter the break mode. In the break mode, interrupts including the NMI are inhibited and the count of the watch dog timer will be stopped. Then by executing the RTB (H’56F0) instruction, the break mode will be cancelled, and usual program execution will resume.
Page 146 Section 5 Interrupt Controller Rev. 7.00 Sep 21, 2005 page 122 of 878 REJ09B0259-0700...
Page 147: Section 6 Bus Controller
Section 6 Bus Controller Section 6 Bus Controller Overview The H8/3048 Group has an on-chip bus controller that divides the address space into eight areas and can assign different bus specifications to each. This enables different types of memory to be connected easily.
Page 148: Block Diagram
Section 6 Bus Controller 6.1.2 Block Diagram Figure 6.1 shows a block diagram of the bus controller. CS to CS ABWCR Internal ASTCR address bus Area WCER decoder Chip select CSCR Internal signals control signals Bus mode control signal Bus control circuit Bus size control signal Access state control signal...
Page 149: Input/Output Pins
Section 6 Bus Controller 6.1.3 Input/Output Pins Table 6.1 summarizes the bus controller’s input/output pins. Table 6.1 Bus Controller Pins Name Abbreviation Function to CS Chip select 7 to 0 Output Strobe signals selecting areas 7 to 0 Address strobe Output Strobe signal indicating valid address output on the address bus...
Page 150: Register Configuration
Section 6 Bus Controller 6.1.4 Register Configuration Table 6.2 summarizes the bus controller’s registers. Table 6.2 Bus Controller Registers Initial Value Modes Modes Address* Name Abbreviation 1, 3, 5, 6 2, 4, 7 H'FFEC Bus width control register ABWCR H'FF H'00 H'FFED Access state control register...
Page 151: Access State Control Register (Astcr)
Section 6 Bus Controller Bits 7 to 0—Areas 7 to 0 Bus Width Control (ABW7 to ABW0): These bits select 8-bit access or 16-bit access to the corresponding address areas. Bits 7 to 0: ABW7 to ABW0 Description Areas 7 to 0 are 16-bit access areas Areas 7 to 0 are 8-bit access areas ABWCR specifies the bus width of external memory areas.
Page 152: Wait Control Register (Wcr)
Section 6 Bus Controller 6.2.3 Wait Control Register (WCR) WCR is an 8-bit readable/writable register that selects the wait mode for the wait-state controller (WSC) and specifies the number of wait states. — — — — WMS1 WMS0 Initial value Read/Write —...
Page 153: Wait State Controller Enable Register (Wcer)
Section 6 Bus Controller 6.2.4 Wait State Controller Enable Register (WCER) WCER is an 8-bit readable/writable register that enables or disables wait-state control of external three-state-access areas by the wait-state controller. WCE7 WCE6 WCE5 WCE4 WCE3 WCE2 WCE1 WCE0 Initial value Read/Write Wait-state controller enable 7 to 0 These bits enable or disable wait-state control...
Page 154: Bus Release Control Register (Brcr)
Section 6 Bus Controller 6.2.5 Bus Release Control Register (BRCR) BRCR is an 8-bit readable/writable register that enables address output on bus lines A to A enables or disables release of the bus to an external device. A23E A22E A21E —...
Page 155: Chip Select Control Register (Cscr)
Section 6 Bus Controller Bit 5—Address 21 Enable (A21E): Enables PA to be used as the A address output pin. Writing 0 in this bit enables A address output from PA . In modes other than 3, 4, and 6 this bit cannot be modified and PA has its ordinary input/output functions.
Page 156 Section 6 Bus Controller Bits 7 to 4—Chip Select 7 to 4 Enable (CS7E to CS4E): These bits enable or disable output of the corresponding chip select signal. Bit n: CSnE Description Output of chip select signal CS is disabled (Initial value) Output of chip select signal CS is enabled...
Page 157: Operation
Section 6 Bus Controller Operation 6.3.1 Area Division The external address space is divided into areas 0 to 7. Each area has a size of 128 kbytes in the 1-Mbyte modes, or 2 Mbytes in the 16-Mbyte modes. Figure 6.2 shows a general view of the memory map.
Page 158: Chip Select Signals
Section 6 Bus Controller to CS Chip select signals (CS ) can be output for areas 7 to 0. The bus specifications for each area can be selected in ABWCR, ASTCR, WCER, and WCR as shown in table 6.3. Table 6.3 Bus Specifications ABWCR ASTCR...
Page 159 Section 6 Bus Controller Output of CS to CS : Output of CS to CS is enabled or disabled in the chip select control register (CSCR). A reset leaves pins CS to CS in the input state. To output chip select signals to CS , the corresponding CSCR bits must be set to 1.
Page 160: Data Bus
Section 6 Bus Controller 6.3.3 Data Bus The H8/3048 Group allows either 8-bit access or 16-bit access to be designated for each of areas 7 to 0. An 8-bit-access area uses the upper data bus (D to D ). A 16-bit-access area uses both the upper data bus (D to D ) and lower data bus (D...
Page 161: Bus Control Signal Timing
Section 6 Bus Controller 6.3.4 Bus Control Signal Timing 8-Bit, Three-State-Access Areas: Figure 6.4 shows the timing of bus control signals for an 8-bit, ) is used to access these areas. The LWR three-state-access area. The upper address bus (D to D pin is always high.
Page 162 Section 6 Bus Controller 8-Bit, Two-State-Access Areas: Figure 6.5 shows the timing of bus control signals for an 8-bit, ) is used to access these areas. The LWR two-state-access area. The upper address bus (D to D pin is always high. Wait states cannot be inserted. Bus cycle φ...
Page 163 Section 6 Bus Controller 16-Bit, Three-State-Access Areas: Figures 6.6 to 6.8 show the timing of bus control signals for a 16-bit, three-state-access area. In these areas, the upper address bus (D to D ) is used to access even addresses and the lower address bus (D to D ) is used to access odd addresses.
Page 164 Section 6 Bus Controller Bus cycle φ Address bus Odd external address in area n Read to D Invalid access D to D Valid High Write access to D Undetermined data Valid D to D Note: n = 7 to 0 Figure 6.7 Bus Control Signal Timing for 16-Bit, Three-State-Access Area (2) (Byte Access to Odd Address) Rev.
Page 165 Section 6 Bus Controller Bus cycle φ Address bus External address in area n Read to D Valid access D to D Valid Write access to D Valid D to D Valid Note: n = 7 to 0 Figure 6.8 Bus Control Signal Timing for 16-Bit, Three-State-Access Area (3) (Word Access) Rev.
Page 166 Section 6 Bus Controller 16-Bit, Two-State-Access Areas: Figures 6.9 to 6.11 show the timing of bus control signals for a 16-bit, two-state-access area. In these areas, the upper address bus (D to D ) is used to access even addresses and the lower address bus (D to D ) is used to access odd addresses.
Page 167 Section 6 Bus Controller Bus cycle φ Address bus Odd external address in area n Read to D Invalid access Valid D to D High Write access to D Undetermined data D to D Valid Note: n = 7 to 0 Figure 6.10 Bus Control Signal Timing for 16-Bit, Two-State-Access Area (2) (Byte Access to Odd Address) Rev.
Page 168 Section 6 Bus Controller Bus cycle φ Address bus External address in area n Read to D Valid access Valid D to D Write access to D Valid D to D Valid Note: n = 7 to 0 Figure 6.11 Bus Control Signal Timing for 16-Bit, Two-State-Access Area (3) (Word Access) Rev.
Page 169: Wait Modes
Section 6 Bus Controller 6.3.5 Wait Modes Four wait modes can be selected as shown in table 6.5. Table 6.5 Wait Mode Selection ASTCR WCER ASTn Bit WCEn Bit WMS1 Bit WMS0 Bit WSC Control Wait Mode — — — Disabled No wait states —...
Page 170 Section 6 Bus Controller Wait Mode in Areas Where Wait-State Controller is Disabled External three-state access areas in which the wait-state controller is disabled (ASTn = 1, WCEn = 0) operate in pin wait mode 0. The other wait modes are unavailable. The settings of bits WMS1 and WMS0 are ignored in these areas.
Page 171 Section 6 Bus Controller Wait Modes in Areas Where Wait-State Controller is Enabled External three-state access areas in which the wait-state controller is enabled (ASTn = 1, WCEn = 1) can operate in pin wait mode 1, pin auto-wait mode, or programmable wait mode, as selected by bits WMS1 and WMS0.
Page 172 Section 6 Bus Controller Pin Auto-Wait Mode: If the WAIT pin is low, the number of wait states (T ) selected by bits WC1 and WC0 are inserted. In pin auto-wait mode, if the WAIT pin is low at the fall of the system clock (φ) in the T state, the number of wait states (T ) selected by bits WC1 and WC0 are inserted.
Page 173 Section 6 Bus Controller Programmable Wait Mode: The number of wait states (T ) selected by bits WC1 and WC0 are inserted in all accesses to external three-state-access areas. Figure 6.15 shows the timing when the wait count is 1 (WC1 = 0, WC0 = 1). φ...
Page 174 Section 6 Bus Controller Example of Wait State Control Settings: A reset initializes ASTCR and WCER to H'FF and WCR to H'F3, selecting programmable wait mode and three wait states for all areas. Software can select other wait modes for individual areas by modifying the ASTCR, WCER, and WCR settings. Figure 6.16 shows an example of wait mode settings.
Page 175: Interconnections With Memory (Example)
Section 6 Bus Controller 6.3.6 Interconnections with Memory (Example) For each area, the bus controller can select two- or three-state access and an 8- or 16-bit data bus width. In three-state-access areas, wait states can be inserted in a variety of modes, simplifying the connection of both high-speed and low-speed devices.
Page 176 Section 6 Bus Controller EPROM to A to A to I/O H8/3048 Group I/O to I/O SRAM1 (even addresses) to A to A I/O to I/O WAIT SRAM2 (odd addresses) to A to A to A I/O to I/O to D SRAM3 D to D to A...
Page 177: Bus Arbiter Operation
Section 6 Bus Controller 6.3.7 Bus Arbiter Operation The bus controller has a built-in bus arbiter that arbitrates between different bus masters. There are four bus masters: the CPU, DMA controller (DMAC), refresh controller, and an external bus master. When a bus master has the bus right it can carry out read, write, or refresh access. Each bus master uses a bus request signal to request the bus right.
Page 178 Section 6 Bus Controller DMAC: When the DMAC receives an activation request, it requests the bus right from the bus arbiter. If the DMAC is bus master and the refresh controller or an external bus master requests the bus, the bus arbiter transfers the bus right from the DMAC to the bus master that requested the bus.
Page 179 Section 6 Bus Controller Figure 6.19 shows the timing when the bus right is requested by an external bus master during a read cycle in a two-state-access area. There is a minimum interval of two states from when the BREQ signal goes low until the bus is released. CPU cycles External bus released CPU cycles...
Page 180: Usage Notes
Section 6 Bus Controller Usage Notes 6.4.1 Connection to Dynamic RAM and Pseudo-Static RAM A different bus control signal timing applies when dynamic RAM or pseudo-static RAM is connected to area 3. For details see section 7, Refresh Controller. 6.4.2 Register Write Timing ABWCR, ASTCR, and WCER Write Timing: Data written to ABWCR, ASTCR, or WCER takes effect starting from the next bus cycle.
Page 181 Section 6 Bus Controller DDR Write Timing: Data written to a data direction register (DDR) to change a CS pin from output to generic input, or vice versa, takes effect starting from the T state of the DDR write cycle. Figure 6.21 shows the timing when the CS pin is changed from generic input to CS output.
Page 182: Breq Input Timing
Section 6 Bus Controller BREQ Input Timing BREQ BREQ BREQ 6.4.3 After driving the BREQ pin low, hold it low until BACK goes low. If BREQ returns to the high level before BACK goes low, the bus arbiter may operate incorrectly. To terminate the external-bus-released state, hold the BREQ signal high for at least three states.
Page 183: Section 7 Refresh Controller
Section 7 Refresh Controller Section 7 Refresh Controller Overview The H8/3048 Group has an on-chip refresh controller that enables direct connection of 16-bit-wide DRAM or pseudo-static RAM (PSRAM). DRAM or pseudo-static RAM can be directly connected to area 3 of the external address space. A maximum 128 kbytes can be connected in modes 1, 2, and 5 (1-Mbyte modes).
Page 184: Block Diagram
Section 7 Refresh Controller • RFSH signal output for refresh control • Software-selectable refresh interval • Software-selectable self-refresh mode • Wait states can be inserted Features as an Interval Timer • Refresh timer counter (RTCNT) can be used as an 8-bit up-counter •...
Page 185: Input/Output Pins
Section 7 Refresh Controller 7.1.3 Input/Output Pins Table 7.1 summarizes the refresh controller’s input/output pins. Table 7.1 Refresh Controller Pins Signal Name Abbr. Function RFSH RFSH Refresh Output Goes low during refresh cycles; used to refresh DRAM and PSRAM UW/UCAS Connects to the UW pin of 2WE Upper write/upper column Output...
Page 186: Register Descriptions
Section 7 Refresh Controller Register Descriptions 7.2.1 Refresh Control Register (RFSHCR) RFSHCR is an 8-bit readable/writable register that selects the operating mode of the refresh controller. SRFMD PSRAME DRAME CAS/WE M9/M8 RFSHE — RCYCE Initial value Read/Write — Refresh cycle enable Enables or disables...
Page 187 Section 7 Refresh Controller Bit 7—Self-Refresh Mode (SRFMD): Specifies DRAM or pseudo-static RAM self-refresh during software standby mode. When PSRAME = 1 and DRAME = 0, after the SRFMD bit is set to 1, pseudo-static RAM can be self-refreshed when the H8/3048 Group enters software standby mode.
Page 188 Section 7 Refresh Controller M8): Selects 8-bit or 9-bit column addressing. Bit 3—Address Multiplex Mode Select (M9/M8 The setting of this bit is valid when PSRAME = 0 and DRAME = 1. This bit is write-disabled when the PSRAME or DRAME bit is set to 1. Bit 3: M9/M8 Description 8-bit column address mode...
Page 189: Refresh Timer Control/Status Register (Rtmcsr)
Section 7 Refresh Controller 7.2.2 Refresh Timer Control/Status Register (RTMCSR) RTMCSR is an 8-bit readable/writable register that selects the clock source for RTCNT. It also enables or disables interrupt requests when the refresh controller is used as an interval timer. CMIE CKS2 CKS1...
Page 190: Refresh Timer Counter (Rtcnt)
Section 7 Refresh Controller Bit 6—Compare Match Interrupt Enable (CMIE): Enables or disables the CMI interrupt requested when the CMF flag is set to 1 in RTMCSR. The CMIE bit is always cleared to 0 when PSRAME = 1 or DRAME = 1. Bit 6: CMIE Description The CMI interrupt requested by CMF is disabled...
Page 191: Refresh Time Constant Register (Rtcor)
Section 7 Refresh Controller RTCNT is write-disabled when the PSRAME bit or DRAME bit is set to 1. RTCNT is initialized to H'00 by a reset and in standby mode. 7.2.4 Refresh Time Constant Register (RTCOR) RTCOR is an 8-bit readable/writable register that determines the interval at which RTCNT is compare matched.
Page 192: Operation
Section 7 Refresh Controller Operation 7.3.1 Overview One of three functions can be selected for the H8/3048 Group refresh controller: interfacing to DRAM connected to area 3, interfacing to pseudo-static RAM connected to area 3, or interval timing. Table 7.3 summarizes the register settings when these three functions are used. Table 7.3 Refresh Controller Settings Usage...
Page 193 Section 7 Refresh Controller DRAM Interface: To set up area 3 for connection to 16-bit-wide DRAM, initialize RTCOR, RTMCSR, and RFSHCR in that order, clearing bit PSRAME to 0 and setting bit DRAME to 1. DDR to 1 in the port 8 data direction register (P8DDR) to enable CS Set bit P8 output.
Page 194: Dram Refresh Control
Section 7 Refresh Controller 7.3.2 DRAM Refresh Control Refresh Request Interval and Refresh Cycle Execution: The refresh request interval is determined by the settings of RTCOR and bits CKS2 to CKS0 in RTMCSR. Figure 7.2 illustrates the refresh request interval. RTCOR RTCNT H'00...
Page 195 Section 7 Refresh Controller When a refresh request occurs in the refresh request pending state, the refresh controller acquires the bus right, then executes a refresh cycle. If another refresh request occurs during execution of the refresh cycle, it is ignored. Exit from reset or standby mode Refresh request End of refresh...
Page 196 Section 7 Refresh Controller Address Multiplexing: Address multiplexing depends on the setting of the M9/M8 bit in RFSHCR, as described in table 7.5. Figure 7.4 shows the address output timing. Address output is multiplexed only in area 3. Table 7.5 Address Multiplexing Address Pins Address signals during row...
Page 197 Section 7 Refresh Controller CAS and 2WE WE Modes: The CAS/WE bit in RFSHCR can select two control modes for 16-bit- 2CAS wide DRAM: one using UCAS and LCAS; the other using UW and LW. These DRAM pins correspond to H8/3048 Group pins as shown in table 7.6. Table 7.6 DRAM Pins and H8/3048 Group Pins DRAM Pin...
Page 198 Section 7 Refresh Controller Read cycle Write cycle Refresh cycle φ Address Column Column Area 3 top address (RAS) (UCAS) (UW) (LW) RFSH Note: 16-bit access CAS Mode) Figure 7.5(2) DRAM Control Signal Output Timing (2CAS Refresh Cycle Priority Order: When there are simultaneous bus requests, the priority order is: (High) External bus master >...
Page 199 Section 7 Refresh Controller Self-Refresh Mode: Some DRAM devices have a self-refresh function. After the SRFMD bit is set to 1 in RFSHCR, when a transition to software standby mode occurs, the CAS and RAS outputs go low in that order so that the DRAM self-refresh function can be used. On exit from software standby mode, the CAS and RAS outputs both go high.
Page 200 Section 7 Refresh Controller Software Oscillator standby mode settling time φ High-impedance Address CS (RAS) RD (CAS) HWR (UW) High LWR (LW) High RFSH a. 2 mode (SRFMD = 1) Software Oscillator standby mode settling time φ High-impedance Address CS (RAS) (UCAS) (LCAS) RD (WE)
Page 201 Section 7 Refresh Controller Operation in Power-Down State: The refresh controller operates in sleep mode. It does not operate in hardware standby mode. In software standby mode RTCNT is initialized, but RFSHCR, RTMCSR bits 5 to 3, and RTCOR retain their settings prior to the transition to software standby mode.
Page 202 Section 7 Refresh Controller Set area 3 for 16-bit access Set P8 DDR to 1 for output Set RTCOR Set bits CKS2 to CKS0 in RTMCSR Write H'23 in RFSHCR Wait for DRAM to be initialized DRAM can be accessed WE 1-Mbit DRAM (1-Mbyte Mode) Figure 7.8 Setup Procedure for 2WE Rev.
Page 203 Section 7 Refresh Controller WE 4-Mbit DRAM (16-Mbyte Mode): Figure 7.9 shows typical Example 2: Connection to 2WE interconnections to a single 2WE 4-Mbit DRAM, and the corresponding address map. Figure 7.10 shows a setup procedure to be followed by a program for this example. The DRAM in this example has 10-bit row addresses and 8-bit column addresses.
Page 204 Section 7 Refresh Controller Set area 3 for 16-bit access Set P8 DDR to 1 for output Set RTCOR Set bits CKS2 to CKS0 in RTMCSR Write H'23 in RFSHCR Wait for DRAM to be initialized DRAM can be accessed WE 4-Mbit DRAM with 10-Bit Row Address and 8-Bit Figure 7.10 Setup Procedure for 2WE Column Address (16-Mbyte Mode)
Page 205 Section 7 Refresh Controller CAS 4-Mbit DRAM (16-Mbyte Mode): Figure 7.11 shows typical Example 3: Connection to 2CAS interconnections to a single 2CAS 4-Mbit DRAM, and the corresponding address map. Figure 7.12 shows a setup procedure to be followed by a program for this example. The DRAM in this example has 9-bit row addresses and 9-bit column addresses.
Page 206 Section 7 Refresh Controller Set area 3 for 16-bit access Set P8 DDR to 1 for output Set RTCOR Set bits CKS2 to CKS0 in RTMCSR Write H'3B in RFSHCR Wait for DRAM to be initialized DRAM can be accessed CAS 4-Mbit DRAM with 9-Bit Row Address and 9-Bit Figure 7.12 Setup Procedure for 2CAS Column Address (16-Mbyte Mode)
Page 207 Section 7 Refresh Controller Example 4: Connection to Multiple 4-Mbit DRAM Chips (16-Mbyte Mode): Figure 7.13 shows an example of interconnections to two 2CAS 4-Mbit DRAM chips, and the corresponding address map. Up to four DRAM chips can be connected to area 3 by decoding upper address bits and A Figure 7.14 shows a setup procedure to be followed by a program for this example.
Page 208 Section 7 Refresh Controller Set area 3 for 16-bit access Set P8 DDR to 1 for CS output Set RTCOR Set bits CKS2 to CKS0 in RTMCSR Write H'3F in RFSHCR Wait for DRAM to be initialized DRAM can be accessed CAS 4-Mbit DRAM Chips with 9-Bit Row Figure 7.14 Setup Procedure for Multiple 2CAS Address and 9-Bit Column Address (16-Mbyte Mode)
Page 209: Pseudo-Static Ram Refresh Control
Section 7 Refresh Controller 7.3.3 Pseudo-Static RAM Refresh Control Refresh Request Interval and Refresh Cycle Execution: The refresh request interval is determined as in a DRAM interface, by the settings of RTCOR and bits CKS2 to CKS0 in RTMCSR. The numbers of states required for pseudo-static RAM read/write cycles and refresh cycles are the same as for DRAM (see table 7.4).
Page 210 Section 7 Refresh Controller Refresh Cycle Priority Order: When there are simultaneous bus requests, the priority order is: (High) External bus master > refresh controller > DMA controller > CPU (Low) For details see section 6.3.7, Bus Arbiter Operation. Wait State Insertion: When bit AST3 is set to 1 in ASTCR, the wait state controller (WSC) can insert wait states into bus cycles and refresh cycles.
Page 211 Section 7 Refresh Controller Oscillator Software standby mode settling time φ High-impedance Address High High-impedance High-impedance High-impedance RFSH Figure 7.16 Signal Output Timing in Self-Refresh Mode (PSRAME = 1, DRAME = 0) Operation in Power-Down State: The refresh controller operates in sleep mode. It does not operate in hardware standby mode.
Page 212 Section 7 Refresh Controller Set P8 DDR to 1 for CS output Set RTCOR Set bits CKS2 to CKS0 in RTMCSR Write H'47 in RFSHCR Wait for PSRAM to be initialized PSRAM can be accessed Figure 7.18 Setup Procedure for Pseudo-Static RAM Rev.
Page 213: Interval Timer
Section 7 Refresh Controller 7.3.4 Interval Timer To use the refresh controller as an interval timer, clear the PSRAME and DRAME both to 0. After setting RTCOR, select a clock source with bits CKS2 to CKS0 in RTMCSR, and set the CMIE bit to 1.
Page 214 Section 7 Refresh Controller Contention between RTCNT Write and Counter Clear: If a counter clear signal occurs in the state of an RTCNT write cycle, clearing of the counter takes priority and the write is not performed. See figure 7.20. RTCNT write cycle by CPU φ...
Page 215 Section 7 Refresh Controller Contention between RTCNT Write and Increment: If an increment pulse occurs in the T state of an RTCNT write cycle, writing takes priority and RTCNT is not incremented. See figure 7.21. RTCNT write cycle by CPU φ...
Page 216 Section 7 Refresh Controller Contention between RTCOR Write and Compare Match: If a compare match occurs in the T state of an RTCOR write cycle, writing takes priority and the compare match signal is inhibited. See figure 7.22. RTCOR write cycle by CPU φ...
Page 217 Section 7 Refresh Controller Table 7.9 Internal Clock Switchover and RTCNT Operation CKS2 to CKS0 Write Timing RTCNT Operation Low → low switchover Old clock source New clock source RTCNT clock RTCNT N + 1 CKS bits rewritten Low → high switchover Old clock source New clock...
Page 218 Section 7 Refresh Controller CKS2 to CKS0 Write Timing RTCNT Operation High → low switchover Old clock source New clock source RTCNT clock RTCNT N + 1 N + 2 CKS bits rewritten High → high switchover Old clock source New clock source RTCNT...
Page 219: Interrupt Source
Section 7 Refresh Controller Interrupt Source Compare match interrupts (CMI) can be generated when the refresh controller is used as an interval timer. Compare match interrupt requests are masked/unmasked with the CMIE bit of RTMCSR. Usage Notes When using the DRAM or pseudo-static RAM refresh function, note the following points: •...
Page 220 Section 7 Refresh Controller Bus-released state Refresh cycle CPU cycle Refresh cycle φ RFSH Refresh request BACK Figure 7.24 Refresh Cycles when Bus is Released • If a bus cycle is prolonged by insertion of wait states, the first refresh request is held, as in the bus-released state.
Page 221: Section 8 Dma Controller
Section 8 DMA Controller Section 8 DMA Controller Overview The H8/3048 Group has an on-chip DMA controller (DMAC) that can transfer data on up to four channels. When the DMA controller is not used, it can be independently halted to conserve power. For details see section 21.6, Module Standby Function.
Page 222: Block Diagram
Section 8 DMA Controller 8.1.2 Block Diagram Figure 8.1 shows a DMAC block diagram. Internal address bus Address buffer Internal IMIA0 interrupts IMIA1 Arithmetic-logic unit IMIA2 IMIA3 TXI0 MAR0A RXI0 Channel IOAR0A ETCR0A Channel DREQ0 Control logic DREQ1 MAR0B TEND0 Channel IOAR0B TEND1...
Page 223: Functional Overview
Section 8 DMA Controller 8.1.3 Functional Overview Table 8.1 gives an overview of the DMAC functions. Table 8.1 DMAC Functional Overview Address Reg. Length Transfer Mode Activation Source Destination • Short I/O mode Compare match/ address input capture A • Transfers one byte or one word mode interrupts from ITU...
Page 224 Section 8 DMA Controller Address Reg. Length Transfer Mode Activation Source Destination Full Normal mode • Auto-request address • • Auto-request External request mode  Retains the transfer request internally  Executes a specified number (1 to 65,536) of transfers continuously ...
Page 225: Input/Output Pins
Section 8 DMA Controller 8.1.4 Input/Output Pins Table 8.2 lists the DMAC pins. Table 8.2 DMAC Pins Abbre- Input/ Channel Name viation Output Function DREQ DMA request 0 Input External request for DMAC channel 0 TEND Transfer end 0 Output Transfer end on DMAC channel 0 DREQ DMA request 1...
Page 226 Section 8 DMA Controller Table 8.3 DMAC Registers Channel Address* Name Abbreviation Initial Value H'FF20 Memory address register 0AR MAR0AR Undetermined H'FF21 Memory address register 0AE MAR0AE Undetermined H'FF22 Memory address register 0AH MAR0AH Undetermined H'FF23 Memory address register 0AL MAR0AL Undetermined H'FF26...
Page 227: Register Descriptions (Short Address Mode)
Section 8 DMA Controller Register Descriptions (Short Address Mode) In short address mode, transfers can be carried out independently on channels A and B. Short address mode is selected by bits DTS2A and DTS1A in data transfer control register A (DTCRA) as indicated in table 8.4.
Page 228: I/O Address Registers (Ioar)
Section 8 DMA Controller The MAR value is incremented or decremented each time one byte or word is transferred, automatically updating the source or destination memory address. For details, see section 8.2.4, Data Transfer Control Registers (DTCR). The MARs are not initialized by a reset or in standby mode. 8.2.2 I/O Address Registers (IOAR) An I/O address register (IOAR) is an 8-bit readable/writable register that specifies a source or...
Page 229: Execute Transfer Count Registers (Etcr)
Section 8 DMA Controller 8.2.3 Execute Transfer Count Registers (ETCR) An execute transfer count register (ETCR) is a 16-bit readable/writable register that specifies the number of transfers to be executed. These registers function in one way in I/O mode and idle mode, and another way in repeat mode.
Page 230: Data Transfer Control Registers (Dtcr)
Section 8 DMA Controller 8.2.4 Data Transfer Control Registers (DTCR) A data transfer control register (DTCR) is an 8-bit readable/writable register that controls the operation of one DMAC channel. DTSZ DTID DTIE DTS2 DTS1 DTS0 Initial value Read/Write Data transfer enable Data transfer select Enables or disables These bits select the data...
Page 231 Section 8 DMA Controller Bit 6—Data Transfer Size (DTSZ): Selects the data size of each transfer. Bit 6: DTSZ Description Byte-size transfer (Initial value) Word-size transfer Bit 5—Data Transfer Increment/Decrement (DTID): Selects whether to increment or decrement the memory address register (MAR) after a data transfer in I/O mode or repeat mode. Bit 5: DTID Description MAR is incremented after each data transfer...
Page 232 Section 8 DMA Controller Bit 3—Data Transfer Interrupt Enable (DTIE): Enables or disables the CPU interrupt (DEND) requested when the DTE bit is cleared to 0. Bit 3: DTIE Description The DEND interrupt requested by DTE is disabled (Initial value) The DEND interrupt requested by DTE is enabled Bits 2 to 0—Data Transfer Select (DTS2, DTS1, DTS0): These bits select the data transfer activation source.
Page 233: Register Descriptions (Full Address Mode)
Section 8 DMA Controller Register Descriptions (Full Address Mode) In full address mode the A and B channels operate together. Full address mode is selected as indicated in table 8.4. 8.3.1 Memory Address Registers (MAR) A memory address register (MAR) is a 32-bit readable/writable register. MARA functions as the source address register of the transfer, and MARB as the destination address register.
Page 234: Execute Transfer Count Registers (Etcr)
Section 8 DMA Controller 8.3.3 Execute Transfer Count Registers (ETCR) An execute transfer count register (ETCR) is a 16-bit readable/writable register that specifies the number of transfers to be executed. The functions of these registers differ between normal mode and block transfer mode. •...
Page 235 Section 8 DMA Controller • Block transfer mode ETCRA Initial value Undetermined Read/Write ETCRAH Block size counter Initial value Undetermined Read/Write ETCRAL Initial block size ETCRB Initial value Undetermined Read/Write Block transfer counter In block transfer mode, ETCRAH functions as an 8-bit block size counter. ETCRAL holds the initial block size.
Page 236: Data Transfer Control Registers (Dtcr)
Section 8 DMA Controller 8.3.4 Data Transfer Control Registers (DTCR) The data transfer control registers (DTCRs) are 8-bit readable/writable registers that control the operation of the DMAC channels. A channel operates in full address mode when bits DTS2A and DTS1A are both set to 1 in DTCRA. DTCRA and DTCRB have different functions in full address mode.
Page 237 Section 8 DMA Controller Bit 7—Data Transfer Enable (DTE): Together with the DTME bit in DTCRB, this bit enables or disables data transfer on the channel. When the DTME and DTE bits are both set to 1, the channel is enabled. If auto-request is specified, data transfer begins immediately. Otherwise, the channel waits for transfers to be requested.
Page 238 Section 8 DMA Controller Bit 3—Data Transfer Interrupt Enable (DTIE): Enables or disables the CPU interrupt (DEND) requested when the DTE bit is cleared to 0. Bit 3: DTIE Description The DEND interrupt requested by DTE is disabled (Initial value) The DEND interrupt requested by DTE is enabled Bits 2 and 1—Data Transfer Select 2A and 1A (DTS2A, DTS1A): A channel operates in full address mode when DTS2A and DTS1A are both set to 1.
Page 239 Section 8 DMA Controller DTCRB DTME — DAID DAIDE DTS2B DTS1B DTS0B Initial value Read/Write Data transfer master enable Enables or disables data transfer, together with Transfer mode select the DTE bit, and is cleared Selects whether the to 0 by an interrupt block area is the source or destination in block Reserved bit...
Page 240 Section 8 DMA Controller Bit 5—Destination Address Increment/Decrement (DAID) and Bit 4—Destination Address Increment/Decrement Enable (DAIDE): These bits select whether the destination address register (MARB) is incremented, decremented, or held fixed during the data transfer. Bit 5: DAID Bit 4: DAIDE Description MARB is held fixed (Initial value)
Page 241 Section 8 DMA Controller Bits 2 to 0—Data Transfer Select 2B to 0B (DTS2B, DTS1B, DTS0B): These bits select the data transfer activation source. The selectable activation sources differ between normal mode and block transfer mode. • Normal mode Bit 2: Bit 1: Bit 0: DTS2B...
Page 242: Operation
Section 8 DMA Controller Operation 8.4.1 Overview Table 8.5 summarizes the DMAC modes. Table 8.5 DMAC Modes Transfer Mode Activation Notes • Short address I/O mode Compare match/input Up to four channels can mode capture A interrupt from operate independently Idle mode ITU channels 0 to 3 •...
Page 243 Section 8 DMA Controller Normal Mode • Auto-request The DMAC is activated by register setup alone, and continues executing transfers until the designated number of transfers have been completed. A CPU interrupt can be requested at completion of the transfers. Both addresses are 24-bit addresses. ...
Page 244: I/O Mode
Section 8 DMA Controller 8.4.2 I/O Mode I/O mode can be selected independently for each channel. One byte or word is transferred at each transfer request in I/O mode. A designated number of these transfers are executed. One address is specified in the memory address register (MAR), the other in the I/O address register (IOAR).
Page 245 Section 8 DMA Controller Figure 8.2 illustrates how I/O mode operates. Transfer Address T IOAR 1 byte or word is transferred per request Address B Legend L = initial setting of MAR N = initial setting of ETCR Address T = L DTID DTSZ Address B = L + (–1)
Page 246: Idle Mode
Section 8 DMA Controller For the detailed settings see section 8.2.4, Data Transfer Control Registers (DTCR). Figure 8.3 shows a sample setup procedure for I/O mode. I/O mode setup Set the source and destination addresses in MAR and IOAR. The transfer direction is determined automatically from the activation source.
Page 247 Section 8 DMA Controller Table 8.7 Register Functions in Idle Mode Function Activated by SCI 0 Receive- Data-Full Other Register Interrupt Activation Initial Setting Operation Destination Source Destination or Held fixed address address source address register register Source Destination Source or Held fixed address address...
Page 248 Section 8 DMA Controller The transfer count is specified as a 16-bit value in ETCR. The ETCR value is decremented by 1 at each transfer. When the ETCR value reaches H'0000, the DTE bit is cleared, the transfer ends, and a CPU interrupt is requested.
Page 249: Repeat Mode
Section 8 DMA Controller 8.4.4 Repeat Mode Repeat mode is useful for cyclically transferring a bit pattern from a table to the programmable timing pattern controller (TPC) in synchronization, for example, with ITU compare match. Repeat mode can be selected for each channel independently. One byte or word is transferred per request in repeat mode, as in I/O mode.
Page 250 Section 8 DMA Controller Table 8.8 Register Functions in Repeat Mode Function Activated by SCI 0 Receive- Data-Full Other Register Interrupt Initial Setting Operation Activation Destination Source Destination or Incremented or address address source address decremented at register register each transfer until H'0000, then restored to initial value...
Page 251 Section 8 DMA Controller As in I/O mode, MAR and IOAR specify the source and destination addresses. MAR specifies a 24-bit source or destination address. IOAR specifies the lower 8 bits of a fixed address. The upper 16 bits are all 1s. IOAR is not incremented or decremented. Figure 8.6 illustrates how repeat mode operates.
Page 252 Section 8 DMA Controller Figure 8.7 shows a sample setup procedure for repeat mode. Repeat mode Set the source and destination addresses in MAR and IOAR. The transfer direction is determined automatically from the activation source. Set the transfer count in both ETCRH and ETCRL. Set source and Read DTCR while the DTE bit is cleared to 0.
Page 253: Normal Mode
Section 8 DMA Controller 8.4.5 Normal Mode In normal mode the A and B channels are combined. One byte or word is transferred per request. A designated number of these transfers are executed. Addresses are specified in MARA and MARB. Table 8.9 indicates the register functions in I/O mode. Table 8.9 Register Functions in Normal Mode Register...
Page 254 Section 8 DMA Controller Address T Transfer Address T Address B Address B Legend = initial setting of MARA = initial setting of MARB = initial setting of ETCRA SAID DTSZ = L + SAIDE • (–1) • (2 • N – 1) DAID DTSZ = L + DAIDE •...
Page 255 Section 8 DMA Controller Figure 8.9 shows a sample setup procedure for normal mode. Normal mode Set the initial source address in MARA. Set the initial destination address in MARB. Set the transfer count in ETCRA. Set the DTCRB bits as follows. Set initial source address •...
Page 256: Block Transfer Mode
Section 8 DMA Controller 8.4.6 Block Transfer Mode In block transfer mode the A and B channels are combined. One block of a specified size is transferred per request. A designated number of block transfers are executed. Addresses are specified in MARA and MARB. The block area address can be either held fixed or cycled. Table 8.10 indicates the register functions in block transfer mode.
Page 257 Section 8 DMA Controller If M (1 to 255) is the size of the block transferred at each request and N (1 to 65,536) is the number of blocks to be transferred, then ETCRAH and ETCRAL should initially be set to M and ETCRB should initially be set to N.
Page 258 Section 8 DMA Controller When activated by a transfer request, the DMAC executes a burst transfer. During the transfer MARA and MARB are updated according to the DTCR settings, and ETCRAH is decremented. When ETCRAH reaches H'00, it is reloaded from ETCRAL to restore the initial value. The memory address register of the block area is also restored to its initial value, and ETCRB is decremented.
Page 259 Section 8 DMA Controller Start Start (DTE = DTME = 1) (DTE = DTME = 1) Transfer requested? Transfer requested? Get bus Get bus Read from MARA address Read from MARA address MARA = MARA + 1 MARA = MARA + 1 Write to MARB address Write to MARB address MARB = MARB + 1...
Page 260 Section 8 DMA Controller Figure 8.12 shows a sample setup procedure for block transfer mode. Block transfer mode Set the source address in MARA. Set the destination address in MARB. Set the block transfer count in ETCRB. Set the block size (number of bytes or words) Set source address in both ETCRAH and ETCRAL.
Page 261: Dmac Activation
Section 8 DMA Controller 8.4.7 DMAC Activation The DMAC can be activated by an internal interrupt, external request, or auto-request. The available activation sources differ depending on the transfer mode and channel as indicated in table 8.11. Table 8.11 DMAC Activation Sources Short Address Mode Full Address Mode Channels...
Page 262 Section 8 DMA Controller Activation by External Request: If an external request (DREQ pin) is selected as an activation source, the DREQ pin becomes an input pin and the corresponding TEND pin becomes an output pin, regardless of the port data direction register (DDR) settings. The DREQ input can be level- sensitive or edge-sensitive.
Page 263: Dmac Bus Cycle
Section 8 DMA Controller 8.4.8 DMAC Bus Cycle Figure 8.13 shows an example of the timing of the basic DMAC bus cycle. This example shows a word-size transfer from a 16-bit two-state access area to an 8-bit three-state access area. When the DMAC gets the bus from the CPU, after one dead cycle (T ), it reads from the source address and writes to the destination address.
Page 264 Section 8 DMA Controller Figure 8.14 shows the timing when the DMAC is activated by low input at a DREQ pin. This example shows a word-size transfer from a 16-bit two-state access area to another 16-bit two-state access area. The DMAC continues the transfer while the DREQ pin is held low. DMAC cycle CPU cycle DMAC cycle...
Page 265 Section 8 DMA Controller Figure 8.15 shows an auto-requested burst-mode transfer. This example shows a transfer of three words from a 16-bit two-state access area to another 16-bit two-state access area. CPU cycle DMAC cycle CPU cycle φ Source Destination address address Address...
Page 266 Section 8 DMA Controller Figure 8.16 shows the timing when the DMAC is activated by the falling edge of DREQ in normal mode. CPU cycle DMAC cycle cycle DMAC cycle DREQ Address HWR, LWR Minimum 4 states Next sampling point Figure 8.16 Timing of DMAC Activation by Falling Edge of DREQ DREQ in Normal Mode DREQ...
Page 267 Section 8 DMA Controller Figure 8.17 shows the timing when the DMAC is activated by level-sensitive low DREQ input in normal mode. CPU cycle DMAC cycle CPU cycle φ DREQ Address Minimum 4 states Next sampling point Figure 8.17 Timing of DMAC Activation by Low DREQ DREQ Level in Normal Mode DREQ DREQ...
Page 268 Section 8 DMA Controller Figure 8.18 shows the timing when the DMAC is activated by the falling edge of DREQ in block transfer mode. End of 1 block transfer DMAC cycle CPU cycle DMAC cycle φ DREQ Address TEND Next sampling Minimum 4 states Figure 8.18 Timing of DMAC Activation by Falling Edge of DREQ DREQ in Block Transfer Mode...
Page 269: Dmac Multiple-Channel Operation
Section 8 DMA Controller 8.4.9 DMAC Multiple-Channel Operation The DMAC channel priority order is: channel 0 > channel 1 and channel A > channel B. Table 8.12 shows the complete priority order. Table 8.12 Channel Priority Order Short Address Mode Full Address Mode Priority Channel 0A...
Page 270: External Bus Requests, Refresh Controller, And Dmac
Section 8 DMA Controller DMAC cycle DMAC cycle DMAC cycle (channel 1) cycle (channel 0A) cycle (channel 1) φ Address Figure 8.19 Timing of Multiple-Channel Operations 8.4.10 External Bus Requests, Refresh Controller, and DMAC During a DMA transfer, if the bus right is requested by an external bus request signal (BREQ) or by the refresh controller, the DMAC releases the bus after completing the transfer of the current byte or word.
Page 271: Nmi Interrupts And Dmac
Section 8 DMA Controller 8.4.11 NMI Interrupts and DMAC NMI interrupts do not affect DMAC operations in short address mode. If an NMI interrupt occurs during a transfer in full address mode, the DMAC suspends operations. In full address mode, a channel is enabled when its DTE and DTME bits are both set to 1. NMI input clears the DTME bit to 0.
Page 272: Aborting A Dma Transfer
Section 8 DMA Controller 8.4.12 Aborting a DMA Transfer When the DTE bit in an active channel is cleared to 0, the DMAC halts after transferring the current byte or word. The DMAC starts again when the DTE bit is set to 1. In full address mode, the DTME bit can be used for the same purpose.
Page 273: Exiting Full Address Mode
Section 8 DMA Controller 8.4.13 Exiting Full Address Mode Figure 8.23 shows the procedure for exiting full address mode and initializing the pair of channels. To set the channels up in another mode after exiting full address mode, follow the setup procedure for the relevant mode.
Page 274: Dmac States In Reset State, Standby Modes, And Sleep Mode
Section 8 DMA Controller 8.4.14 DMAC States in Reset State, Standby Modes, and Sleep Mode When the chip is reset or enters hardware or software standby mode, the DMAC is initialized and halts. DMAC operations continue in sleep mode. Figure 8.24 shows the timing of a cycle-steal transfer in sleep mode.
Page 275: Interrupts
Section 8 DMA Controller Interrupts The DMAC generates only DMA-end interrupts. Table 8.13 lists the interrupts and their priority. Table 8.13 DMAC Interrupts Description Interrupt Interrupt Short Address Mode Full Address Mode Priority DEND0A End of transfer on channel 0A End of transfer on channel 0 High ↑...
Page 276: Usage Notes
Section 8 DMA Controller Usage Notes 8.6.1 Note on Word Data Transfer Word data cannot be accessed starting at an odd address. When word-size transfer is selected, set even values in the memory and I/O address registers (MAR and IOAR). 8.6.2 DMAC Self-Access The DMAC itself cannot be accessed during a DMAC cycle.
Page 277 Section 8 DMA Controller Enabling of DMAC While the DTE bit is cleared to 0, interrupt requests are sent to the CPU. Clear the interrupt enable bit to 0 in the interrupt-generating on-chip Selected interrupt supporting module. requested? Interrupt hand- Enable the DMAC.
Page 278: Nmi Interrupts And Block Transfer Mode
Section 8 DMA Controller 8.6.6 NMI Interrupts and Block Transfer Mode If an NMI interrupt occurs in block transfer mode, the DMAC operates as follows. • When the NMI interrupt occurs, the DMAC finishes transferring the current byte or word, then clears the DTME bit to 0 and halts.
Page 279: Bus Cycle When Transfer Is Aborted
Section 8 DMA Controller 8.6.8 Bus Cycle when Transfer is Aborted When a transfer is aborted by clearing the DTE bit or suspended by an NMI that clears the DTME bit, if this halts a channel for which the DMAC has a transfer request pending internally, a dead cycle may occur.
Page 280 Section 8 DMA Controller Rev. 7.00 Sep 21, 2005 page 256 of 878 REJ09B0259-0700...
Page 281: Section 9 I/O Ports
Section 9 I/O Ports Section 9 I/O Ports Overview The H8/3048 Group has 10 input/output ports (ports 1, 2, 3, 4, 5, 6, 8, 9, A, and B) and one input port (port 7). Table 9.1 summarizes the port functions. The pins in each port are multiplexed as shown in table 9.1.
Page 282 Section 9 I/O Ports Table 9.1 Port Functions Port Description Pins Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 Port 1 • 8-bit I/O port to P1 Address output pins (A to A Address output (A Generic to A to A...
Page 283 Section 9 I/O Ports Port Description Pins Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 Port 8 • 5-bit I/O port DDR = 0: generic input Generic input/ DDR = 1 (after reset): CS •...
Page 284 Section 9 I/O Ports Port Description Pins Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 , TEND Port A • 8-bit I/O port TPC output (TP to TP ), output (TEND ) from DMA controller TIOCB (DMAC), ITU input and output (TCLKD, TCLKC, TCLKB, TCLKA, •...
Page 285: Port 1
Section 9 I/O Ports Port 1 9.2.1 Overview Port 1 is an 8-bit input/output port with the pin configuration shown in figure 9.1. The pin functions differ between the expanded modes with on-chip ROM disabled, expanded modes with on-chip ROM enabled, and single-chip mode. In modes 1 to 4 (expanded modes with on-chip ROM disabled), they are address bus output pins (A to A In modes 5 and 6 (expanded modes with on-chip ROM enabled), settings in the port 1 data...
Page 286: Register Descriptions
Section 9 I/O Ports 9.2.2 Register Descriptions Table 9.2 summarizes the registers of port 1. Table 9.2 Port 1 Registers Initial Value Address* Name Abbreviation Modes 1 to 4 Modes 5 to 7 H'FFC0 Port 1 data direction P1DDR H'FF H'00 register H'FFC2...
Page 287 Section 9 I/O Ports P1DDR is initialized to H'FF in modes 1 to 4 and H'00 in modes 5 to 7 by a reset and in hardware standby mode. In software standby mode it retains its previous setting. If a P1DDR bit is set to 1, the corresponding pin maintains its output state in software standby mode.
Page 288: Port 2
Section 9 I/O Ports Port 2 9.3.1 Overview Port 2 is an 8-bit input/output port with the pin configuration shown in figure 9.2. The pin functions differ according to the operating mode. In modes 1 to 4 (expanded modes with on-chip ROM disabled), port 2 consists of address bus output pins (A to A ).
Page 289: Register Descriptions
Section 9 I/O Ports 9.3.2 Register Descriptions Table 9.3 summarizes the registers of port 2. Table 9.3 Port 2 Registers Initial Value Address* Name Abbreviation Modes 1 to 4 Modes 5 to 7 H'FFC1 Port 2 data direction P2DDR H'FF H'00 register H'FFC3...
Page 290 Section 9 I/O Ports In modes 5 to 7, P2DDR is a write-only register. Its value cannot be read. All bits return 1 when read. P2DDR is initialized to H'FF in modes 1 to 4 and H'00 in modes 5 to 7 by a reset and in hardware standby mode.
Page 291 Section 9 I/O Ports P2PCR is initialized to H'00 by a reset and in hardware standby mode. In software standby mode it retains its previous setting. Table 9.4 summarizes the states of the input pull-up transistors. Table 9.4 Input Pull-Up MOS States (Port 2) Hardware Software Mode...
Page 292: Port 3
Section 9 I/O Ports Port 3 9.4.1 Overview Port 3 is an 8-bit input/output port with the pin configuration shown in figure 9.3. Port 3 is a data bus in modes 1 to 6 (expanded modes) and a generic input/output port in mode 7 (single-chip mode).
Page 293 Section 9 I/O Ports Port 3 Data Direction Register (P3DDR) P3DDR is an 8-bit write-only register that can select input or output for each pin in port 3. P3 DDR P3 DDR P3 DDR P3 DDR P3 DDR P3 DDR P3 DDR P3 DDR Initial value...
Page 294: Port 4
Section 9 I/O Ports Port 4 9.5.1 Overview Port 4 is an 8-bit input/output port with the pin configuration shown in figure 9.4. The pin functions differ according to the operating mode. In modes 1 to 6 (expanded modes), when the bus width control register (ABWCR) designates areas 0 to 7 all as 8-bit-access areas, the chip operates in 8-bit bus mode and port 4 is a generic input/output port.
Page 295: Register Descriptions
Section 9 I/O Ports 9.5.2 Register Descriptions Table 9.6 summarizes the registers of port 4. Table 9.6 Port 4 Registers Address* Name Abbreviation Initial Value H'FFC5 Port 4 data direction register P4DDR H'00 H'FFC7 Port 4 data register P4DR H'00 H'FFDA Port 4 input pull-up MOS control P4PCR...
Page 296 Section 9 I/O Ports ABWCR and P4DDR are not initialized in software standby mode. When port 4 functions as a generic input/output port, if a P4DDR bit is set to 1, the corresponding pin maintains its output state in software standby mode. Port 4 Data Register (P4DR) P4DR is an 8-bit readable/writable register that stores output data for pins P4 to P4...
Page 297 Section 9 I/O Ports Table 9.7 summarizes the states of the input pull-ups MOS in the 8-bit and 16-bit bus modes. Table 9.7 Input Pull-Up MOS Transistor States (Port 4) Hardware Software Mode Reset Standby Mode Standby Mode Other Modes 1 to 6 8-bit bus mode On/off...
Page 298: Port 5
Section 9 I/O Ports Port 5 9.6.1 Overview Port 5 is a 4-bit input/output port with the pin configuration shown in figure 9.5. The pin functions differ depending on the operating mode. In modes 1 to 4 (expanded modes with on-chip ROM disabled), port 5 consists of address output pins (A to A ).
Page 299: Register Descriptions
Section 9 I/O Ports 9.6.2 Register Descriptions Table 9.8 summarizes the registers of port 5. Table 9.8 Port 5 Registers Initial Value Address* Name Abbreviation Modes 1 to 4 Modes 5 to 7 H'FFC8 Port 5 data direction P5DDR H'FF H'F0 register H'FFCA...
Page 300 Section 9 I/O Ports Mode 7 (Single-Chip Mode): Port 5 functions as an input/output port. A pin in port 5 becomes an output port if the corresponding P5DDR bit is set to 1, and an input port if this bit is cleared to 0. In modes 1 to 4, P5DDR always returns 1 when read.
Page 301 Section 9 I/O Ports Port 5 Input Pull-Up MOS Control Register (P5PCR) — — — — P5 PCR P5 PCR P5 PCR P5 PCR Initial value Read/Write — — — — Reserved bits Port 5 input pull-up MOS control 3 to 0 These bits control input pull-up MOS transistors built into port 5 P5PCR is an 8-bit readable/writable register that controls the MOS input pull-up MOS transistors...
Page 302: Port 6
Section 9 I/O Ports Port 6 9.7.1 Overview Port 6 is a 7-bit input/output port that is also used for input and output of bus control signals (LWR, HWR, RD, AS, BACK, BREQ, and WAIT). When DRAM is connected to area 3, LWR, HWR, and RD also function as LW, UW, and CAS, or LCAS, UCAS, and WE, respectively.
Page 303: Register Descriptions
Section 9 I/O Ports 9.7.2 Register Descriptions Table 9.10 summarizes the registers of port 6. Table 9.10 Port 6 Registers Initial Value Address* Name Abbreviation Mode 1 to 5 Mode 6, 7 H'FFC9 Port 6 data direction P6DDR H'F8 H'80 register H'FFCB Port 6 data register...
Page 304 Section 9 I/O Ports Port 6 Data Register (P6DR) — Initial value Read/Write — Reserved bit Port 6 data 6 to 0 These bits store data for port 6 pins P6DR is an 8-bit readable/writable register that stores output data for pins P6 to P6 .
Page 305 Section 9 I/O Ports Pin Functions and Selection Method /BACK Bit BRLE in BRCR and bit P6 DDR select the pin function as follows BRLE — BACK output Pin function input output /BREQ Bit BRLE in BRCR and bit P6 DDR select the pin function as follows BRLE —...
Page 306: Port 7
Section 9 I/O Ports Port 7 9.8.1 Overview Port 7 is an 8-bit input port that is also used for analog input to the A/D converter and analog output from the D/A converter. The pin functions are the same in all operating modes. Figure 9.7 shows the pin configuration of port 7.
Page 307: Register Description
Section 9 I/O Ports 9.8.2 Register Description Table 9.12 summarizes the port 7 register. Port 7 is an input-only port, so it has no data direction register. Table 9.12 Port 7 Data Register Address* Name Abbreviation Initial Value H'FFCE Port 7 data register P7DR Undetermined Note: * Lower 16 bits of the address.
Page 308: Port 8
Section 9 I/O Ports Port 8 9.9.1 Overview Port 8 is a 5-bit input/output port that is also used for CS to CS output, RFSH output, and IRQ to IRQ input. Figure 9.8 shows the pin configuration of port 8. In modes 1 to 6 (expanded modes), port 8 can provide CS to CS output, RFSH output, and IRQ...
Page 309: Register Descriptions
Section 9 I/O Ports 9.9.2 Register Descriptions Table 9.13 summarizes the registers of port 8. Table 9.13 Port 8 Registers Initial Value Address* Name Abbreviation Mode 1 to 4 Mode 5 to 7 H'FFCD Port 8 data direction P8DDR H'F0 H'E0 register H'FFCF...
Page 310 Section 9 I/O Ports Mode 7 (Single-Chip Mode): Port 8 is a generic input/output port. A pin in port 8 becomes an output port if the corresponding P8DDR bit is set to 1, and an input port if this bit is cleared to 0. P8DDR is a write-only register.
Page 311 Section 9 I/O Ports Table 9.14 Port 8 Pin Functions in Modes 1 to 6 Pin Functions and Selection Method Bit P8 DDR selects the pin function as follows Pin function input output /IRQ Bit P8 DDR selects the pin function as follows Pin function input output...
Page 312 Section 9 I/O Ports Table 9.15 Port 8 Pin Functions in Mode 7 Pin Functions and Selection Method Bit P8 DDR selects the pin function as follows Pin function input output /IRQ Bit P8 DDR selects the pin function as follows Pin function input output...
Page 313: Port 9
Section 9 I/O Ports 9.10 Port 9 9.10.1 Overview Port 9 is a 6-bit input/output port that is also used for input and output (TxD , TxD , RxD , RxD ) by serial communication interface channels 0 and 1 (SCI0 and SCI1), and for IRQ , SCK and IRQ input.
Page 314: Register Descriptions
Section 9 I/O Ports 9.10.2 Register Descriptions Table 9.16 summarizes the registers of port 9. Table 9.16 Port 9 Registers Address* Name Abbreviation Initial Value H'FFD0 Port 9 data direction register P9DDR H'C0 H'FFD2 Port 9 data register P9DR H'C0 Note: * Lower 16 bits of the address.
Page 315 Section 9 I/O Ports Port 9 Data Register (P9DR) P9DR is an 8-bit readable/writable register that stores output data for pins P9 to P9 . While port 9 acts as an output port, the value of this register is output. When a bit in P9DDR is set to 1, if port 9 is read the value of the corresponding P9DR bit is returned.
Page 316 Section 9 I/O Ports Table 9.17 Port 9 Pin Functions Pin Functions and Selection Method /SCK /IRQ Bit C/A in SMR of SCI1, bits CKE0 and CKE1 in SCR of SCI1, and bit P9 select the pin function as follows CKE1 —...
Page 317 Section 9 I/O Ports Pin Functions and Selection Method /TxD Bit TE in SCR of SCI1 and bit P9 DDR select the pin function as follows — Pin function input output output /TxD Bit TE in SCR of SCI0, bit SMIF in SCMR, and bit P9 DDR select the pin function as follows SMIF...
Page 318: Port A
Section 9 I/O Ports 9.11 Port A 9.11.1 Overview Port A is an 8-bit input/output port that is also used for output (TP to TP ) from the programmable timing pattern controller (TPC), input and output (TIOCB , TIOCA , TIOCB TIOCA , TIOCB , TIOCA...
Page 319 Section 9 I/O Ports Port A pins PA /TP /TIOCB /A PA /TP /TIOCA /A PA /TP /TIOCB /A PA /TP /TIOCA /A Port A PA /TP /TIOCB /TCLKD PA /TP /TIOCA /TCLKC PA /TP /TEND /TCLKB PA /TP /TEND /TCLKA Pin functions in modes 1, 2, and 5 PA (input/output)/TP (output)/TIOCB (input/output) PA (input/output)/TP (output)/TIOCA (input/output)/CS...
Page 320: Register Descriptions
Section 9 I/O Ports 9.11.2 Register Descriptions Table 9.18 summarizes the registers of port A. Table 9.18 Port A Registers Initial Value Modes Modes Address* Name Abbreviation 1, 2, 5, and 7 3, 4, and 6 H'FFD1 Port A data direction PADDR H'00 H'80...
Page 321 Section 9 I/O Ports Port A Data Register (PADR) PADR is an 8-bit readable/writable register that stores output data for pins PA to PA . While port A acts as an output port, the value of this register is output. When a bit in PADDR is set to 1, if port A is read the value of the corresponding PADR bit is returned.
Page 322: Pin Functions
Section 9 I/O Ports 9.11.3 Pin Functions Table 9.19 describes the selection of pin functions. Table 9.19 Port A Pin Functions Pin Functions and Selection Method The mode setting, ITU channel 2 settings (bit PWM2 in TMDR and bits IOB2 to IOB0 in TIOCB TIOR2), bit NDER7 in NDERA, and bit PA DDR in PADDR select the pin function as...
Page 323 Section 9 I/O Ports Pin Functions and Selection Method The mode setting, bit A E in BRCR, bit CS4E in CSCR, ITU channel 2 settings (bit TIOCA PWM2 in TMDR and bits IOA2 to IOA0 in TIOR2), bit NDER6 in NDERA, and bit DDR in PADDR select the pin function as follows Mode 1, 2, 5...
Page 324 Section 9 I/O Ports Pin Functions and Selection Method The mode setting, bit A E in BRCR, bit CS5E in CSCR, ITU channel 1 settings (bit PWM1 in TMDR and bits IOB2 to IOB0 in TIOR1), bit NDER5 in NDERA, and bit TIOCB DDR in PADDR select the pin function as follows Mode...
Page 325 Section 9 I/O Ports Pin Functions and Selection Method The mode setting, bit A E in BRCR, bit CS6E in CSCR, ITU channel 1 settings (bit TIOCA PWM1 in TMDR and bits IOA2 to IOA0 in TIOR1), bit NDER4 in NDERA, and bit DDR in PADDR select the pin function as follows Mode 1, 2, 5...
Page 326 Section 9 I/O Ports Pin Functions and Selection Method ITU channel 0 settings (bit PWM0 in TMDR and bits IOB2 to IOB0 in TIOR0), bits TIOCB TPSC2 to TPSC0 in TCR4 to TCR0, bit NDER3 in NDERA, and bit PA DDR in PADDR TCLKD select the pin function as follows...
Page 327 Section 9 I/O Ports Pin Functions and Selection Method ITU channel 0 settings (bit PWM0 in TMDR and bits IOA2 to IOA0 in TIOR0), bits TIOCA TPSC2 to TPSC0 in TCR4 to TCR0, bit NDER2 in NDERA, and bit PA DDR in PADDR TCLKC select the pin function as follows...
Page 328 Section 9 I/O Ports Pin Functions and Selection Method DMAC channel 1 settings (bits DTS2/1/0A and DTS2/1/0B in DTCR1A and DTCR1B), TCLKB/ bit NDER1 in NDERA, and bit PA DDR in PADDR select the pin function as follows TEND DMAC (1) in table (2) in table channel 1...
Page 329 Section 9 I/O Ports Pin Functions and Selection Method DMAC channel 0 settings (bits DTS2/1/0A and DTS2/1/0B in DTCR0A and DTCR0B), TCLKA/ bit NDER0 in NDERA, and bit PA DDR in PADDR select the pin function as follows TEND DMAC (1) in table (2) in table channel 0...
Page 330: Port B
Section 9 I/O Ports 9.12 Port B 9.12.1 Overview Port B is an 8-bit input/output port that is also used for output (TP to TP ) from the programmable timing pattern controller (TPC), input/output (TIOCB , TIOCB , TIOCA TIOCA ) and output (TOCXB , TOCXA ) by the 16-bit integrated timer unit (ITU), input...
Page 331 Section 9 I/O Ports Port B pins /DREQ /ADTRG /DREQ /TOCXB /TOCXA Port B /TIOCB /TIOCA /TIOCB /TIOCA Pin functions in modes 1 to 6 (input/output)/TP (output)/DREQ (input)/ADTRG (input) (input/output)/TP (output)/DREQ (input)/CS (output) (input/output)/TP (output)/TOCXB (output) (input/output)/TP (output)/TOCXA (output) (input/output)/TP (output)/TIOCB (input/output) (input/output)/TP...
Page 332: Register Descriptions
Section 9 I/O Ports 9.12.2 Register Descriptions Table 9.20 summarizes the registers of port B. Table 9.20 Port B Registers Address* Name Abbreviation Initial Value H'FFD4 Port B data direction register PBDDR H'00 H'FFD6 Port B data register PBDR H'00 Note: * Lower 16 bits of the address.
Page 333 Section 9 I/O Ports Port B Data Register (PBDR) PBDR is an 8-bit readable/writable register that stores output data for pins PB7 to PB0. While port B acts as an output port, the value of this register is output. When a bit in PBDDR is set to 1, if port B is read the value of the corresponding PBDR bit is returned.
Page 334: Pin Functions
Section 9 I/O Ports 9.12.3 Pin Functions Table 9.21 describes the selection of pin functions. Table 9.21 Port B Pin Functions Pin Functions and Selection Method DMAC channel 1 settings (bits DTS2/1/0A and DTS2/1/0B in DTCR1A and DTCR1B), DREQ bit TRGE in ADCR, bit NDER15 in NDERB, and bit PB DDR in PBDDR select the pin ADTRG function as follows...
Page 335 Section 9 I/O Ports Pin Functions and Selection Method Bit CS7E in CSCR, DMAC channel 0 settings (bits DTS2/1/0A and DTS2/1/0B in DREQ DTCR0A and DTCR0B), bit NDER14 in NDERB, and bit PB DDR in PBDDR select the pin function as follows —...
Page 336 Section 9 I/O Ports Pin Functions and Selection Method ITU channel 4 settings (bit PWM4 in TMDR, bit CMD1 in TFCR, bit EB4 in TOER, and TIOCB bits IOB2 to IOB0 in TIOR4), bit NDER11 in NDERB, and bit PB DDR in PBDDR select the pin function as follows ITU channel 4...
Page 337 Section 9 I/O Ports Pin Functions and Selection Method ITU channel 3 settings (bit PWM3 in TMDR, bit CMD1 in TFCR, bit EB3 in TOER, and TIOCB bits IOB2 to IOB0 in TIOR3), bit NDER9 in NDERB, and bit PB DDR in PBDDR select the pin function as follows ITU channel 3...
Page 338 Section 9 I/O Ports Rev. 7.00 Sep 21, 2005 page 314 of 878 REJ09B0259-0700...
Page 339: Section 10 16-Bit Integrated Timer Unit (Itu)
Section 10 16-Bit Integrated Timer Unit (ITU) Section 10 16-Bit Integrated Timer Unit (ITU) 10.1 Overview The H8/3048 Group has a built-in 16-bit integrated timer unit (ITU) with five 16-bit timer channels. When the ITU is not used, it can be independently halted to conserve power. For details see section 21.6, Module Standby Function.
Page 340 Section 10 16-Bit Integrated Timer Unit (ITU) • Three additional modes selectable in channels 3 and 4  Reset-synchronized PWM mode If channels 3 and 4 are combined, three-phase PWM output is possible with three pairs of complementary waveforms.  Complementary PWM mode If channels 3 and 4 are combined, three-phase PWM output is possible with three pairs of non-overlapping complementary waveforms.
Page 341 Section 10 16-Bit Integrated Timer Unit (ITU) Table 10.1 summarizes the ITU functions. Table 10.1 ITU Functions Item Channel 0 Channel 1 Channel 2 Channel 3 Channel 4 Internal clocks: φ, φ/2, φ/4, φ/8 Clock sources External clocks: TCLKA, TCLKB, TCLKC, TCLKD, selectable independently General registers GRA0, GRB0 GRA1, GRB1...
Page 342: Block Diagrams
Section 10 16-Bit Integrated Timer Unit (ITU) 10.1.2 Block Diagrams ITU Block Diagram (Overall): Figure 10.1 is a block diagram of the ITU. IMIA0 to IMIA4 TCLKA to TCLKD Clock selector IMIB0 to IMIB4 φ, φ/2, φ/4, φ/8 OVI0 to OVI4 Control logic TOCXA , TOCXB...
Page 343 Section 10 16-Bit Integrated Timer Unit (ITU) Block Diagram of Channels 0 and 1: ITU channels 0 and 1 are functionally identical. Both have the structure shown in figure 10.2. TCLKA to TCLKD TIOCA Clock selector TIOCB φ, φ/2, φ/4, φ/8 Control logic IMIA0 Comparator...
Page 344 Section 10 16-Bit Integrated Timer Unit (ITU) Block Diagram of Channel 2: Figure 10.3 is a block diagram of channel 2. This is the channel that provides only 0 output and 1 output. TCLKA to TCLKD TIOCA Clock selector TIOCB φ, φ/2, φ/4, φ/8 Control logic IMIA2...
Page 345 Section 10 16-Bit Integrated Timer Unit (ITU) Block Diagrams of Channels 3 and 4: Figure 10.4 is a block diagram of channel 3. Figure 10.5 is a block diagram of channel 4. TIOCA TCLKA to TIOCB TCLKD Clock selector φ, φ/2, φ/4, φ/8 Control logic IMIA3...
Page 346 Section 10 16-Bit Integrated Timer Unit (ITU) TOCXA TCLKA to TOCXB TCLKD Clock selector φ, φ/2, TIOCA φ/4, φ/8 TIOCB Control logic IMIA4 Comparator IMIB4 OVI4 Module data bus Legend TCNT4: Timer counter 4 (16 bits) GRA4, GRB4: General registers A4 and B4 (input capture/output compare registers) ×...
Page 347: Input/Output Pins
Section 10 16-Bit Integrated Timer Unit (ITU) 10.1.3 Input/Output Pins Table 10.2 summarizes the ITU pins. Table 10.2 ITU Pins Abbre- Input/ Channel Name viation Output Function Common Clock input A TCLKA Input External clock A input pin (phase-A input pin in phase counting mode) Clock input B TCLKB Input...
Page 348: Register Configuration
Section 10 16-Bit Integrated Timer Unit (ITU) 10.1.4 Register Configuration Table 10.3 summarizes the ITU registers. Table 10.3 ITU Registers Abbre- Initial Address * Channel Name viation Value Common H'FF60 Timer start register TSTR H'E0 H'FF61 Timer synchro register TSNC H'E0 H'FF62 Timer mode register...
Page 349 Section 10 16-Bit Integrated Timer Unit (ITU) Abbre- Initial Address * viation Value Channel Name H'FF78 Timer control register 2 TCR2 H'80 H'FF79 Timer I/O control register 2 TIOR2 H'88 H'FF7A Timer interrupt enable register 2 TIER2 H'F8 R/(W) * H'FF7B Timer status register 2 TSR2...
Page 350 Section 10 16-Bit Integrated Timer Unit (ITU) Abbre- Initial Address * viation Value Channel Name H'FF92 Timer control register 4 TCR4 H'80 H'FF93 Timer I/O control register 4 TIOR4 H'88 H'FF94 Timer interrupt enable register 4 TIER4 H'F8 R/(W) * H'FF95 Timer status register 4 TSR4...
Page 351: Register Descriptions
Section 10 16-Bit Integrated Timer Unit (ITU) 10.2 Register Descriptions 10.2.1 Timer Start Register (TSTR) TSTR is an 8-bit readable/writable register that starts and stops the timer counter (TCNT) in channels 0 to 4. — — — STR4 STR3 STR2 STR1 STR0 Initial value...
Page 352: Timer Synchro Register (Tsnc)
Section 10 16-Bit Integrated Timer Unit (ITU) Bit 1—Counter Start 1 (STR1): Starts and stops timer counter 1 (TCNT1). Bit 1: STR1 Description TCNT1 is halted (Initial value) TCNT1 is counting Bit 0—Counter Start 0 (STR0): Starts and stops timer counter 0 (TCNT0). Bit 0: STR0 Description TCNT0 is halted...
Page 353 Section 10 16-Bit Integrated Timer Unit (ITU) Bit 3—Timer Sync 3 (SYNC3): Selects whether channel 3 operates independently or synchronously. Bit 3: SYNC3 Description Channel 3’s timer counter (TCNT3) operates independently (Initial value) TCNT3 is preset and cleared independently of other channels Channel 3 operates synchronously TCNT3 can be synchronously preset and cleared Bit 2—Timer Sync 2 (SYNC2): Selects whether channel 2 operates independently or...
Page 354: Timer Mode Register (Tmdr)
Section 10 16-Bit Integrated Timer Unit (ITU) 10.2.3 Timer Mode Register (TMDR) TMDR is an 8-bit readable/writable register that selects PWM mode for channels 0 to 4. It also selects phase counting mode and the overflow flag (OVF) setting conditions for channel 2. —...
Page 355 Section 10 16-Bit Integrated Timer Unit (ITU) When MDF is set to 1 to select phase counting mode, TCNT2 operates as an up/down-counter and pins TCLKA and TCLKB become counter clock input pins. TCNT2 counts both rising and falling edges of TCLKA and TCLKB, and counts up or down as follows. Counting Direction Down-Counting Up-Counting...
Page 356 Section 10 16-Bit Integrated Timer Unit (ITU) Bit 3—PWM Mode 3 (PWM3): Selects whether channel 3 operates normally or in PWM mode. Bit 3: PWM3 Description Channel 3 operates normally (Initial value) Channel 3 operates in PWM mode When bit PWM3 is set to 1 to select PWM mode, pin TIOCA becomes a PWM output pin.
Page 357: Timer Function Control Register (Tfcr)
Section 10 16-Bit Integrated Timer Unit (ITU) 10.2.4 Timer Function Control Register (TFCR) TFCR is an 8-bit readable/writable register that selects complementary PWM mode, reset- synchronized PWM mode, and buffering for channels 3 and 4. — — CMD1 CMD0 BFB4 BFA4 BFB3 BFA3...
Page 358 Section 10 16-Bit Integrated Timer Unit (ITU) Before selecting reset-synchronized PWM mode or complementary PWM mode, halt the timer counter or counters that will be used in these modes. When these bits select complementary PWM mode or reset-synchronized PWM mode, they take precedence over the setting of the PWM mode bits (PWM4 and PWM3) in TMDR.
Page 359: Timer Output Master Enable Register (Toer)
Section 10 16-Bit Integrated Timer Unit (ITU) 10.2.5 Timer Output Master Enable Register (TOER) TOER is an 8-bit readable/writable register that enables or disables output settings for channels 3 and 4. — — EXB4 EXA4 Initial value Read/Write — — Reserved bits Master enable TOCXA4, TOCXB4 These bits enable or disable output...
Page 360 Section 10 16-Bit Integrated Timer Unit (ITU) Bit 3—Master Enable TIOCB3 (EB3): Enables or disables ITU output at pin TIOCB Bit 3: EB3 Description TIOCB output is disabled regardless of TIOR3 and TFCR settings (TIOCB operates as a generic input/output pin). If XTGD = 0, EB3 is cleared to 0 when input capture A occurs in channel 1.
Page 361: Timer Output Control Register (Tocr)
Section 10 16-Bit Integrated Timer Unit (ITU) 10.2.6 Timer Output Control Register (TOCR) TOCR is an 8-bit readable/writable register that selects externally triggered disabling of output in complementary PWM mode and reset-synchronized PWM mode, and inverts the output levels. — —...
Page 362: Timer Counters (Tcnt)
Section 10 16-Bit Integrated Timer Unit (ITU) Bit 1—Output Level Select 4 (OLS4): Selects output levels in complementary PWM mode and reset-synchronized PWM mode. Bit 1: OLS4 Description TIOCA , TIOCA , and TIOCB outputs are inverted TIOCA , TIOCA , and TIOCB outputs are not inverted (Initial value)
Page 363: General Registers (Gra, Grb)
Section 10 16-Bit Integrated Timer Unit (ITU) TCNT can be cleared to H'0000 by compare match with GRA or GRB or by input capture to GRA or GRB (counter clearing function) in the same channel. When TCNT overflows (changes from H'FFFF to H'0000), the OVF flag is set to 1 in TSR of the corresponding channel.
Page 364: Buffer Registers (Bra, Brb)
Section 10 16-Bit Integrated Timer Unit (ITU) general register. The corresponding IMFA or IMFB flag in TSR is set to 1 at the same time. The valid edge or edges of the input capture signal are selected in TIOR. TIOR settings are ignored in PWM mode, complementary PWM mode, and reset-synchronized PWM mode.
Page 365: Timer Control Registers (Tcr)
Section 10 16-Bit Integrated Timer Unit (ITU) The buffer registers are linked to the CPU by an internal 16-bit bus and can be written or read by either word or byte access. Buffer registers are initialized to H'FFFF by a reset and in standby mode. 10.2.10 Timer Control Registers (TCR) TCR is an 8-bit register.
Page 366 Section 10 16-Bit Integrated Timer Unit (ITU) Bits 6 and 5—Counter Clear 1/0 (CCLR1, CCLR0): These bits select how TCNT is cleared. Bit 6: CCLR1 Bit 5: CCLR0 Description TCNT is not cleared (Initial value) TCNT is cleared by GRA compare match or input capture * TCNT is cleared by GRB compare match or input capture *...
Page 367: Timer I/O Control Register (Tior)
Section 10 16-Bit Integrated Timer Unit (ITU) When bit TPSC2 is cleared to 0 an internal clock source is selected, and the timer counts only falling edges. When bit TPSC2 is set to 1 an external clock source is selected, and the timer counts the edge or edges selected by bits CKEG1 and CKEG0.
Page 368 Section 10 16-Bit Integrated Timer Unit (ITU) Bits 6 to 4—I/O Control B2 to B0 (IOB2 to IOB0): These bits select the GRB function. Bit 6: Bit 5: Bit 4: IOB2 IOB1 IOB0 Description GRB is an output No output at compare match (Initial value) compare register 0 output at GRB compare match * 1 output at GRB compare match *...
Page 369: Timer Status Register (Tsr)
Section 10 16-Bit Integrated Timer Unit (ITU) 10.2.12 Timer Status Register (TSR) TSR is an 8-bit register. The ITU has five TSRs, one in each channel. Channel Abbreviation Function TSR0 Indicates input capture, compare match, and overflow status TSR1 TSR2 TSR3 TSR4 —...
Page 370 Section 10 16-Bit Integrated Timer Unit (ITU) Bit 2—Overflow Flag (OVF): This status flag indicates TCNT overflow or underflow. Bit 2: OVF Description [Clearing condition] (Initial value) Read OVF when OVF = 1, then write 0 in OVF [Setting condition] TCNT overflowed from H'FFFF to H'0000, or underflowed from H'0000 to H'FFFF* Notes: 1.
Page 371: Timer Interrupt Enable Register (Tier)
Section 10 16-Bit Integrated Timer Unit (ITU) 10.2.13 Timer Interrupt Enable Register (TIER) TIER is an 8-bit register. The ITU has five TIERs, one in each channel. Channel Abbreviation Function TIER0 Enables or disables interrupt requests. TIER1 TIER2 TIER3 TIER4 —...
Page 372 Section 10 16-Bit Integrated Timer Unit (ITU) Bit 2—Overflow Interrupt Enable (OVIE): Enables or disables the interrupt requested by the OVF flag in TSR when OVF is set to 1. Bit 2: OVIE Description OVI interrupt requested by OVF is disabled (Initial value) OVI interrupt requested by OVF is enabled Bit 1—Input Capture/Compare Match Interrupt Enable B (IMIEB): Enables or disables the...
Page 373: Cpu Interface
Section 10 16-Bit Integrated Timer Unit (ITU) 10.3 CPU Interface 10.3.1 16-Bit Accessible Registers The timer counters (TCNTs), general registers A and B (GRAs and GRBs), and buffer registers A and B (BRAs and BRBs) are 16-bit registers, and are linked to the CPU by an internal 16-bit data bus.
Page 374 Section 10 16-Bit Integrated Timer Unit (ITU) On-chip data bus Module Bus interface data bus TCNTH TCNTL Figure 10.8 Access to Timer Counter (CPU Writes to TCNT, Upper Byte) On-chip data bus Module Bus interface data bus TCNTH TCNTL Figure 10.9 Access to Timer Counter (CPU Writes to TCNT, Lower Byte) On-chip data bus Module Bus interface...
Page 375: 8-Bit Accessible Registers
Section 10 16-Bit Integrated Timer Unit (ITU) On-chip data bus Module Bus interface data bus TCNTH TCNTL Figure 10.11 Access to Timer Counter (CPU Reads TCNT, Lower Byte) 10.3.2 8-Bit Accessible Registers The registers other than the timer counters, general registers, and buffer registers are 8-bit registers.
Page 376: Operation
Section 10 16-Bit Integrated Timer Unit (ITU) On-chip data bus Module Bus interface data bus Figure 10.13 Access to Timer Counter (CPU Reads TCR) 10.4 Operation 10.4.1 Overview A summary of operations in the various modes is given below. Normal Operation: Each channel has a timer counter and general registers. The timer counter counts up, and can operate as a free-running counter, periodic counter, or external event counter.
Page 377: Basic Functions
Section 10 16-Bit Integrated Timer Unit (ITU) Complementary PWM Mode: Channels 3 and 4 are paired for three-phase PWM output with non-overlapping complementary waveforms. When complementary PWM mode is selected GRA3, GRB3, GRA4, and GRB4 automatically function as output compare registers, and TIOCA , TIOCB , TIOCA...
Page 378 Section 10 16-Bit Integrated Timer Unit (ITU) Counter setup Select counter clock Type of counting? Free-running counting Periodic counting Select counter clear source Select output compare register function Set period Start counter Start counter Periodic counter Free-running counter Figure 10.14 Counter Setup Procedure (Example) 1.
Page 379 Section 10 16-Bit Integrated Timer Unit (ITU) • Free-running and periodic counter operation A reset leaves the counters (TCNTs) in ITU channels 0 to 4 all set as free-running counters. A free-running counter starts counting up when the corresponding bit in TSTR is set to 1. When the count overflows from H'FFFF to H'0000, the OVF flag is set to 1 in TSR.
Page 380 Section 10 16-Bit Integrated Timer Unit (ITU) TCNT value Counter cleared by general register compare match H'0000 Time STR bit Figure 10.16 Periodic Counter Operation • TCNT count timing  Internal clock source Bits TPSC2 to TPSC0 in TCR select the system clock (φ) or one of three internal clock sources obtained by prescaling the system clock (φ/2, φ/4, φ/8).
Page 381 Section 10 16-Bit Integrated Timer Unit (ITU) φ External clock input TCNT input TCNT N – 1 N + 1 Figure 10.18 Count Timing for External Clock Sources (when Both Edges are Detected) Waveform Output by Compare Match: In ITU channels 0, 1, 3, and 4, compare match A or B can cause the output at the TIOCA or TIOCB pin to go to 0, go to 1, or toggle.
Page 382 Section 10 16-Bit Integrated Timer Unit (ITU) • Examples of waveform output Figure 10.20 shows examples of 0 and 1 output. TCNT operates as a free-running counter, 0 output is selected for compare match A, and 1 output is selected for compare match B. When the pin is already at the selected output level, the pin level does not change.
Page 383 Section 10 16-Bit Integrated Timer Unit (ITU) • Output compare timing The compare match signal is generated in the last state in which TCNT and the general register match (when TCNT changes from the matching value to the next value). When the compare match signal is generated, the output value selected in TIOR is output at the output compare pin (TIOCA or TIOCB).
Page 384 Section 10 16-Bit Integrated Timer Unit (ITU) Input selection Set TIOR to select the input capture function of a general register and the rising edge, falling edge, or both edges of the input capture signal. Clear the port data direction bit to 0 before making these TIOR settings.
Page 385 Section 10 16-Bit Integrated Timer Unit (ITU) • Input capture signal timing Input capture on the rising edge, falling edge, or both edges can be selected by settings in TIOR. Figure 10.25 shows the timing when the rising edge is selected. The pulse width of the input capture signal must be at least 1.5 system clocks for single-edge capture, and 2.5 system clocks for capture of both edges.
Page 386: Synchronization
Section 10 16-Bit Integrated Timer Unit (ITU) 10.4.3 Synchronization The synchronization function enables two or more timer counters to be synchronized by writing the same data to them simultaneously (synchronous preset). With appropriate TCR settings, two or more timer counters can also be cleared simultaneously (synchronous clear). Synchronization enables additional general registers to be associated with a single time base.
Page 387 Section 10 16-Bit Integrated Timer Unit (ITU) Example of Synchronization: Figure 10.27 shows an example of synchronization. Channels 0, 1, and 2 are synchronized, and are set to operate in PWM mode. Channel 0 is set for counter clearing by compare match with GRB0. Channels 1 and 2 are set for synchronous counter clearing. The timer counters in channels 0, 1, and 2 are synchronously preset, and are synchronously cleared by compare match with GRB0.
Page 388: Pwm Mode
Section 10 16-Bit Integrated Timer Unit (ITU) 10.4.4 PWM Mode In PWM mode GRA and GRB are paired and a PWM waveform is output from the TIOCA pin. GRA specifies the time at which the PWM output changes to 1. GRB specifies the time at which the PWM output changes to 0.
Page 389 Section 10 16-Bit Integrated Timer Unit (ITU) Sample Setup Procedure for PWM Mode: Figure 10.28 shows a sample procedure for setting up PWM mode. PWM mode 1. Set bits TPSC2 to TPSC0 in TCR to select the counter clock source. If an external clock source is selected, set bits CKEG1 and CKEG0 in TCR to Select counter clock...
Page 390 Section 10 16-Bit Integrated Timer Unit (ITU) Examples of PWM Mode: Figure 10.29 shows examples of operation in PWM mode. In PWM mode TIOCA becomes an output pin. The output goes to 1 at compare match with GRA, and to 0 at compare match with GRB.
Page 391 Section 10 16-Bit Integrated Timer Unit (ITU) Figure 10.30 shows examples of the output of PWM waveforms with duty cycles of 0% and 100%. If the counter is cleared by compare match with GRB, and GRA is set to a higher value than GRB, the duty cycle is 0%.
Page 392: Reset-Synchronized Pwm Mode
Section 10 16-Bit Integrated Timer Unit (ITU) 10.4.5 Reset-Synchronized PWM Mode In reset-synchronized PWM mode channels 3 and 4 are combined to produce three pairs of complementary PWM waveforms, all having one waveform transition point in common. When reset-synchronized PWM mode is selected TIOCA , TIOCB , TIOCA , TOCXA...
Page 393 Section 10 16-Bit Integrated Timer Unit (ITU) Sample Setup Procedure for Reset-Synchronized PWM Mode: Figure 10.31 shows a sample procedure for setting up reset-synchronized PWM mode. Reset-synchronized PWM mode 1. Clear the STR3 bit in TSTR to 0 to halt TCNT3. Reset-synchronized PWM mode must be set up while TCNT3 is halted.
Page 394 Section 10 16-Bit Integrated Timer Unit (ITU) Example of Reset-Synchronized PWM Mode: Figure 10.32 shows an example of operation in reset-synchronized PWM mode. TCNT3 operates as an up-counter in this mode. TCNT4 operates independently, detached from GRA4 and GRB4. When TCNT3 matches GRA3, TCNT3 is cleared and resumes counting from H'0000.
Page 395: Complementary Pwm Mode
Section 10 16-Bit Integrated Timer Unit (ITU) 10.4.6 Complementary PWM Mode In complementary PWM mode channels 3 and 4 are combined to output three pairs of complementary, non-overlapping PWM waveforms. When complementary PWM mode is selected TIOCA , TIOCB , TIOCA , TOCXA , TIOCB and TOCXB...
Page 396 Section 10 16-Bit Integrated Timer Unit (ITU) Setup Procedure for Complementary PWM Mode: Figure 10.33 shows a sample procedure for setting up complementary PWM mode. Complementary PWM mode 1. Clear bits STR3 and STR4 to 0 in TSTR to halt the timer counters. Complementary PWM mode must be set up while TCNT3 and TCNT4 are Stop counting...
Page 397 Section 10 16-Bit Integrated Timer Unit (ITU) Clearing Procedure for Complementary PWM Mode: Figure 10.34 shows the steps to clear complementary PWM mode. Complementary PWM mode 1. Clear the CMD1 bit of TFCR to 0 to set channels 3 and 4 to normal operating mode.
Page 398 Section 10 16-Bit Integrated Timer Unit (ITU) Examples of Complementary PWM Mode: Figure 10.35 shows an example of operation in complementary PWM mode. TCNT3 and TCNT4 operate as up/down-counters, counting down from compare match between TCNT3 and GRA3 and counting up from the point at which TCNT4 underflows.
Page 399 Section 10 16-Bit Integrated Timer Unit (ITU) Figure 10.36 shows examples of waveforms with 0% and 100% duty cycles (in one phase) in complementary PWM mode. In this example the outputs change at compare match with GRB3, so waveforms with duty cycles of 0% or 100% can be output by setting GRB3 to a value larger than GRA3.
Page 400 Section 10 16-Bit Integrated Timer Unit (ITU) In complementary PWM mode, TCNT3 and TCNT4 overshoot and undershoot at the transitions between up-counting and down-counting. The setting conditions for the IMFA bit in channel 3 and the OVF bit in channel 4 differ from the usual conditions. In buffered operation the buffer transfer conditions also differ.
Page 401 Section 10 16-Bit Integrated Timer Unit (ITU) Underflow Overflow TCNT4 H'0001 H'0000 H'FFFF H'0000 Flag not set Set to 1 Buffer transfer signal (BR to GR) Buffer transfer No buffer transfer Figure 10.38 Undershoot Timing In channel 3, IMFA is set to 1 only during up-counting. In channel 4, OVF is set to 1 only when an underflow occurs.
Page 402 Section 10 16-Bit Integrated Timer Unit (ITU) GRA3 H'0000 Not allowed Figure 10.39 Changing a General Register Setting by Buffer Transfer (Example 1)  Buffer transfer at transition from up-counting to down-counting If the general register value is in the range from GRA3 – T + 1 to GRA3, do not transfer a buffer register value outside this range.
Page 403 Section 10 16-Bit Integrated Timer Unit (ITU) TCNT3 TCNT4 T – 1 Illegal changes H'0000 H'FFFF Figure 10.41 Changing a General Register Setting by Buffer Transfer (Caution 2)  General register settings outside the counting range (H'0000 to GRA3) Waveforms with a duty cycle of 0% or 100% can be output by setting a general register to a value outside the counting range.
Page 404: Phase Counting Mode
Section 10 16-Bit Integrated Timer Unit (ITU) 10.4.7 Phase Counting Mode In phase counting mode the phase difference between two external clock inputs (at the TCLKA and TCLKB pins) is detected, and TCNT2 counts up or down accordingly. In phase counting mode, the TCLKA and TCLKB pins automatically function as external clock input pins and TCNT2 becomes an up/down-counter, regardless of the settings of bits TPSC2 to TPSC0, CKEG1, and CKEG0 in TCR2.
Page 405 Section 10 16-Bit Integrated Timer Unit (ITU) Example of Phase Counting Mode: Figure 10.44 shows an example of operations in phase counting mode. Table 10.9 lists the up-counting and down-counting conditions for TCNT2. In phase counting mode both the rising and falling edges of TCLKA and TCLKB are counted. The phase difference between TCLKA and TCLKB must be at least 1.5 states, the phase overlap must also be at least 1.5 states, and the pulse width must be at least 2.5 states.
Page 406: Buffering
Section 10 16-Bit Integrated Timer Unit (ITU) 10.4.8 Buffering Buffering operates differently depending on whether a general register is an output compare register or an input capture register, with further differences in reset-synchronized PWM mode and complementary PWM mode. Buffering is available only in channels 3 and 4. Buffering operations under the conditions mentioned above are described next.
Page 407 Section 10 16-Bit Integrated Timer Unit (ITU) • Complementary PWM mode The buffer register value is transferred to the general register when TCNT3 and TCNT4 change counting direction. This occurs at the following two times:  When TCNT3 compare matches GRA3 ...
Page 408 Section 10 16-Bit Integrated Timer Unit (ITU) Examples of Buffering: Figure 10.49 shows an example in which GRA is set to function as an output compare register buffered by BRA, TCNT is set to operate as a periodic counter cleared by GRB compare match, and TIOCA and TIOCB are set to toggle at compare match A and B.
Page 409 Section 10 16-Bit Integrated Timer Unit (ITU) φ TCNT n + 1 Compare match signal Buffer transfer signal Figure 10.50 Compare Match and Buffer Transfer Timing (Example) Rev. 7.00 Sep 21, 2005 page 385 of 878 REJ09B0259-0700...
Page 410 Section 10 16-Bit Integrated Timer Unit (ITU) Figure 10.51 shows an example in which GRA is set to function as an input capture register buffered by BRA, and TCNT is cleared by input capture B. The falling edge is selected as the input capture edge at TIOCB.
Page 411 Section 10 16-Bit Integrated Timer Unit (ITU) φ TIOC pin Input capture signal TCNT n + 1 N + 1 Figure 10.52 Input Capture and Buffer Transfer Timing (Example) Rev. 7.00 Sep 21, 2005 page 387 of 878 REJ09B0259-0700...
Page 412 Section 10 16-Bit Integrated Timer Unit (ITU) Figure 10.53 shows an example in which GRB3 is buffered by BRB3 in complementary PWM mode. Buffering is used to set GRB3 to a higher value than GRA3, generating a PWM waveform with 0% duty cycle. The BRB3 value is transferred to GRB3 when TCNT3 matches GRA3, and when TCNT4 underflows.
Page 413: Itu Output Timing
Section 10 16-Bit Integrated Timer Unit (ITU) 10.4.9 ITU Output Timing The ITU outputs from channels 3 and 4 can be disabled by bit settings in TOER or by an external trigger, or inverted by bit settings in TOCR. Timing of Enabling and Disabling of ITU Output by TOER: In this example an ITU output is disabled by clearing a master enable bit to 0 in TOER.
Page 414 Section 10 16-Bit Integrated Timer Unit (ITU) Timing of Disabling of ITU Output by External Trigger: If the XTGD bit is cleared to 0 in TOCR in reset-synchronized PWM mode or complementary PWM mode, when an input capture A signal occurs in channel 1, the master enable bits are cleared to 0 in TOER, disabling ITU output. Figure 10.55 shows the timing.
Page 415: Interrupts
Section 10 16-Bit Integrated Timer Unit (ITU) 10.5 Interrupts The ITU has two types of interrupts: input capture/compare match interrupts, and overflow interrupts. 10.5.1 Setting of Status Flags Timing of Setting of IMFA and IMFB at Compare Match: IMFA and IMFB are set to 1 by a compare match signal generated when TCNT matches a general register (GR).
Page 416 Section 10 16-Bit Integrated Timer Unit (ITU) Timing of Setting of IMFA and IMFB by Input Capture: IMFA and IMFB are set to 1 by an input capture signal. The TCNT contents are simultaneously transferred to the corresponding general register. Figure 10.58 shows the timing. φ...
Page 417: Clearing Of Status Flags
Section 10 16-Bit Integrated Timer Unit (ITU) Timing of Setting of Overflow Flag (OVF): OVF is set to 1 when TCNT overflows from H'FFFF to H'0000 or underflows from H'0000 to H'FFFF. Figure 10.59 shows the timing. φ TCNT H'FFFF H'0000 Overflow signal...
Page 418: Interrupt Sources And Dma Controller Activation
Section 10 16-Bit Integrated Timer Unit (ITU) 10.5.3 Interrupt Sources and DMA Controller Activation Each ITU channel can generate a compare match/input capture A interrupt, a compare match/input capture B interrupt, and an overflow interrupt. In total there are 15 interrupt sources, all independently vectored.
Page 419: Usage Notes
Section 10 16-Bit Integrated Timer Unit (ITU) 10.6 Usage Notes This section describes contention and other matters requiring special attention during ITU operations. Contention between TCNT Write and Clear: If a counter clear signal occurs in the T state of a TCNT write cycle, clearing of the counter takes priority and the write is not performed.
Page 420 Section 10 16-Bit Integrated Timer Unit (ITU) Contention between TCNT Word Write and Increment: If an increment pulse occurs in the T state of a TCNT word write cycle, writing takes priority and TCNT is not incremented. See figure 10.62. TCNT word write cycle φ...
Page 421 Section 10 16-Bit Integrated Timer Unit (ITU) Contention between TCNT Byte Write and Increment: If an increment pulse occurs in the T or T state of a TCNT byte write cycle, writing takes priority and TCNT is not incremented. The TCNT byte that was not written retains its previous value.
Page 422 Section 10 16-Bit Integrated Timer Unit (ITU) Contention between General Register Write and Compare Match: If a compare match occurs in the T state of a general register write cycle, writing takes priority and the compare match signal is inhibited. See figure 10.64. General register write cycle φ...
Page 423 Section 10 16-Bit Integrated Timer Unit (ITU) Contention between TCNT Write and Overflow or Underflow: If an overflow occurs in the T state of a TCNT write cycle, writing takes priority and the counter is not incremented. OVF is set to 1.
Page 424 Section 10 16-Bit Integrated Timer Unit (ITU) Contention between General Register Read and Input Capture: If an input capture signal occurs during the T state of a general register read cycle, the value before input capture is read. See figure 10.66. General register read cycle φ...
Page 425 Section 10 16-Bit Integrated Timer Unit (ITU) Contention between Counter Clearing by Input Capture and Counter Increment: If an input capture signal and counter increment signal occur simultaneously, the counter is cleared according to the input capture signal. The counter is not incremented by the increment signal. The value before the counter is cleared is transferred to the general register.
Page 426 Section 10 16-Bit Integrated Timer Unit (ITU) Contention between General Register Write and Input Capture: If an input capture signal occurs in the T state of a general register write cycle, input capture takes priority and the write to the general register is not performed. See figure 10.68. General register write cycle φ...
Page 427 Section 10 16-Bit Integrated Timer Unit (ITU) Contention between Buffer Register Write and Input Capture: If a buffer register is used for input capture buffering and an input capture signal occurs in the T state of a write cycle, input capture takes priority and the write to the buffer register is not performed.
Page 428 Section 10 16-Bit Integrated Timer Unit (ITU) Note on Synchronous Preset: When channels are synchronized, if a TCNT value is modified by byte write access, all 16 bits of all synchronized counters assume the same value as the counter that was addressed. Example: When channels 2 and 3 are synchronized •...
Page 429 Section 10 16-Bit Integrated Timer Unit (ITU) ITU Operating Modes Table 10.11 (a) ITU Operating Modes (Channel 0) Rev. 7.00 Sep 21, 2005 page 405 of 878 REJ09B0259-0700...
Page 430 Section 10 16-Bit Integrated Timer Unit (ITU) Table 10.11 (b) ITU Operating Modes (Channel 1) Rev. 7.00 Sep 21, 2005 page 406 of 878 REJ09B0259-0700...
Page 431 Section 10 16-Bit Integrated Timer Unit (ITU) Table 10.11 (c) ITU Operating Modes (Channel 2) Rev. 7.00 Sep 21, 2005 page 407 of 878 REJ09B0259-0700...
Page 432 Section 10 16-Bit Integrated Timer Unit (ITU) Table 10.11 (d) ITU Operating Modes (Channel 3) Rev. 7.00 Sep 21, 2005 page 408 of 878 REJ09B0259-0700...
Page 433 Section 10 16-Bit Integrated Timer Unit (ITU) Table 10.11 (e) ITU Operating Modes (Channel 4) Rev. 7.00 Sep 21, 2005 page 409 of 878 REJ09B0259-0700...
Page 434 Section 10 16-Bit Integrated Timer Unit (ITU) Rev. 7.00 Sep 21, 2005 page 410 of 878 REJ09B0259-0700...
Page 435: Section 11 Programmable Timing Pattern Controller
Section 11 Programmable Timing Pattern Controller Section 11 Programmable Timing Pattern Controller 11.1 Overview The H8/3048 Group has a built-in programmable timing pattern controller (TPC) that provides pulse outputs by using the 16-bit integrated timer unit (ITU) as a time base. The TPC pulse outputs are divided into 4-bit groups (group 3 to group 0) that can operate simultaneously and independently.
Page 436: Block Diagram
Section 11 Programmable Timing Pattern Controller 11.1.2 Block Diagram Figure 11.1 shows a block diagram of the TPC. ITU compare match signals PADDR PBDDR NDERA NDERB Control logic TPMR TPCR Internal data bus Pulse output pins, group 3 PBDR NDRB Pulse output pins, group 2 Pulse output...
Page 437: Tpc Pins
Section 11 Programmable Timing Pattern Controller 11.1.3 TPC Pins Table 11.1 summarizes the TPC output pins. Table 11.1 TPC Pins Name Symbol Function TPC output 0 Output Group 0 pulse output TPC output 1 Output TPC output 2 Output TPC output 3 Output TPC output 4 Output...
Page 438: Registers
Section 11 Programmable Timing Pattern Controller 11.1.4 Registers Table 11.2 summarizes the TPC registers. Table 11.2 TPC Registers Address * Name Abbreviation Initial Value H'FFD1 Port A data direction register PADDR H'00 R/(W) * H'FFD3 Port A data register PADR H'00 H'FFD4 Port B data direction register...
Page 439: Register Descriptions
Section 11 Programmable Timing Pattern Controller 11.2 Register Descriptions 11.2.1 Port A Data Direction Register (PADDR) PADDR is an 8-bit write-only register that selects input or output for each pin in port A. PA DDR PA DDR PA DDR PA DDR PA DDR PA DDR PA DDR...
Page 440: Port B Data Direction Register (Pbddr)
Section 11 Programmable Timing Pattern Controller 11.2.3 Port B Data Direction Register (PBDDR) PBDDR is an 8-bit write-only register that selects input or output for each pin in port B. PB DDR PB DDR PB DDR PB DDR PB DDR PB DDR PB DDR PB DDR...
Page 441: Next Data Register A (Ndra)
Section 11 Programmable Timing Pattern Controller 11.2.5 Next Data Register A (NDRA) NDRA is an 8-bit readable/writable register that stores the next output data for TPC output groups 1 and 0 (pins TP to TP ). During TPC output, when an ITU compare match event specified in TPCR occurs, NDRA contents are transferred to the corresponding bits in PADR.
Page 442 Section 11 Programmable Timing Pattern Controller Different Triggers for TPC Output Groups 0 and 1: If TPC output groups 0 and 1 are triggered by different compare match events, the address of the upper 4 bits of NDRA (group 1) is H'FFA5 and the address of the lower 4 bits (group 0) is H'FFA7.
Page 443: Next Data Register B (Ndrb)
Section 11 Programmable Timing Pattern Controller 11.2.6 Next Data Register B (NDRB) NDRB is an 8-bit readable/writable register that stores the next output data for TPC output groups 3 and 2 (pins TP to TP ). During TPC output, when an ITU compare match event specified in TPCR occurs, NDRB contents are transferred to the corresponding bits in PBDR.
Page 444 Section 11 Programmable Timing Pattern Controller Different Triggers for TPC Output Groups 2 and 3: If TPC output groups 2 and 3 are triggered by different compare match events, the address of the upper 4 bits of NDRB (group 3) is H'FFA4 and the address of the lower 4 bits (group 2) is H'FFA6.
Page 445: Next Data Enable Register A (Ndera)
Section 11 Programmable Timing Pattern Controller 11.2.7 Next Data Enable Register A (NDERA) NDERA is an 8-bit readable/writable register that enables or disables TPC output groups 1 and 0 to TP ) on a bit-by-bit basis. NDER7 NDER6 NDER5 NDER4 NDER3 NDER2 NDER1...
Page 446: Next Data Enable Register B (Nderb)
Section 11 Programmable Timing Pattern Controller 11.2.8 Next Data Enable Register B (NDERB) NDERB is an 8-bit readable/writable register that enables or disables TPC output groups 3 and 2 to TP ) on a bit-by-bit basis. NDER15 NDER14 NDER13 NDER12 NDER11 NDER10 NDER9...
Page 447: Tpc Output Control Register (Tpcr)
Section 11 Programmable Timing Pattern Controller 11.2.9 TPC Output Control Register (TPCR) TPCR is an 8-bit readable/writable register that selects output trigger signals for TPC outputs on a group-by-group basis. G3CMS1 G3CMS0 G2CMS1 G2CMS0 G1CMS1 G1CMS0 G0CMS1 G0CMS0 Initial value Read/Write Group 3 compare match select 1 and 0...
Page 448 Section 11 Programmable Timing Pattern Controller Bits 5 and 4—Group 2 Compare Match Select 1 and 0 (G2CMS1, G2CMS0): These bits select the compare match event that triggers TPC output group 2 (TP to TP Bit 5: G2CMS1 Bit 4: G2CMS0 Description TPC output group 2 (TP to TP...
Page 449: Tpc Output Mode Register (Tpmr)
Section 11 Programmable Timing Pattern Controller 11.2.10 TPC Output Mode Register (TPMR) TPMR is an 8-bit readable/writable register that selects normal or non-overlapping TPC output for each group. — — — — G3NOV G2NOV G1NOV G0NOV Initial value Read/Write — —...
Page 450 Section 11 Programmable Timing Pattern Controller Bit 3—Group 3 Non-Overlap (G3NOV): Selects normal or non-overlapping TPC output for group 3 (TP to TP Bit 3: G3NOV Description Normal TPC output in group 3 (output values change at compare match A in the selected ITU channel) (Initial value) Non-overlapping TPC output in group 3 (independent 1 and 0 output at...
Page 451: Operation
Section 11 Programmable Timing Pattern Controller 11.3 Operation 11.3.1 Overview When corresponding bits in PADDR or PBDDR and NDERA or NDERB are set to 1, TPC output is enabled. The TPC output initially consists of the corresponding PADR or PBDR contents. When a compare-match event selected in TPCR occurs, the corresponding NDRA or NDRB bit contents are transferred to PADR or PBDR to update the output values.
Page 452: Output Timing
Section 11 Programmable Timing Pattern Controller Sequential output of up to 16-bit patterns is possible by writing new output data to NDRA and NDRB before the next compare match. For information on non-overlapping operation, see section 11.3.4, Non-Overlapping TPC Output. 11.3.2 Output Timing If TPC output is enabled, NDRA/NDRB contents are transferred to PADR/PBDR and output...
Page 453: Normal Tpc Output
Section 11 Programmable Timing Pattern Controller 11.3.3 Normal TPC Output Sample Setup Procedure for Normal TPC Output: Figure 11.4 shows a sample procedure for setting up normal TPC output. Normal TPC output Select GR functions Set TIOR to make GRA an output compare register (with output inhibited).
Page 454 Section 11 Programmable Timing Pattern Controller Example of Normal TPC Output (Example of Five-Phase Pulse Output): Figure 11.5 shows an example in which the TPC is used for cyclic five-phase pulse output. TCNT value Compare match TCNT H'0000 Time NDRB PBDR •...
Page 455: Non-Overlapping Tpc Output
Section 11 Programmable Timing Pattern Controller 11.3.4 Non-Overlapping TPC Output Sample Setup Procedure for Non-Overlapping TPC Output: Figure 11.6 shows a sample procedure for setting up non-overlapping TPC output. Non-overlapping TPC output Select GR functions Set TIOR to make GRA and GRB output compare registers (with output inhibited).
Page 456 Section 11 Programmable Timing Pattern Controller Example of Non-Overlapping TPC Output (Example of Four-Phase Complementary Non- Overlapping Output): Figure 11.7 shows an example of the use of TPC output for four-phase complementary non-overlapping pulse output. TCNT value TCNT H'0000 Time NDRB PBDR Non-overlap margin...
Page 457: Tpc Output Triggering By Input Capture
Section 11 Programmable Timing Pattern Controller 11.3.5 TPC Output Triggering by Input Capture TPC output can be triggered by ITU input capture as well as by compare match. If GRA and GRB functions as an input capture register in the ITU channel selected in TPCR, TPC output will be triggered by the input capture signal.
Page 458: Usage Notes
Section 11 Programmable Timing Pattern Controller 11.4 Usage Notes 11.4.1 Operation of TPC Output Pins to TP are multiplexed with ITU, DMAC, address bus, and other pin functions. When ITU, DMAC, or address output is enabled, the corresponding pins cannot be used for TPC output. The data transfer from NDR bits to DR bits takes place, however, regardless of the usage of the pin.
Page 459 Section 11 Programmable Timing Pattern Controller Therefore, 0 data can be transferred ahead of 1 data by making compare match B occur before compare match A. NDR contents should not be altered during the interval from compare match B to compare match A (the non-overlap margin). This can be accomplished by having the IMFA interrupt service routine write the next data in NDR, or by having the IMFA interrupt activate the DMAC.
Page 460 Section 11 Programmable Timing Pattern Controller Rev. 7.00 Sep 21, 2005 page 436 of 878 REJ09B0259-0700...
Page 461: Section 12 Watchdog Timer
Section 12 Watchdog Timer Section 12 Watchdog Timer 12.1 Overview The H8/3048 Group has an on-chip watchdog timer (WDT). The WDT has two selectable functions: it can operate as a watchdog timer to supervise system operation, or it can operate as an interval timer.
Page 462: Block Diagram
Section 12 Watchdog Timer 12.1.2 Block Diagram Figure 12.1 shows a block diagram of the WDT. Overflow Internal TCNT data bus Read/ Interrupt Interrupt signal write control (interval timer) control TCSR Internal clock sources φ/2 RSTCSR φ/32 φ/64 Reset Reset control Clock φ/128 (internal, external)
Page 463: Register Configuration
Section 12 Watchdog Timer 12.1.4 Register Configuration Table 12.2 summarizes the WDT registers. Table 12.2 WDT Registers Address * Abbre- Initial Write * Read Name viation Value R/(W) * H'FFA8 H'FFA8 Timer control/status register TCSR H'18 H'FFA9 Timer counter TCNT H'00 R/(W) * H'FFAA...
Page 464: Timer Control/Status Register (Tcsr)
Section 12 Watchdog Timer 12.2.2 Timer Control/Status Register (TCSR) TCSR is an 8-bit readable and writable * register. Its functions include selecting the timer mode and clock source. Note: * TCSR differs from other registers in being more difficult to write. For details see section 12.2.4, Notes on Register Access.
Page 465 Section 12 Watchdog Timer Bit 6—Timer Mode Select (WT/IT IT IT IT): Selects whether to use the WDT as a watchdog timer or interval timer. If used as an interval timer, the WDT generates an interval timer interrupt request when TCNT overflows. If used as a watchdog timer, the WDT generates a reset signal when TCNT overflows.
Page 466: Reset Control/Status Register (Rstcsr)
Section 12 Watchdog Timer 12.2.3 Reset Control/Status Register (RSTCSR) RSTCSR is an 8-bit readable and writable * register that indicates when a reset signal has been generated by watchdog timer overflow, and controls external output of the reset signal. Note: * RSTCSR differs from other registers in being more difficult to write. For details see section 12.2.4, Notes on Register Access.
Page 467: Notes On Register Access
Section 12 Watchdog Timer Bit 6—Reset Output Enable (RSTOE): Enables or disables external output at the RESO pin of the reset signal generated if TCNT overflows during watchdog timer operation. Bit 6: RSTOE Description Reset signal is not output externally (Initial value) Reset signal is output externally Bits 5 to 0—Reserved: Read-only bits, always read as 1.
Page 468 Section 12 Watchdog Timer Writing to RSTCSR: RSTCSR must be written by a word transfer instruction. It cannot be written by byte transfer instructions. Figure 12.3 shows the format of data written to RSTCSR. To write 0 in the WRST bit, the write data must have H'A5 in the upper byte and H'00 in the lower byte.
Page 469: Operation
Section 12 Watchdog Timer 12.3 Operation Operations when the WDT is used as a watchdog timer and as an interval timer are described below. 12.3.1 Watchdog Timer Operation Figure 12.4 illustrates watchdog timer operation. To use the WDT as a watchdog timer, set the WT/IT and TME bits to 1 in TCSR.
Page 470: Interval Timer Operation
Section 12 Watchdog Timer 12.3.2 Interval Timer Operation Figure 12.5 illustrates interval timer operation. To use the WDT as an interval timer, clear bit WT/IT to 0 and set bit TME to 1 in TCSR. An interval timer interrupt request is generated at each TCNT overflow.
Page 471: Timing Of Setting Of Watchdog Timer Reset Bit (Wrst)
Section 12 Watchdog Timer 12.3.4 Timing of Setting of Watchdog Timer Reset Bit (WRST) The WRST bit in RSTCSR is valid when bits WT/IT and TME are both set to 1 in TCSR. Figure 12.7 shows the timing of setting of WRST and the internal reset timing. The WRST bit is set to 1 when TCNT overflows and OVF is set to 1.
Page 472: Interrupts
Section 12 Watchdog Timer 12.4 Interrupts During interval timer operation, an overflow generates an interval timer interrupt (WOVI). The interval timer interrupt is requested whenever the OVF bit is set to 1 in TCSR. 12.5 Usage Notes Contention between TCNT Write and Increment: If a timer counter clock pulse is generated during the T state of a write cycle to TCNT, the write takes priority and the timer count is not incremented.
Page 473: Notes
Section 12 Watchdog Timer 12.6 Notes This chip incorporates an WDT. The timer counter value of the on-chip WDT is not rewritten, even if a system crash occurs. If an overflow occurs, a reset signal is generated and the chip is reset.
Page 474 Section 12 Watchdog Timer Rev. 7.00 Sep 21, 2005 page 450 of 878 REJ09B0259-0700...
Page 475: Section 13 Serial Communication Interface
Section 13 Serial Communication Interface Section 13 Serial Communication Interface 13.1 Overview The H8/3048 Group has a serial communication interface (SCI) with two independent channels. The two channels are functionally identical. The SCI can communicate in asynchronous or synchronous mode. It also has a multiprocessor communication function for serial communication among two or more processors.
Page 476 Section 13 Serial Communication Interface • Data length: 8 bits • Receive error detection: overrun errors • Full duplex communication The transmitting and receiving sections are independent, so the SCI can transmit and receive simultaneously. The transmitting and receiving sections are both double-buffered, so serial data can be transmitted and received continuously.
Page 477: Block Diagram
Section 13 Serial Communication Interface 13.1.2 Block Diagram Figure 13.1 shows a block diagram of the SCI. Internal data bus Module data bus φ φ/4 Baud rate generator φ/16 Transmit/ receive control φ/64 Parity generate Clock Parity check External clock Legend RSR: Receive shift register...
Page 478: Input/Output Pins
Section 13 Serial Communication Interface 13.1.3 Input/Output Pins The SCI has serial pins for each channel as listed in table 13.1. Table 13.1 SCI Pins Channel Name Abbreviation Function Serial clock pin Input/output clock input/output Receive data pin Input receive data input Transmit data pin Output transmit data output...
Page 479: Register Descriptions
Section 13 Serial Communication Interface 13.2 Register Descriptions 13.2.1 Receive Shift Register (RSR) RSR is the register that receives serial data. Read/Write — — — — — — — — The SCI loads serial data input at the RxD pin into RSR in the order received, LSB (bit 0) first, thereby converting the data to parallel data.
Page 480: Transmit Shift Register (Tsr)
Section 13 Serial Communication Interface 13.2.3 Transmit Shift Register (TSR) TSR is the register that transmits serial data. Read/Write — — — — — — — — The SCI loads transmit data from TDR into TSR, then transmits the data serially from the TxD pin, LSB (bit 0) first.
Page 481: Serial Mode Register (Smr)
Section 13 Serial Communication Interface 13.2.5 Serial Mode Register (SMR) SMR is an 8-bit register that specifies the SCI serial communication format and selects the clock source for the baud rate generator. STOP CKS1 CKS0 Initial value Read/Write Clock select 1/0 These bits select the baud rate generator’s clock source...
Page 482 Section 13 Serial Communication Interface Bit 6—Character Length (CHR): Selects 7-bit or 8-bit data length in asynchronous mode. In synchronous mode the data length is 8 bits regardless of the CHR setting. Bit 6: CHR Description 8-bit data (Initial value) 7-bit data* Note: * When 7-bit data is selected, the MSB (bit 7) in TDR is not transmitted.
Page 483 Section 13 Serial Communication Interface Bit 3—Stop Bit Length (STOP): Selects one or two stop bits in asynchronous mode. This setting is used only in asynchronous mode. In synchronous mode no stop bit is added, so the STOP bit setting is ignored. Bit 3: STOP Description One stop bit *...
Page 484: Serial Control Register (Scr)
Section 13 Serial Communication Interface 13.2.6 Serial Control Register (SCR) SCR enables the SCI transmitter and receiver, enables or disables serial clock output in asynchronous mode, enables or disables interrupts, and selects the transmit/receive clock source. MPIE TEIE CKE1 CKE0 Initial value Read/Write Clock enable 1/0...
Page 485 Section 13 Serial Communication Interface Bit 7—Transmit Interrupt Enable (TIE): Enables or disables the transmit-data-empty interrupt (TXI) requested when the TDRE flag in SSR is set to 1 due to transfer of serial transmit data from TDR to TSR. Bit 7: TIE Description Transmit-data-empty interrupt request (TXI) is disabled* (Initial value)
Page 486 Section 13 Serial Communication Interface Bit 4—Receive Enable (RE): Enables or disables the start of SCI serial receiving operations. Bit 4: RE Description Receiving disabled * (Initial value) Receiving enabled * Notes: 1. Clearing the RE bit to 0 does not affect the RDRF, FER, PER, and ORER flags. These flags retain their previous values.
Page 487 Section 13 Serial Communication Interface Bits 1 and 0—Clock Enable 1 and 0 (CKE1/0): These bits select the SCI clock source and enable or disable clock output from the SCK pin. Depending on the settings of CKE1 and CKE0, the SCK pin can be used for generic input/output, serial clock output, or serial clock input. The CKE0 setting is valid only in asynchronous mode, and only when the SCI is internally clocked (CKE1 = 0).
Page 488: Serial Status Register (Ssr)
Section 13 Serial Communication Interface 13.2.7 Serial Status Register (SSR) SSR is an 8-bit register containing multiprocessor bit values, and status flags that indicate SCI operating status. TDRE RDRF ORER TEND MPBT Initial value Read/Write R/(W) R/(W) R/(W) R/(W) R/(W) Multiprocessor bit transfer Value of multi-...
Page 489 Section 13 Serial Communication Interface SSR is initialized to H'84 by a reset and in standby mode. Bit 7—Transmit Data Register Empty (TDRE): Indicates that the SCI has loaded transmit data from TDR into TSR and the next serial transmit data can be written in TDR. Bit 7: TDRE Description TDR contains valid transmit data...
Page 490 Section 13 Serial Communication Interface Bit 5—Overrun Error (ORER): Indicates that data reception ended abnormally due to an overrun error. Bit 5: ORER Description (Initial value) * Receiving is in progress or has ended normally [Clearing conditions] The chip is reset or enters standby mode. Software reads ORER while it is set to 1, then writes 0.
Page 491 Section 13 Serial Communication Interface Bit 3—Parity Error (PER): Indicates that data reception ended abnormally due to a parity error in asynchronous mode. Bit 3: PER Description Receiving is in progress or has ended normally * (Initial value) [Clearing conditions] The chip is reset or enters standby mode.
Page 492: Bit Rate Register (Brr)
Section 13 Serial Communication Interface Bit 1—Multiprocessor Bit (MPB): Stores the value of the multiprocessor bit in receive data when a multiprocessor format is used in asynchronous mode. MPB is a read-only bit and cannot be written. Bit 1: MPB Description Multiprocessor bit value in receive data is 0* (Initial value)
Page 493 Section 13 Serial Communication Interface Table 13.3 Examples of Bit Rates and BRR Settings in Asynchronous Mode φ φ φ φ (MHz) 2.097152 2.4576 Bit Rate Error Error Error Error (bits/s) 0.03 –0.04 –0.26 0.03 0.16 0.21 0.00 0.16 0.16 0.21 0.00 0.16...
Page 494 Section 13 Serial Communication Interface φ φ φ φ (MHz) 6.144 7.3728 Bit Rate Error Error Error Error (bits/s) –0.44 0.08 –0.07 0.03 0.16 0.00 0.00 0.16 0.16 0.00 0.00 0.16 0.16 0.00 0.00 0.16 1200 0.16 0.00 0.00 0.16 2400 0.16 0.00...
Page 495 Section 13 Serial Communication Interface φ φ φ φ (MHz) 14.7456 Bit Rate Error Error Error Error (bits/s) –0.08 –0.17 0.70 0.03 0.16 0.16 0.00 0.16 –0.43 0.16 0.00 0.16 0.16 0.16 0.00 0.16 1200 –0.43 0.16 0.00 0.16 2400 0.16 0.16 0.00...
Page 496 Section 13 Serial Communication Interface Table 13.4 Examples of Bit Rates and BRR Settings in Synchronous Mode φ φ φ φ (MHz) Bit Rate (bits/s) — — — — — — — — — — — — — — — —...
Page 497 Section 13 Serial Communication Interface The BRR setting is calculated as follows: Asynchronous mode: φ × 10 – 1 64 × 2 × B 2n–1 Synchronous mode: φ × 10 – 1 8 × 2 × B 2n–1 B: Bit rate (bits/s) N: BRR setting for baud rate generator (0 ≤...
Page 498 Section 13 Serial Communication Interface Table 13.5 indicates the maximum bit rates in asynchronous mode for various system clock frequencies. Tables 13.6 and 13.7 indicate the maximum bit rates with external clock input. Table 13.5 Maximum Bit Rates for Various Frequencies (Asynchronous Mode) Settings φ...
Page 499 Section 13 Serial Communication Interface Table 13.6 Maximum Bit Rates with External Clock Input (Asynchronous Mode) φ φ φ φ (MHz) External Input Clock (MHz) Maximum Bit Rate (bits/s) 0.5000 31250 2.097152 0.5243 32768 2.4576 0.6144 38400 0.7500 46875 3.6864 0.9216 57600 1.0000...
Page 500: Operation
Section 13 Serial Communication Interface 13.3 Operation 13.3.1 Overview The SCI has an asynchronous mode in which characters are synchronized individually, and a synchronous mode in which communication is synchronized with clock pulses. Serial communication is possible in either mode. Asynchronous or synchronous mode and the communication format are selected in SMR, as shown in table 13.8.
Page 501 Section 13 Serial Communication Interface Table 13.8 SMR Settings and Serial Communication Formats SMR Settings SCI Communication Format Multi- Stop Bit 7: Bit 6: Bit 2: Bit 5: Bit 3: Data processor Parity C/A A A A STOP Mode Length Length Asynchronous 8-bit data...
Page 502 Section 13 Serial Communication Interface 13.3.2 Operation in Asynchronous Mode In asynchronous mode each transmitted or received character begins with a start bit and ends with a stop bit. Serial communication is synchronized one character at a time. The transmitting and receiving sections of the SCI are independent, so full duplex communication is possible.
Page 503 Section 13 Serial Communication Interface Communication Formats: Table 13.10 shows the 12 communication formats that can be selected in asynchronous mode. The format is selected by settings in SMR. Table 13.10 Serial Communication Formats (Asynchronous Mode) SMR Settings Serial Communication Format and Frame Length STOP 8-bit data STOP...
Page 504: Operation
Section 13 Serial Communication Interface Clock: An internal clock generated by the on-chip baud rate generator or an external clock input from the SCK pin can be selected as the SCI transmit/receive clock. The clock source is selected by the C/A bit in SMR and bits CKE1 and CKE0 in SCR. See table 13.9. When an external clock is input at the SCK pin, it must have a frequency equal to 16 times the desired bit rate.
Page 505 Section 13 Serial Communication Interface Start of initialization Select the clock source in SCR. Clear the RIE, TIE, TEIE, MPIE, TE, and RE bits to 0. If clock output is selected in asynchronous mode, clock output starts immediately after Clear TE and RE bits the setting is made in SCR.
Page 506: Operation In Asynchronous Mode
Section 13 Serial Communication Interface • Transmitting Serial Data (Asynchronous Mode) Figure 13.5 shows a sample flowchart for transmitting serial data and indicates the procedure to follow. SCI initialization: the transmit data output function Initialize of the TxD pin is selected automatically. SCI status check and transmit data write: read SSR, Start transmitting check that the TDRE flag is 1, then write transmit data...
Page 507 Section 13 Serial Communication Interface In transmitting serial data, the SCI operates as follows. 1. The SCI monitors the TDRE flag in SSR. When the TDRE flag is cleared to 0 the SCI recognizes that TDR contains new data, and loads this data from TDR into TSR. 2.
Page 508 Section 13 Serial Communication Interface • Receiving Serial Data (Asynchronous Mode) Figure 13.7 shows a sample flowchart for receiving serial data and indicates the procedure to follow. Initialize SCI initialization: the receive data function of the RxD pin is selected automatically. 2, 3.
Page 509 Section 13 Serial Communication Interface Error handling ORER = 1? Overrun error handling FER = 1? Break? Framing error handling Clear RE bit to 0 in SCR PER = 1? Parity error handling Clear ORER, PER, and FER flags to 0 in SSR Figure 13.7 Sample Flowchart for Receiving Serial Data (2) Rev.
Page 510 Section 13 Serial Communication Interface In receiving, the SCI operates as follows. 1. The SCI monitors the receive data line. When it detects a start bit, the SCI synchronizes internally and starts receiving. 2. Receive data is stored in RSR in order from LSB to MSB. 3.
Page 511 Section 13 Serial Communication Interface Figure 13.8 shows an example of SCI receive operation in asynchronous mode. Start Parity Stop Start Parity Stop Data Data Idle (mark) state RDRF RXI interrupt handler request reads data in RDR and Framing error, clears RDRF flag to 0 ERI request 1 frame...
Page 512 Section 13 Serial Communication Interface Communication Formats: Four formats are available. Parity-bit settings are ignored when a multiprocessor format is selected. For details see table 13.10. Clock: See the description of asynchronous mode. Transmitting processor Serial communication line Receiving Receiving Receiving Receiving processor A...
Page 513 Section 13 Serial Communication Interface Transmitting and Receiving Data • Transmitting Multiprocessor Serial Data Figure 13.10 shows a sample flowchart for transmitting multiprocessor serial data and indicates the procedure to follow. Initialize SCI initialization: the transmit data output function of the TxD pin is selected automatically.
Page 514 Section 13 Serial Communication Interface In transmitting serial data, the SCI operates as follows. 1. The SCI monitors the TDRE flag in SSR. When the TDRE flag is cleared to 0 the SCI recognizes that TDR contains new data, and loads this data from TDR into TSR. 2.
Page 515: Multiprocessor Communication
Section 13 Serial Communication Interface • Receiving Multiprocessor Serial Data Figure 13.12 shows a sample flowchart for receiving multiprocessor serial data and indicates the procedure to follow. Initialize SCI initialization: the receive data function of the RxD pin is selected automatically. Start receiving ID receive cycle: set the MPIE bit to 1 in SCR.
Page 516 Section 13 Serial Communication Interface Error handling ORER = 1? Overrun error handling FER = 1? Break? Framing error handling Clear RE bit to 0 in SCR Clear ORER, PER, and FER flags to 0 in SSR Figure 13.12 Sample Flowchart for Receiving Multiprocessor Serial Data (2) Figure 13.13 shows an example of SCI receive operation using a multiprocessor format.
Page 517 Section 13 Serial Communication Interface Start Stop Start Stop Data (ID1) Data (data1) Idle (mark) state MPIE RDRF RDR value MPB detection RXI request RXI handler reads Not own ID, so No RXI request, (multiprocessor RDR data and clears MPIE bit is set RDR not updated MPIE= 0 interrupt)
Page 518 Section 13 Serial Communication Interface 13.3.4 Synchronous Operation In synchronous mode, the SCI transmits and receives data in synchronization with clock pulses. This mode is suitable for high-speed serial communication. The SCI transmitter and receiver share the same clock but are otherwise independent, so full duplex communication is possible.
Page 519 Section 13 Serial Communication Interface Transmitting and Receiving Data • SCI Initialization (Synchronous Mode) Before transmitting or receiving, clear the TE and RE bits to 0 in SCR, then initialize the SCI as follows. When changing the communication mode or format, always clear the TE and RE bits to 0 before following the procedure given below.
Page 520 Section 13 Serial Communication Interface • Transmitting Serial Data (Synchronous Mode) Figure 13.16 shows a sample flowchart for transmitting serial data and indicates the procedure to follow. SCI initialization: the transmit data output function Initialize of the TxD pin is selected automatically. SCI status check and transmit data write: read SSR, check that the TDRE flag is 1, then write transmit Start transmitting...
Page 521 Section 13 Serial Communication Interface In transmitting serial data, the SCI operates as follows. 1. The SCI monitors the TDRE flag in SSR. When the TDRE flag is cleared to 0 the SCI recognizes that TDR contains new data, and loads this data from TDR into TSR. 2.
Page 522: Synchronous Operation
Section 13 Serial Communication Interface • Receiving Serial Data Figure 13.18 shows a sample flowchart for receiving serial data and indicates the procedure to follow. When switching from asynchronous mode to synchronous mode, make sure that the ORER, PER, and FER flags are cleared to 0. If the FER or PER flag is set to 1 the RDRF flag will not be set and both transmitting and receiving will be disabled.
Page 523 Section 13 Serial Communication Interface Error handling Overrun error handling Clear ORER flag to 0 in SSR Figure 13.18 Sample Flowchart for Serial Receiving (2) In receiving, the SCI operates as follows. 1. The SCI synchronizes with serial clock input or output and initializes internally. 2.
Page 524 Section 13 Serial Communication Interface Receive direction Serial clock Serial data Bit 7 Bit 0 Bit 7 Bit 0 Bit 1 Bit 6 Bit 7 RDRF ORER RXI interrupt request handler reads Overrun error, request data in RDR ERI request and clears RDRF flag to 0 1 frame...
Page 525 Section 13 Serial Communication Interface SCI initialization: the transmit data Initialize output function of the TxD pin and receive data input function of the Start transmitting and receiving RxD pin are selected, enabling simultaneous transmitting and receiving. SCI status check and transmit Read TDRE flag in SSR data write: read SSR, check that the TDRE flag is 1, then write...
Page 526: Sci Interrupts
Section 13 Serial Communication Interface 13.4 SCI Interrupts The SCI has four interrupt request sources: TEI (transmit-end interrupt), ERI (receive-error interrupt), RXI (receive-data-full interrupt), and TXI (transmit-data-empty interrupt). Table 13.12 lists the interrupt sources and indicates their priority. These interrupts can be enabled and disabled by the TIE, TEIE, and RIE bits in SCR.
Page 527 Section 13 Serial Communication Interface 13.5 Usage Notes Note the following points when using the SCI. TDR Write and TDRE Flag: The TDRE flag in SSR is a status flag indicating the loading of transmit data from TDR into TSR. The SCI sets the TDRE flag to 1 when it transfers data from TDR to TSR.
Page 528 Section 13 Serial Communication Interface Break Detection and Processing: Break signals can be detected by reading the RxD pin directly when a framing error (FER) is detected. In the break state the input from the RxD pin consists of all 0s, so the FER flag is set and the parity error flag (PER) may also be set. In the break state the SCI receiver continues to operate, so if the FER flag is cleared to 0 it will be set to 1 again.
Page 529 Section 13 Serial Communication Interface The receive margin in asynchronous mode can therefore be expressed as in equation (1). D – 0.5 (1 + F) × 100% ....(1) M = (0.5 – ) – (L – 0.5) F – M: Receive margin (%) N: Ratio of clock frequency to bit rate (N = 16) D: Clock duty cycle (D = 0 to 1.0)
Page 530 Section 13 Serial Communication Interface Switching SCK Pin to Port Output Pin Function in Synchronous Mode: When the SCK pin is used as the serial clock output in synchronous mode, and is then switched to its output port function at the end of transmission, a low level may be output for one half-cycle. Half-cycle low- level output occurs when SCK is switched to its port function with the following settings when DDR = 1, DR = 1, C/A = 1, CKE1 = 0, CKE0 = 0, and TE = 1.
Page 531: Usage Notes
Section 13 Serial Communication Interface Sample Procedure for Preventing Low-Level Output As this sample procedure temporarily places the SCK pin in the input state, the SCK/port pin should be pulled up beforehand with an external circuit. With DDR = 1, DR = 1, C/A = 1, CKE1 = 0, CKE0 = 0, and TE = 1, make the following settings in the order shown.
Page 532 Section 13 Serial Communication Interface Rev. 7.00 Sep 21, 2005 page 508 of 878 REJ09B0259-0700...
Page 533: Section 14 Smart Card Interface
Section 14 Smart Card Interface Section 14 Smart Card Interface 14.1 Overview As an extension of its serial communication interface functions, SCI0 supports a smart card (IC card) interface conforming to the ISO/IEC7816-3 (Identification Card) standard. Switchover between normal serial communication and the smart card interface is controlled by a register setting.
Page 534: Block Diagram
Section 14 Smart Card Interface 14.1.2 Block Diagram Figure 14.1 shows a block diagram of the smart card interface. Internal data Module data bus SCMR φ φ/4 φ/16 Transmit/receive Baud rate φ/64 control generator Parity generate Clock Parity check Legend SCMR: Smart card mode register RSR:...
Page 535: Input/Output Pins
Section 14 Smart Card Interface 14.1.3 Input/Output Pins Table 14.1 lists the smart card interface pins. Table 14.1 Smart Card Interface Pins Name Abbreviation Function Serial clock pin Output Clock output Receive data pin Input Receive data input Transmit data pin Output Transmit data output 14.1.4...
Page 536: Register Descriptions
Section 14 Smart Card Interface 14.2 Register Descriptions This section describes the new or modified registers and bit functions in the smart card interface. 14.2.1 Smart Card Mode Register (SCMR) SCMR is an 8-bit readable/writable register that selects smart card interface functions. —...
Page 537: Serial Status Register (Ssr)
Section 14 Smart Card Interface Bit 2—Smart Card Data Inverter (SINV): Inverts data logic levels. This function is used in combination with bit 3 to communicate with inverse-convention cards. SINV does not affect the logic level of the parity bit. For parity settings, see section 14.3.4, Register Settings. Bit 2: SINV Description Unmodified TDR contents are transmitted...
Page 538 Section 14 Smart Card Interface Bits 7 to 5: These bits operate as in normal serial communication. For details see section 13, Serial Communication Interface. Bit 4—Error Signal Status (ERS): In smart card interface mode, this flag indicates the status of the error signal sent from the receiving device to the transmitting device.
Page 539: Serial Mode Register (Smr)
Section 14 Smart Card Interface 14.2.3 Serial Mode Register (SMR) Bit 7 of SMR has a different function in smart card interface mode. The related serial control register (SCR) changes from bit 1 to bit 0. However, this function does not exist in the flash memory version.
Page 540: Serial Control Register (Scr)
Section 14 Smart Card Interface 14.2.4 Serial Control Register (SCR) Bits 1 and 0 have different functions in smart card interface mode. However, this function does not exist in the flash memory version. MPIE TEIE CKE1 CKE0 Initial value Read/Write Bits 7 to 2—Operate in the same way as for the normal SCI.
Page 541: Operation
Section 14 Smart Card Interface 14.3 Operation 14.3.1 Overview The main features of the smart-card interface are as follows. • One frame consists of eight data bits and a parity bit. • In transmitting, a guard time of at least two elementary time units (2 etu) is provided between the end of the parity bit and the start of the next frame.
Page 542 Section 14 Smart Card Interface Data line Clock line Px (port) H8/3048 Group Reset line Smart card Chip Card-processing device Figure 14.2 Smart Card Interface Connection Diagram Note: A loop-back test can be performed by setting both RE and TE to 1 without connecting a smart card.
Page 543: Data Format
Section 14 Smart Card Interface 14.3.3 Data Format Figure 14.3 shows the data format of the smart card interface. In receive mode, parity is checked once per frame. If a parity error is detected, an error signal is returned to the transmitting device to request retransmission.
Page 544: Register Settings
Section 14 Smart Card Interface 14.3.4 Register Settings Table 14.3 shows a bit map of the registers used in the smart card interface. Bits indicated as 0 or 1 should always be set to the indicated value. The settings of the other bits will be described in this section.
Page 545 Section 14 Smart Card Interface The register settings and examples of starting character waveforms are shown below for two smart cards, one following the direct convention and one the inverse convention. • Direct convention (SDIR = SINV = O/E = 0) State In the direct convention, state Z corresponds to logic level 1, and state A to logic level 0.
Page 546: Clock
Section 14 Smart Card Interface 14.3.5 Clock As its serial communication clock, the smart card interface can use only the internal clock generated by the on-chip baud rate generator. The bit rate can be selected by setting the bit rate register (BRR) and bits CKS1 and CKS0 in the serial mode register (SMR).
Page 547 Section 14 Smart Card Interface The following equation calculates the bit rate register (BRR) setting from the system clock frequency and bit rate. N is an integer from 0 to 255, specifying the value with the smaller error. φ × 10 –...
Page 548: Transmitting And Receiving Data
Section 14 Smart Card Interface 14.3.6 Transmitting and Receiving Data Initialization: Before transmitting or receiving data, initialize the smart card interface by the procedure below. Initialization is also necessary when switching from transmit mode to receive mode or from receive mode to transmit mode. 1.
Page 549 Section 14 Smart Card Interface to enable interrupt requests, when a transmit error occurs and the ERS flag is set to 1, a transmit/receive-error interrupt (ERI) is requested. The timing of TEND flag setting depends on the GM bit in SMR. The timing is shown in figure 14.6.
Page 550 Section 14 Smart Card Interface (shift register) (1) Data write Data 1 (2) Transfer from Data 1 Data 1 ; Data remains in TDR TDR to TSR Data 1 I/O signal line output Data 1 (3) Serial data output In case of normal transmission: TEND flag is set In case of transmit error: ERS flag is set Steps (2) and (3) above are repeated until the TEND flag is set...
Page 551 Section 14 Smart Card Interface Receiving Serial Data: The receiving procedure in smart card mode is the same as the normal SCI procedure. Figure 14.7 shows a flowchart for receiving. 1. Initialize the smart card interface by the procedure given in Initialization at the beginning of this section.
Page 552 Section 14 Smart Card Interface This procedure may include interrupt handling and DMA transfer. If the RIE bit is set to 1 to enable interrupt requests, when receiving is completed and the RDRF flag is set to 1, a receive-data-full interrupt (RXI) is requested. If a receive error occurs, either the ORER or PER flag is set to 1 and a transmit/receive-error interrupt (ERI) is requested.
Page 553 Section 14 Smart Card Interface Interrupt Operations: The smart card interface has three interrupt sources: transmit-data-empty (TXI), transmit/receive-error (ERI), and receive-data-full (RXI). The transmit-end interrupt request (TEI) is not available in smart card mode. A TXI interrupt is requested when the TEND flag is set to 1 in SSR. An RXI interrupt is requested when the RDRF flag is set to 1 in SSR.
Page 554 Section 14 Smart Card Interface Examples of Operation in GSM Mode: When switching between smart card interface mode and software standby mode, use the following procedures to maintain the clock duty cycle. • Switching from smart card interface mode to software standby mode 1.
Page 555: Usage Notes
Section 14 Smart Card Interface 14.4 Usage Notes When using the SCI as a smart card interface, note the following points. Receive Data Sampling Timing in Smart Card Mode and Receive Margin: In smart card mode the SCI operates on a base clock with 372 times the bit rate frequency. In receiving, the SCI synchronizes internally with the fall of the start bit, which it samples on the base clock.
Page 556 Section 14 Smart Card Interface From this equation, if F = 0 and D = 0.5 the receive margin is as follows. D = 0.5, F = 0 M = {0.5 – 1/(2 × 372)} × 100% = 49.866% Retransmission: Retransmission is described below for the separate cases of transmit mode and receive mode.
Page 557 Section 14 Smart Card Interface • Retransmission when SCI is in Transmit Mode (see figure 14.12) (6) After transmitting one frame, if the receiving device returns an error signal, the SCI sets the ERS flag to 1 in SSR. If the RIE bit in SCR is set to the enable state, an ERI interrupt is requested.
Page 558 Section 14 Smart Card Interface Rev. 7.00 Sep 21, 2005 page 534 of 878 REJ09B0259-0700...
Page 559: Section 15 A/D Converter
Section 15 A/D Converter Section 15 A/D Converter 15.1 Overview The H8/3048 Group includes a 10-bit successive-approximations A/D converter with a selection of up to eight analog input channels. When the A/D converter is not used, it can be halted independently to conserve power. For details see section 21.6, Module Standby Function.
Page 560: Block Diagram
Section 15 A/D Converter 15.1.2 Block Diagram Figure 15.1 shows a block diagram of the A/D converter. Internal Module data bus data bus 10-bit D/A – φ/8 Comparator Analog Control circuit multi- plexer Sample-and- φ/16 hold circuit ADTRG Legend ADCR: A/D control register ADCSR: A/D control/status register...
Page 561: Input Pins
Section 15 A/D Converter 15.1.3 Input Pins Table 15.1 summarizes the A/D converter’s input pins. The eight analog input pins are divided into two groups: group 0 (AN to AN ), and group 1 (AN to AN ). AV and AV are the power supply for the analog circuits in the A/D converter.
Page 562: Register Configuration
Section 15 A/D Converter 15.1.4 Register Configuration Table 15.2 summarizes the A/D converter’s registers. Table 15.2 A/D Converter Registers Address * Name Abbreviation Initial Value H'FFE0 A/D data register A (high) ADDRAH H'00 H'FFE1 A/D data register A (low) ADDRAL H'00 H'FFE2 A/D data register B (high)
Page 563: Register Descriptions
Section 15 A/D Converter 15.2 Register Descriptions 15.2.1 A/D Data Registers A to D (ADDRA to ADDRD) — — — — — — ADDRn Initial value Read/Write (n = A to D) A/D conversion data Reserved bits 10-bit data giving an A/D conversion result The four A/D data registers (ADDRA to ADDRD) are 16-bit read-only registers that store the results of A/D conversion.
Page 564: A/D Control/Status Register (Adcsr)
Section 15 A/D Converter 15.2.2 A/D Control/Status Register (ADCSR) ADIE ADST SCAN Initial value Read/Write R/(W) Channel select 2 to 0 These bits select analog input channels Clock select Selects the A/D conversion time Scan mode Selects single mode or scan mode A/D start Starts or stops A/D conversion A/D interrupt enable...
Page 565 Section 15 A/D Converter Bit 6—A/D Interrupt Enable (ADIE): Enables or disables the interrupt (ADI) requested at the end of A/D conversion. Bit 6: ADIE Description A/D end interrupt request (ADI) is disabled (Initial value) A/D end interrupt request (ADI) is enabled Bit 5—A/D Start (ADST): Starts or stops A/D conversion.
Page 566: A/D Control Register (Adcr)
Section 15 A/D Converter Bits 2 to 0—Channel Select 2 to 0 (CH2 to CH0): These bits and the SCAN bit select the analog input channels. Clear the ADST bit to 0 before changing the channel selection. Group Selection Channel Selection Description Single Mode Scan Mode...
Page 567: Cpu Interface
Section 15 A/D Converter 15.3 CPU Interface ADDRA to ADDRD are 16-bit registers, but they are connected to the CPU by an 8-bit data bus. Therefore, although the upper byte can be be accessed directly by the CPU, the lower byte is read through an 8-bit temporary register (TEMP).
Page 568: Operation
Section 15 A/D Converter 15.4 Operation The A/D converter operates by successive approximations with 10-bit resolution. It has two operating modes: single mode and scan mode. 15.4.1 Single Mode (SCAN = 0) Single mode should be selected when only one A/D conversion on one channel is required. A/D conversion starts when the ADST bit is set to 1 by software, or by external trigger input.
Page 569 Section 15 A/D Converter Figure 15.3 Example of A/D Converter Operation (Single Mode, Channel 1 Selected) Rev. 7.00 Sep 21, 2005 page 545 of 878 REJ09B0259-0700...
Page 570: Scan Mode (Scan = 1)
Section 15 A/D Converter 15.4.2 Scan Mode (SCAN = 1) Scan mode is useful for monitoring analog inputs in a group of one or more channels. When the ADST bit is set to 1 by software or external trigger input, A/D conversion starts on the first channel in the group (AN when CH2 = 0, AN when CH2 = 1).
Page 571 Section 15 A/D Converter Figure 15.4 Example of A/D Converter Operation (Scan Mode, Channels AN to AN Selected) Rev. 7.00 Sep 21, 2005 page 547 of 878 REJ09B0259-0700...
Page 572: Input Sampling And A/D Conversion Time
Section 15 A/D Converter 15.4.3 Input Sampling and A/D Conversion Time The A/D converter has a built-in sample-and-hold circuit. The A/D converter samples the analog input at a time t after the ADST bit is set to 1, then starts conversion. Figure 15.5 shows the A/D conversion timing.
Page 573: External Trigger Input Timing
Section 15 A/D Converter Table 15.4 A/D Conversion Time (Single Mode) CKS = 0 CKS = 1 Symbol Synchronization delay — — Input sampling time — — — — A/D conversion time — — CONV Note: Values in the table are numbers of states. 15.4.4 External Trigger Input Timing A/D conversion can be externally triggered.
Page 574: Interrupts
Section 15 A/D Converter 15.5 Interrupts The A/D converter generates an interrupt (ADI) at the end of A/D conversion. The ADI interrupt request can be enabled or disabled by the ADIE bit in ADCSR. 15.6 Usage Notes When using the A/D converter, note the following points: 1.
Page 575 Section 15 A/D Converter 6. Note on Noise: To prevent damage from surges and other abnormal voltages at the analog input pins (AN to AN ) and analog reference voltage pin (V ), connect a protection circuit like the one in figure 15.7 between AV and AV .
Page 576 Section 15 A/D Converter 10 kΩ to AN To A/D converter 20 pF Note: Numeric values are approximate. Figure 15.8 Analog Input Pin Equivalent Circuit Table 15.5 Analog Input Pin Ratings Item Unit Analog input capacitance — Allowable signal-source impedance —...
Page 577 Section 15 A/D Converter Digital output Ideal A/D conversion characteristic Quantization error 1/8 2/8 3/8 4/8 5/8 6/8 7/8 FS Analog input voltage Figure 15.9 A/D Converter Accuracy Definitions (1) Rev. 7.00 Sep 21, 2005 page 553 of 878 REJ09B0259-0700...
Page 578 Section 15 A/D Converter Full-scale error Digital output Ideal A/D conversion characteristic Nonlinearity error Actual A/D conversion characteristic Analog input Offset error voltage Figure 15.10 A/D Converter Accuracy Definitions (2) 8. Allowable Signal-Source Impedance: The analog inputs of the H8/3048 Group are designed to assure accurate conversion of input signals with a signal-source impedance not exceeding 10 kΩ.
Page 579 Section 15 A/D Converter 9. Effect on Absolute Accuracy: Attaching an external capacitor creates a coupling with ground, so if there is noise on the ground line, it may degrade absolute accuracy. The capacitor must be connected to an electrically stable ground, such as AV If a filter circuit is used, be careful of interference with digital signals on the same board, and make sure the circuit does not act as an antenna.
Page 580 Section 15 A/D Converter Rev. 7.00 Sep 21, 2005 page 556 of 878 REJ09B0259-0700...
Page 581: Section 16 D/A Converter
Section 16 D/A Converter Section 16 D/A Converter 16.1 Overview The H8/3048 Group includes a D/A converter with two channels. 16.1.1 Features D/A converter features are listed below. • Eight-bit resolution • Two output channels • Conversion time: maximum 10 µs (with 20-pF capacitive load) •...
Page 582: Block Diagram
Section 16 D/A Converter 16.1.2 Block Diagram Figure 16.1 shows a block diagram of the D/A converter. Internal Module data bus data bus 8-bit D/A Control circuit Legend DACR: D/A control register DADR0: D/A data register 0 DADR1: D/A data register 1 DASTCR: D/A standby control register Figure 16.1 D/A Converter Block Diagram...
Page 583: Input/Output Pins
Section 16 D/A Converter 16.1.3 Input/Output Pins Table 16.1 summarizes the D/A converter’s input and output pins. Table 16.1 D/A Converter Pins Pin Name Abbreviation Function Analog power supply pin Input Analog power supply Analog ground pin Input Analog ground and reference voltage Analog output pin 0 Output Analog output, channel 0...
Page 584: Register Descriptions
Section 16 D/A Converter 16.2 Register Descriptions 16.2.1 D/A Data Registers 0 and 1 (DADR0/1) Initial value Read/Write The D/A data registers (DADR0 and DADR1) are 8-bit readable/writable registers that store the data to be converted. When analog output is enabled, the D/A data register values are constantly converted and output at the analog output pins.
Page 585 Section 16 D/A Converter Bit 7—D/A Output Enable 1 (DAOE1): Controls D/A conversion and analog output. Bit 7: DAOE1 Description analog output is disabled (Initial value) Channel-1 D/A conversion and DA analog output are enabled Bit 6—D/A Output Enable 0 (DAOE0): Controls D/A conversion and analog output. Bit 6: DAOE0 Description analog output is disabled...
Page 586: D/A Standby Control Register (Dastcr)
Section 16 D/A Converter 16.2.3 D/A Standby Control Register (DASTCR) DASTCR is an 8-bit readable/writable register that enables or disables D/A output in software standby mode. — — — — — — — DASTE Initial value Read/Write — — — —...
Page 587: Operation
Section 16 D/A Converter 16.3 Operation The D/A converter has two built-in D/A conversion circuits that can perform conversion independently. D/A conversion is performed constantly while enabled in DACR. If the DADR0 or DADR1 value is modified, conversion of the new data begins immediately. The conversion results are output when bits DAOE0 and DAOE1 are set to 1.
Page 588: D/A Output Control
Section 16 D/A Converter 16.4 D/A Output Control In the H8/3048 Group, D/A converter output can be enabled or disabled in software standby mode. When the DASTE bit is set to 1 in DASTCR, D/A converter output is enabled in software standby mode.
Page 589: Section 17 Ram
Section 17 RAM Section 17 RAM 17.1 Overview The H8/3048 and H8/3047 have 4 kbytes of high-speed static RAM on-chip. The H8/3045 and H8/3044 have 2 kbytes. The RAM is connected to the CPU by a 16-bit data bus. The CPU accesses both byte data and word data in two states, making the RAM useful for rapid data transfer.
Page 590: Block Diagram
Section 17 RAM 17.1.1 Block Diagram Figure 17.1 shows a block diagram of the on-chip RAM. Internal data bus (upper 8 bits) Internal data bus (lower 8 bits) Bus interface SYSCR H'FEF10* H'FEF11* H'FEF12* H'FEF13* On-chip RAM H'FFF0E* H'FFF0F* Even addresses Odd addresses Legend SYSCR: System control register...
Page 591: System Control Register (Syscr)
Section 17 RAM 17.2 System Control Register (SYSCR) SSBY STS2 STS1 STS0 NMIEG — RAME Initial value Read/Write — RAM enable Enables or disables on-chip RAM Reserved bit NMI edge select User bit enable Standby timer select 2 to 0 Software standby One function of SYSCR is to enable or disable access to the on-chip RAM.
Page 592: Operation
Section 17 RAM 17.3 Operation When the RAME bit is set to 1, the on-chip RAM is enabled. Accesses to addresses H'FEF10 to H'FFF0F in the H8/3048 and H8/3047 in modes 1, 2, 5, and 7, addresses H'FFEF10 to H'FFFF0F in the H8/3048 and H8/3047 in modes 3, 4, and 6, addresses H'FF710 to H'FFF0F in the H8/3045 and H8/3044 in modes 1, 2, 5, and 7, and addresses H'FFF710 to H'FFFF0F in the H8/3045 and H8/3044 in modes 3, 4, and 6 are directed to the on-chip RAM.
Page 593: Section 18 Rom (H8/3048Ztat And Mask-Rom Versions)
Section 18 ROM Section 18 ROM (H8/3048ZTAT and Mask-ROM Versions) 18.1 Overview The H8/3048 has 128 kbytes of on-chip ROM, the H8/3047 has 96 kbytes, the H8/3045 has 64 kbytes and the H8/3044 has 32 kbytes. The ROM is connected to the CPU by a 16-bit data bus. The CPU accesses both byte data and word data in two states, enabling rapid data transfer.
Page 594: Block Diagram
Section 18 ROM 18.1.1 Block Diagram Figure 18.1 shows a block diagram of the ROM. Internal data bus (upper 8 bits) Internal data bus (lower 8 bits) Bus interface H'0000 H'0001 H'0002 H'0003 On-chip ROM H'1FFFE H'1FFFF Even addresses Odd addresses Figure 18.1 ROM Block Diagram (H8/3048, Mode 7) Rev.
Page 595: Prom Mode
Section 18 ROM 18.2 PROM Mode 18.2.1 PROM Mode Setting In PROM mode, the H8/3048 (H8/3048ZTAT) version with on-chip PROM suspends its microcontroller functions, enabling the on-chip PROM to be programmed. The programming method is the same as for the HN27C101, except that page programming is not supported. Table 18.2 indicates how to select PROM mode.
Page 596 Section 18 ROM H8/3048 PROM Socket FP-100B, TFP-100B HN27C101 (32 Pins) RESO STBY Legend Programming voltage (12.5 V) EO to EO : Data input/output to EA : Address input Output enable Chip enable PGM: Program Note: Pins not shown in this diagram should be left open. This figure shows pin assignments, and does not show the entire socket adapter circuit.
Page 597: Prom Programming
Section 18 ROM Address in Address in MCU mode PROM mode H'00000 H'00000 On-chip PROM H'1FFFF H'1FFFF Figure 18.3 H8/3048ZTAT Memory Map in PROM Mode 18.3 PROM Programming Table 18.4 indicates how to select the program, verify, and other modes in PROM mode. Table 18.4 Mode Selection in PROM Mode Pins Mode...
Page 598: Programming And Verification
Section 18 ROM 18.3.1 Programming and Verification An efficient, high-speed programming procedure can be used to program and verify PROM data. This procedure programs the chip quickly without subjecting it to voltage stress and without sacrificing data reliability. Unused address areas contain H'FF data. Figure 18.4 shows the basic high-speed programming flowchart.
Page 599 Section 18 ROM Table 18.5 DC Characteristics in PROM Mode (Conditions: V = 6.0 V ± 0.25 V, V = 12.5 V ± 0.3 V, V = 0 V, T = 25°C ± 5°C) Item Symbol Unit Test Conditions Input high to EO —...
Page 600 Section 18 ROM Table 18.6 AC Characteristics in PROM Mode (Conditions: V = 6.0 V ± 0.25 V, V = 12.5 V ± 0.3 V, T = 25°C ± 5°C) Item Symbol Unit Test Conditions Figure 18.5 * Address setup time —...
Page 601 Section 18 ROM Program Verify Address Data Input data Output data Note: is defined by the value given in the flowchart. Figure 18.5 PROM Program/Verify Timing Rev. 7.00 Sep 21, 2005 page 577 of 878 REJ09B0259-0700...
Page 602: Programming Precautions
) in PROM mode is 12.5 V. Applied voltages in excess of the rated values can permanently destroy the chip. Be particularly careful about the PROM programmer’s overshoot characteristics. If the PROM programmer is set to Renesas Technology HN27C101 specifications, V will be 12.5 V.
Page 603: Reliability Of Programmed Data
If a series of programming errors occurs while the same PROM programmer is in use, stop programming and check the PROM programmer and socket adapter for defects. Please inform Renesas Technology of any abnormal conditions noted during or after programming or in screening of program data after high-temperature baking.
Page 604: Notes On Ordering Mask Rom Version Chip
Section 18 ROM 18.4 Notes on Ordering Mask ROM Version Chip When ordering the H8/3048 Group chips with a mask ROM, note the following. • When ordering through an EPROM, use a 128-kbyte one. • Fill all the unused addresses with H'FF as shown in figure 18.7 to make the ROM data size 128 kbytes for all H8/3048 Group chips, which incorporate different sizes of ROM.
Page 605 Section 18 ROM • The flash memory control registers (FLMCR, EBR1, EBR2, and RAMCR)* for use only by the on-chip flash memory version (H8/3048F (dual-power-supply model)) are not provided in the mask ROM version. Reading a corresponding address will always return a value of 1, and writes to the corresponding addresses are invalid.
Page 606 Section 18 ROM Rev. 7.00 Sep 21, 2005 page 582 of 878 REJ09B0259-0700...
Page 607: Section 19 Flash Memory
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.1 Overview The H8/3048F has 128 kbytes of on-chip flash memory. The flash memory is connected to the CPU by a 16-bit data bus.
Page 608: Flash Memory Overview
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.2 Flash Memory Overview 19.2.1 Flash Memory Operation Table 19.2 illustrates the principle of operation of the on-chip flash memory of the H8/3048F (dual-power supply). Like EPROM, flash memory is programmed by applying a high gate-to-drain voltage that draws hot electrons generated in the vicinity of the drain into a floating gate.
Page 609: Mode Programming And Flash Memory Address Space
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.2.2 Mode Programming and Flash Memory Address Space As its on-chip ROM, the H8/3048F has 128 kbytes of flash memory. The flash memory is connected to the CPU by a 16-bit data bus. The CPU accesses both byte data and word data in two states.
Page 610: Features
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.2.3 Features Features of the flash memory are listed below. • Five flash memory operating modes The flash memory has five operating modes: program mode, program-verify mode, erase mode, erase-verify mode, and prewrite-verify mode.
Page 611: Block Diagram
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.2.4 Block Diagram Figure 19.1 shows a block diagram of the flash memory. Internal data bus (upper) Internal data bus (lower) Operating Bus interface and control section FLMCR mode H'00000 H'00001...
Page 612: Input/Output Pins
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.2.5 Input/Output Pins Flash memory is controlled by the pins listed in table 19.4. Table 19.4 Flash Memory Pins Pin Name Abbreviation Input/Output Function Programming power Power supply Apply 12.0 V Mode 2 Input...
Page 613: Flash Memory Register Descriptions
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.3 Flash Memory Register Descriptions 19.3.1 Flash Memory Control Register The flash memory control register (FLMCR) is an eight-bit register that controls the flash memory operating modes. Transitions to program mode, erase mode, program-verify mode, and erase- verify mode are made by setting bits in this register.
Page 614 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Bit 7—Programming Power (V ): Programming power bit (V ) detects V , and level is displayed as “1” or “0.” The permissible output currents for impressed high voltage VH are given in 22.2.2, “DC Characteristics.”...
Page 615 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Bit 3—Erase-Verify Mode (EV) * : Selects transition to or exit from erase-verify mode. Bit 3: EV Description Exit from erase-verify mode (Initial value) Transition to erase-verify mode Bit 2—Erase-Verify Mode (PV) * : Selects transition to or exit from program-verify mode.
Page 616: Erase Block Register 1
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.3.2 Erase Block Register 1 Erase block register 1 (EBR1) is an eight-bit register that designates large flash-memory blocks for programming and erasure. EBR1 is initialized to H'00 by a reset, in the standby modes, when 12 V is applied to V while the V E bit is 0, and when 12 V is not applied to V...
Page 617: Erase Block Register 2
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.3.3 Erase Block Register 2 Erase block register 2 (EBR2) is an eight-bit register that designates small flash-memory blocks for programming and erasure. EBR2 is initialized to H'00 by a reset, in the standby modes, when 12 V is applied to V while the V E bit is 0, and when 12 V is not applied to V...
Page 618 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Addresses H'00000 H'00000–H'03FFF 16 kbytes H'03FFF H'04000 H'04000–H'07FFF 16 kbytes H'07FFF H'08000 H'08000–H'0BFFF 16 kbytes H'0BFFF Large block H'0C000 H'0C000–H'0FFFF 16 kbytes area H'0FFFF (124 kbytes) H'10000 H'10000–H'13FFF 16 kbytes H'13FFF H'14000...
Page 619: Ram Control Register (Ramcr)
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.3.4 RAM Control Register (RAMCR) The RAM control register (RAMCR) enables flash-memory updates to be emulated in RAM, and indicates flash memory errors. FLER — — — RAMS RAM2 RAM1 RAM0...
Page 620: On-Board Programming Modes
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) It is initialized by a reset and in hardware standby mode. It is not initialized in software standby mode. Bits 2 to 0—RAM2 to RAM0*: These bits are used with bit 3 to reassign an area to RAM (see table 19.6).
Page 621: Boot Mode
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Table 19.7 On-Board Programming Mode Selection Mode Selections Notes Boot mode Mode 5 12 V 12 V 0: V Mode 6 12 V 1: V Mode 7 12 V User program Mode 5 mode...
Page 622 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Boot-Mode Execution Procedure: Figure 19.4 shows the boot-mode execution procedure. 1. Program the H8/3048F pins for boot mode, and start the Start H8/3048F from a reset. Program H8/3048F pins for 2.
Page 623 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Automatic Alignment of SCI Bit Rate Start Stop This low period (9 bits) is measured (H'00 data) High for at least 1 bit Figure 19.5 Measurement of Low Period in Data Transmitted from Host When started in boot mode, the H8/3048F measures the low period in asynchronous SCI data transmitted from the host (figure 19.5).
Page 624 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) RAM Area Allocation in Boot Mode: In boot mode, the H'3F0 bytes from H'FEF10 to H'FF2FF in modes 5 and 7, and from H'FFEF10 to H'FFF2FF in mode 6 are reserved for use by the boot program.
Page 625 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Notes on Use of Boot Mode 1. When the H8/3048F comes out of reset in boot mode, it measures the low period of the input at the SCI1’s RXD pin.
Page 626: User Program Mode
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) boot mode will not operate correctly. In addition, during boot program operation or writing and erasing the flash memory, do not interrupt V 7. During reset (when RES pin input is Low), if MD pin input changes from 0 V to 12 V or vice versa, by instantaneous transfer to 5 V input, the personal computer switches to operation mode.
Page 627 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) User Program Mode Execution Procedure: Figure 19.7 shows the procedure for user program mode execution in RAM. Procedure Store user application programs 1. The user stores application programs in flash memory.
Page 628: Programming And Erasing Flash Memory
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.5 Programming and Erasing Flash Memory The H8/3048F’s on-chip flash memory is programmed and erased by software, using the CPU. The flash memory operating modes and state transition diagram are shown in figure 19.8. Program/erase modes comprise program mode, erase mode, program-verify mode, erase-verify mode, and prewrite-verify mode.
Page 629: Program Mode
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.5.1 Program Mode To write data into the flash memory, follow the programming algorithm shown in figure 19.9. This programming algorithm can write data without subjecting the device to voltage stress or impairing the reliability of programmed data.
Page 630: Programming Flowchart And Sample Program
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.5.3 Programming Flowchart and Sample Program Flowchart for Programming One Byte Start n = 1 Set V E bit E bit = 1 in FLMCR) Wait (z) µs Set erase block register (set bit of block to be programmed to 1) Write data to flash memory (flash...
Page 631 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Sample Program for Programming One Byte: This program uses the following registers. Program-verify fail counter Program-verify timing loop counter ER2: Stores the address to be programmed as long word data. Valid addresses are H'00000000 to H'0001FFFF.
Page 632 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Clear P bit MOV.B R4L, @FLMCR:8 ; MOV.W #A500, Stop watchdog timer MOV.W @TCSR:16 ; Set program-verify loop counter MOV:W #b , MOV.B #44, Set PV bit MOV.B R4H, @FLMCR:8 ;...
Page 633: Erase Mode
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.5.4 Erase Mode To erase the flash memory, follow the erasing algorithm shown in figure 19.10. This erasing algorithm can erase data without subjecting the device to voltage stress or impairing the reliability of programmed data.
Page 634: Erasing Flowchart And Sample Program
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.5.6 Erasing Flowchart and Sample Program Flowchart for Erasing One Block Start Notes: 1. Program all addresses to be Write 0 data in all addresses erased by following the prewrite to be erased (prewrite) flowchart.
Page 635 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Prewrite Flowchart Start Address = top address bit = 1 in FLMCR) Wait (z) µs Set erase block register (set bit of block to be erased to 1) n = 1 Address + 1 →...
Page 636 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Sample Program for Erasing One Block: This program uses the following registers. Prewrite-verify and erase-verify fail counter ER1: Stores address used in prewrite ER2: Stores address used in prewrite and erase-verify ER3: Stores address used in erase-verify ER4: Timing loop counter Sets appropriate registers...
Page 637 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Set P bit MOV.B R6H, @FLMCR:8 ; Prewrite LOOPR1: DEC.W LOOPR1 Clear P bit MOV.B R6L, @FLMCR:8 ; Stop watchdog timer MOV.W #A500, MOV.W @TCSR:16 ; Set prewrite-verify loop counter MOV.W #c , Wait...
Page 638 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) PUSH.L POP.L PUSH.L POP.L Erase DEC.W LOOPE MOV.B #40, Clear E bit MOV.B R5H, @FLMCR:8 ; MOV.W #A500, Stop watchdog timer MOV.W @TCSR:16 ; Execute erase-verify MOV.B #48, Set EV bit MOV.B R5H,...
Page 639 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Clear EV bit MOV.B R5H, @FLMCR:8 ; MOV.W #0000, Clear EBR1 and EBR2 MOV.W @EBR1:16 ; Clear V E bit MOV.B R5L, @FLMCR:8 ; One block erased ......ABEND1: MOV.W #0000, Clear EBR1 and EBR2...
Page 640 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Flowchart for Erasing Multiple Blocks Notes: 1. Program all addresses to be erased by Start following the prewrite flowchart. Write 0 data to all addresses to be 2. Set the watchdog timer overflow interval to erased (prewrite) the value indicated in table 19.10.
Page 641 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Sample Program for Erasing Multiple Blocks: This program uses the following registers. R0, R6: Specifies blocks to be erased (set as explained below) R1H: Prewrite-verify fail counter R1L: Used to test bits 0 to 15 of R0 ER2: Specifies address where address used in prewrite and erase-verify is stored...
Page 642 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) FLMCR: .EQU FFFF40 EBR1: .EQU FFFF42 EBR2: .EQU FFFF43 TCSR: .EQU FFFFA8 Set R0 value Select blocks to be erased (R6: EBR1/EBR2) START: MOV.W #FFFF, R0: EBR1/EBR2 MOV.W R1L: used to test R1-th bit in R0 SUB.W #RAMSTR is starting destination address to which program is transferred in RAM...
Page 643 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Set initial prewrite loop counter value MOV.W Write #00 data PREWRS: MOV.B #00, MOV.B R5H, @ER3 MOV.W #A579, Start watchdog timer MOV.W @TCSR:16 ; Set program loop counter MOV.W MOV.W #4140,...
Page 644 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Start watchdog timer MOV.W @TCSR:16 ; Set erase-loop counter MOV.W MOV.W #4240, Set E bit MOV.B R5H, @FLMCR:8 ; LOOPE: PUSH.L POP.L PUSH.L POP.L PUSH.L POP.L Erase DEC.W LOOPE Clear E bit MOV.B...
Page 645 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Test R1-th bit in R0L (EBR2) BC1: BTST R1L, If R1-th bit in R0 is 1, branch to ERSEVF ERSEVF R1L + 1 → R1L ADD01: INC.B Dummy-increment R2 MOV.L @ER2+, EBRTST...
Page 646 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Block address table used in erase-verify ;————< >—————————————————— .ALIGN2 ERVADR: .DATA.L 00000000 ; #0000 .DATA.L 00004000 ; #4000 .DATA.L 00008000 ; #8000 .DATA.L 0000C000 ; #C000 .DATA.L 00010000 ;...
Page 647 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Loop Counter Values in Programs and Watchdog Timer Overflow Interval Settings: The values of a to h in the programs depend on the clock frequency. Table 19.9 indicates the values for 10 MHz.
Page 648: Prewrite-Verify Mode
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Table 19.10 Watchdog Timer Overflow Interval Settings Variable Clock Frequency 10 MHz ≤ frequency ≤ 16 MHz H'A57F 2 MHz ≤ frequency < 10 MHz H'A57E 1 MHz ≤ frequency < 2 MHz H'A57D Note: The watchdog timer (WDT) set value is calculated based on the number of instructions including write time and erase time from start to stop of WDT operation.
Page 649: Protect Modes
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.5.8 Protect Modes Flash memory can be protected from programming and erasing by software or hardware methods. These two protection modes are described below. Software Protection: Prevents transitions to program mode and erase mode even if the P or E bit is set in the flash memory control register (FLMCR).
Page 650 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Hardware Protection: Suspends or disables the programming and erasing of flash memory, and resets the flash memory control register (FLMCR) and erase block registers (EBR1 and EBR2). The error-protect function permits the P and E bits to be set, but prevents transitions to program mode and erase mode.
Page 651 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) mode, even by setting the P bit or E bit in FLMCR again. The PV and EV bits in FLMCR remain valid, however. Transitions to verify modes are possible in the error-protect state. The error-protect state can be cleared only by a reset or entry to hardware standby mode.
Page 652: Nmi Input Masking
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) constant internal and external supervision, using the watchdog timer for example. If a transition to error-protect mode occurs, the flash memory may contain incorrect data due to errors in programming or erasing, or it may contain data that has been insufficiently programmed or erased because of the suspension of these operations.
Page 653: Flash Memory Emulation By Ram
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.6 Flash Memory Emulation by RAM Erasing and programming flash memory takes time, which can make it difficult to tune parameters and other data in real time. If necessary, real-time updates of flash memory can be emulated by overlapping the small-block flash-memory area with part of the RAM (H'FFF000 to H'FFF1FF).
Page 654 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Example of Emulation of Real-Time Flash-Memory Update Procedure H'01F000 1. Set the RAME bit to 1 in SYSCR to enable the on-chip RAM. 2. Overlap part of RAM (H'FFF000 Flash memory to H'FFF1FF) onto the area address space...
Page 655: Flash Memory Prom Mode
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.7 Flash Memory PROM Mode 19.7.1 PROM Mode Setting The on-chip flash memory of the H8/3048F can be programmed and erased not only in the on- board programming modes but also in PROM mode, using a general-purpose PROM programmer. Table 19.12 indicates how to select PROM mode.
Page 656: Socket Adapter And Memory Map
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.7.2 Socket Adapter and Memory Map Programs can be written and verified by attaching a special 100-pin/32-pin socket adapter to the PROM programmer. Table 19.13 gives ordering information for the socket adapter. Figure 19.15 shows a memory map in PROM mode.
Page 657 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) H8/3048F Pin No. Socket Adapter HN28F101 (32 Pins) Pin Name FP-100B, TFP-100B Pin Name Pin No. RESO 53, 54, 89 , P5 , P8 STBY, HWR 62, 71 73 to 75 , MD , MD...
Page 658: Operation In Prom Mode
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.7.3 Operation in PROM Mode The program/erase/verify specifications in PROM mode are the same as for the standard HN28F101 flash memory. Table 19.15 indicates how to select the various operating modes. The H8/3048F does not have a device recognition code, so the programmer cannot read the device name automatically.
Page 659 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Table 19.16 PROM Mode Commands 1st Cycle 2nd Cycle Command Cycles Mode Address Data Mode Address Data Memory read Write H'00 Read Dout Erase setup/erase Write H'20 Write H'20 Erase-verify Write...
Page 660 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) High-Speed, High-Reliability Programming: Unused areas of the H8/3048F flash memory contain H'FF data (initial value). The H8/3048F flash memory uses a high-speed, high-reliability programming procedure. This procedure provides enhanced programming speed without subjecting the device to voltage stress and without sacrificing the reliability of programmed data.
Page 661 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) High-Speed, High-Reliability Erasing: The H8/3048F flash memory uses a high-speed, high- reliability erasing procedure. This procedure provides enhanced erasing speed without subjecting the device to voltage stress and without sacrificing data reliability. Figure 19.18 shows the basic high-speed, high-reliability erasing flowchart.
Page 662 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Table 19.17 DC Characteristics in PROM Mode (Conditions: V = 5.0 V ±10%, V = 12.0 V ±0.6 V, V = 0 V, T = 25°C ±5°C) Item Symbol Unit Test Conditions...
Page 663 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Table 19.18 AC Characteristics in PROM Mode (Conditions: V = 5.0 V ± 10%, V = 12.0 V ± 0.6 V, V = 0 V, T = 25°C ± 5°C) Item Symbol Unit...
Page 664 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Auto-erase setup Auto-erase and status polling 5.0 V 12 V 5.0 V Address OEPS OEWS Command Command Status polling I/O to I/O Command Command Figure 19.19 Auto-Erase Timing Rev.
Page 665 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Program setup Program Program-verify 5.0 V 12 V 5.0 V Address Valid address OERS OEWS Data Command Command Valid data Valid data Command Data Command I/O to I/O Note: Program-verify data output values may be intermediate between 1 and 0 if programming is insufficient.
Page 666 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Erase setup Erase Erase-verify 5.0 V 12 V 5.0 V Address Valid address OEWS OERS Command Command Command Valid data to I/O Note: Erase-verify data output values may be intermediate between 1 and 0 if erasing is insufficient. Figure 19.21 Erase Timing Rev.
Page 667: Flash Memory Programming And Erasing Precautions (Dual-Power Supply)
The rated programming voltage (V ) of the flash memory is 12.0 V. If the PROM programmer is set to Renesas Technology HN28F101 specifications, V will be 12.0 V. Applied voltages in excess of the rating can permanently damage the device. Insure, in particular, that peak overshoot at the Vpp and MD2 pins does not exceed the maximum rating of 13 V.
Page 668 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 5 to 10 µs after the V E bit is set. V should be turned off only when the P, E and V E bits in FLMCR are cleared. Be sure that these bits are not set by mistaken access to FLMCR. Programming/ erasing possible...
Page 669 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Programming/ erasing possible φ min 0 µs tosc1 2.7 to 5.5 V 12±0.6 V 0 to 0 to Vcc V Vcc V 0 to Vcc V 0 to Vcc V to 0 VppE...
Page 670 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Programming/ Programming/ Programming/ Programming/ erasing erasing erasing erasing possible possible possible possible φ tosc1 2.7 to 5.5 V 12±0.6 V 0 to min 0 µs Vcc V min 10 φ 12±0.6 V 0 to Vcc V...
Page 671 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) (5) Do not apply 12 V to the V pin during normal operation. To prevent microcontroller errors caused by accidental programming or erasing, apply 12 V to V only when the flash memory is programmed or erased, or when flash memory is emulated by RAM.
Page 672 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) (8) Notes concerning mounting board development—handling of V and mode MD2 pins 1. The standard 12 V high voltage is applied to the V and mode MD2 pins when erasing or programming flash memory.
Page 673 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) A sample circuit is shown figure 19.26. 12 V H8/3048F (dual- 0.01 µF 1.0 µF power supply) 12 V mode Mode pin 0.01 µF 1.0 µF Adapter board User system Figure 19.26 Example of Mounting Board Design for the H8/3048F-ZTAT with the Dual- Power Supply...
Page 674 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) reached the programming voltage range of 12.0 V ±0.6 V. Do not actually program or erase the flash memory until Vpp has reached the programming voltage range. The programming voltage range for programming and erasing flash memory is 12.0 V ±0.6 V (11.4 V to 12.6 V).
Page 675: Notes When Converting The F-Ztat (Dual-Power Supply) Application Software To The Mask-Rom Versions
Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) 19.9 Notes when Converting the F-ZTAT (Dual-Power Supply) Application Software to the Mask-ROM Versions Please note the following when converting the F-ZTAT (dual-power supply) application software to the mask-ROM versions. The values read from the internal registers (refer to appendix B, Internal I/O Register, Table B.1) for the flash ROM of the mask-ROM version and F-ZTAT (dual-power supply) version differ as follows.
Page 676 Section 19 Flash Memory (H8/3048F: Dual Power Supply (V = 12 V)) Rev. 7.00 Sep 21, 2005 page 652 of 878 REJ09B0259-0700...
Page 677: Section 20 Clock Pulse Generator
Section 20 Clock Pulse Generator Section 20 Clock Pulse Generator 20.1 Overview The H8/3048 Group has a built-in clock pulse generator (CPG) that generates the system clock (φ) and other internal clock signals (φ/2 to φ/4096). After duty adjustment, a frequency divider divides the clock frequency to generate the system clock (φ).
Page 678: Block Diagram
Section 20 Clock Pulse Generator 20.1.1 Block Diagram Figure 20.1 shows a block diagram of the clock pulse generator. XTAL Duty Frequency Oscillator Prescalers adjustment divider circuit EXTAL Division control register Data bus φ φ/2 to φ/4096 Figure 20.1 Block Diagram of Clock Pulse Generator Rev.
Page 679: Oscillator Circuit
Section 20 Clock Pulse Generator 20.2 Oscillator Circuit Clock pulses can be supplied by connecting a crystal resonator, or by input of an external clock signal. 20.2.1 Connecting a Crystal Resonator Circuit Configuration: A crystal resonator can be connected as in the example in figure 20.2. The damping resistance Rd should be selected according to table 20.1.
Page 680 Section 20 Clock Pulse Generator Crystal Resonator: Figure 20.3 shows an equivalent circuit of the crystal resonator. The crystal resonator should have the characteristics listed in table 20.2. XTAL EXTAL AT-cut parallel-resonance type Figure 20.3 Crystal Resonator Equivalent Circuit Table 20.2 Crystal Resonator Parameters Frequency (MHz) Rs max (Ω...
Page 681: External Clock Input
Section 20 Clock Pulse Generator Avoid Signal A Signal B H8/3048 Group XTAL EXTAL Figure 20.4 Example of Incorrect Board Design 20.2.2 External Clock Input Circuit Configuration: An external clock signal can be input as shown in the examples in figure 20.5.
Page 682 Section 20 Clock Pulse Generator External Clock: The external clock frequency should be equal to the system clock frequency (φ) when not divided by the on-chip frequency divider. Table 20.3, figures 20.6 and 20.7 indicate the clock timing. When the appropriate external clock is input via the EXTAL pin, its waveform is corrected by the on-chip oscillator and duty adjustment circuit.
Page 683: Duty Adjustment Circuit
Section 20 Clock Pulse Generator × 0.7 EXTAL × 0.5 0.3 V Figure 20.6 External Clock Input Timing STBY EXTAL φ (internal or external) DEXT Figure 20.7 External Clock Output Settling Delay Timing 20.3 Duty Adjustment Circuit When the oscillator frequency is 5 MHz or higher, the duty adjustment circuit adjusts the duty cycle of the clock signal from the oscillator to generate the signal that becomes the system clock.
Page 684: Frequency Divider
Section 20 Clock Pulse Generator 20.5 Frequency Divider The frequency divider divides the duty-adjusted clock signal to generate the system clock (φ). The frequency division ratio can be changed dynamically by modifying the value in DIVCR, as described below. Power consumption in the chip is reduced in almost direct proportion to the frequency division ratio.
Page 685: Usage Notes
Section 20 Clock Pulse Generator Bits 1 and 0—Divide (DIV1 and DIV0): These bits select the frequency division ratio, as follows. Bit 1: DIV1 Bit 0: DIV0 Frequency Division Ratio (Initial value) 20.5.3 Usage Notes The DIVCR setting changes the φ frequency, so note the following points. •...
Page 686 Section 20 Clock Pulse Generator Rev. 7.00 Sep 21, 2005 page 662 of 878 REJ09B0259-0700...
Page 687: Section 21 Power-Down State
Section 21 Power-Down State Section 21 Power-Down State 21.1 Overview The H8/3048 Group has a power-down state that greatly reduces power consumption by halting the CPU, and a module standby function that reduces power consumption by selectively halting on-chip modules. The power-down state includes the following three modes: •...
Page 688 Section 21 Power-Down State Table 21.1 Power-Down State and Module Standby Function Rev. 7.00 Sep 21, 2005 page 664 of 878 REJ09B0259-0700...
Page 689: Register Configuration
Section 21 Power-Down State 21.2 Register Configuration The H8/3048 Group has a system control register (SYSCR) that controls the power-down state, and a module standby control register (MSTCR) that controls the module standby function. Table 21.2 summarizes these registers. Table 21.2 Control Register Address* Name Abbreviation...
Page 690 Section 21 Power-Down State Bit 7—Software Standby (SSBY): Enables transition to software standby mode. When software standby mode is exited by an external interrupt, this bit remains set to 1 after the return to normal operation. To clear this bit, write 0. Bit 7: SSBY Description SLEEP instruction causes transition to sleep mode...
Page 691: Module Standby Control Register (Mstcr)
Section 21 Power-Down State 21.2.2 Module Standby Control Register (MSTCR) MSTCR is an 8-bit readable/writable register that controls output of the system clock (φ). It also controls the module standby function, which places individual on-chip supporting modules in the standby state. Module standby can be designated for the ITU, SCI0, SCI1, DMAC, refresh controller, and A/D converter modules.
Page 692 Section 21 Power-Down State Bit 4—Module Standby 4 (MSTOP4): Selects whether to place SCI0 in standby. Bit 4: MSTOP4 Description SCI0 operates normally (Initial value) SCI0 is in standby state Bit 3—Module Standby 3 (MSTOP3): Selects whether to place SCI1 in standby. Bit 3: MSTOP3 Description SCI1 operates normally...
Page 693: Sleep Mode
Section 21 Power-Down State 21.3 Sleep Mode 21.3.1 Transition to Sleep Mode When the SSBY bit is cleared to 0 in SYSCR, execution of the SLEEP instruction causes a transition from the program execution state to sleep mode. Immediately after executing the SLEEP instruction the CPU halts, but the contents of its internal registers are retained.
Page 694: Exit From Software Standby Mode
Section 21 Power-Down State When the WDT is used as a watchdog timer (WT/IT = 1), the TME bit must be cleared to 0 before setting SSBY. Also, when setting TME to 1, SSBY should be cleared to 0. Clear the BRLE bit in BRCR (inhibiting bus release) before making a transition to software standby mode.
Page 695 Section 21 Power-Down State Table 21.3 Clock Frequency and Waiting Time for Clock to Settle DIV1 DIV0 STS2 STS1 STS0 Waiting Time 18 MHz 16 MHz 12 MHz 10 MHz 8 MHz 6 MHz 4 MHz 2 MHz 1 MHz Unit 8192 states 0.46 0.51...
Page 696: Sample Application Of Software Standby Mode
Section 21 Power-Down State 21.4.4 Sample Application of Software Standby Mode Figure 21.1 shows an example in which software standby mode is entered at the fall of NMI and exited at the rise of NMI. With the NMI edge select bit (NMIEG) cleared to 0 in SYSCR (selecting the falling edge), an NMI interrupt occurs.
Page 697: Hardware Standby Mode
Section 21 Power-Down State 21.5 Hardware Standby Mode 21.5.1 Transition to Hardware Standby Mode Regardless of its current state, the chip enters hardware standby mode whenever the STBY pin goes low. Hardware standby mode reduces power consumption drastically by halting all functions of the CPU, DMAC, refresh controller, and on-chip supporting modules.
Page 698: Module Standby Function
Section 21 Power-Down State Clock oscillator STBY Oscillator settling time Reset exception handling Figure 21.2 Hardware Standby Mode Timing 21.6 Module Standby Function 21.6.1 Module Standby Timing The module standby function can halt several of the on-chip supporting modules (the ITU, SCI0, SCI1, DMAC, refresh controller, and A/D converter) independently of the power-down state.
Page 699: Usage Notes
Section 21 Power-Down State 21.6.3 Usage Notes When using the module standby function, note the following points. DMAC and Refresh Controller: When setting bit MSTOP2 or MSTOP1 to 1 to place the DMAC or refresh controller in module standby, make sure that the DMAC or refresh controller is not currently requesting the bus right.
Page 700: System Clock Output Disabling Function
Section 21 Power-Down State 21.7 System Clock Output Disabling Function Output of the system clock (φ) can be controlled by the PSTOP bit in MSTCR. When the PSTOP bit is set to 1, output of the system clock halts and the φ pin is placed in the high-impedance state. Figure 21.3 shows the timing of the stopping and starting of system clock output.
Page 701: Section 22 Electrical Characteristics
Section 22 Electrical Characteristics Section 22 Electrical Characteristics Table 22.1 shows the electrical characteristics of the various products in the H8/3048 Group. Table 22.1 Electrical Characteristics of H8/3048 Group Products H8/3048 H8/3048 H8/3048 F-ZTAT H8/3047 H8/3048 F-ONE Item Symbol Unit (Dual Power H8/3045 ZTAT...
Page 702 Section 22 Electrical Characteristics H8/3048 H8/3048 H8/3048 F-ZTAT H8/3047 H8/3048 F-ONE Item Symbol Unit (Dual Power H8/3045 ZTAT (Single Power Supply) * Supply) H8/3044 AC charac- Clock cycle time Max 1000 Max 1000 Max 1000 Max 500 teristics RES pulse width Min 10 Min 10 Min 10...
Page 703: Electrical Characteristics For H8/3048 Ztat (Prom) And On-Chip Mask Rom Versions
Section 22 Electrical Characteristics 22.1 Electrical Characteristics for H8/3048 ZTAT (PROM) and On-Chip Mask ROM Versions Target product types: H8/3048 ZTAT, H8/3048 mask-ROM, H8/3047 mask-ROM, H8/3045 mask-ROM, H8/3044 mask-ROM 22.1.1 Absolute Maximum Ratings Table 22.2 lists the absolute maximum ratings. Table 22.2 Absolute Maximum Ratings Item Symbol...
Page 704: Dc Characteristics
Section 22 Electrical Characteristics 22.1.2 DC Characteristics Table 22.3 lists the DC characteristics. Table 22.4 lists the permissible output currents. Table 22.3 DC Characteristics (1) Conditions: V = 5.0 V ± 10%, AV = 5.0 V ± 10%, V = 4.5 V to AV = 0 V * = AV = –20°C to +75°C (regular specifications),...
Page 705 Section 22 Electrical Characteristics Item Symbol Unit Test Conditions Three-state Ports 1 to 6, — — µA = 0.5 to leakage 8 to B – 0.5 V current RESO — — 10.0 µA (off state) Input pull-up Ports 2, 4, –I —...
Page 706 Section 22 Electrical Characteristics Table 22.2 DC Characteristics (2) Conditions: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V * = AV = –20°C to +75°C (regular specifications), = –40°C to +85°C (wide-range specifications) Item Symbol...
Page 707 Section 22 Electrical Characteristics Item Symbol Unit Test Conditions Three-state Ports 1 to 6, — — µA = 0.5 to leakage 8 to B – 0.5 V current RESO — — 10.0 µA (off state) Input pull-up Ports 2, 4, –I —...
Page 708 Section 22 Electrical Characteristics Notes: 1. If the A/D and D/A converters are not used, do not leave the AV , AV , and V pins open. Connect AV and V to V , and connect AV to V 2. Current dissipation values are for V –...
Page 709 Section 22 Electrical Characteristics H8/3048 Group 2 kΩ Port Darlington pair Figure 22.1 Darlington Pair Drive Circuit (Example) H8/3048 Group Ports 1, 2, 5, 600 Ω and B Figure 22.2 LED Drive Circuit (Example) Rev. 7.00 Sep 21, 2005 page 685 of 878 REJ09B0259-0700...
Page 710: Ac Characteristics
Section 22 Electrical Characteristics 22.1.3 AC Characteristics Bus timing parameters are listed in table 22.5. Refresh controller bus timing parameters are listed in table 22.6. Control signal timing parameters are listed in table 22.7. Timing parameters of the on-chip supporting modules are listed in table 22.8. Table 22.5 Bus Timing Condition A: V = 2.7 V to 5.5 V, AV...
Page 711 Section 22 Electrical Characteristics Condition Condition Condition 8 MHz 13 MHz 16 MHz 18 MHz Test Item Symbol Min Max Min Max Min Max Min Max Unit Conditions Read data setup time — — — — Figure 22.7, Read data hold time —...
Page 712 Section 22 Electrical Characteristics At 18 MHz, the times below depend as indicated on the clock cycle time. = 1.5 × t = 1.0 × t – 34 (ns) – 24 (ns) ACC1 WSW1 = 2.5 × t = 1.5 × t –...
Page 713 Section 22 Electrical Characteristics = 2.0 × t = 0.5 × t – 90 (ns) – 43 (ns) = 1.0 × t – 40 (ns) At 13 MHz, the times below depend as indicated on the clock cycle time. = 0.5 × t = 1.0 ×...
Page 714 Section 22 Electrical Characteristics Table 22.7 Control Signal Timing Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V, φ = 1 MHz to 8 MHz, T = AV = –20°C to +75°C (regular specifications), T...
Page 715 Section 22 Electrical Characteristics Table 22.8 Timing of On-Chip Supporting Modules Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V, φ = 1 MHz to 8 MHz, T = AV = –20°C to +75°C (regular specifications), T...
Page 716 Section 22 Electrical Characteristics Condition Condition Condition 8 MHz 13 MHz 16 MHz 18 MHz Test Item Symbol Min Max Min Max Min Max Min Max Unit Conditions Transmit data — — — — Figure 22.27 delay time Receive data —...
Page 717: A/D Conversion Characteristics
Section 22 Electrical Characteristics 22.1.4 A/D Conversion Characteristics Table 22.9 lists the A/D conversion characteristics. Table 22.9 A/D Converter Characteristics Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V, φ...
Page 718: D/A Conversion Characteristics
Section 22 Electrical Characteristics 22.1.5 D/A Conversion Characteristics Table 22.10 lists the D/A conversion characteristics. Table 22.10 D/A Converter Characteristics Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V, φ...
Page 719: Electrical Characteristics Of H8/3048F (Dual-Power Supply)
Section 22 Electrical Characteristics 22.2 Electrical Characteristics of H8/3048F (Dual-Power Supply) 22.2.1 Absolute Maximum Ratings Table 22.11 lists the absolute maximum ratings. Table 22.11 Absolute Maximum Ratings Item Symbol Value Unit Power supply voltage –0.3 to +7.0 Programming voltage –0.3 to +13.0 Input voltage –0.3 to V + 0.3...
Page 720: Dc Characteristics
Section 22 Electrical Characteristics 22.2.2 DC Characteristics Table 22.12 lists the DC characteristics. Table 22.13 lists the permissible output currents. Table 22.12 DC Characteristics (1) Conditions: V = 5.0 V ± 10%, AV = 5.0 V ± 10%, V = 4.5 V to AV = 0 V * = AV = –20°C to +75°C (regular specifications),...
Page 721 Section 22 Electrical Characteristics Item Symbol Unit Test Conditions STBY, NMI, Input — — µA = 0.5 to RES, MD leakage , MD – 0.5 V current — — 10.0 µA = 0.5 to + 0.5 V — — 50.0 µA 0.5 to 12.6 V Port 7...
Page 722 Section 22 Electrical Characteristics Item Symbol Unit Test Conditions Read output — — µA = 5.0 V current — = 12.6 V Program — execution Erase — RAM standby voltage — — Notes: 1. If the A/D and D/A converters are not used, do not leave the AV , AV , and V pins...
Page 723 Section 22 Electrical Characteristics Table 22.12 DC Characteristics (2) Conditions: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V * = AV = –20°C to +75°C (regular specifications), = –40°C to +85°C (wide-range specifications) Item Symbol...
Page 724 Section 22 Electrical Characteristics Item Symbol Unit Test Conditions STBY, NMI, Input — — µA = 0.5 to RES, MD leakage , MD – 0.5 V current — — 10.0 µA = 0.5 to + 0.5 V — — 50.0 µA 0.5 to 12.6 V Port 7...
Page 725 Section 22 Electrical Characteristics Item Symbol Unit Test Conditions Read output — — µA = 5.0 V current — Program — = 12.6 V execution Erase — RAM standby voltage — — Notes: 1. If the A/D and D/A converters are not used, do not leave the AV , AV , and V pins...
Page 726 Section 22 Electrical Characteristics H8/3048 Group 2 kΩ Port Darlington pair Figure 22.4 Darlington Pair Drive Circuit (Example) H8/3048 Group Ports 1, 2, 5, 600 Ω and B Figure 22.5 LED Drive Circuit (Example) Rev. 7.00 Sep 21, 2005 page 702 of 878 REJ09B0259-0700...
Page 727: Ac Characteristics
Section 22 Electrical Characteristics 22.2.3 AC Characteristics Bus timing parameters are listed in table 22.14. Refresh controller bus timing parameters are listed in table 22.15. Control signal timing parameters are listed in table 22.16. Timing parameters of the on-chip supporting modules are listed in table 22.17. Table 22.14 Bus Timing Condition A: V = 2.7 V to 5.5 V, AV...
Page 728 Section 22 Electrical Characteristics Condition A Condition C 8 MHz 16 MHz Test Item Symbol Unit Conditions Write data delay time — — Figure 22.7, Write data setup time 1 — — Figure 22.8 WDS1 Write data setup time 2 —...
Page 729 Section 22 Electrical Characteristics Table 22.15 Refresh Controller Bus Timing Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V, φ = 1 MHz to 8 MHz, T = AV = –20°C to +75°C (regular specifications), T...
Page 730 Section 22 Electrical Characteristics Table 22.16 Control Signal Timing Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V, φ = 1 MHz to 8 MHz, T = AV = –20°C to +75°C (regular specifications), T...
Page 731 Section 22 Electrical Characteristics Table 22.17 Timing of On-Chip Supporting Modules Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V, φ = 1 MHz to 8 MHz, T = AV = –20°C to +75°C (regular specifications), T...
Page 732 Section 22 Electrical Characteristics C = 90 pF: ports 4, 5, 6, 8, A (19 to 0), D (15 to 8), φ C = 30 pF: ports 9, A, B, RESO H8/3048 Group output pin Ω R = 2.4 k Ω...
Page 733: A/D Conversion Characteristics
Section 22 Electrical Characteristics 22.2.4 A/D Conversion Characteristics Table 22.18 lists the A/D conversion characteristics. Table 22.18 A/D Converter Characteristics Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V, φ...
Page 734: D/A Conversion Characteristics
Section 22 Electrical Characteristics 22.2.5 D/A Conversion Characteristics Table 22.19 lists the D/A conversion characteristics. Table 22.19 D/A Converter Characteristics Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 0 V, φ...
Page 735: Flash Memory Characteristics
Section 22 Electrical Characteristics 22.2.6 Flash Memory Characteristics Table 22.20 lists the flash memory characteristics. Table 22.20 Flash Memory Condition A: V = 2.7 V to 5.5 V, AV = 2.7 V to 5.5 V, V = 2.7 V to AV = 12 V ±...
Page 736: Operational Timing
Section 22 Electrical Characteristics 22.3 Operational Timing This section shows timing diagrams. 22.3.1 Bus Timing Bus timing is shown as follows: • Basic bus cycle: two-state access Figure 22.7 shows the timing of the external two-state access cycle. • Basic bus cycle: three-state access Figure 22.8 shows the timing of the external three-state access cycle.
Page 737 Section 22 Electrical Characteristics φ to A CS to CS ACC3 ACC3 (read) ACC1 to D (read) HWR, LWR (write) WSW1 WDS1 to D (write) Figure 22.7 Basic Bus Cycle: Two-State Access Rev. 7.00 Sep 21, 2005 page 713 of 878 REJ09B0259-0700...
Page 738 Section 22 Electrical Characteristics φ to A ACC4 ACC4 RD (read) ACC2 to D (read) WSW2 HWR, LWR (write) WDS2 to D (write) Figure 22.8 Basic Bus Cycle: Three-State Access Rev. 7.00 Sep 21, 2005 page 714 of 878 REJ09B0259-0700...
Page 739 Section 22 Electrical Characteristics φ to A RD (read) to D (read) HWR, LWR (write) to D (write) WAIT Figure 22.9 Basic Bus Cycle: Three-State Access with One Wait State Rev. 7.00 Sep 21, 2005 page 715 of 878 REJ09B0259-0700...
Page 740: Refresh Controller Bus Timing
Section 22 Electrical Characteristics 22.3.2 Refresh Controller Bus Timing Refresh controller bus timing is shown as follows: • DRAM bus timing Figures 22.10 to 22.15 show the DRAM bus timing in each operating mode. • PSRAM bus timing Figures 22.16 and 22.17 show the pseudo-static RAM bus timing in each operating mode. φ...
Page 741 Section 22 Electrical Characteristics φ to A RAD3 (RAS) RAD2 RD (CAS) HWR (UW), LWR (LW) RAD2 RAD3 RFSH Figure 22.11 DRAM Bus Timing (Refresh Cycle): Three-State Access WE Mode — — 2WE φ CS (RAS) RD (CAS) RFSH Figure 22.12 DRAM Bus Timing (Self-Refresh Mode) WE Mode —...
Page 742 Section 22 Electrical Characteristics φ to A RAD3 RAD1 CS (RAS HWR (UCAS), LWR (LCAS) RD (WE) (read) RD (WE) (write) RFSH to D (read) WDS3 to D (write) Figure 22.13 DRAM Bus Timing (Read/Write): Three-State Access CAS Mode — —...
Page 743 Section 22 Electrical Characteristics φ to A RAD3 CS (RAS) RAD2 HWR (UCAS), LWR (LCAS) RD (WE) RAD2 RAD3 RFSH Figure 22.14 DRAM Bus Timing (Refresh Cycle): Three-State Access CAS Mode — — 2CAS φ CS (RAS) UCAS LCAS) RFSH Figure 22.15 DRAM Bus Timing (Self-Refresh Mode) CAS Mode —...
Page 744 Section 22 Electrical Characteristics φ to A RAD1 RAD3 RD (read) to D (read) HWR, LWR (write) WDS2 to D (write) RFSH Figure 22.16 PSRAM Bus Timing (Read/Write): Three-State Access φ to A , HWR, LWR, RD RAD2 RAD3 RFSH Figure 22.17 PSRAM Bus Timing (Refresh Cycle): Three-State Access Rev.
Page 745: Control Signal Timing
Section 22 Electrical Characteristics 22.3.3 Control Signal Timing Control signal timing is shown as follows: • Reset input timing Figure 22.18 shows the reset input timing. • Reset output timing Figure 22.19 shows the reset output timing. • Interrupt input timing Figure 22.20 shows the input timing for NMI and IRQ to IRQ •...
Page 746 Section 22 Electrical Characteristics φ NMIS NMIH NMIS NMIH NMIS IRQ : Edge-sensitive IRQ : Level-sensitive IRQ (i = 0 to 5) NMIW (j = 0 to 2) Figure 22.20 Interrupt Input Timing φ BRQS BRQS BREQ BACD2 BACD1 BACK to A AS, RD, HWR, LWR...
Page 747: Clock Timing
Section 22 Electrical Characteristics 22.3.4 Clock Timing Clock timing is shown as follows: • Oscillator settling timing Figure 22.22 shows the oscillator settling timing. φ STBY OSC1 OSC1 Figure 22.22 Oscillator Settling Timing 22.3.5 TPC and I/O Port Timing Figure 22.23 shows the TPC and I/O port timing. φ...
Page 748: Itu Timing
Section 22 Electrical Characteristics 22.3.6 ITU Timing ITU timing is shown as follows: • ITU input/output timing Figure 22.24 shows the ITU input/output timing. • ITU external clock input timing Figure 22.25 shows the ITU external clock input timing. φ TOCD Output compare...
Page 749: Sci Input/Output Timing
Section 22 Electrical Characteristics 22.3.7 SCI Input/Output Timing SCI timing is shown as follows: • SCI input clock timing Figure 22.26 shows the SCK input clock timing. • SCI input/output timing (synchronous mode) Figure 22.27 shows the SCI input/output timing in synchronous mode. SCKW SCKr SCKf...
Page 750: Dmac Timing
Section 22 Electrical Characteristics 22.3.8 DMAC Timing DMAC timing is shown as follows. • DMAC TEND output timing for 2 state access Figure 22.28 shows the DMAC TEND output timing for 2 state access. • DMAC TEND output timing for 3 state access Figure 22.29 shows the DMAC TEND output timing for 3 state access.
Page 751: Appendix A Instruction Set
Appendix A Instruction Set Appendix A Instruction Set Instruction List Operand Notation Symbol Description General destination register General source register General register General destination register (address register or 32-bit register) General source register (address register or 32-bit register) General register (32-bit register) (EAd) Destination operand (EAs)
Page 752 Appendix A Instruction Set Condition Code Notation Symbol Description Changed according to execution result Undetermined (no guaranteed value) Cleared to 0 Set to 1 — Not affected by execution of the instruction ∆ Varies depending on conditions, described in notes Rev.
Page 753: Data Transfer Instructions
Appendix A Instruction Set Table A.1 Instruction Set 1. Data transfer instructions Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation #xx:8 → Rd8 MOV.B #xx:8, Rd — — — Rs8 → Rd8 MOV.B Rs, Rd —...
Page 754 Appendix A Instruction Set Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation ERd32–2 → ERd32 MOV.W Rs, @–ERd — — — Rs16 → @ERd Rs16 → @aa:16 MOV.W Rs, @aa:16 — — — Rs16 → @aa:24 MOV.W Rs, @aa:24 —...
Page 755: Arithmetic Instructions
Appendix A Instruction Set 2. Arithmetic instructions Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation Rd8+#xx:8 → Rd8 ADD.B #xx:8, Rd — Rd8+Rs8 → Rd8 ADD.B Rs, Rd — Rd16+#xx:16 → Rd16 ADD.W #xx:16, Rd —...
Page 756 Appendix A Instruction Set Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation ERd32–1 → ERd32 DEC.L #1, ERd — — — ERd32–2 → ERd32 DEC.L #2, ERd — — — DAS.Rd Rd8 decimal adjust — —...
Page 757 Appendix A Instruction Set Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation 0–Rd8 → Rd8 NEG.B Rd — 0–Rd16 → Rd16 NEG.W Rd — 0–ERd32 → ERd32 NEG.L ERd — 0 → (<bits 15 to 8> EXTU.W Rd —...
Page 758 Appendix A Instruction Set 3. Logic instructions Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation Rd8∧#xx:8 → Rd8 AND.B #xx:8, Rd — — — Rd8∧Rs8 → Rd8 AND.B Rs, Rd — — — Rd16∧#xx:16 → Rd16 AND.W #xx:16, Rd —...
Page 759 Appendix A Instruction Set 4. Shift instructions Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation SHAL.B Rd — — SHAL.W Rd — — SHAL.L ERd — — SHAR.B Rd — — SHAR.W Rd — — SHAR.L ERd —...
Page 760: Bit Manipulation Instructions
Appendix A Instruction Set 5. Bit manipulation instructions Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation (#xx:3 of Rd8) ← 1 BSET #xx:3, Rd — — — — — — (#xx:3 of @ERd) ← 1 BSET #xx:3, @ERd —...
Page 761 Appendix A Instruction Set Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation (#xx:3 of @ERd) → C BLD #xx:3, @ERd — — — — — (#xx:3 of @aa:8) → C BLD #xx:3, @aa:8 — — —...
Page 762 Appendix A Instruction Set 6. Branching instructions Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation Branch Condition BRA d:8 (BT d:8) Always — — — — — — — If condition is true then BRA d:16 (BT d:16) —...
Page 763 Appendix A Instruction Set Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation PC ← ERn JMP @ERn — — — — — — — PC ← aa:24 JMP @aa:24 — — — — — — —...
Page 764 Appendix A Instruction Set 7. System control instructions Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation PC → @–SP TRAPA #x:2 — — — — — — CCR → @–SP <vector> → PC CCR ← @SP+ —...
Page 765 Appendix A Instruction Set 8. Block transfer instructions Addressing Mode and No. of Instruction Length (bytes) States Condition Code Mnemonic Operation if R4L ≠ 0 then EEPMOV. B — — — — — — — repeat @R5 → @R6 R5+1 → R5 R6+1 →...
Page 766: Operation Code Map
Appendix A Instruction Set Operation Code Map Table A.2 Operation Code Map Rev. 7.00 Sep 21, 2005 page 742 of 878 REJ09B0259-0700...
Page 767 Appendix A Instruction Set Rev. 7.00 Sep 21, 2005 page 743 of 878 REJ09B0259-0700...
Page 768 Appendix A Instruction Set Rev. 7.00 Sep 21, 2005 page 744 of 878 REJ09B0259-0700...
Page 769: Number Of States Required For Execution
Appendix A Instruction Set Number of States Required for Execution The tables in this section can be used to calculate the number of states required for instruction execution by the H8/300H CPU. Table A.4 indicates the number of instruction fetch, data read/write, and other cycles occurring in each instruction.
Page 770 Appendix A Instruction Set Table A.3 Number of States per Cycle Access Conditions On-Chip External Device Supporting Module 8-Bit Bus 16-Bit Bus On-Chip 8-Bit 16-Bit 2-State 3-State 2-State 3-State Cycle Memory Access Access Access Access Instruction fetch 6 + 2m 3 + m Branch address read Stack operation...
Page 771 Appendix A Instruction Set Table A.4 Number of Cycles per Instruction Instruction Branch Stack Byte Data Word Data Internal Fetch Addr. Read Operation Access Access Operation Instruction Mnemonic ADD.B #xx:8, Rd ADD.B Rs, Rd ADD.W #xx:16, Rd ADD.W Rs, Rd ADD.L #xx:32, ERd ADD.L ERs, ERd ADDS...
Page 772 Appendix A Instruction Set Instruction Branch Stack Byte Data Word Data Internal Fetch Addr. Read Operation Access Access Operation Instruction Mnemonic BGT d:8 BLE d:8 BRA d:16 (BT d:16) BRN d:16 (BF d:16) BHI d:16 BLS d:16 BCC d:16 (BHS d:16) BCS d:16 (BLO d:16) BNE d:16 BEQ d:16...
Page 773 Appendix A Instruction Set Instruction Branch Stack Byte Data Word Data Internal Fetch Addr. Read Operation Access Access Operation Instruction Mnemonic BIXOR BIXOR #xx:3, Rd BIXOR #xx:3, @ERd BIXOR #xx:3, @aa:8 BLD #xx:3, Rd BLD #xx:3, @ERd BLD #xx:3, @aa:8 BNOT BNOT #xx:3, Rd BNOT #xx:3, @ERd...
Page 774 Appendix A Instruction Set Instruction Branch Stack Byte Data Word Data Internal Fetch Addr. Read Operation Access Access Operation Instruction Mnemonic BXOR BXOR #xx:3, Rd BXOR #xx:3, @ERd BXOR #xx:3, @aa:8 CMP.B #xx:8, Rd CMP.B Rs, Rd CMP.W #xx:16, Rd CMP.W Rs, Rd CMP.L #xx:32, ERd CMP.L ERs, ERd...
Page 775 Appendix A Instruction Set Instruction Branch Stack Byte Data Word Data Internal Fetch Addr. Read Operation Access Access Operation Instruction Mnemonic Normal * JSR @ERn Advanced Normal * JSR @aa:24 Advanced JSR @@aa:8 Normal * Advanced LDC #xx:8, CCR LDC Rs, CCR LDC @ERs, CCR LDC @(d:16, ERs), CCR LDC @(d:24, ERs), CCR...
Page 776 Appendix A Instruction Set Instruction Branch Stack Byte Data Word Data Internal Fetch Addr. Read Operation Access Access Operation Instruction Mnemonic MOV.W @(d:24, ERs), Rd 4 MOV.W @ERs+, Rd MOV.W @aa:16, Rd MOV.W @aa:24, Rd MOV.W Rs, @ERd MOV.W Rs, @(d:16, ERd) 2 MOV.W Rs, @(d:24, ERd) 4 MOV.W Rs, @–ERd MOV.W Rs, @aa:16...
Page 777 Appendix A Instruction Set Instruction Branch Stack Byte Data Word Data Internal Fetch Addr. Read Operation Access Access Operation Instruction Mnemonic NOT.B Rd NOT.W Rd NOT.L ERd OR.B #xx:8, Rd OR.B Rs, Rd OR.W #xx:16, Rd OR.W Rs, Rd OR.L #xx:32, ERd OR.L ERs, ERd ORC #xx:8, CCR POP.W Rn...
Page 778 Appendix A Instruction Set Instruction Branch Stack Byte Data Word Data Internal Fetch Addr. Read Operation Access Access Operation Instruction Mnemonic SHLL SHLL.B Rd SHLL.W Rd SHLL.L ERd SHLR SHLR.B Rd SHLR.W Rd SHLR.L ERd SLEEP SLEEP STC CCR, Rd STC CCR, @ERd STC CCR, @(d:16, ERd) STC CCR, @(d:24, ERd)
Page 779: Appendix B Internal I/O Register
Appendix B Internal I/O Register Appendix B Internal I/O Register Table B.1 Comparison of H8/3048 Group Internal I/O Register Specifications H8/3048 Mask ROM Version, Address H8/3048 H8/3047 Mask ROM Version, H8/3048F Module (Low) ZTAT H8/3045 Mask ROM Version, H8/3044 Mask ROM Version H'FF40 —...
Page 780: Addresses
Appendix B Internal I/O Register Addresses Data Bit Names Address Register Module (low) Name Width Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Name H'1C H'1D H'1E H'1F H'20 MAR0AR DMAC channel 0A H'21 MAR0AE H'22...
Page 781 Appendix B Internal I/O Register Data Bit Names Address Register Module (low) Name Width Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Name H'30 MAR1AR DMAC channel 1A H'31 MAR1AE H'32 MAR1AH H'33 MAR1AL H'34...
Page 782 Appendix B Internal I/O Register Data Bit Names Address Register Module (low) Name Width Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Name H'4E — — — — — — — — —...
Page 783 Appendix B Internal I/O Register Data Bit Names Address Register Module (low) Name Width Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Name H'70 TIER1 — — — — — OVIE IMIEB IMIEA ITU channel 1 H'71...
Page 784 Appendix B Internal I/O Register Data Bit Names Address Register Module (low) Name Width Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Name H'90 TOER — — EXB4 EXA4 ITU (all channels) H'91 TOCR —...
Page 785 Appendix B Internal I/O Register Data Bit Names Address Register Module (low) Name Width Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Name H'B0 GM CHR STOP CKS1 CKS0 SCI channel 0 H'B1 H'B2 MPIE...
Page 786 Appendix B Internal I/O Register Data Bit Names Address Register Module (low) Name Width Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Name H'D0 P9DDR — — DDR P9 DDR P9 DDR P9 DDR P9 DDR P9 DDR Port 9...
Page 787 Appendix B Internal I/O Register Data Bit Names Address Register Module (low) Name Width Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Name H'F0 — — — — — — — — —...
Page 788: B.2 Function
Appendix B Internal I/O Register Function Register Register Address to which Name of on-chip acronym name the register is mapped supporting module TSTR Timer Start Register H'60 ITU (all channels) numbers Initial bit — — — STR4 STR3 STR2 STR1 STR0 values Initial value...
Page 789 Appendix B Internal I/O Register MAR0A R/E/H/L—Memory Address Register 0A R/E/H/L H'20, H'21, DMAC0 H'22, H'23 Initial value Undetermined Read/Write — — — — — — — — MAR0AR MAR0AE Initial value Undetermined Undetermined Read/Write MAR0AH MAR0AL Source or destination address Rev.
Page 790 Appendix B Internal I/O Register ETCR0A H/L—Execute Transfer Count Register 0A H/L H'24, H'25 DMAC0 • Short address mode  I/O mode and idle mode Initial value Undetermined Read/Write Transfer counter  Repeat mode Initial value Undetermined Read/Write ETCR0AH Transfer counter Initial value Undetermined Read/Write...
Page 791 Appendix B Internal I/O Register ETCR0A H/L—Execute Transfer Count Register 0A H/L H'24, H'25 DMAC0 (cont) • Full address mode  Normal mode Initial value Undetermined Read/Write Transfer counter  Block transfer mode Initial value Undetermined Read/Write ETCR0AH Block size counter Initial value Undetermined Read/Write...
Page 792 Appendix B Internal I/O Register IOAR0A—I/O Address Register 0A H'26 DMAC0 Initial value Undetermined Read/Write Short address mode: source or destination address Full address mode: not used Rev. 7.00 Sep 21, 2005 page 768 of 878 REJ09B0259-0700...
Page 793 Appendix B Internal I/O Register DTCR0A—Data Transfer Control Register 0A H'27 DMAC0 • Short address mode DTSZ DTID DTIE DTS2 DTS1 DTS0 Initial value Read/Write Data transfer select Bit 2 Bit 1 Bit 0 DTS2 DTS1 DTS0 Data Transfer Activation Source Compare match/input capture A interrupt from ITU channel 0 Compare match/input capture A interrupt from ITU channel 1 Compare match/input capture A interrupt from ITU channel 2...
Page 794 Appendix B Internal I/O Register DTCR0A—Data Transfer Control Register 0A (cont) H'27 DMAC0 • Full address mode DTSZ SAID SAIDE DTIE DTS2A DTS1A DTS0A Initial value Read/Write Data transfer select 0A 0 Normal mode 1 Block transfer mode Data transfer select 2A and 1A Set both bits to 1 Data transfer interrupt enable 0 Interrupt request by DTE bit is disabled...
Page 795 Appendix B Internal I/O Register MAR0B R/E/H/L—Memory Address Register 0B R/E/H/L H'28, H'29, DMAC0 H'2A, H'2B Initial value Undetermined Read/Write — — — — — — — — MAR0BR MAR0BE Initial value Undetermined Undetermined Read/Write MAR0BH MAR0BL Source or destination address Rev.
Page 796 Appendix B Internal I/O Register ETCR0B H/L—Execute Transfer Count Register 0B H/L H'2C, H'2D DMAC0 • Short address mode  I/O mode and idle mode Initial value Undetermined Read/Write Not used  Repeat mode Initial value Undetermined Read/Write ETCR0BH Transfer counter Initial value Undetermined Read/Write...
Page 797 Appendix B Internal I/O Register ETCR0B H/L—Execute Transfer Count Register 0B H/L H'2C, H'2D DMAC0 (cont) • Full address mode  Normal mode Initial value Undetermined Read/Write Not used  Block transfer mode Initial value Undetermined Read/Write Block transfer counter IOAR0B—I/O Address Register 0B H'2E DMAC0...
Page 798 Appendix B Internal I/O Register DTCR0B—Data Transfer Control Register 0B H'2F DMAC0 • Short address mode DTSZ DTID DTIE DTS2 DTS1 DTS0 Initial value Read/Write Data transfer select Bit 2 Bit 1 Bit 0 DTS2 DTS1 DTS0 Data Transfer Activation Source Compare match/input capture A interrupt from ITU channel 0 Compare match/input capture A interrupt from ITU channel 1 Compare match/input capture A interrupt from ITU channel 2...
Page 799 Appendix B Internal I/O Register DTCR0B—Data Transfer Control Register 0B (cont) H'2F DMAC0 • Full address mode DTME — DAID DAIDE DTS2B DTS1B DTS0B Initial value Read/Write Data transfer select 2B to 0B Bit 2 Bit 1 Bit 0 Data Transfer Activation Source DTS2B DTS1B DTS0B...
Page 800 Appendix B Internal I/O Register MAR1A R/E/H/L—Memory Address Register 1A R/E/H/L H'30, H'31, DMAC1 H'32, H'33 Undetermined Initial value Read/Write — — — — — — — — MAR1AR MAR1AE Undetermined Undetermined Initial value Read/Write MAR1AH MAR1AL Note: Bit functions are the same as for DMAC0. Rev.
Page 801 Appendix B Internal I/O Register ETCR1A H/L—Execute Transfer Count Register 1A H/L H'34, H'35 DMAC1 Initial value Undetermined Read/Write Initial value Undetermined Read/Write ETCR1AH Initial value Undetermined Read/Write ETCR1AL Note: Bit functions are the same as for DMAC0. IOAR1A—I/O Address Register 1A H'36 DMAC1 Initial value...
Page 802 Appendix B Internal I/O Register DTCR1A—Data Transfer Control Register 1A H'37 DMAC1 • Short address mode DTSZ DTID DTIE DTS2 DTS1 DTS0 Initial value Read/Write • Full address mode DTSZ SAID SAIDE DTIE DTS2A DTS1A DTS0A Initial value Read/Write Note: Bit functions are the same as for DMAC0. MAR1B R/E/H/L—Memory Address Register 1B R/E/H/L H'38, H'39, DMAC1...
Page 803 Appendix B Internal I/O Register ETCR1B H/L—Execute Transfer Count Register 1B H/L H'3C, H'3D DMAC1 Initial value Undetermined Read/Write Initial value Undetermined Read/Write ETCR1BH Initial value Undetermined Read/Write ETCR1BL Note: Bit functions are the same as for DMAC0. IOAR1B—I/O Address Register 1B H'3E DMAC1 Initial value...
Page 804 Appendix B Internal I/O Register DTCR1B—Data Transfer Control Register 1B H'3F DMAC1 • Short address mode DTSZ DTID DTIE DTS2 DTS1 DTS0 Initial value Read/Write • Full address mode DTME — DAID DAIDE DTS2B DTS1B DTS0B Initial value Read/Write Note: Bit functions are the same as for DMAC0. Rev.
Page 805 Appendix B Internal I/O Register FLMCR—Flash Memory Control Register H'40 Flash memory — — Initial value — — Program mode Exit from program mode (Initial value) Transition to program mode Erase mode Exit from erase mode (Initial value) Transition to erase mode Program-verify mode Exit from program-verify mode (Initial value)
Page 806 Appendix B Internal I/O Register EBR1—Erase Block Register 1 H'42 Flash memory Initial value R/W * Large block 7 to 0 Block LB7 to LB0 is not selected (Initial value) Block LB7 to LB0 is selected Note: * The initial value is H'00 in modes 5, 6, and 7 (on-chip flash memory enabled). In modes 1, 2, 3, and 4 (on-chip flash memory disabled), this register cannot be modified and is always read as H'FF.
Page 807 Appendix B Internal I/O Register EBR2—Erase Block Register 2 H'43 Flash memory Initial value R/W * Small block 7 to 0 Block SB7 to SB0 is not selected (Initial value) Block SB7 to SB0 is selected Note: * The initial value is H'00 in modes 5, 6, and 7 (on-chip flash memory enabled). In modes 1, 2, 3, and 4 (on-chip flash memory disabled), this register cannot be modified and is always read as H'FF.
Page 808 Appendix B Internal I/O Register RAMCR—RAM Control Register H'48 Flash memory FLER — — — RAMS RAM2 RAM1 RAM0 Initial value — — — RAM select, RAM 2 to RAM 0 Bit 3 Bit 2 Bit 1 Bit 0 RAMS RAM 2 RAM 1 RAM 0...
Page 809 Appendix B Internal I/O Register DASTCR—D/A Standby Control Register H'5C System control — — — — — — — DASTE Initial value Read/Write — — — — — — — D/A standby enable 0 D/A output is disabled in software standby mode 1 D/A output is enabled in software standby mode DIVCR—Division Control Register H'5D...
Page 810 Appendix B Internal I/O Register MSTCR—Module Standby Control Register H'5E System control PSTOP — MSTOP5 MSTOP4 MSTOP3 MSTOP2 MSTOP1 MSTOP0 Initial value Read/Write — Module standby 0 0 A/D converter operates normally (Initial value) 1 A/D converter is in standby state Module standby 1 0 Refresh controller operates normally (Initial value)
Page 811 Appendix B Internal I/O Register CSCR—Chip Select Control Register H'5F System control CS7E CS6E CS5E CS4E — — — — Initial value Read/Write — — — — Chip select 7 to 4 enable Bit n CSnE Description Output of chip select signal CSn is disabled (Initial value) Output of chip select signal CSn is enabled (n = 7 to 4)
Page 812 Appendix B Internal I/O Register TSNC—Timer Synchro Register H'61 ITU (all channels) — — — SYNC4 SYNC3 SYNC2 SYNC1 SYNC0 Initial value Read/Write — — — Timer sync 0 0 TCNT0 operates independently 1 TCNT0 is synchronized Timer sync 1 0 TCNT1 operates independently 1 TCNT1 is synchronized Timer sync 2...
Page 813 Appendix B Internal I/O Register TMDR—Timer Mode Register H'62 ITU (all channels) — FDIR PWM4 PWM3 PWM2 PWM1 PWM0 Initial value Read/Write — PWM mode 0 0 Channel 0 operates normally 1 Channel 0 operates in PWM mode PWM mode 1 0 Channel 1 operates normally 1 Channel 1 operates in PWM mode PWM mode 2...
Page 814 Appendix B Internal I/O Register TFCR—Timer Function Control Register H'63 ITU (all channels) — — CMD1 CMD0 BFB4 BFA4 BFB3 BFA3 Initial value Read/Write — — Buffer mode A3 0 GRA3 operates normally 1 GRA3 is buffered by BRA3 Buffer mode B3 0 GRB3 operates normally 1 GRB3 is buffered by BRB3 Buffer mode A4...
Page 815 Appendix B Internal I/O Register TCR0—Timer Control Register 0 H'64 ITU0 — CCLR1 CCLR0 CKEG1 CKEG0 TPSC2 TPSC1 TPSC0 Initial value Read/Write — Timer prescaler 2 to 0 Bit 2 Bit 1 Bit 0 TPSC2 TPSC1 TPSC0 TCNT Clock Source Internal clock: φ...
Page 816 Appendix B Internal I/O Register TIOR0—Timer I/O Control Register 0 H'65 ITU0 — IOB2 IOB1 IOB0 — IOA2 IOA1 IOA0 Initial value Read/Write — — I/O control A2 to A0 Bit 2 Bit 1 Bit 0 IOA2 IOA1 IOA0 GRA Function GRA is an output No output at compare match compare register...
Page 817 Appendix B Internal I/O Register TIER0—Timer Interrupt Enable Register 0 H'66 ITU0 — — — — — OVIE IMIEB IMIEA Initial value Read/Write — — — — — Input capture/compare match interrupt enable A 0 IMIA interrupt requested by IMFA flag is disabled 1 IMIA interrupt requested by IMFA flag is enabled Input capture/compare match interrupt enable B 0 IMIB interrupt requested by IMFB flag is disabled...
Page 818 Appendix B Internal I/O Register TSR0—Timer Status Register 0 H'67 ITU0 — — — — — IMFB IMFA Initial value Read/Write — — — — — R/(W) R/(W) R/(W) Input capture/compare match flag A 0 [Clearing condition] Read IMFA when IMFA = 1, then write 0 in IMFA 1 [Setting conditions] TCNT = GRA when GRA functions as an output compare register.
Page 819 Appendix B Internal I/O Register TCNT0 H/L—Timer Counter 0 H/L H'68, H'69 ITU0 Initial value Read/Write Up-counter GRA0 H/L—General Register A0 H/L H'6A, H'6B ITU0 Initial value Read/Write Output compare or input capture register GRB0 H/L—General Register B0 H/L H'6C, H'6D ITU0 Initial value Read/Write...
Page 820 Appendix B Internal I/O Register TIOR1—Timer I/O Control Register 1 H'6F ITU1 — IOB2 IOB1 IOB0 — IOA2 IOA1 IOA0 Initial value Read/Write — — Note: Bit functions are the same as for ITU0. TIER1—Timer Interrupt Enable Register 1 H'70 ITU1 —...
Page 821 Appendix B Internal I/O Register GRA1 H/L—General Register A1 H/L H'74, H'75 ITU1 Initial value Read/Write Note: Bit functions are the same as for ITU0. GRB1 H/L—General Register B1 H/L H'76, H'77 ITU1 Initial value Read/Write Note: Bit functions are the same as for ITU0. TCR2—Timer Control Register 2 H'78 ITU2...
Page 822 Appendix B Internal I/O Register TIOR2—Timer I/O Control Register 2 H'79 ITU2 — IOB2 IOB1 IOB0 — IOA2 IOA1 IOA0 Initial value Read/Write — — Note: Bit functions are the same as for ITU0. TIER2—Timer Interrupt Enable Register 2 H'7A ITU2 —...
Page 823 Appendix B Internal I/O Register TCNT2 H/L—Timer Counter 2 H/L H'7C, H'7D ITU2 Initial value Read/Write Phase counting mode: up/down counter Other modes: up-counter GRA2 H/L—General Register A2 H/L H'7E, H'7F ITU2 Initial value Read/Write Note: Bit functions are the same as for ITU0. GRB2 H/L—General Register B2 H/L H'80, H'81 ITU2...
Page 824 Appendix B Internal I/O Register TCR3—Timer Control Register 3 H'82 ITU3 — CCLR1 CCLR0 CKEG1 CKEG0 TPSC2 TPSC1 TPSC0 Initial value Read/Write — Note: Bit functions are the same as for ITU0. TIOR3—Timer I/O Control Register 3 H'83 ITU3 — IOB2 IOB1 IOB0...
Page 825 Appendix B Internal I/O Register TSR3—Timer Status Register 3 H'85 ITU3 — — — — — IMFB IMFA Initial value Read/Write — — — — — R/(W) R/(W) R/(W) Bit functions are the same as for ITU0 Overflow flag 0 [Clearing condition] Read OVF when OVF = 1, then write 1 in OVF 1 [Setting condition] TCNT overflowed from H'FFFF to H'0000 or underflowed from...
Page 826 Appendix B Internal I/O Register GRB3 H/L—General Register B3 H/L H'8A, H'8B ITU3 Initial value Read/Write Output compare or input capture register (can be buffered) BRA3 H/L—Buffer Register A3 H/L H'8C, H'8D ITU3 Initial value Read/Write Used to buffer GRA BRB3 H/L—Buffer Register B3 H/L H'8E, H'8F ITU3...
Page 827 Appendix B Internal I/O Register TOER—Timer Output Enable Register H'90 ITU (all channels) — — EXB4 EXA4 Initial value Read/Write — — Master enable TIOCA3 0 TIOCA output is disabled regardless of TIOR3, TMDR, and TFCR settings 1 TIOCA is enabled for output according to TIOR3, TMDR, and TFCR settings Master enable TIOCA4 0 TIOCA output is disabled regardless of TIOR4, TMDR, and TFCR settings 1 TIOCA is enabled for output according to TIOR4, TMDR, and TFCR settings...
Page 828 Appendix B Internal I/O Register TOCR—Timer Output Control Register H'91 ITU (all channels) — — — XTGD — — OLS4 OLS3 Initial value Read/Write — — — — — Output level select 3 0 TIOCB , TOCXA , and TOCXB outputs are inverted 1 TIOCB , TOCXA , and TOCXB outputs are not inverted Output level select 4 0 TIOCA , TIOCA , and TIOCB outputs are inverted...
Page 829 Appendix B Internal I/O Register TCR4—Timer Control Register 4 H'92 ITU4 — CCLR1 CCLR0 CKEG1 CKEG0 TPSC2 TPSC1 TPSC0 Initial value Read/Write — Note: Bit functions are the same as for ITU0. TIOR4—Timer I/O Control Register 4 H'93 ITU4 — IOB2 IOB1 IOB0...
Page 830 Appendix B Internal I/O Register TCNT4 H/L—Timer Counter 4 H/L H'96, H'97 ITU4 Initial value Read/Write Note: Bit functions are the same as for ITU3. GRA4 H/L—General Register A4 H/L H'98, H'99 ITU4 Initial value Read/Write Note: Bit functions are the same as for ITU3. GRB4 H/L—General Register B4 H/L H'9A, H'9B ITU4...
Page 831 Appendix B Internal I/O Register BRB4 H/L—Buffer Register B4 H/L H'9E, H'9F ITU4 Initial value Read/Write Note: Bit functions are the same as for ITU3. TPMR—TPC Output Mode Register H'A0 — — — — G3NOV G2NOV G1NOV G0NOV Initial value Read/Write —...
Page 832 Appendix B Internal I/O Register TPCR—TPC Output Control Register H'A1 G3CMS1 G3CMS0 G2CMS1 G2CMS0 G1CMS1 G1CMS0 G0CMS1 G0CMS0 Initial value Read/Write Group 0 compare match select 1 and 0 Bit 1 Bit 0 G0CMS1 G0CMS0 ITU Channel Selected as Output Trigger TPC output group 0 (TP to TP ) is triggered by compare match in ITU channel 0 TPC output group 0 (TP to TP ) is triggered by compare match in ITU channel 1 TPC output group 0 (TP to TP ) is triggered by compare match in ITU channel 2...
Page 833 Appendix B Internal I/O Register NDERB—Next Data Enable Register B H'A2 NDER15 NDER14 NDER13 NDER12 NDER11 NDER10 NDER9 NDER8 Initial value Read/Write Next data enable 15 to 8 Bits 7 to 0 NDER15 to NDER8 Description TPC outputs TP to TP are disabled (NDR15 to NDR8 are not transferred to PB to PB ) TPC outputs TP to TP are enabled...
Page 834 Appendix B Internal I/O Register NDRB—Next Data Register B H'A4/H'A6 • Same trigger for TPC output groups 2 and 3  Address H'FFA4 NDR15 NDR14 NDR13 NDR12 NDR11 NDR10 NDR9 NDR8 Initial value Read/Write Store the next output data for Store the next output data for TPC output group 3 TPC output group 2...
Page 835 Appendix B Internal I/O Register NDRA—Next Data Register A H'A5/H'A7 • Same trigger for TPC output groups 0 and 1  Address H'FFA5 NDR7 NDR6 NDR5 NDR4 NDR3 NDR2 NDR1 NDR0 Initial value Read/Write Store the next output data for Store the next output data for TPC output group 1 TPC output group 0...
Page 836 Appendix B Internal I/O Register  Address H'FFA7 — — — — NDR3 NDR2 NDR1 NDR0 Initial value Read/Write — — — — Store the next output data for TPC output group 0 TCSR—Timer Control/Status Register H'A8 — — CKS2 CKS1 CKS0 Initial value...
Page 837 Appendix B Internal I/O Register TCNT—Timer Counter H'A9 (read), H'A8 (write) Initial value Read/Write Count value RSTCSR—Reset Control/Status Register H'AB (read), H'AA (write) WRST RSTOE — — — — — — Initial value Read/Write R/(W) — — — — — —...
Page 838 Appendix B Internal I/O Register RFSHCR—Refresh Control Register H'AC Refresh controller SRFMD PSRAME DRAME CAS/WE M9/M8 RFSHE — RCYCE Initial value Read/Write — Refresh cycle enable 0 Refresh cycles are disabled 1 Refresh cycles are enabled for area 3 Refresh pin enable RFSH Refresh signal output at the pin is disabled...
Page 839 Appendix B Internal I/O Register RTMCSR—Refresh Timer Control/Status Register H'AD Refresh controller CMIE CKS2 CKS1 CKS0 — — — Initial value Read/Write R/(W) — — — Clock select 2 to 0 Bit 5 Bit 4 Bit 3 CKS2 CKS1 CKS0 Counter Clock Source Clock input is disabled φ/2...
Page 840 Appendix B Internal I/O Register RTCNT—Refresh Timer Counter H'AE Refresh controller Initial value Read/Write Count value RTCOR—Refresh Time Constant Register H'AF Refresh controller Initial value Read/Write Interval at which RTCNT and compare match are set Rev. 7.00 Sep 21, 2005 page 816 of 878 REJ09B0259-0700...
Page 841 Appendix B Internal I/O Register SMR—Serial Mode Register H'B0 SCI0 C/A GM STOP CKS1 CKS0 Initial value Read/Write Clock select 1 and 0 Bit 1 Bit 0 CKS1 CKS0 Clock Source φ clock φ/4 clock Multiprocessor mode φ/16 clock 0 Multiprocessor function disabled φ/64 clock 1 Multiprocessor format selected Stop bit length...
Page 842 Appendix B Internal I/O Register BRR—Bit Rate Register H'B1 SCI0 Initial value Read/Write Serial communication bit rate setting Rev. 7.00 Sep 21, 2005 page 818 of 878 REJ09B0259-0700...
Page 843 Appendix B Internal I/O Register SCR—Serial Control Register H'B2 SCI0 MPIE TEIE CKE1 CKE0 Initial value Read/Write Clock enable 1 and 0 Bit 1 Bit 0 CKE1 CKE0 Clock Selection and Output Asynchronous mode Internal clock, SCK pin available for generic I/O Synchronous mode Internal clock, SCK pin used for serial clock output Asynchronous mode...
Page 844 Appendix B Internal I/O Register TDR—Transmit Data Register H'B3 SCI0 Initial value Read/Write Serial transmit data Rev. 7.00 Sep 21, 2005 page 820 of 878 REJ09B0259-0700...
Page 845 Appendix B Internal I/O Register SSR—Serial Status Register H'B4 SCI0 TDRE RDRF ORER FER/ERS TEND MPBT Initial value Read/Write R/(W) R/(W) R/(W) R/(W) R/(W) Multiprocessor bit Multiprocessor bit transfer Multiprocessor bit value in Multiprocessor bit value in receive data is 0 transmit data is 0 Multiprocessor bit value in Multiprocessor bit value in...
Page 846 Appendix B Internal I/O Register RDR—Receive Data Register H'B5 SCI0 Initial value Read/Write Serial receive data SCMR—Smart Card Mode Register H'B6 SCI0 — — — — SDIR SINV — SMIF Initial value Read/Write — — — — — Smart card interface mode select 0 Smart card interface function is disabled (Initial value) 1 Smart card interface function is enabled...
Page 847 Appendix B Internal I/O Register SMR—Serial Mode Register H'B8 SCI1 STOP CKS1 CKS0 Initial value Read/Write Note: Bit functions are the same as for SCI0. BRR—Bit Rate Register H'B9 SCI1 Initial value Read/Write Note: Bit functions are the same as for SCI0. SCR—Serial Control Register H'BA SCI1...
Page 848 Appendix B Internal I/O Register TDR—Transmit Data Register H'BB SCI1 Initial value Read/Write Note: Bit functions are the same as for SCI0. SSR—Serial Status Register H'BC SCI1 TDRE RDRF ORER TEND MPBT Initial value Read/Write R/(W) R/(W) R/(W) R/(W) R/(W) Notes: Bit functions are the same as for SCI0.
Page 849 Appendix B Internal I/O Register P1DDR—Port 1 Data Direction Register H'C0 Port 1 P1 DDR P1 DDR P1 DDR P1 DDR P1 DDR P1 DDR P1 DDR P1 DDR Initial value Modes 1 to 4 Read/Write — — — — —...
Page 850 Appendix B Internal I/O Register P2DR—Port 2 Data Register H'C3 Port 2 Initial value Read/Write Data for port 2 pins P3DDR—Port 3 Data Direction Register H'C4 Port 3 P3 DDR P3 DDR P3 DDR P3 DDR P3 DDR P3 DDR P3 DDR P3 DDR Initial value...
Page 851 Appendix B Internal I/O Register P3DR—Port 3 Data Register H'C6 Port 3 Initial value Read/Write Data for port 3 pins P4DR—Port 4 Data Register H'C7 Port 4 Initial value Read/Write Data for port 4 pins P5DDR—Port 5 Data Direction Register H'C8 Port 5 —...
Page 852 Appendix B Internal I/O Register P6DDR—Port 6 Data Direction Register H'C9 Port 6 — P6 DDR P6 DDR P6 DDR P6 DDR P6 DDR P6 DDR P6 DDR Initial value Read/Write — Port 6 input/output select 0 Generic input 1 Generic output P5DR—Port 5 Data Register H'CA Port 5...
Page 853 Appendix B Internal I/O Register P8DDR—Port 8 Data Direction Register H'CD Port 8 — — — P8 DDR P8 DDR P8 DDR P8 DDR P8 DDR Initial value Modes 1 to 4 Read/Write — — — Initial value Modes 5 to 7 Read/Write —...
Page 854 Appendix B Internal I/O Register P9DDR—Port 9 Data Direction Register H'D0 Port 9 — — P9 DDR P9 DDR P9 DDR P9 DDR P9 DDR P9 DDR Initial value Read/Write — — Port 9 input/output select 0 Generic input 1 Generic output PADDR—Port A Data Direction Register H'D1 Port A...
Page 855 Appendix B Internal I/O Register PADR—Port A Data Register H'D3 Port A Initial value Read/Write Data for port A pins PBDDR—Port B Data Direction Register H'D4 Port B PB DDR PB DDR PB DDR PB DDR PB DDR PB DDR PB DDR PB DDR Initial value...
Page 856 Appendix B Internal I/O Register P2PCR—Port 2 Input Pull-Up MOS Control Register H'D8 Port 2 P2 PCR P2 PCR P2 PCR P2 PCR P2 PCR P2 PCR P2 PCR P2 PCR Initial value Read/Write Port 2 input pull-up MOS control 7 to 0 0 Input pull-up transistor is off 1 Input pull-up transistor is on Note: Valid when the corresponding P2DDR bit is cleared to 0 (designating generic input).
Page 857 Appendix B Internal I/O Register P5PCR—Port 5 Input Pull-Up MOS Control Register H'DB Port 5 — — — — P5 PCR P5 PCR P5 PCR P5 PCR Initial value Read/Write — — — — Port 5 input pull-up MOS control 3 to 0 0 Input pull-up transistor is off 1 Input pull-up transistor is on Note: Valid when the corresponding P5DDR bit is cleared to 0 (designating generic input).
Page 858 Appendix B Internal I/O Register DACR—D/A Control Register H'DE DAOE1 DAOE0 — — — — — Initial value Read/Write — — — — — D/A enable Bit 7 Bit 6 Bit 5 DAOE1 DAOE0 Description — D/A conversion is disabled in channels 0 and 1 D/A conversion is enabled in channel 0 D/A conversion is disabled in channel 1 D/A conversion is enabled in channels 0 and 1...
Page 859 Appendix B Internal I/O Register ADDRB H/L—A/D Data Register B H/L H'E2, H'E3 — — — — — — Initial value Read/Write ADDRBH ADDRBL A/D conversion data 10-bit data giving an A/D conversion result ADDRC H/L—A/D Data Register C H/L H'E4, H'E5 —...
Page 860 Appendix B Internal I/O Register ADCSR—A/D Control/Status Register H'E8 ADIE ADST SCAN Initial value Read/Write R/(W) Clock select 0 Conversion time = 266 states (maximum) 1 Conversion time = 134 states (maximum) Channel select 2 to 0 Group Channel Selection Selection Description Single Mode...
Page 861 Appendix B Internal I/O Register ADCR—A/D Control Register H'E9 TRGE — — — — — — — Initial value Read/Write — — — — — — — Trigger enable 0 A/D conversion cannot be externally triggered ADTRG 1 A/D conversion starts at the fall of the external trigger signal ( ABWCR—Bus Width Control Register H'EC Bus controller...
Page 862 Appendix B Internal I/O Register WCR—Wait Control Register H'EE Bus controller — — — — WMS1 WMS0 Initial value Read/Write — — — — Wait mode select 1 and 0 Wait count 1 and 0 Bit 3 Bit 2 Bit 1 Bit 0 WMS1 WMS0...
Page 863 Appendix B Internal I/O Register MDCR—Mode Control Register H'F1 System control — — — — — MDS2 MDS1 MDS0 Initial value — — — Read/Write — — — — — Mode select 2 to 0 Bit 2 Bit 1 Bit 0 Operating mode —...
Page 864 Appendix B Internal I/O Register SYSCR—System Control Register H'F2 System control SSBY STS2 STS1 STS0 NMIEG — RAME Initial value Read/Write — RAM enable 0 On-chip RAM is disabled 1 On-chip RAM is enabled NMI edge select 0 An interrupt is requested at the falling edge of NMI 1 An interrupt is requested at the rising edge of NMI User bit enable 0 CCR bit 6 (UI) is used as an interrupt mask bit...
Page 865 Appendix B Internal I/O Register BRCR—Bus Release Control Register H'F3 Bus controller A23E A22E A21E — — — — BRLE Modes Initial value 1, 2, Read/Write — — — — — — — 5, 7 Initial value Modes 3, 4, 6 Read/Write —...
Page 866 Appendix B Internal I/O Register ISR—IRQ Status Register H'F6 Interrupt controller — — IRQ5F IRQ4F IRQ3F IRQ2F IRQ1F IRQ0F Initial value Read/Write — — R/(W) * R/(W) * R/(W) * R/(W) * R/(W) * R/(W) * IRQ to IRQ flags Bits 5 to 0 IRQ5F to IRQ0F Setting and Clearing Conditions...
Page 867 Appendix B Internal I/O Register IPRA—Interrupt Priority Register A H'F8 Interrupt controller IPRA7 IPRA6 IPRA5 IPRA4 IPRA3 IPRA2 IPRA1 IPRA0 Initial value Read/Write Priority level A7 to A0 0 Priority level 0 (low priority) 1 Priority level 1 (high priority) •...
Page 868: Appendix C I/O Port Block Diagrams
Appendix C I/O Port Block Diagrams Appendix C I/O Port Block Diagrams Port 1 Block Diagram Software standby Mode 7 Hardware standby External bus released Reset Mode 1 to 4 P1 DDR WP1D Reset Mode 7 P1 DR Mode 1 to 6 WP1D: Write to P1DDR WP1:...
Page 869: C.2 Port 2 Block Diagram
Appendix C I/O Port Block Diagrams Port 2 Block Diagram Reset P2 PCR Software standby Mode 7 RP2P WP2P Hardware standby Reset External bus Mode 1 to 4 released P2 DDR WP2D Reset Mode 7 P2 DR Mode 1 to 6 WP2P: Write to P2PCR RP2P:...
Page 870: C.3 Port 3 Block Diagram
Appendix C I/O Port Block Diagrams Port 3 Block Diagram Reset Hardware standby External Mode 7 bus released P3 DDR Write to external address WP3D Reset Mode 7 P3 DR Mode 1 to 6 Read external address WP3D: Write to P3DDR WP3: Write to port 3 RP3:...
Page 871: C.4 Port 4 Block Diagram
Appendix C I/O Port Block Diagrams Port 4 Block Diagram 8-bit bus 16-bit bus mode mode Mode Mode 7 1 to 6 Reset P4 PCR RP4P WP4P Reset Write to external P4 DDR address WP4D Reset P4 DR Read external address WP4P: Write to P4PCR...
Page 872: C.5 Port 5 Block Diagram
Appendix C I/O Port Block Diagrams Port 5 Block Diagram Reset P5 PCR Software standby Mode 7 RP5P WP5P Hardware standby External bus Mode 1 to 4 released Reset P5 DDR WP5D Reset Mode 7 P5 DR Mode 1 to 6 WP5P: Write to P5PCR RP5P:...
Page 873: C.6 Port 6 Block Diagrams
Appendix C I/O Port Block Diagrams Port 6 Block Diagrams Reset P6 DDR Bus controller WAIT WP6D Mode 7 input Reset enable P6 DR Bus controller WAIT WP6D: Write to P6DDR input WP6: Write to port 6 RP6: Read port 6 Figure C.6 (a) Port 6 Block Diagram (Pin P6 Rev.
Page 874 Appendix C I/O Port Block Diagrams Reset controller P6 DDR Mode 7 WP6D Bus release enable Reset P6 DR BREQ input WP6D: Write to P6DDR WP6: Write to port 6 RP6: Read port 6 Figure C.6 (b) Port 6 Block Diagram (Pin P6 Rev.
Page 875 Appendix C I/O Port Block Diagrams Reset P6 DDR WP6D Reset P6 DR Bus controller Mode 7 Bus release enable BACK output WP6D: Write to P6DDR WP6: Write to port 6 RP6: Read port 6 Figure C.6 (c) Port 6 Block Diagram (Pin P6 Rev.
Page 876 Appendix C I/O Port Block Diagrams Software standby Mode 7 Hardware standby External bus released Reset Mode 7 P6 DDR WP6D Reset Mode 7 P6 DR Mode 1 to 6 AS output RD output HWR output LWR output WP6D: Write to P6DDR WP6: Write to port 6 RP6:...
Page 877: C.7 Port 7 Block Diagrams
Appendix C I/O Port Block Diagrams Port 7 Block Diagrams A/D converter Input enable Analog input RP7: Read port 7 n = 0 to 5 Figure C.7 (a) Port 7 Block Diagram (Pins P7 to P7 A/D converter Input enable Analog input D/A converter Output enable...
Page 878: C.8 Port 8 Block Diagrams
Appendix C I/O Port Block Diagrams Port 8 Block Diagrams Reset P8 DDR WP8D Reset Refresh P8 DR controller Mode 7 Output enable RFSH output Interrupt controller input WP8D: Write to P8DDR WP8: Write to port 8 RP8: Read port 8 Figure C.8 (a) Port 8 Block Diagram (Pin P8 Rev.
Page 879 Appendix C I/O Port Block Diagrams Reset Bus controller P8 DDR WP8D Reset output Mode 7 P8 DR Mode 1 to 6 Interrupt controller input WP8D Write to P8DDR WP8: Write to port 8 RP8: Read port 8 n = 1 to 3 Figure C.8 (b) Port 8 Block Diagram (Pins P8 to P8 Rev.
Page 880 Appendix C I/O Port Block Diagrams Reset Mode 1 to 4 Bus controller P8 DDR WP8D output Reset Mode 6/7 P8 DR Mode 1 to 5 WP8D: Write to P8DDR WP8: Write to port 8 RP8: Read port 8 Figure C.8 (c) Port 8 Block Diagram (Pin P8 Rev.
Page 881: C.9 Port 9 Block Diagrams
Appendix C I/O Port Block Diagrams Port 9 Block Diagrams Reset P9 DDR WP9D Reset P9 DR SCI0 Output enable Serial transmit data Guard time WP9D: Write to P9DDR WP9: Write to port 9 RP9: Read port 9 Figure C.9 (a) Port 9 Block Diagram (Pin P9 Rev.
Page 882 Appendix C I/O Port Block Diagrams Reset P9 DDR WP9D Reset P9 DR SCI1 Output enable Serial transmit data WP9D: Write to P9DDR WP9: Write to port 9 RP9: Read port 9 Figure C.9 (b) Port 9 Block Diagram (Pin P9 Rev.
Page 883 Appendix C I/O Port Block Diagrams Reset P9 DDR WP9D Input enable Reset P9 DR Serial receive data WP9D: Write to P9DDR WP9: Write to port 9 RP9: Read port 9 n = 2 and 3 Figure C.9 (c) Port 9 Block Diagram (Pins P9 and P9 Rev.
Page 884 Appendix C I/O Port Block Diagrams Reset P9 DDR WP9D Clock input Reset enable P9 DR Clock output enable Clock output Clock input WP9D: Write to P9DDR Interrupt WP9: Write to port 9 controller RP9: Read port 9 n = 4 and 5 input Figure C.9 (d) Port 9 Block Diagram (Pins P9 and P9...
Page 885: C.10 Port A Block Diagrams
Appendix C I/O Port Block Diagrams C.10 Port A Block Diagrams Reset PA DDR WPAD Reset output enable PA DR Next data Output trigger DMA controller Output enable Transfer end output Counter clock input WPAD: Write to PADDR WPA: Write to port A RPA: Read port A n = 0 and 1...
Page 886 Appendix C I/O Port Block Diagrams Reset PA DDR WPAD Reset output enable PA DR Next data Output trigger Output enable Compare match output Input capture Counter clock WPAD: Write to PADDR input WPA: Write to port A RPA: Read port A n = 2 and 3 Figure C.10 (b) Port A Block Diagram (Pins PA and PA...
Page 887 Appendix C I/O Port Block Diagrams Software standby External bus released Hardware standby Bus controller Chip select enable Address output Reset enable output WPAD Reset TPC output enable Next data Output trigger Output enable Compare match output Input capture WPAD: Write to PADDR WPA: Write to port A...
Page 888 Appendix C I/O Port Block Diagrams Software standby External bus released Hardware standby Bus controller Address output Reset enable WPAD Reset TPC output enable Next data Output trigger Output enable Compare match output Input capture WPAD: Write to PADDR WPA: Write to port A RPA: Read port A...
Page 889: C.11 Port B Block Diagrams
Appendix C I/O Port Block Diagrams C.11 Port B Block Diagrams Reset PB DDR WPBD Reset TPC output enable PB DR Next data Output trigger Output enable Compare match output Input capture WPBD: Write to PBDDR WPB: Write to port B RPB: Read port B n = 0 to 3...
Page 890 Appendix C I/O Port Block Diagrams Reset PB DDR WPBD Reset TPC output enable PB DR Next data Output trigger Output enable Compare match output WPBD: Write to PBDDR WPB: Write to port B RPB: Read port B n = 4 and 5 Figure C.11 (b) Port B Block Diagram (Pins PB and PB Rev.
Page 891 Appendix C I/O Port Block Diagrams Reset PB DDR WPBD Reset output enable PB DR Next data Output trigger Bus controller output Chip select enable DMAC WPBD: Write to PBDDR DREQ0 WPB: Write to port B input RPB: Read port B Figure C.11 (c) Port B Block Diagram (Pin PB Rev.
Page 892 Appendix C I/O Port Block Diagrams Reset PB DDR WPBD Reset output enable PB DR Next data Output trigger DMAC WPBD: Write to PBDDR DREQ1 WPB: Write to port B input RPB: Read port B A/D converter ADTRG input Figure C.11 (d) Port B Block Diagram (Pin PB Rev.
Page 893: Appendix D Pin States
Appendix D Pin States Appendix D Pin States Port States in Each Mode Table D.1 Port States Hardware Software Bus- Program Standby Standby Released Execution, Pin Name Mode Reset Mode Mode Mode Sleep Mode φ — Clock output T Clock output Clock output RESO * —...
Page 894 Appendix D Pin States Hardware Software Bus- Program Standby Standby Released Execution, Pin Name Mode Reset Mode Mode Mode Sleep Mode 1 to 6 keep keep I/O port WAIT keep — I/O port 1 to 6 keep I/O port BREQ (BRLE = 0) (BRLE = 1) keep...
Page 895 Appendix D Pin States Hardware Software Bus- Program Standby Standby Released Execution, Pin Name Mode Reset Mode Mode Mode Sleep Mode keep * to PA 1 to 7 keep I/O port to CS to PA 3, 4, 6 (CS output) (CS output) (CS output) T (address...
Page 896: D.2 Pin States At Reset
Appendix D Pin States Pin States at Reset Reset in T1 State: Figure D.1 is a timing diagram for the case in which RES goes low during the T1 state of an external memory access cycle. As soon as RES goes low, all ports are initialized to the input state.
Page 897 Appendix D Pin States Reset in T2 State: Figure D.2 is a timing diagram for the case in which RES goes low during the T2 state of an external memory access cycle. As soon as RES goes low, all ports are initialized to the input state.
Page 898 Appendix D Pin States Reset in T3 State: Figure D.3 is a timing diagram for the case in which RES goes low during the T3 state of an external memory access cycle. As soon as RES goes low, all ports are initialized to the input state.
Page 899 Appendix C I/O Port Block Diagrams Appendix E Timing of Transition to and Recovery from Hardware Standby Mode Timing of Transition to Hardware Standby Mode (1) To retain RAM contents with the RAME bit set to 1 in SYSCR, drive the RES signal low 10 system clock cycles before the STBY signal goes low, as shown below.
Page 900: Appendix F Product Code Lineup
Appendix F Product Code Lineup Appendix F Product Code Lineup Table F.1 H8/3048 Group Product Code Lineup Classification of Products Package Product Code Mark Code Product Type of Power Supply (Package Code) Type Specifications H8/3048F Flash 5 V version HD64F3048TF HD64F3048TF 100-pin TQFP (TFP-100B) memory...
Page 901: Appendix G Package Dimensions
Appendix G Package Dimensions Appendix G Package Dimensions Figure G.1 shows the FP-100B package dimensions of the H8/3048 Group. Figure G.2 shows the TFP-100B package dimensions. JEITA Package Code RENESAS Code Previous Code MASS[Typ.] P-QFP100-14x14-0.50 PRQP0100KA-A FP-100B/FP-100BV 1.2g NOTE) 1. DIMENSIONS"*1"AND"*2"...
Page 902 Appendix G Package Dimensions JEITA Package Code RENESAS Code Previous Code MASS[Typ.] P-TQFP100-14x14-0.50 PTQP0100KA-A TFP-100B/TFP-100BV 0.5g NOTE) 1. DIMENSIONS"*1"AND"*2" DO NOT INCLUDE MOLD FLASH 2. DIMENSION"*3"DOES NOT INCLUDE TRIM OFFSET. Dimension in Millimeters Reference Symbol 1.00 15.8 16.0 16.2 Terminal cross section 15.8...
Page 903 Publication Date: 1st Edition, January 1995 Rev.7.00, September 21, 2005 Published by: Sales Strategic Planning Div. Renesas Technology Corp. Edited by: Customer Support Department Global Strategic Communication Div. Renesas Solutions Corp. © 2005. Renesas Technology Corp., All rights reserved. Printed in Japan.
Page 904 Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan http://www.renesas.com RENESAS SALES OFFICES Refer to "http://www.renesas.com/en/network" for the latest and detailed information. Renesas Technology America, Inc. 450 Holger Way, San Jose, CA 95134-1368, U.S.A Tel: <1> (408) 382-7500, Fax: <1> (408) 382-7501...
Page 905 H8/3048 Group, H8/3048 F-ZTAT™ Hardware Manual...
