2. Double-click the fluorophore that you want to add.
The fluorophore moves to the Selected Fluorophores list.

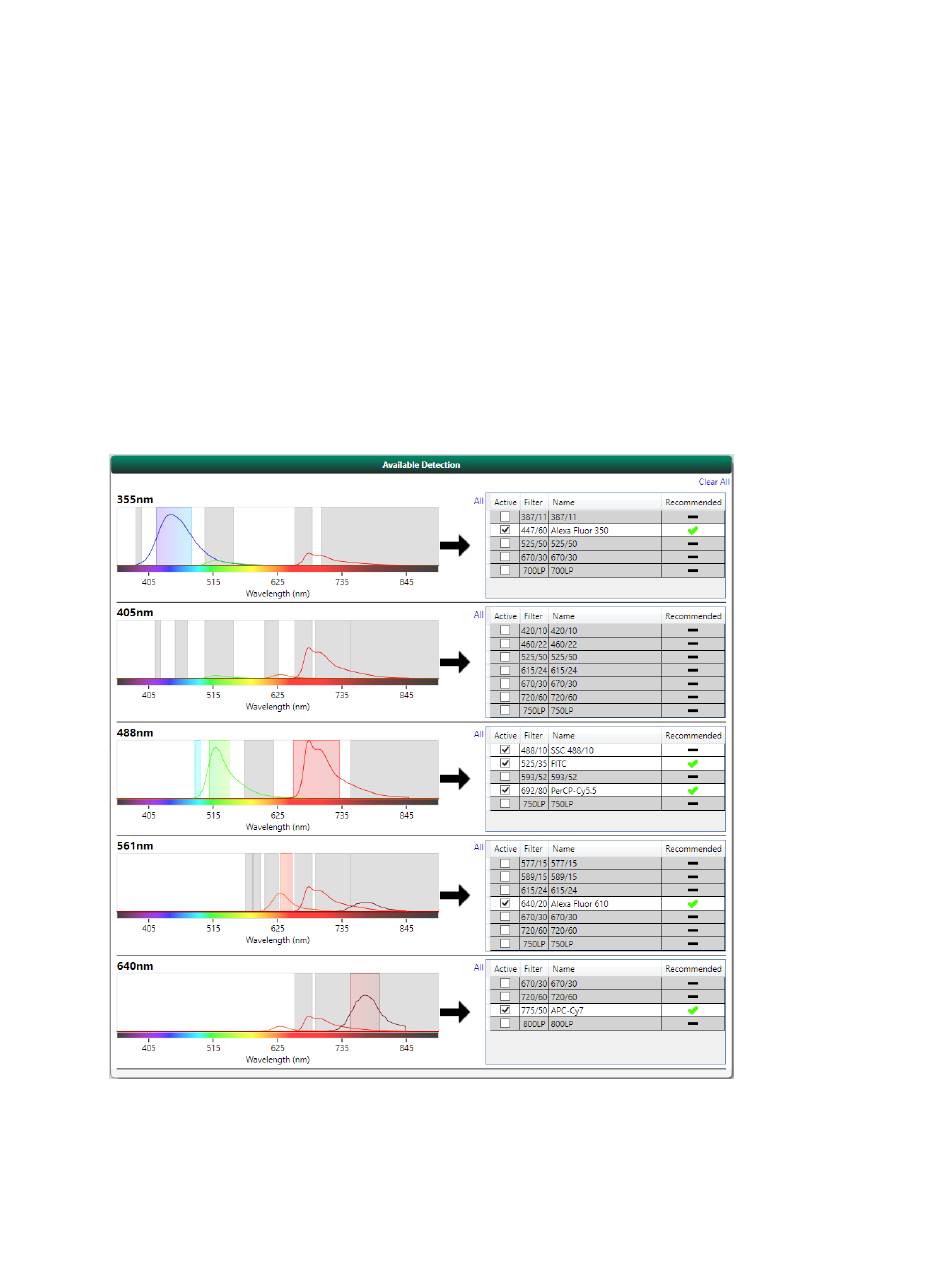

In the Available Detection panel, the following happens:
n
As fluorophores are added, the emission spectra of each fluorophore appear on the emission
plot associated with the fluorophore's optimal excitation laser line.
n
The fluorophore is automatically assigned the most appropriate detector, based on the
instrument's current configuration.
n The Active checkbox is selected.
n
The Name column is populated with the fluorophore name.
Tip: In a spectral graph containing multiple spectra, point to a spectral line to view the name
of the corresponding fluorophore.
Selecting Fluorophores
User Guide | 169
