Creating Time Plots

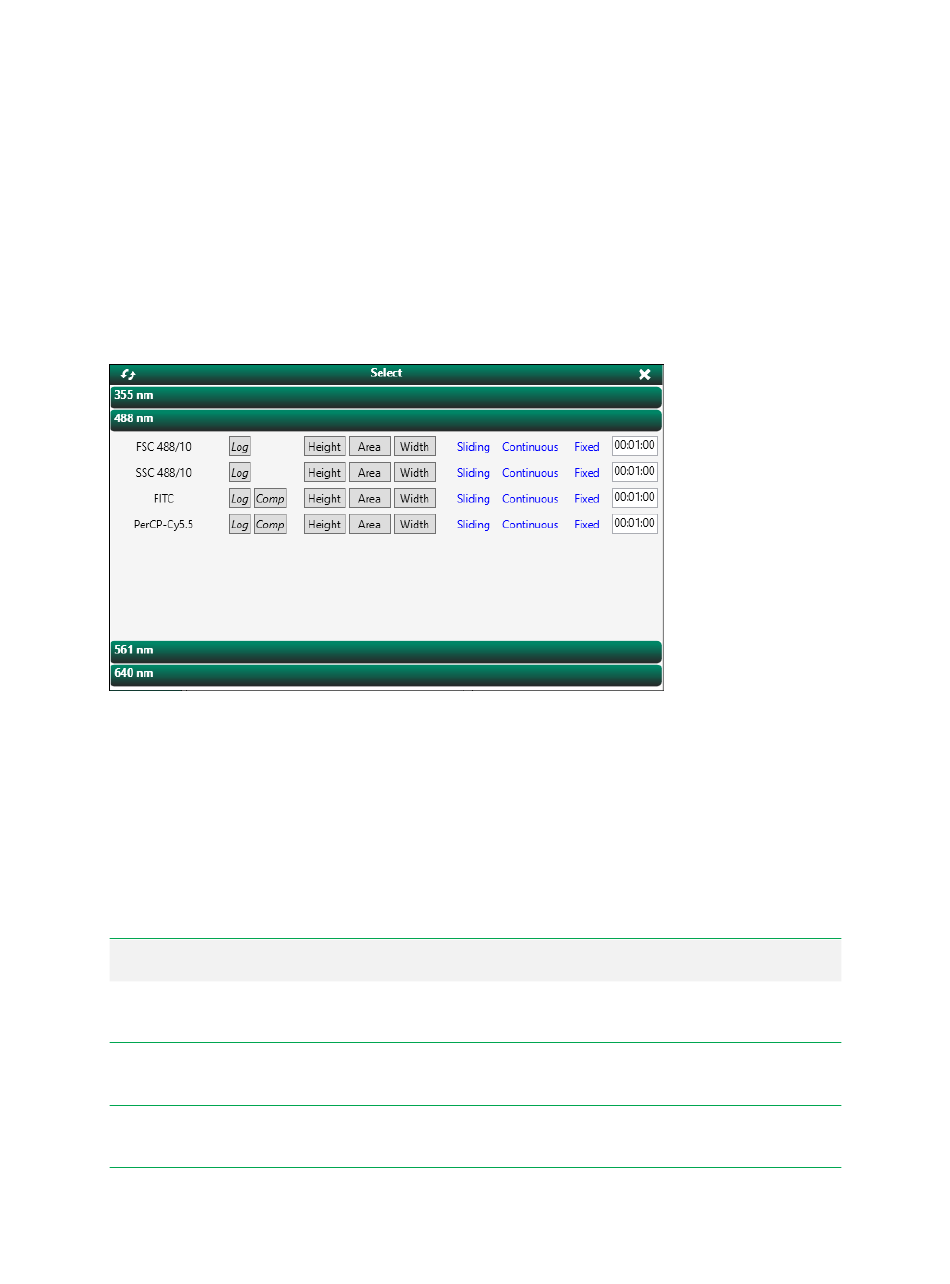

The time plot builder displays the parameters that were activated in the Experiment Builder
Fluorophores screen.
To create a time plot
1. Click Create Time Plot in the toolbar.
2. Locate a parameter to assign to the y-axis. Parameters are listed under each laser.
3. Set the y-axis scaling:
n For linear scale — if the Log button is blue, click it so that it is no longer blue.
n
For log scale — if the Log button is blue, leave it selected; if the Log button is not blue, click it.
4. Select the pulse measurement (height, area, or width) for the y-axis.
5. Select a time range for the x-axis.
Table 36. Time range options
Time range option
Sliding
Continuous
Fixed
Description
As time progresses, display range remains the same but slides
to reflect current time.
As time progresses, time range increases to reflect the entire
acquisition time.
Time range reflects only a fixed maximum, depending on the
value that you enter into the box.
