Experiment Builder

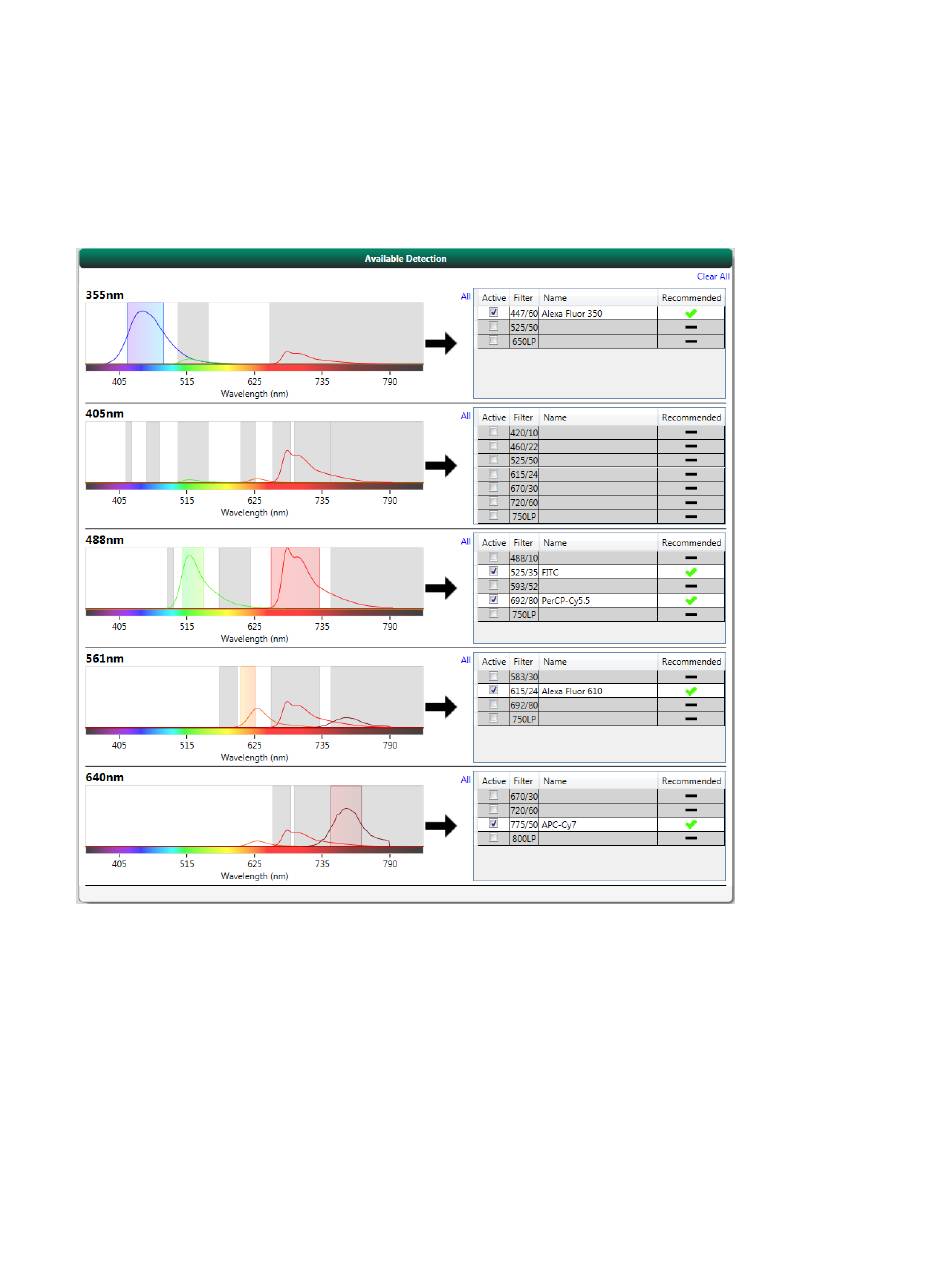

Available Detection Panel
The Available Detection panel acts as a spectral layout that is specific to the local instrument
configuration. Each laser has a spectral graph associated with it.
Because multiple dyes are excited with the same laser, spectra are overlaid on the same graph. When
you select a fluorophore, its emission spectrum is shown in the graph associated with the laser that
optimally excites it. Additionally, the gray regions in a graph represent the wavelengths allowed
through by the bandpass filters located in the laser's fluorescence detection paths.
User Guide | 67
