Chapter 7 Creating Experiments and Workspaces
Note: When configuring hit detection using quadrant regions, wait until the experiment has been
applied to the workspace.
To configure hit detection
1.

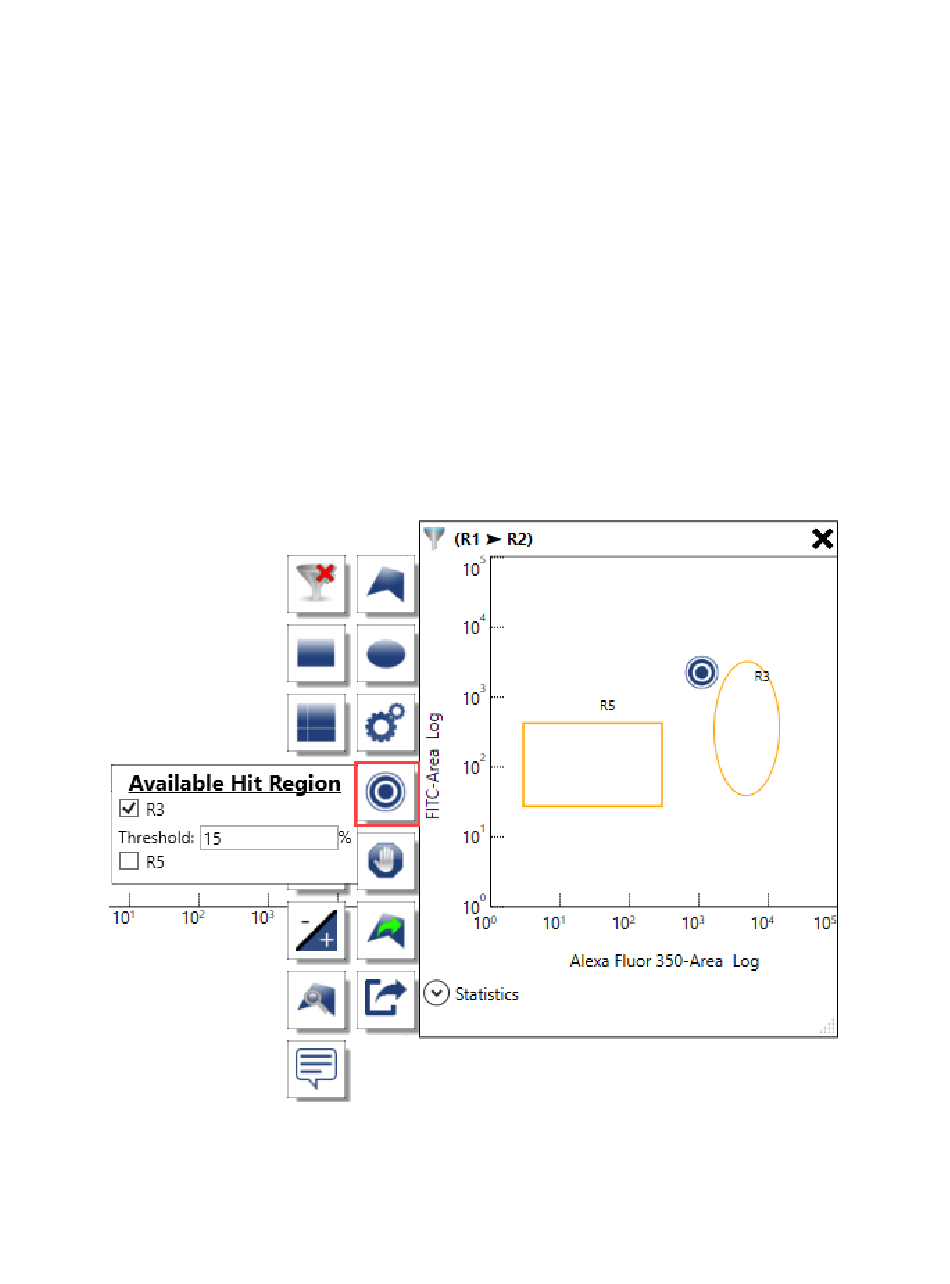

Point to a plot or histogram that contains the region where you want to use hit detection.
The plot and histogram toolbar appears.
2.
Click Assign Hit Regions.
3.
In the Available Hit Region dialog box, select the checkbox for the region where you want to use
hit detection.
4.
If needed, modify the threshold percentage for hit detection in the Threshold box. The default
value is 15%.
The hit region is indicated with a target symbol.
5.
Point outside the plot or histogram to save your changes.
248 | ZE5 Cell Analyzer and Everest Software
