To rearrange plot statistics
u
In the Statistics table, drag a column heading to a new position.
Comparing Statistics
You can display statistics for selected filters (gates) and compare them to each other as well as to all
events. The statistics can be viewed in real time as acquisition occurs. Use this feature after applying
an experiment to a workspace.

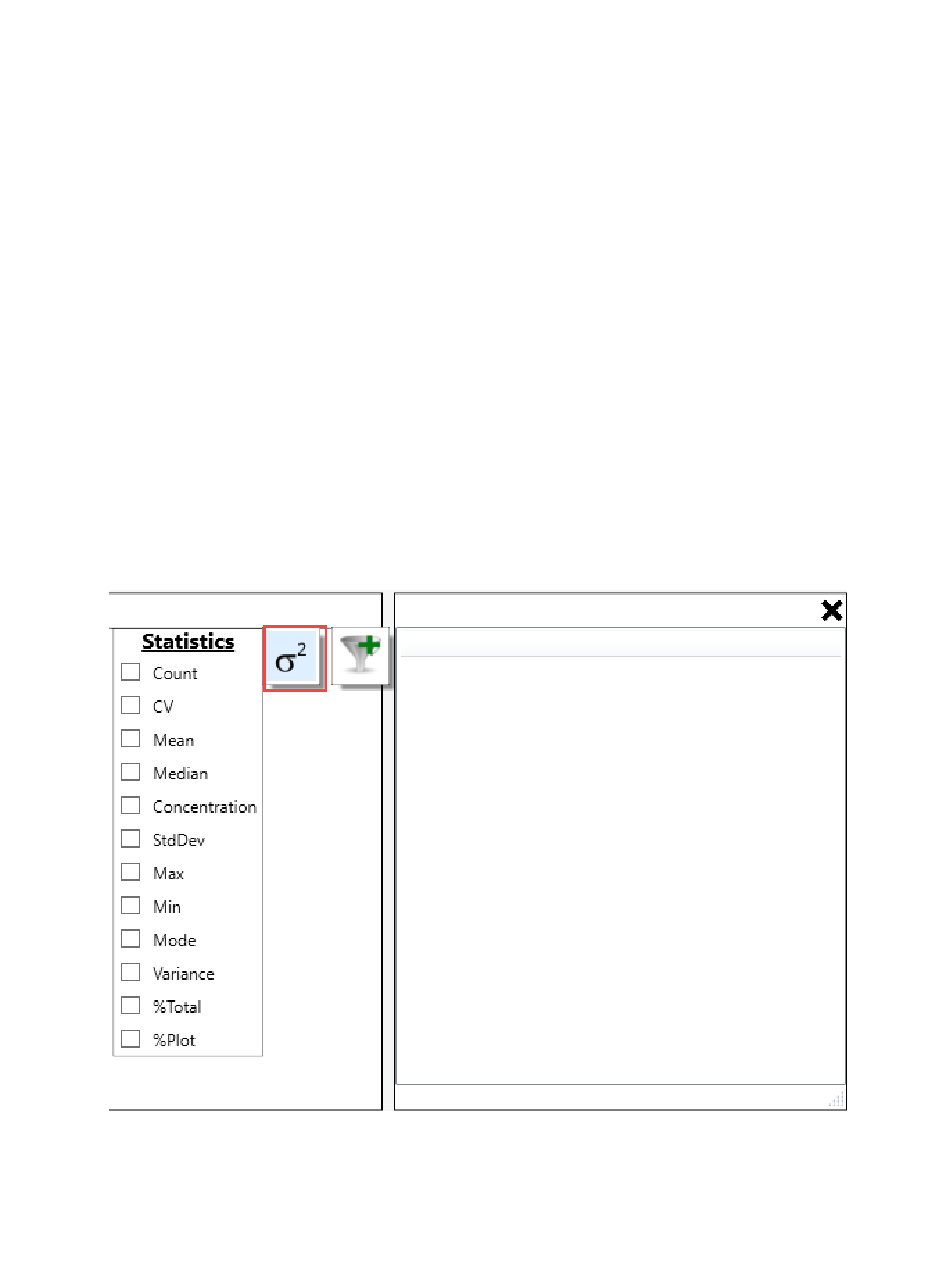

To compare statistics
1.
In the Tools area of the toolbar, click Add Statistics.
A statistics window appears in the workspace.
2.
Point to the statistics window.
The Select Statistics and Select Gates toolbar buttons appear.
3.
Click Select Statistics.
4.
In the Statistics dialog box , select the items you want to view and clear the items you want to hide.
Using Plot and Histogram Tools
User Guide | 223
