Creating Density Plots - BIO RAD ZE5 User Manual

Creating Density Plots

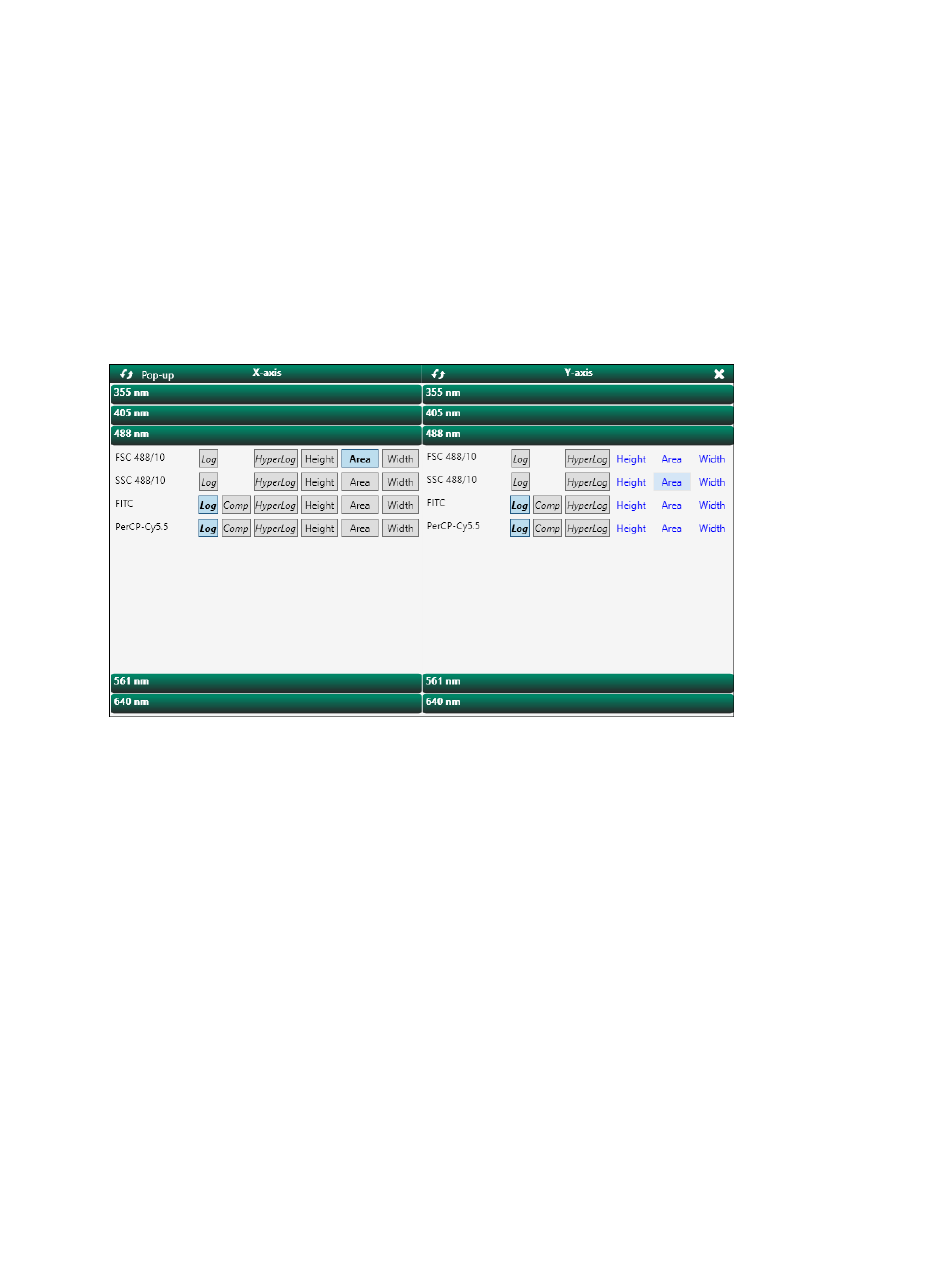

The density plot builder displays the parameters that were activated in the Experiment Builder
Fluorophores screen.
To create a density plot
1. Click Create Density Plot on the toolbar.
2. Locate a parameter to assign to the x-axis. Parameters are listed under each laser.
3. Set the axis scaling:
n
For linear scale — if the Log button is blue, click it so that it is no longer blue.
n
For log scale — if the Log button is blue, leave it selected; if the Log button is not blue, click it.
n
For hyperlog scale — leave Log selected and click HyperLog so that both the Log and
HyperLog buttons are blue.
4. Specify whether to display compensated data for the parameter.
5. Select the pulse measurement (height, area, or width) for the parameter.
6. Repeat Step 2 through
The plot is added to the workspace.
7. Click the X or click outside the plot creation dialog box to close it.
Step 5 for the y-axis.
