Chapter 7 Creating Experiments and Workspaces
3.

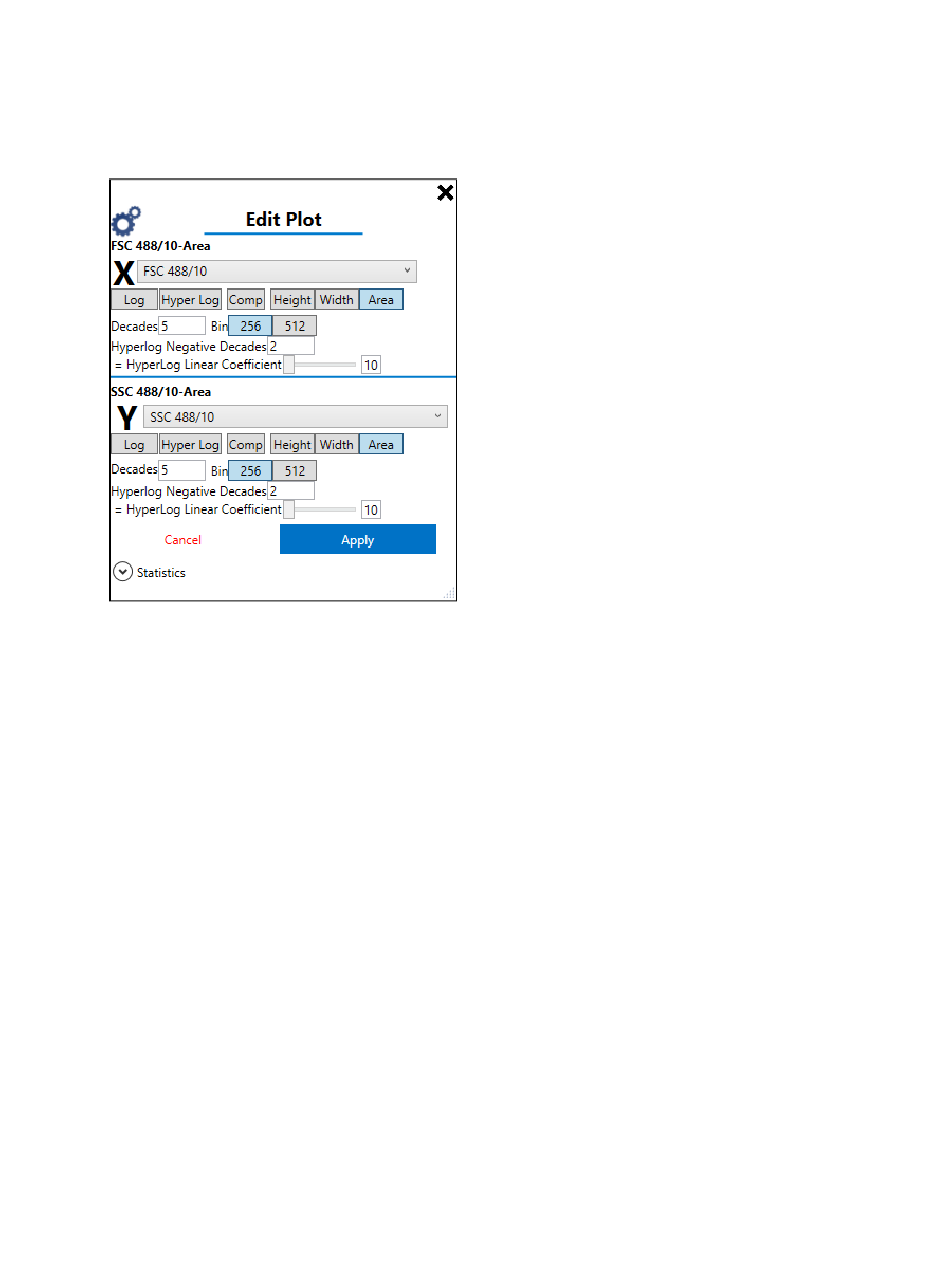

In the Edit Plot dialog box, specify settings for each axis:
a.
Select a fluorophore from the dropdown list.
b.
Specify linear, log, or hyperlog scaling (for hyperlog, both Log and Hyper Log must be
selected).
c.
Select Comp to display compensated data.
d.
Select the pulse parameter (height, width, or area).
e.
Enter the number of log decades to display.
f.
Specify 256 x 256 or 512 x 512 plot resolution (bin).
g.
Enter the number of hyperlog negative decades to display.
h.
Use the slider to select a hyperlog linear coefficient.
4.
Click Apply to save the changes.
Important:
Clicking the X in the upper right corner of the Edit Plot dialog box removes the plot.
Take care when clicking this button.
220 | ZE5 Cell Analyzer and Everest Software
