Adding Regions to Density Plots and Time Plots

The steps to follow when adding regions depend on the region type.
To display density plot and time plot region tools
u Point to the plot.
The plot and histogram toolbar appears.
To add a rectangle region to a plot

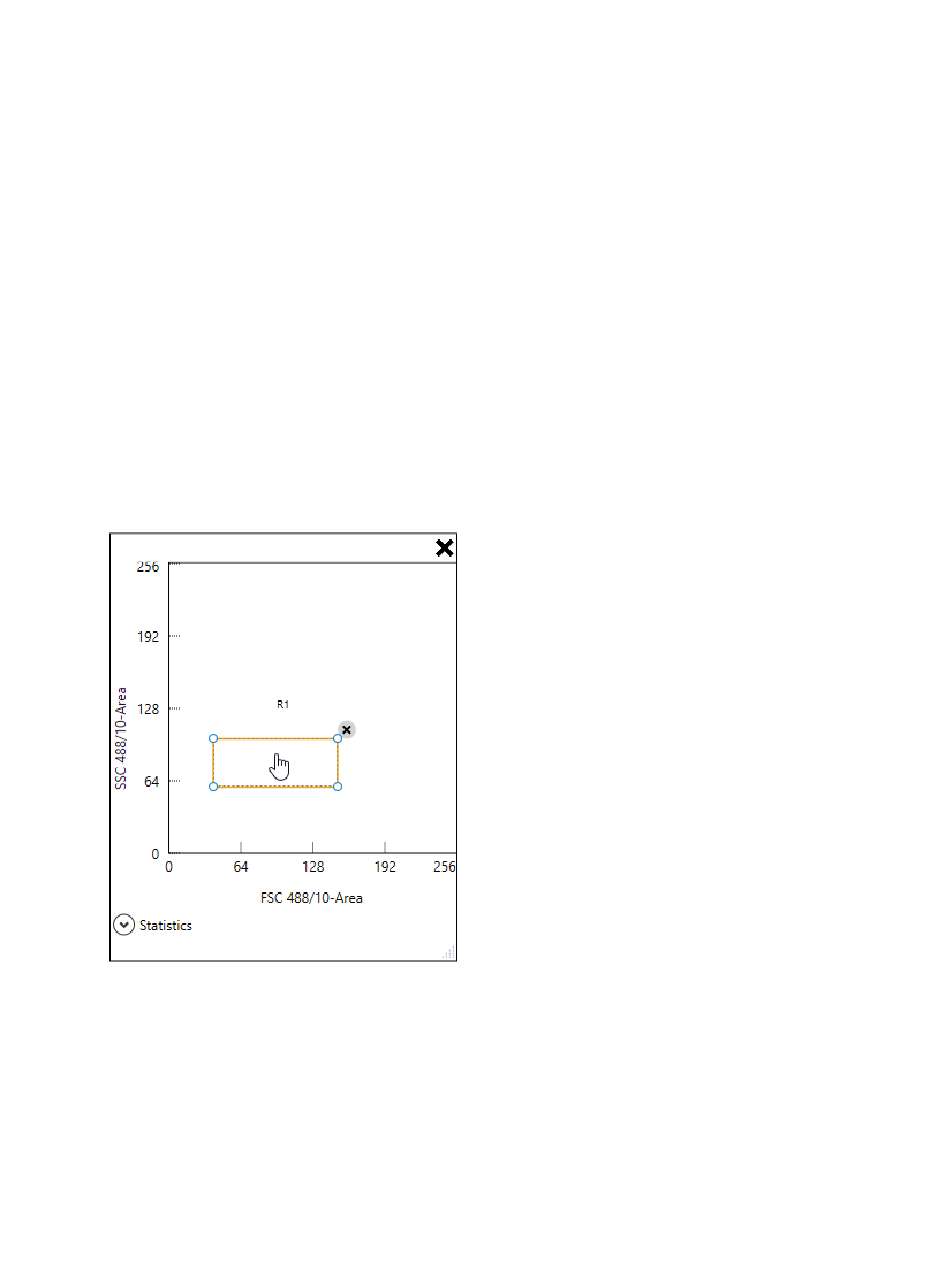

1. In the plot and histogram toolbar, click Add Rectangle Region.
A rectangle is added to the plot.
2. To move the rectangle to another part of the plot, point inside the region.
When the pointer changes to a hand, use it to drag the rectangle.
3. To resize the rectangle, point to its outline.
Using Plot and Histogram Tools
User Guide | 225
