• Reset All. This button resets the settings to defaults.
A I
UXILIARY NPUT
Auxiliary
Input
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Auxiliary Input button > Assign button
Auxiliary Input
Master
SeedCommand
A I
UXILIARY NPUT

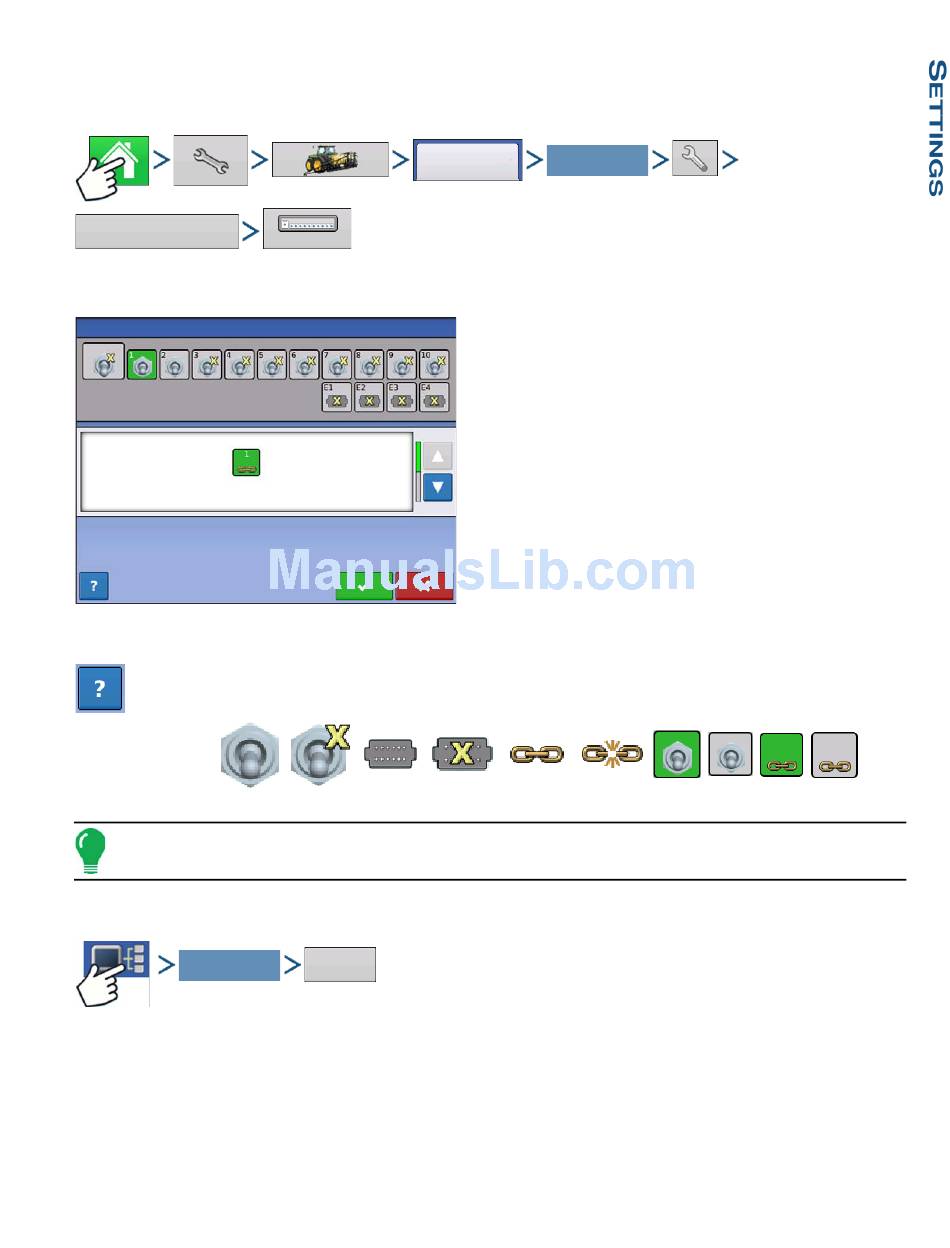

If you need help adjusting the Auxiliary Input settings, then press the question mark key. The
Auxiliary Assignment Help screen appears, which provides definitions for each of the icons.
Note: DirectCommand can control fence row nozzles through a DirectCommand switch box by mapping the
switches in Auxiliary Input Settings. The fence row nozzles can be mapped to any switch.
A I
UXILIARY NPUT
AUX DEVICE
Press: Display Information button > AUX DEVICE button > Diagnostics button
Ag Leader PN 4002083 Rev. N
S
ETTINGS
Configuration
Assign
: H
ELP
D
IAGNOSTICS
Diagnostics
Your Specific
Configuration
This screen shows all the switches and external inputs.
Unassigned switches and external inputs are shown
with a yellow "X".
Change a switch's function by selecting a switch from
the top row and a function from the bottom menu.
