Speed
Input
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Speed Input button > Calibrate Speed Sensor
Follow instructions on screen to calibrate sensor.
Note: Calibration settings can be manually adjusted if desired by pressing Enter CAL Number and making
small changes to the setting.
A
UXILIARY
Auxiliary
Input

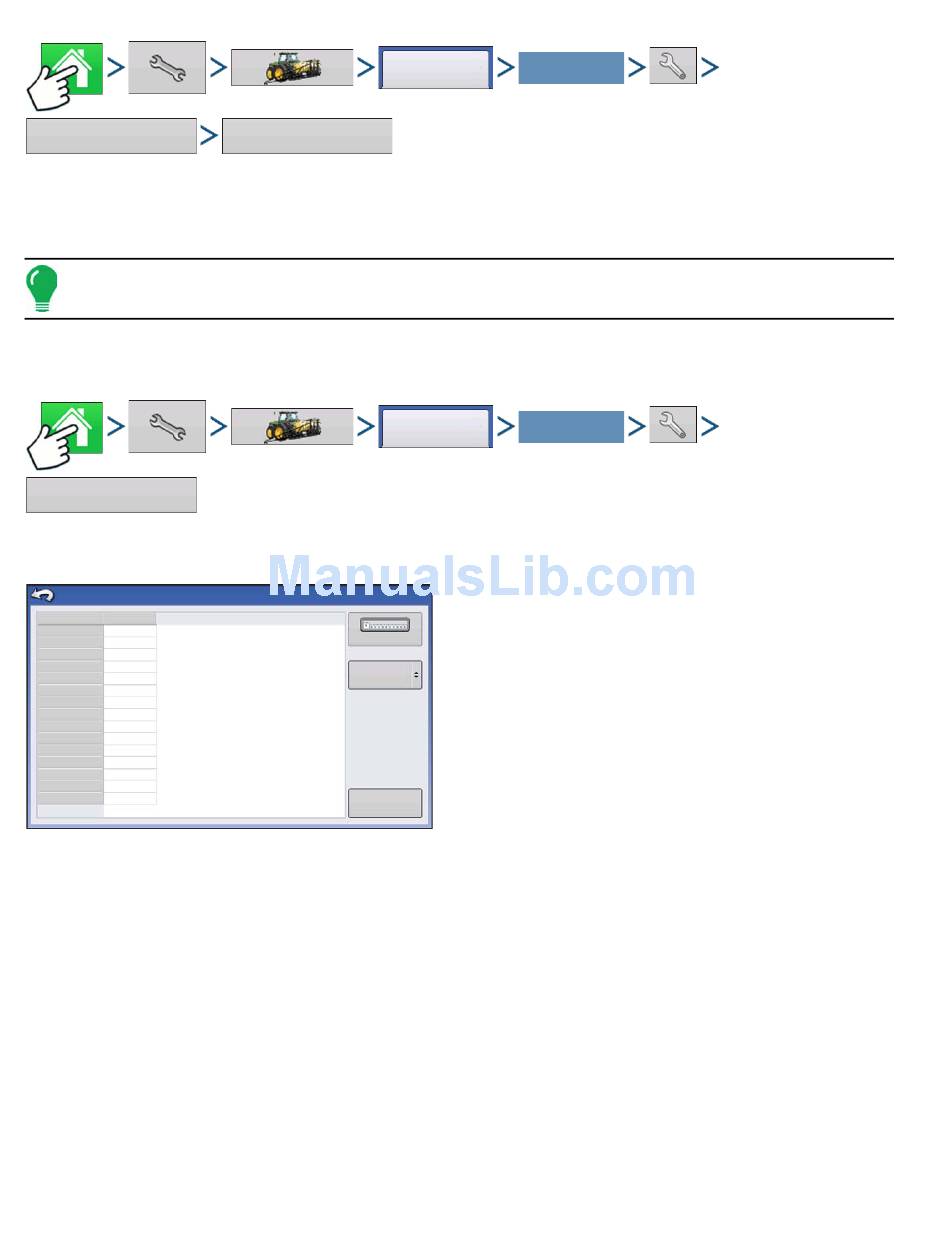

Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Auxiliary Input button

Auxiliary Input

DirectLiquid
F1 (Master)
1
F2 (Switch 1)
F3 (Switch 2) 2
F4 (Switch 3)
3
F5 (Switch 4)
F6 (Switch 5)
F7 (Switch 6)
F8 (Switch 7)
F9 (Switch 8)
F10 (Switch 9)
F11 (Switch 10)
External 1
External 2
External 3
External 4
The Assign button, located at the upper right-hand corner of this screen, opens the Auxiliary Input
Assignment screen, where you can assign functions to switches and external inputs. For more
information, see
"Auxiliary Input Settings" on page 83
The Master Switch Source drop-down menu controls the master switch for your entire configuration. You
may see the following options underneath this menu:
• Switch - Controls the master switch.
• External 2 - This setting can control an optional, floor-mounted master switch.
• External 1, 3 & 4 - Not used at this time.
The F1-F11 switches can be assigned to any implement sections. You can use these to choose the
switches that control a particular section or controller planting clutch. You can also make the following
changes to the switch settings.
• Add a switch setting. For more information, see
82
Calibrate Speed Sensor
I
NPUT
Assign
Master Source
Switch
Reset
All
Your Specific
Configuration
Configuration
Your Specific
Configuration
Configuration
This Switch Mapping function is active only for
DirectCommand or SeedCommand. The Auxiliary
Input Settings screen displays settings for the Master
Switch and other switches on a DirectCommand or
SeedCommand Switch Box.
Auxiliary Input Settings can be adjusted by going to
the Auxiliary Input Summary screen. Go to the
Configuration Setup screen and press the Auxiliary
Input button. The Auxiliary Input Summary screen
appears. This screen lists each switch on a switch
box and which functions (if any) are assigned to
particular switches.
.
"Auxiliary Input Settings" on page 83
.
