• UTC Date
If you are receiving information from the satellite, then the UTC date should automatically update.
• HDOP
Horizontal Dilution of Precision (HDOP) indicates the quality of the horizontal GPS position. Lower HDOP
numbers are optimal, higher numbers are undesirable.
• PDOP
Position Dilution of Precision (PDOP) is a unitless measure indicating when the satellite geometry can
provide the most accurate results. When satellites are spread around the sky, the PDOP value is low and
the computed position is more accurate. When satellites are grouped close together, the PDOP is high and
the positions are less accurate. Lower PDOP numbers are optimal, higher numbers are undesirable.
• Port
The connection between the display and the GPS as established at a message format and baud rate.
• Frequency
The Correction Frequency indicates the GPS satellite frequency used by the receiver.
Note: The Correction Frequency diagnostic does not show for WAAS connections.
• SNR
If your receiver is using Beacon differential corrections, the frequency and signal to noise ratio (SNR) will
be displayed. Signal-to- Noise Ratio (SNR) indicates the strength of the differential correction signal in
relation to the amount of background noise that can interfere with signal reception.
• Correction Age
The length of time since the GPS receiver has obtained its last update.
Note: The age of the DGPS corrections (as delivered to the GPS receiver) will vary from one second to
several seconds, depending on the characteristics of the individual satellite signals.

GPS Messages

114
General

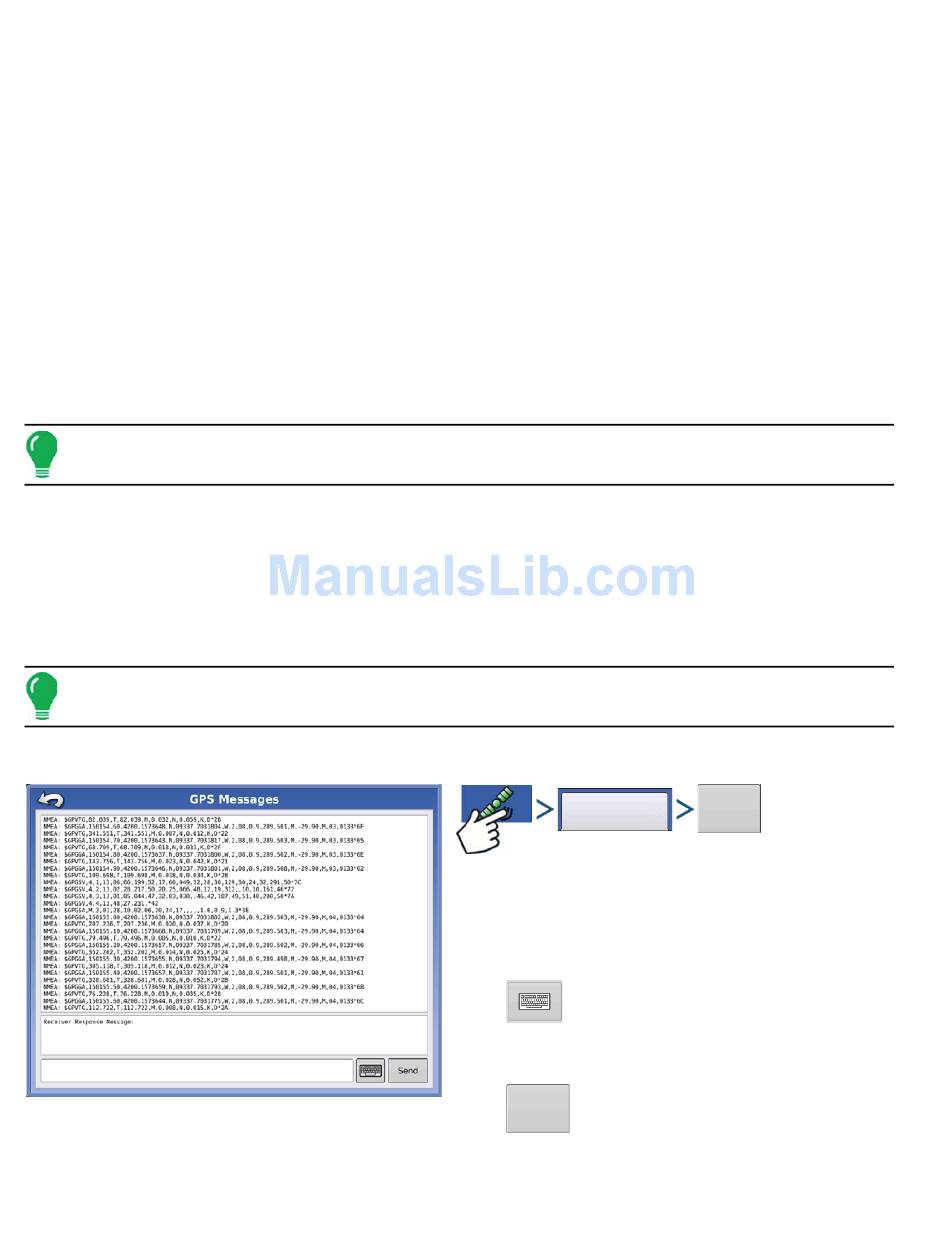

Press: GPS (satellite) button > General tab > View
Messages button
View the NMEA or TSIP messages coming from the
receiver.
Press and use keyboard screen to write a
command to the receiver. Only send commands to the
receiver when told to by technical support.
Press to send message to the receiver.
Send
View
Messages
