Auxiliary Assignment - Ag Leader Integra Display Operator's Manual

0.0
lbs/ac
Rate
98.5
1
ac
Command received. Front Meter
Clutch OFF!
Advance through multiple screens of buttons. This button remains hidden unless more
than 10 buttons are present.
Opens the Virtual Terminal Settings screen.
Virtual Terminal Settings
Assignment
Virtual Terminal
A
UXILIARY
Press: Virtual Terminal (VT) button > Setup (wrench) button > Auxiliary Assignments button
Ag Leader PN 4002083 Rev. N
0.0
lbs/ac
74.0
50.0
0.0
ac/hr
0
rev/min
Auxiliary
Clear
A
SSIGNMENT
Auxiliary
Assignment
If there are multiple ISO implements
connected, press the VT button
to toggle between Working Sets.
The Working Sets can also be accessed
by pressing tabs (A) or (B) individually.
Auxiliary

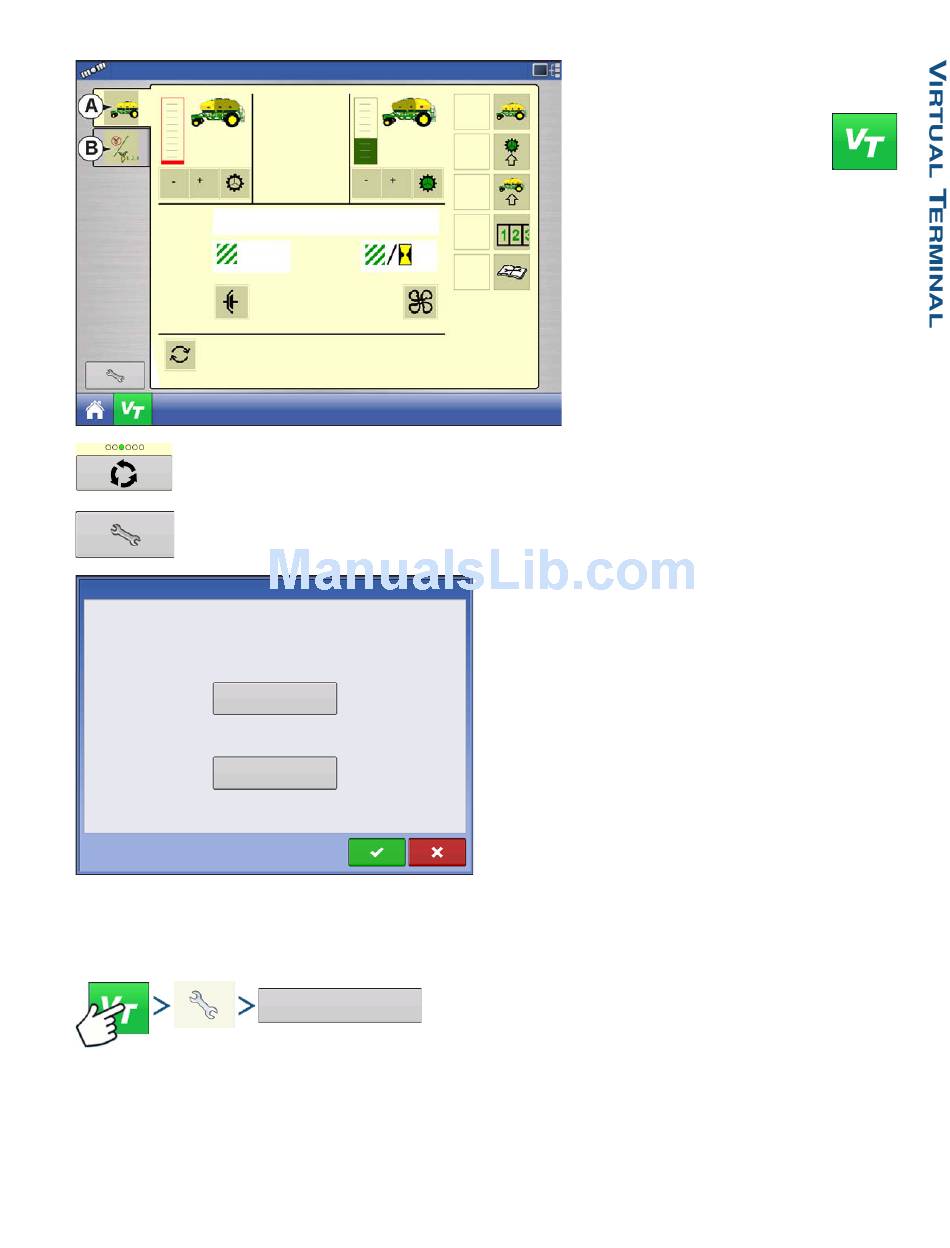

Assign implement functions to ISO compatible inputs.
Clear Virtual Terminal
Allows operator to clear the Object Pools sent to the
display from the implement WSM. After the object pools
have been cleared, the next time the implement is
connected the object pools will be transferred from the
implements WSM to the display again. When this button
is pressed, a warning dialogue box appears with the
following message:
"Are you sure you want to clear the saved interface files
from all virtual terminal devices Each device will resend
its interface the next time it is connected."
S
ETUP
91
