KINZE Seed Monitor Alarms

Seed Monitor
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Seed Monitor button > Alarms
Seed Monitor Alarms
Item
Whole Planter
Rear Section
Row 1
Row 2
Row 3
Row 4
Row 5
Row 6
Row 7
Row 8
Row 9
Notes:
• The default alarm setting is at 50%.
• Press the Disable button to turn threshold of the alarm to zero.

KINZE Magnetic Coil Speed Sensor Calibration

Seed Monitor
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Seed Monitor button > Planter Configuration button >
Magnetic Pickup check box
KINZE Planter Monitor customers who have a magnetic coil speed sensor must check the Magnetic
Pickup check box. This setting should then be left unchanged. For reference, see
Configuration" on page 209
These customers will need to calibrate the Magnetic Coil Speed Sensor at least once per season. Press
the Calibrate button located next to the Magnetic Pickup check box. The Magnetic Coil Speed Sensor
Calibration wizard appears.
1. Enter distance of calibration
The default distance for calibrating the magnetic coil speed sensor is 100 feet (50 meters). If you wish to
calibrate at another distance, enter the new distance. Press
214
Configuration
Alarms
Threshold
10%
50%
70%
70%
70%
70%
70%
70%
Disable
70%
70%
70%
70%
Configuration
Planter Configuration
.
Select Your Specific
Configuration

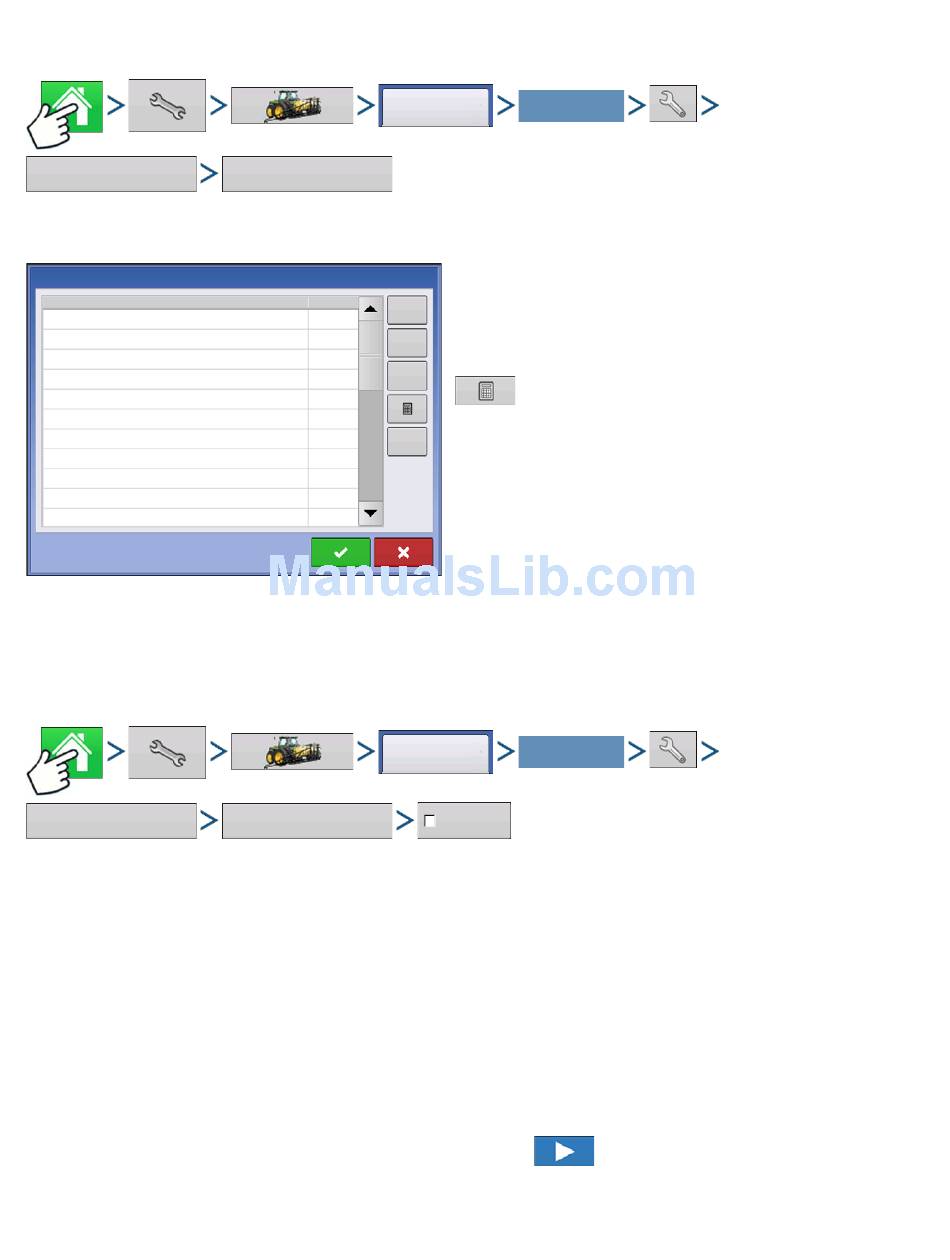

To view the Seed Monitor Alarms screen, press the
Alarms button on the KINZE Planter Monitor Setup
screen. To change the threshold of an alarm,
highlight the row unit, then press either a given
percentage number (10%, 50%, 70%, or use the
to create a value). The alarm will then sound
only when the population drops below that numeric
threshold value.
Select Your Specific
Configuration
Magnetic
Pickup
to continue.
"KINZE Planter
Firmware Version 6.0
