Static CFR Calibration Procedure for Ground Drive Systems

The Static CFR Calibration Procedure performs an automated routine to calibrate each metering circuit.
This calibration is performed before applying in field conditions To perform the Static CFR Calibration,
press the Strip Till Control button to open the Strip Till Control screen. At the Strip Till Control screen, the
Static Calibration button.
1
20
3500
RPM

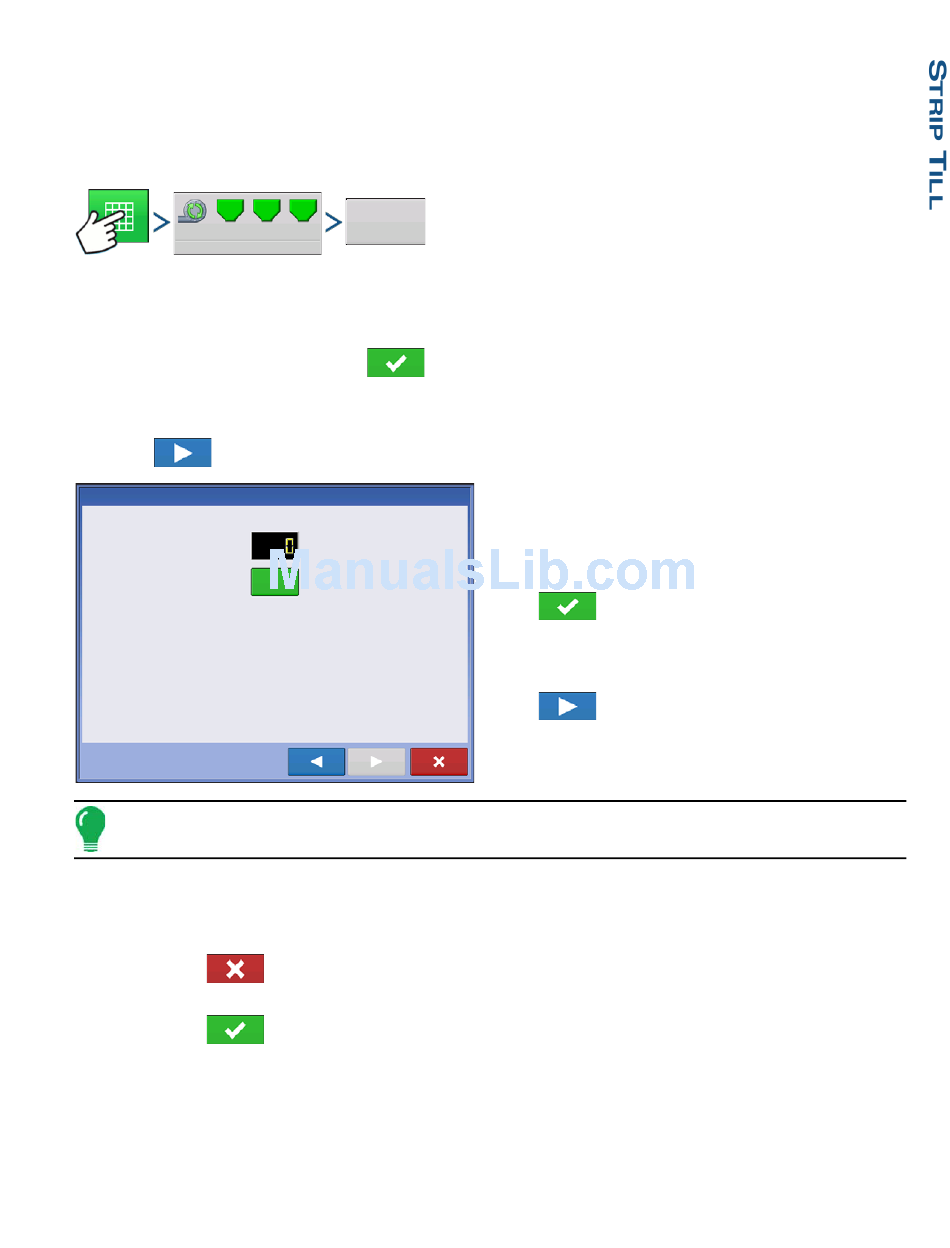

Press: Map button > Strip Till Control button > Static Calibration button
1. Read Static Calibration warning
A warning appears, advising to disable the blower fan circuit and prepare to catch any product dispensed
in an appropriate container. Press
2. Select Metering Circuit to Calibrate
The CFR Calibration Wizard appears. Use the drop-down menu to choose the desired channel to calibrate.
Press to continue.
CFR Calibration Wizard: Steps 4 of 6
Press Start before dispensing product.
Press Stop when finished dispensing.
Note: The CFR will be calculated from the actual product amount dispensed.
5. Calibration Complete
A message appears, stating that your calibration is complete, and showing the CFR amount, in cubic feet
per revolution. Either:
- Press
- Press Repeat Calibration to begin the process again.
- Press
In-Field Calibration Procedure (Strip Till)
The In-Field CFR Calibration procedure performs an automated routine to adjust the calibration number
for the selected metering circuit. This calibration is performed if there is a difference between the amount
of product logged as compared to what was actually applied. To do an In-Field Calibration procedure,
Ag Leader PN 4002083 Rev. N
Static
2 3
Calibration
15
15
to continue.
Revs
START
to exit the calibration without saving the value.
to save the value and exit the calibration routine.
3. Start Target Rate Countdown
Press the Start button and turn drive shaft. The system
counts revolutions of the shaft encoder.
Press Stop button in display.
Press to continue.
4. Enter Actual Dispense Amount
Enter the actual dispense amount, in pounds.
Press to continue.
