Seed Monitor
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Seed Monitor button > Sensor Configuration button
Sensor Configuration
Row
Sensor
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
Row Spacing
Note: To return to the default, press the AutoConfig button.
• The Status button enables and disables a Seed Tube sensor.
Note: A row with a failed sensor can be ignored until a replacement sensor is installed.
• The AutoConfig button sends the planter settings to the Seed Tube Monitor Module.
Note: After creating a Seed Tube Monitor Module configuration, in order for it to become active, perform an
AutoConfig procedure.
• The Remove button removes an individual Seed Tube sensor.
• Use the row spacing keypad to enter in the row spacing.
STMM Split-Row Configurations
- If a split-row planting configuration is specified in the drop-down list shown on the Seed Monitor Setup
screen (see
"Seed Monitor Setup" on page
time that you press the Sensor on the Seed Monitor Setup window. Choose between Standard Row or
Split Row, and press
- Split-rows must configure the Seed Tube Monitor Module for both Standard Row configurations and
Split Row Configurations. Both configurations are then saved in the display, and settings for each
planting configuration are automatically applied when you specify the machine configuration at the
Field Operation Configuration Wizard.
Ag Leader PN 4002083 Rev. N
C
ONFIGURATION
Configuration
Sensor Configuration
Status
Enabled
Enabled
Status
Enabled
AutoConfig
Enabled
Enabled
Enabled
Enabled
Enabled
Enabled
Remove
29.9 in
.
Select Your Specific
Configuration

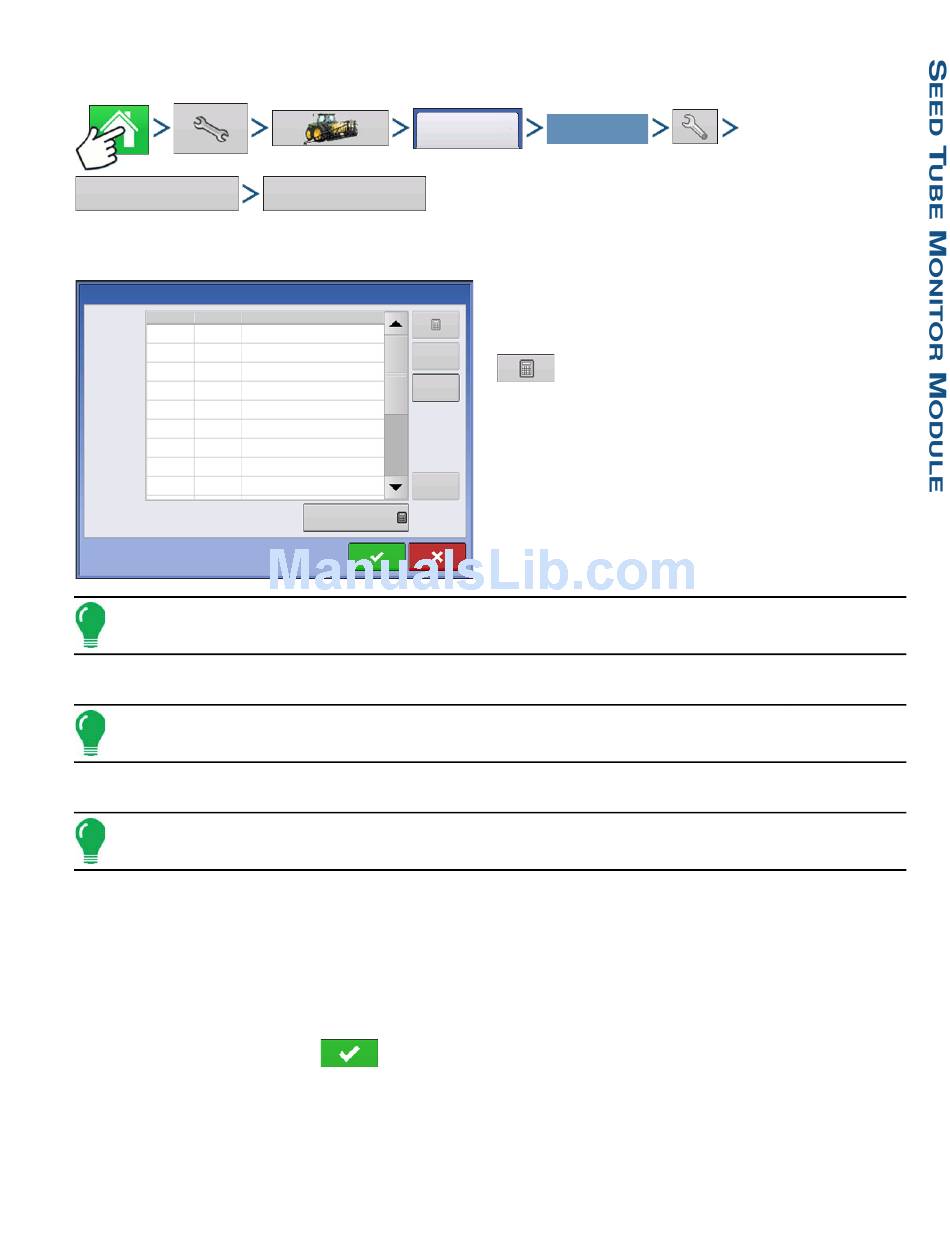

The Sensor Configuration screen shows which rows
are assigned to the individual pins on the Seed Tube
Monitor Module.
•
moves the sensor to a different location, to
make configuration changes for custom planting
operations.
196), then the Selection window will appear after the first
P
LANTING
197
