Topography
816 - 819
814 - 816
811 - 814
808 - 814
806 - 808
0 - 806

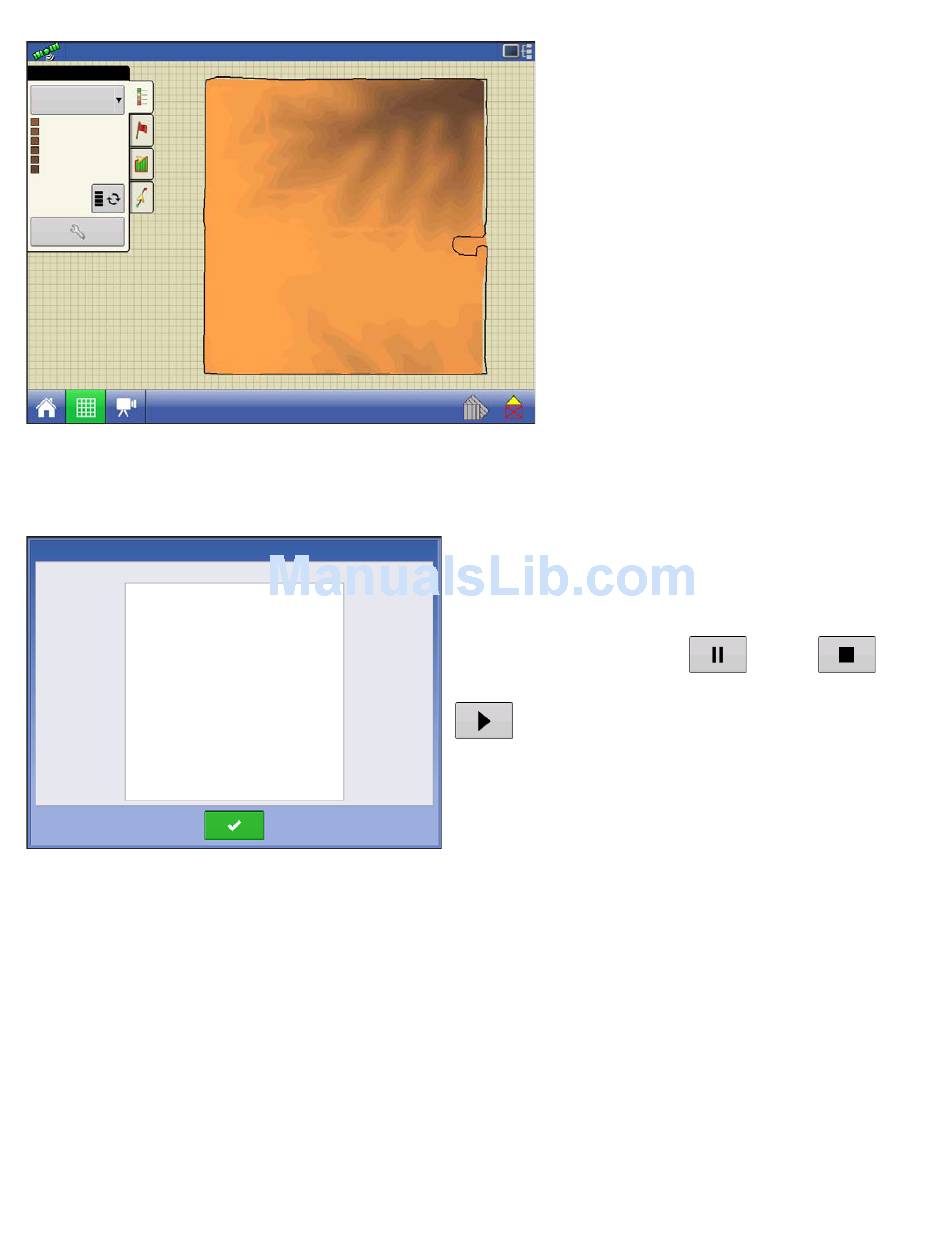

During collection of an elevation survey, points will be logged to the file every 3 meters. An onscreen
visual will appear in the form of a single black dot every 30 meters.
the following items are outside the recommended accuracy
GPS Quality Warning
Low Fix Quality
62
4.5
mph
After these points have been collected,
they will be converted into a surface layer
in which you can define the color scheme
Red, White, Blue, or Brown-Tan. See
"Map Legend tab" on page 51
white, blue scheme, the darker blue hues
will represent the lower elevation, and the
darker red values will represent the
higher elevations, white will be a
transition color between. In the Brown-
Tan scheme, the Dark brown will
represent the lower elevations, and the
Tan the higher elevations. You can select
the number of legend ranges for your
field that will show the areas desired.
This theme will be used for each field
until changed.
If at any point during collection your gps correction
status changes out of RTK fixed, logging will be
suspended, if you re-acquire the RTK signal, logging
will automatically resume.
At any point you can pause
collection of the elevation survey, and then resume
as needed.
If you forget to stop logging as you leave the field,
you will be prompted with the message that data
collection is still active, and be given the option to
continue logging, or end operation.
. In the Red,
or stop
