CAUTION: If Reset All is pressed the sensor will have to be calibrated for all headers!

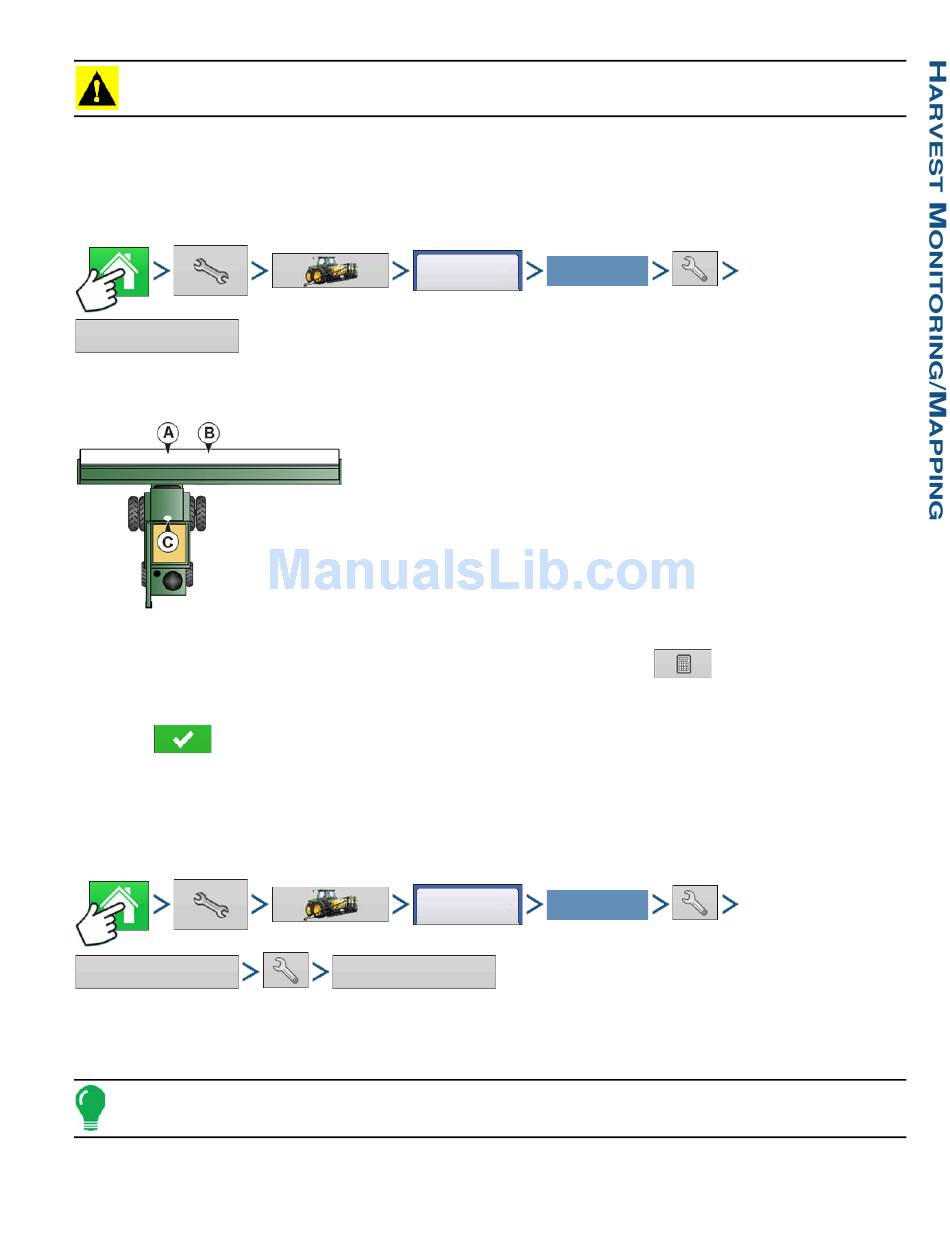

Input Header Offset

If the header of your vehicle is mounted offset to the vehicle's center, this can affect the accuracy of the
GPS data you are receiving. By entering a Header Offset, you can compensate for the distance between
the center of the vehicle, and the center of the header's swath.
Header Offset
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Header Offset button
2. Enter the distance amount
The Header Offset screen appears. Enter the distance amount by using
Select to the left or to the right from drop-down menu.
Press when finished.
V C
IBRATION ALIBRATION
The vibration calibration must be performed with the correct head on the combine, and repeated for each
crop harvested.
Grain Calibration
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Grain Calibration button > Setup (wrench) button >
Perform Vibration Calibration button
Note: This is prompted at the Home screen the first time a crop time is harvested.
Ag Leader PN 4002083 Rev. N
Configuration
1. Measure distance
First, measure the distance between the GPS antenna (2) and the center
of the header's swath (1).
• (A) Center of Vehicle
• (B) Center of Swath
• (C) GPS Antenna
Configuration
Perform Vibration
Calibration
Select Your Specific
Configuration
.
Select Your Specific
Configuration
H
ARVEST
335
