New Pattern; Straight; Select Pattern; Create Ab Line Using 2 Points - Ag Leader Integra Display Operator's Manual

N P
EW ATTERN
S
TRAIGHT

Select Pattern

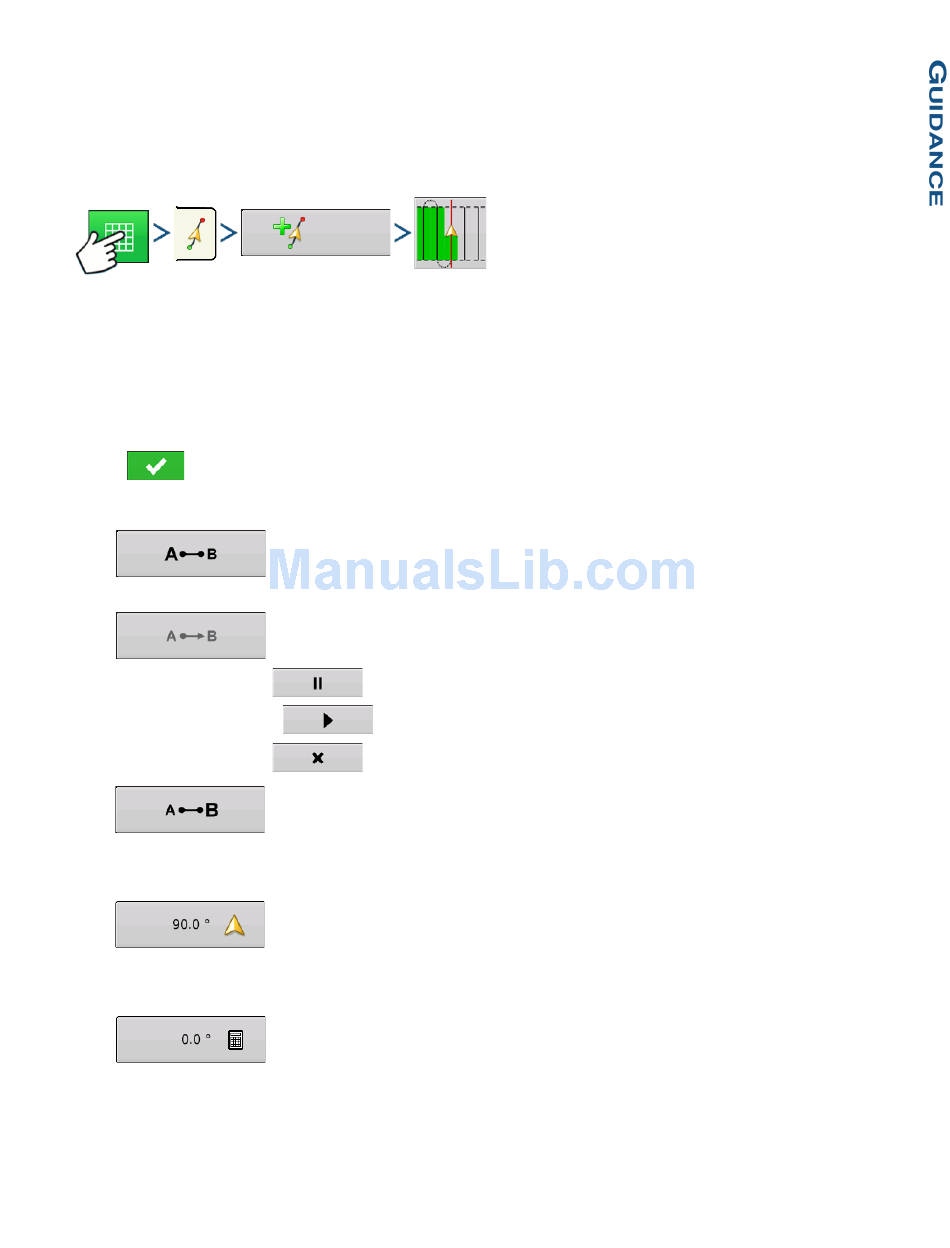

Press: Map button > Guidance tab (in Mapping Toolbox) > New Pattern button > Straight Pattern
Selection
System defaults pattern type to last used. Press the pattern icon to select a different pattern.
- Implement Width (from Implement Setup)
- Guidance Width input box
- Enable Tramlines checkbox
Press . You will automatically return to the Map screen.

Create AB line using 2 points

•
placed.
•
- Pause - Press
- Resume - Press
- Cancel - Press
•
with a red ball.

Create AB line using Current Location and Heading

•
(recommend vehicle having forward motion to get a good heading).

Create AB line using Current Location and Inputting Heading

•
A point
Ag Leader PN 4002083 Rev. N
New
Pattern
Press to mark point A. A green ball appears on the map screen where point was
Button is greyed out until you drive a minimum of 100 feet.
to pause path during path creation
to resume path during path creation
to cancel path during path creation
Press to mark point B. The AB line appears on the map screen and point B is marked
uses current location and heading, line extends 1 mile before and after the A point
uses current location and input heading, line extends 1 mile before and after the
125
