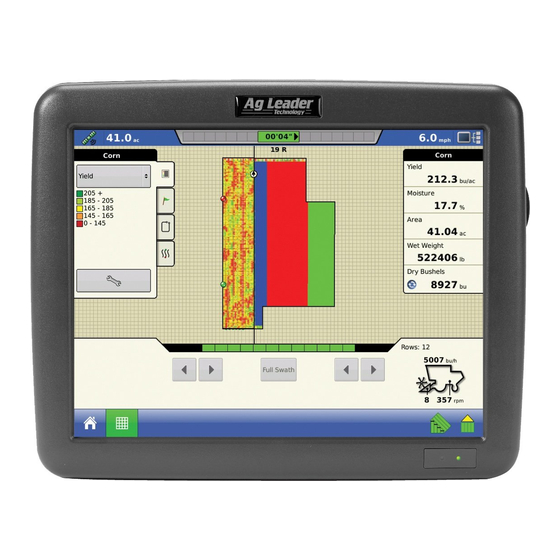

Ag leader integra display

Table Of Contents

Table of Contents

Advertisement

Quick Links

Operator Manual

Firmware Version 6.0

Ag Leader PN 4002083 Rev. N

Table of Contents

Advertisement

Table of Contents

Troubleshooting

Need help?

Need help?

Do you have a question about the Integra Display and is the answer not in the manual?

Questions and answers

Summary of Contents for Ag Leader Integra Display

Page 1 Operator Manual Firmware Version 6.0 Ag Leader PN 4002083 Rev. N...
Page 2 © 2014 Ag Leader Technology 2202 South Riverside Drive Ames, Iowa 50010 USA All Rights Reserved Firmware Version 6.0...
Page 3: Table Of Contents
Location Specific Setup..................12 Single Display ....................12 Multiple Display Setup - First Display..............13 Multiple Display Setup - Additional Display............14 Import Setup Data ....................14 Import Files .......................14 Home Screen......................15 Setup buttons ......................16 Display button......................16 General tab .......................17 Ag Leader PN 4002083 Rev. N...
Page 4 Display tab......................18 Features tab ..................... 18 Unlocking Features ..................19 Advanced tab....................19 Configuration button....................21 Configuration tab ....................21 Product tab ....................... 22 Planting Settings ..................23 Application Settings..................23 Grain Harvest Settings ................23 Management Setup Configuration Selection ..................25 All Modules Detected................
Page 5 Control Channel Report Content...............71 View Reports.....................72 View Map ......................72 External Drive External Storage Operations ..................73 Upgrade Firmware ....................73 Import Files .......................73 .AGSETUP....................73 .AGDATA .....................74 Export Files .......................74 .AGSETUP....................74 .AGDATA .....................74 Export Reports.....................75 Manage Files.....................75 Ag Leader PN 4002083 Rev. N...
Page 6 Advanced Options .................... 75 Devices Device Information ....................77 Devices......................77 Display Diagnostics ..................77 Settings Equipment Settings....................79 Implement Switch Settings (for Area Logging)..........79 Equipment Configuration Settings for Rate Control ........80 Speed Input Settings....................80 Calibrate Distance .................... 81 Auxiliary Input ......................
Page 7 Create AB line using Current Location and Inputting Heading ....125 Adaptive Curve....................126 Select Pattern ....................126 Create AB line using 2 points ..............126 Identical Curve ....................127 Select Pattern ....................127 Create AB line using 2 points ..............128 Pivot ........................128 Select Pattern ....................129 Ag Leader PN 4002083 Rev. N...
Page 8 Create AB line using driven path............... 129 SmartPath....................... 130 Select SmartPath ..................130 Inputting Paths into SmartPath ..............131 Cycle between Loaded Paths ..............131 Select a Previous SmartPath Pass ............132 SmartPath Guidance Options ..............132 AutoSave ......................133 Manage Patterns....................
Page 9 Channel Tabs ....................175 Auxiliary Tab ....................175 Gear Ratio Calculations for Seed Rate Motors ..........176 Gear Ratio Drawing - For Single Motor Drive ..........176 Gear Ratio Drawing - For Multiple Drive Combinations......177 Seed Ratio Calculation Example Procedure..........177 Ag Leader PN 4002083 Rev. N...
Page 10 Gear Ratio Drawing Shaft Drives .............. 178 Planter Options Screen..................179 Priming Seed Rate Meters................... 179 Calibrating Seed Rate Meters................180 Rate Control: Map Screen ................... 181 Product Control Toolbox ..................181 Rate Control Settings ..................182 Loading Prescriptions ..................183 Showing Prescriptions on the Map Screen.............
Page 11 Legend Select ....................239 Rate Control: Product Control Toolbox..............240 Rate Control Settings ..................241 Container Level Settings .................242 Tank Fill .....................242 Tank Empty....................242 Tank Partial Fill ..................242 Adjust Container Amount ..............242 Tank Alarms....................243 Loading Prescriptions ...................243 Ag Leader PN 4002083 Rev. N...
Page 12 Showing Prescriptions on the Map Screen............. 244 Shape File Conversion..................245 Liquid Application Diagnostics................ 246 Troubleshooting DirectCommand Liquid Applications........247 John Deere Specific Instructions ................. 249 Master Switch Input ..................249 Master Switch Usage..................249 Target Rate..................... 249 Data Collection ....................249 AutoSwath Boom Section Control ..............
Page 13 Troubleshooting OptRx Error Messages............284 NORAC UC5 Norac Unlock....................287 Create Configuration ..................287 Setup Configuration ..................288 Load Configuration..................289 Run Configuration ...................290 Engage button ...................290 Boom Height Control Options Button............290 Boom Height Control Options Screen............291 Boom Height Diagnostics................291 Ag Leader PN 4002083 Rev. N xiii...
Page 14 Spreader Create Configuration ..................293 Controller Settings ..................295 Spreader Control: PWM Control Valve ............. 296 Spreader Control: Servo Control Valve............. 297 Spreader Control: Spinner Tab ..............297 Creating Products................... 298 CREATING SINGLE PRODUCTS ............298 CREATING DRY FERTLIZER BLENDS ........... 299 Load Configuration ..................
Page 15 Error Messages at Variety Map Import ............344 Grain Harvest Diagnostics..................345 Claas Quantimeter Create Configuration ..................347 Configuration Setup ..................347 Calibration Information ..................348 Load Configuration..................348 Manual Moisture Setting ................349 Map Screen for CLAAS Quantimeter ..............350 Diagnostics for CLAAS Quantimeter...............350 Ag Leader PN 4002083 Rev. N...
Page 16 Diagnostics Screen for CLAAS Quantimeter ..........350 Bridge Module..................351 Troubleshooting CLAAS Quantimeter Configurations ........351 Appendix Appendix System Diagrams Reference ................353 Current File Formats .................... 353 .AGSETUP ..................... 353 .AGDATA......................353 Legacy File Formats .................... 354 Prescription Map File Types ................354 Boundary and Guideline File Types ...............
Page 17: General
ROFILE ABOUT US Welcome to the Ag Leader Technology family. Ag Leader Technology, Inc. is the global leader in yield monitor and precision farming systems and is committed to meeting the present and future needs of the agriculture industry by providing high quality products and first class customer support.
Page 18: System Uses
• Perspective 3D View Map • Report Preview • Automatic Field Selection • Automatic Module Firmware Upgrade • Advanced GPS Diagnostics • USB media slot • 28-pin plug compatible with other Ag Leader displays. • RAM mount Firmware Version 6.0...
Page 19: Usb Flash Drive
YSTEM AND PGRADES Ag Leader Technology will periodically provide operating program updates that will improve the performance of your display. Required software updates will be available free of charge for download from www.agleader.com. On occasion, major releases will be made available that have significant...
Page 20: Automated Module Firmware Upgrade
“Advanced tab” on page 19 RODUCT EGISTRATION When registering your Ag Leader Technology products by one of the following methods, you can elect to receive notice of any new product updates or features. Register by mail: Ag Leader Technology 2202 South Riverside Dr.
Page 21: Viewing This Manual Online
ANUAL NLINE This operators manual can be viewed online at Ag Leader’s Web site. To view an online version, go to the Ag Leader Web site and click the Customer Support link. You will see a page titled “Product Manuals.”...
Page 22 Firmware Version 6.0...
Page 23: Installation
• (F) 28-pin plug The 28-Pin round connector contains CAN, RS-232 serial, and system power and ground connections. It is compatible with other Ag Leader displays. Ethernet for ParaDyme and GeoSteer automated steering is included in connection. • (G) VGA video output Can be used to connect to a video projector for demonstration purposes.
Page 24 Mount the display to a secure support inside the vehicle cab. The following must be considered when choosing a mounting location: • The display must be readily accessible to the machine operator. • The display must not obstruct the machine operator's normal driving view. •...
Page 25: Fuse Installation And Replacement
CAUTION: The fuse is to be placed in the fuse holder in-line with the battery power cable and used with display only. CREEN ONVENTIONS The following control buttons are made available for entering names and calibration values into the system. Ag Leader PN 4002083 Rev. N...
Page 26: Setup
An on-screen Keyboard is made available when appropriate for use during all setup processes. Press Clear the keyboard button to access the on-screen text entry screen. Symbols An on-screen Numeric Keypad is made available for changing configuration settings and calibration numbers.
Page 27: Setup
It is acceptable to complete the initial setup wizard and then upgrade. Setup information will not change. On a “clean” display going out for service, to stand in for a failed display, the customer should use the Restore backup option in the initial setup wizard. Ag Leader PN 4002083 Rev. N...
Page 28: Location Specific Setup
OCATION PECIFIC ETUP 1. Language Language Selection Press to continue. 2. Unit System Imperial or Metric Language English / US Press to continue. 3. Date and Time Set to GPS Time and Date requires ZDA NMEA message to be turned on from the GPS receiver. Advanced Press to continue.
Page 29: Multiple Display Setup - First Display
Select “New Setup” to perform all setup through Select “Import Setup” to select an AgSetup file to the display user-interface. import setup items from your computer. Press to accept the setup and return to Home screen. Ag Leader PN 4002083 Rev. N...
Page 30: Multiple Display Setup - Additional Display
IMPORT SETUP Press “Import Setup” button then continue. Select desired setup file from directory. Press to accept the setup and return to Home screen. New Setup Import Setup Select “New Setup” to perform all setup through Select “Import Setup” to select an AgSetup file to the display user-interface.
Page 31: Home Screen
(C) Task bar You must complete these initial configuration steps for the Run Time Environment to be active: 1. Grower, Farm, and Field management 12:25:14 PM For more information, See 5/10/2012 “Management button” on page 30 Ag Leader PN 4002083 Rev. N...
Page 32: Setup Buttons
2. Equipment Operating Configuration You can access Configuration Setup by pressing the Setup (wrench) button (B) at the upper right-hand portion of the Home screen. For more information, see “Configuration button” on page 21 3. Product setup For more information, see , as well as the additional configuration information “Product tab”...
Page 33: General Tab
Note: Pressing the Automatic box will display the Display Brightness - Trim setting, which makes adjustments to the display’s brightness according to the available or ambient light. • Calibrate Touchscreen. Press this to launch the Touch screen Calibration wizard. Calibrate the touch screen by following the on- screen instructions. Ag Leader PN 4002083 Rev. N...
Page 34: Display Tab
CAUTION: Do not use any sharp objects to operate the touch screen or the display may be damaged. • Time Zone Use the drop-down menu to select your time zone. • Language/Country Selection Use the drop-down menu to select the language. •...
Page 35: Unlocking Features
Pressing the touchscreen while it is in standby mode will immediately turn the screen back on again. Ag Leader PN 4002083 Rev. N...
Page 36 to specify a length of time that you wish the display to remain powered up in standby mode after the vehicle power has been shut down. Note: When the time you specified in Key Switch Standby is nearly expired, then the amber-colored power light will flash on and off immediately preceding shutdown.
Page 37: Configuration Button
CAUTION: When you remove a configuration all data logged with that configuration will also be removed! However, all log files will remain in memory until exported to the USB drive. • Equipment button Equipment Press to add, edit, or remove information for a specific vehicle, implement or controller. Ag Leader PN 4002083 Rev. N...
Page 38: Product Tab
RODUCT TAB Product Press: Home button > Setup (wrench) button > Configuration (tractor) button > Product tab The Product tab is where you can add, edit. or Configuration Setup remove product information. Equipment Product Configuration Manufacturer: Planting Type: Fertilizer gallons Units: T5423 Restricted Use:...
Page 39: Planting Settings
• Legend Settings Choose Yield or Moisture from drop down box. Press Edit Legend to change the settings listed below. - Average - Range Spacing - Color Scheme - Ranges - Reset to Default Legend Ag Leader PN 4002083 Rev. N...
Page 40 For more information, see “Legend Settings” on page 52 Firmware Version 6.0...
Page 41: Management Setup
Auxiliary Input Module: Not found Planter Hydraulic Rate Control Module: Not found Device Row Shutoff Auxiliary Input Module: Not found Row Clutch Control Module: Not found Device Seed Monitor Seed Tube Monitor Module: Not found Ag Leader PN 4002083 Rev. N...
Page 42: Some Modules Not Detected
Some Modules Not Detected Operating Configuration Configuration can be loaded but is not detecting all the modules associated with the configuration. When CIH Magnum 340, Hardi Commander 10000 loaded, it will not perform the functions of the missing Equipment Name modules.
Page 43: Events
Display uses Traditional mode when Field Management is checked. Events using Management the Traditional mode are tied to the Grower/Farm/Field structure. Field Management View Summary Display uses Events Only mode when Field management is unchecked. Management Field Management View Summary Ag Leader PN 4002083 Rev. N...
Page 44: Starting An Event
Starting an Event 1. Press: Select Event button. Select a Season, Grower, Farm, and Field on the Management Selection Select Event screen. Note: This screen does not appear when operating Management Selection in Events Only mode. Growing Season 2014 Crop Enable Management button Enable Management Grower...
Page 45 Farm Sheldon Field Orab Enable Management The Field Operation Wizard: Event Selection screen Event Selection allows the operator to pick a previously created New Event Corn event. 2014-01-12_16:01:17 2014-01-12_15:54:14 Press to accept. Ag Leader PN 4002083 Rev. N...
Page 46: Management Button
ANAGEMENT BUTTON Press: Home button > Setup (wrench) button > Management (Barn) button From this screen the operator can access Grower/Farm/Field, Season, User, and Businesses tabs. ROWER IELD TAB Grower/Farm/Field Press: Home button > Setup (wrench) button > Management (Barn) button > Grower/Farm/Field tab Grower The Grower refers to the business or person that the system is in operation for.
Page 47: Farm And Field
(hectares) of the field. • FSA Number refers to the U.S. Farm Service Agency’s four-digit number assigned to every field. • FSA Area refers to tillable acres as established by the FSA. Ag Leader PN 4002083 Rev. N...
Page 48: Importing And Exporting Field Boundaries
• Clear Bounds button Press to center the map on the current GPS position. Note: The Clear Bounds feature is particularly useful if you have flyer points or have logged a point outside the mappable range of your current location. Importing and Exporting Field Boundaries Boundaries can be created with the display or imported from desktop GIS software.
Page 49: Season Tab
Press: Home button > Setup (wrench) button > Management (Barn) button > User tab Management Setup Management Setup screen - User tab allows user to Grower/Farm/Field Season Users Businesses add, modify, or delete users from the display. Eilers, George Eilers, Joan Oakes, Bill Schmidt, Jack VanBurkum, Doug Ag Leader PN 4002083 Rev. N...
Page 50: Add A User
Add a User Users Press: Home button > Setup (wrench) button > Management (Barn) button > User tab > Plus (+) button 1. Enter first name and/or last name (have to enter a first or last name, recommend entering both) 2.
Page 51: General Tab
• Only user that can change the selected configuration • Ability to log out of the display System can be set up with operators only. Passwords are not used when set up this way. Ag Leader PN 4002083 Rev. N...
Page 52: Permission Level For Operators
ERMISSION EVEL PERATORS Full Permission Provides full access to features and functionality on the map and home screen. A user, set only as an Operator, cannot select a different configuration and cannot access USB or Setup, when a manager is setup in the display.
Page 53: Custom Permission
Management, GPS/Guidance, Console Setup, and External Storage Buttons are locked for Operators. A manager can access these buttons by pressing the button and inputting their password. A User can be setup as an Operator and Manager to have the same access as a Manager. Ag Leader PN 4002083 Rev. N...
Page 54 Setup and USB buttons are locked for Operators if a Manager is present in the system. A Manager can access setup menu and USB by pressing button and inputting their password. A User can be setup as an Operator and Manager to have the same access as a Manager. The Home and Map screen will appear different depending on how you assigned user permissions.
Page 55: Accessing Setup Menus
ORGOTTEN ASSWORDS When a Manager forgets his password he won't be able to access Setup. Tech Support will be able to generate a password based on the serial number and firmware of the monitor. Ag Leader PN 4002083 Rev. N...
Page 56: Businesses Tab
Password generator will require the following Devices information: CAN A CAN B • (A) Display serial number Firmware: 4.0.18/4.0.17 DISPLAY Firmware ID: VERSA Hardware ID: 4001683 • (B) Major revision Product ID: VERSA Serial Number: 2009120056 - First digit of firmware version Revision: 4.3.2.0 Run Time:...
Page 57 ETUP • Remove button Press to remove a business. Ag Leader PN 4002083 Rev. N...
Page 58 Firmware Version 6.0...
Page 59: Operator Selection
Allows you to select a machine operator from the drop-down list. Machine operator information is logged with all field operations. Operator information may be entered in Management Setup at “Management button” on page 16 Ag Leader PN 4002083 Rev. N...
Page 60: Operator Log Out
2. Choose the operator from drop-down menu. Operator Selection Note: Checkbox will require a password to be Select Operator entered upon start up of the display. Eilers, George Press 3. Enter password. Press The operator will now be selected and permissions Options active Show Operator Selection on Startup...
Page 61: Setup Event
Active 3. Region Options Press to edit or change the region name from the system default if desired. At this screen, you can also create a new region or change the controlling product. Ag Leader PN 4002083 Rev. N...
Page 62: Field Finder
4. Return to Home screen When you complete the steps in the Wizard, you will return to the Home screen. • For information on Run screen operations, see “Run screens” on page 47 IELD INDER If you have an existing field boundary, and your current GPS position is within that field boundary, the display will automatically pick the correct Grower, Farm and Field combination when you start a Field Operation.
Page 63: Run Screens
ZOOM TO EXTENT PERSPECTIVE VIEW Note: The Perspective View is only available when guidance is active. Video button. Pressing this button takes you to the video screen. Pressing this button repeatedly cycles through the video inputs. Ag Leader PN 4002083 Rev. N...
Page 64 Note: For more information on the Video screen, see “Video” on page AutoSwath button. Pressing this button turns the AutoSwath feature on and off. When AutoSwath is on, the icon is green; when it is off the icon is white. AutoSwath - ON AutoSwath - OFF Area Logging Status button - This button appears for configurations that do not use rate control, such...
Page 65: Gps Signal Indicator
Flex Mode - ON (GREEN) Flex Mode - Exceeded (YELLOW) StableLoc - ON (GREEN) Note: For more information, see the ParaDyme Insert. The Device Information button opens screens that display Device Information, Memory, Display, and display diagnostics. Ag Leader PN 4002083 Rev. N...
Page 66 Note: For more information, See “Device Information” on page Vehicle Icon - Zoom to Extent The Vehicle Icon is shown by an arrow inside a circle if the Map screen is viewed in Zoom to Extent. The vehicle appears as a gold-colored triangle if the Map screen is viewed in Zoom Detail. The appearance of the zoomed-in icon changes depending upon the data being logged in the field.
Page 67: Mapping Toolbox
For each operation, you can view As-Applied Load Clear Map Reference or Coverage attributes (and Varieties if you are performing a Planting operation). CAUTION: Once you clear the map, this information cannot be retrieved. Ag Leader PN 4002083 Rev. N...
Page 68: Legend Settings
Load Press . Select the reference map you want to Reference use. Reference Map Wizard displays each operation performed in field, filtered by season. The map can be displayed as an As-Applied or Coverage. Press to continue. Select the Autoswath channel to apply the reference map to Not selecting a channel will load the reference map as a visual only...
Page 69: Markers Tab
Map Marker on the Map screen. If all of the Markers that you created are not immediately visible in this screen, Weeds use the Cycle Markers button to view more that you created. Washout Cycle Markers Hole Ag Leader PN 4002083 Rev. N...
Page 70: Edit Markers
Edit Markers Marker Sets Marker Management Marker Sets Pressing allows operator to create, name, and All Markers delete marker sets. Markers Rock Markers Washout Post • Press to add a marker. Weeds Outlet • Press to edit a marker. • Press to remove a marker Load •...
Page 71: Boundary Settings
3. The Boundary Offset feature enables mapping a boundary at a user-defined distance to the left or right of the GPS antenna center line. If desired, specify a Boundary Offset distance by choosing a direction and distance from the GPS antenna center line. 4. Press to start the boundary. Ag Leader PN 4002083 Rev. N...
Page 72: Pause Boundary
5. During the creation of a boundary, the Pause/Resume button and Stop button Field appear at the top of the Field tab. 6. Press the Stop button to complete the boundary. At the Boundary screen, choose whether to Save, Resume or Discard the boundary. Headlands Pause Boundary Topography...
Page 73: Add A Headland
Scaling - sets the amount of variation that is allowed (from perpendicular) to include part of field boundary in the headlands Use AB - select AB line to set heading for determining headlands Shows the heading used for Headland creation. Press to accept. Ag Leader PN 4002083 Rev. N...
Page 74: Load Headlands
Driven New Headlands 1. Select Driven from drop-down menu and press to continue. 2. Press on New Headlands screen. 3. Input Headland Offset Distance and Direction (Left or Right). Press to accept. 4. Drive Boundary Clear All • pause • resume recording after pausing •...
Page 75: Edit Headlands
Approaching Headland Audible Alarms Crossing Headland Boundary • Approaching Headland • Crossing Headland Boundary 0.67 Pass: 2 R traigh Corn1 Map Screen with Headlands Headland: 113 ft Reset Corn2 Nudge: 30.0 in Total: 0.0 in Ag Leader PN 4002083 Rev. N...
Page 76: Topography
Topography The display allows you to record points that can be used to make a reference layer Field that is relative to the elevation throughout the field. This requires that you have an Boundary RTK GPS signal to collect the accurate elevation data. You can also import data from mapping software such as SMS Advanced via Headlands .agsetup files.
Page 77 • Driving too fast with mounted plows, can cause bouncing and affect quality • Surveying with harvesting equipment can provide streaked maps as the hopper filling and unloading can affect the height of the vehicle, and therefore antenna Ag Leader PN 4002083 Rev. N...
Page 78 0.67 No Product After these points have been collected, they will be converted into a surface layer Topography in which you can define the color scheme 816 - 819 814 - 816 811 - 814 Red, White, Blue, or Brown-Tan. See 808 - 814 806 - 808 .
Page 79: Video
• Camera Number Selection The display can receive input from up to four video cameras. Press the numbered buttons to switch views between video cameras. Note: You can adjust the brightness and contrast of each input individually. Ag Leader PN 4002083 Rev. N...
Page 80 Firmware Version 6.0...
Page 81: Summary Report
Instance 3 32850.0 90424.2 2.75 Agronomic <1> 1222 33875.0 0.88 05/13/2014 29667.0 Create Report 05/13/2014 <1> C1224 26859.4 27793.2 1.03 View Report 0.84 <1> C1492 39145.3 32964.0 05/13/2014 View Field Total (All) 32850.0 90424.2 2.75 Ag Leader PN 4002083 Rev. N...
Page 82 Event View • Shows data of a specific Event Operator View • Shows data of a specific Operator - Filters data by each configuration used by the selected operator • Area Only • Daily Subtotals • Configuration Total • Operator Total Firmware Version 6.0...
Page 83: Date Range
• Weather information • Soil condition Weather Press: Home button > Field Notes button > Conditions button > Weather tab • Sky Condition • Wind Direction • Wind Speed • Air Temperature • Humidity Ag Leader PN 4002083 Rev. N...
Page 84: Smart Report
Soil Conditions Press: Home button > Field Notes button > Conditions button > Soil Conditions tab • Tillage Type • Crop Residue Level • Soil Condition • Soil Moisture • Soil Temperature Press: Home button > Field Notes button > Memo button Press to input, edit, or delete Field Notes.
Page 85: Create Reports
• Date of most recent product application. The files date information is listed according to Year, Month, Day. Example: East 91_Post Sprayer_DirectLiquid_0000177a_060506.pdf. MART EPORT ENERATION Press: Home button > Field Notes button > Settings button Ag Leader PN 4002083 Rev. N...
Page 86 This screen allows the user to change the settings that affect the creation of application reports. • Automatically Create Application Report checkbox Check this option to have the display automatically generate an application report each perform the action in the Creation Trigger drop-down menu. •...
Page 87: Control Channel Report Content
The first page(s) of the report represent field and product control channel specific information. In cases of multiple product application, multiple pages will be generated, one for each channel of product control. Ag Leader PN 4002083 Rev. N...
Page 88: View Reports
Control Channel Content includes the following: • Service Provider Information • Grower Information • Field Information • Farm Name and Description • Equipment Configuration Information • Application Information • Date/Time Information • Crop Information • Rotation Restrictions and REI • Multiple Target Pests •...
Page 89: External Drive
• Replaces MSF, IBY, PAT, IRX, REF • Allows full synchronization of the following file items: - Management Data (Growers, Farms, Fields, Seasons, Operators) - Products and Product Mixes - Boundaries - Guidance Patterns Ag Leader PN 4002083 Rev. N...
Page 90: Agdata
• Marker Sets and Markers Do not use the IBK to “clone” a display. Use AGSETUP. Note: .AGDATA • Includes all the necessary data to fully archive in SMS • Includes recorded operation data • Equipment Used • Products Used •...
Page 91: Export Reports
Restores data from backup file on USB Device Backup Select to Export Log Files by Grower Export by Grower Select to Export Log Files by Event Export by Event Export data files Select to data files on shutdown on shutdown Ag Leader PN 4002083 Rev. N...
Page 92 Export All Press to Export All Log files Log Files Firmware Version 6.0...
Page 93: Device Information
Display Diagnostics screen. This screen includes information about the system memory usage and Buffers: 26.1 MB available memory. Cached: 53.3 MB Internal Storage Note: For information on Auxiliary Input Settings Diagnostics, see “Auxiliary Input” on page Ag Leader PN 4002083 Rev. N...
Page 94 Firmware Version 6.0...
Page 95: Equipment Settings
The Equipment Configuration Settings screen appears. If you will be using an implement switch choose Standard or Reversed polarity. If an implement switch is not in use, select None. Press to return to the Configuration Setup screen. Ag Leader PN 4002083 Rev. N...
Page 96: Equipment Configuration Settings For Rate Control
Equipment Configuration Settings for Rate Control If you are using an operating configuration with Rate Equipment Configuration Settings Control, (such as for certain DirectCommand and Controller Rate Outside of Field SeedCommand configurations) you must specify Time Delay Zero Equipment Configuration Settings. At the 0 sec Configuration Setup screen, press the Configuration Rate Display...
Page 97: Calibrate Distance
If you are using GPS, it is recommended to calibrate distance in the event of GPS loss. Use the following procedure to calibrate distance: Ag Leader PN 4002083 Rev. N...
Page 98: Auxiliary Input
Your Specific Configuration Configuration Speed Calibrate Speed Sensor Input Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your specific configuration > Setup (wrench) button > Speed Input button > Calibrate Speed Sensor Follow instructions on screen to calibrate sensor. Note: Calibration settings can be manually adjusted if desired by pressing Enter CAL Number and making small changes to the setting.
Page 99: Auxiliary Input Settings
Note: DirectCommand can control fence row nozzles through a DirectCommand switch box by mapping the switches in Auxiliary Input Settings. The fence row nozzles can be mapped to any switch. UXILIARY NPUT IAGNOSTICS AUX DEVICE Diagnostics Press: Display Information button > AUX DEVICE button > Diagnostics button Ag Leader PN 4002083 Rev. N...
Page 100: Autoswath
The Auxiliary Input Diagnostics screen lists the active Auxiliary Input Diagnostic switches. These color-coded boxes display the following diagnostics: • Green The switch box is connected to the Auxiliary Module in the On position. • Black Ground Speed Pulses 0 The switch box is connected to the Auxiliary Module, but is in the Off position.
Page 101: Look-Ahead Settings
GPS antenna. These settings are used by mapping. The GPS Offsets settings consist of two tabs: the Antenna Tab and the Hitch Tab. Ag Leader PN 4002083 Rev. N...
Page 102: Antenna Offsets Tab
NTENNA FFSETS TAB At the Antenna Tab, enter the distance from locations on the vehicle to the antenna. • Measure and enter the horizontal distance from the rear axle to the position of the GPS antenna. Select IN FRONT or BEHIND to indicate the position of the antenna in relation to the rear axle. •...
Page 103: Section Offsets
• Press when finished. Advanced Note: Accuracy when measuring and entering implement offsets is required to ensure proper machine performance. swath section offset measurements. Ag Leader PN 4002083 Rev. N...
Page 104 Firmware Version 6.0...
Page 105: Virtual Terminal
These systems can be used at the same time. Verify which hardware has been installed. To enable the Virtual Terminal: ISOBUS Settings Enable Virtual Terminal Press: Home button > Setup (wrench) button > Display button > ISOBUS Settings > Enable Virtual Terminal checkbox Ag Leader PN 4002083 Rev. N...
Page 106 ISOBUS to the implement ECU. • Auxiliary Module Support Checking this box allows the Ag Leader Auxiliary Input Module or Smart Switchbox, to be used with ISOBUS ECUs that support AUX-N auxiliary functions. • Use 480 Mask Size Checking this box sets the display mask size from 600 pixels to 480 pixels.
Page 107: Auxiliary Assignment
Each device will resend its interface the next time it is connected.” UXILIARY SSIGNMENT Auxiliary Assignment Press: Virtual Terminal (VT) button > Setup (wrench) button > Auxiliary Assignments button Ag Leader PN 4002083 Rev. N...
Page 108: Vt Alarms And Trouble Codes
The number of functions and inputs shown on the Auxiliary Mappings screens will vary depending on the implement and input devices connected to the display. Ag Leader Note: Implement functions can not be mapped to switches. VT A LARMS AND...
Page 109: Task Controller
) until Select Controller step. Select ISOBUS controller as follows: on page 223 Select ISOBUS as the device Controller Setup Wizard: Device Select Controller or Flow Meter Device ISOBUS DirectCommand Serial Controller Flow Meter ISOBUS Ag Leader PN 4002083 Rev. N...
Page 110: Isobus Settings
Controller Setup Wizard: Make and Model Select the controller make and model Select Controller Make and Model Select Generic if implement is not included in list. Make Mueller The rest of the steps will follow the Liquid Rate Controller or Granular Configuration. Mueller Horsch Kuhn-Rauch...
Page 111: Connecting To Wi-Fi Network
If you no longer want to be connected to a network you can press Forget, which will disconnect Forget the network. No networks in range. User will not be able to connect to a Wi-Fi network when this icon is shown. Ag Leader PN 4002083 Rev. N...
Page 112: Connecting To Agfiniti
One or more networks are in range but display is not configured to connect to a network. Connected to network. Green bars represent network connection strength: the more green bars, the stronger the network strength. Note: This does not represent cell strength. ONNECTING TO INITI In order to connect the display to AgFiniti you must first have an AgFiniti account and active license.
Page 113: File Transfer
Exports Reports saved on internal memory to AgFiniti. See “Smart Report Auto- Export for more information. Generation” on page 69 IEWING ILES View Files Press: Home button > AgFiniti button > View Files button Ag Leader PN 4002083 Rev. N...
Page 114: Export Settings
AgFiniti tab shows AgSetup and AgData files that File Selection are present in the AgFiniti account. AgFiniti Downloaded Changed Description Name 01/03 2014-Prescription.agsetup Variable Rate From the AgFiniti tab, select file and press Download button to download file. Pressing on the column titles will sort the files by the column selected in ascending or descending order.
Page 115: Importing A Prescription
Import Prescriptions: Select File AgFiniti Downloaded Changed Name Description 01/03 2014-Prescription.agsetup Variable Rate 2014-Prescription.agsetup 7 KB 1/3/14 1:11 PM Description: Variable Rate Uploaded: 01/03/2014 1:16 PM File Size: 7 KB Modified: 01/03/2014 1:16 PM Ag Leader PN 4002083 Rev. N...
Page 116: Importing A Variety Reference Map (Harvest Only)
MPORTING A ARIETY EFERENCE ARVEST from Options screen in the Event Wizard Press the “Select Event” button and follow the steps in the wizard until Select Event screen with Import Variety Map button. Options Import Reference: Select AgSetup File Region AgFiniti Downloaded Changed Name...
Page 117 If buttons are grayed out then there isn’t a remote support license tied to the AgFiniti account. Must enter Remote Support activation code at www.AgFiniti.com. See dealer for activation code. Ag Leader PN 4002083 Rev. N...
Page 118 Firmware Version 6.0...
Page 119: Gps Button
Correction for Guidance GPS S ERIAL ETTINGS Reciever: GPS 6500 Serial General Press: Home button > Setup (wrench) button > GPS button > Serial (from Receiver drop-down box) > Receiver Setup (wrench) button > General tab Ag Leader PN 4002083 Rev. N...
Page 120: Differential Source
• Differential Source GPS Settings Select choice of WAAS/EGNOS, Satellite General Port A (Connected) Port B (TerraStar®), Glide, RTK, or RTK External differential sources. • Wrench button Differential Source Pressing the Wrench button opens different TerraStar settings screens, depending on the Features differential source selected.
Page 121: Waas/Egnos Settings
Press: Home button > Setup (wrench) button > GPS button > Serial (from Receiver drop-down box) > Receiver Setup (wrench) button > General tab > TerraStar (from Differential Correction drop-down box) > Differential Source Setup (wrench) button Ag Leader PN 4002083 Rev. N...
Page 122: Rtk External Settings
Note: The use of TerraStar® differential requires purchase of a subscription from your Ag Leader dealer. Settings related to using satellite differential correction vary based upon your geographic location. Setup details are explained on the following pages. More specific information can be obtained through you Ag Leader dealer.
Page 123: Rtk Settings - Ntrip
****** RTCM2_NEAR • Info - see “Info button” on page 109 CMR_NEAR CMRP_NEAR Cellular Cellular • IP Address - indicates a connection to IP Address: 10.44.64.32 the Internet Modern Status: Connected • Modem Status Ag Leader PN 4002083 Rev. N...
Page 124 NTRIP Server Server Address 165.206.203.10 Port NTRIP Server 10000 • Server Address • Port Server Address and Port are provided by the NTRIP Network. Cellular Settings Broadband Username Cellular Settings Password • APN • Username • Password APN, Username and Password are Network provided settings.
Page 125: Rtk Settings - 900/400 Mhz
Frequency (400 Only) or Channel (900 only) Select frequency or channel and press button to delete selected frequency or channel Select frequency or channel and press button to make Active selected frequency or channel active Ag Leader PN 4002083 Rev. N...
Page 126: Upgrade Receiver
PGRADE ECEIVER Reciever: GPS 6500 Serial General Press: Home button > Setup (wrench) button > GPS button > Serial (from Receiver drop-down box) > Receiver Setup (wrench) button > General tab > Upgrade Receiver button Select OEM file. Press to accept. Display will upgrade receiver.
Page 127: Port Btab
Reciever: GPS 6500 Serial Port B Press: Home button > Setup (wrench) button > GPS button > Serial (from Receiver drop-down box) > Receiver Setup (wrench) button > Port B tab Ag Leader PN 4002083 Rev. N...
Page 128: Gps Information
The appearance of the Port B tab is similar to Ports A. GGA(Legacy) - shortens the decimal precision of the GGA message for connection to legacy equipment. The appearance of this TSIP receiver GPS Port Setup GPS Port Setup - PORT A screen is the same for both Ports A and B.
Page 129: Gps Information - General Tab
Different versions of universal time use atomic clocks to correct for irregularities in the Earth's rotation and orbit. UTC is used in navigation, astronomy, aviation, Internet broadcasts, and amateur radio. If you are receiving information from the satellite, then the UTC Time should automatically update. Ag Leader PN 4002083 Rev. N...
Page 130: Gps Messages
• UTC Date If you are receiving information from the satellite, then the UTC date should automatically update. • HDOP Horizontal Dilution of Precision (HDOP) indicates the quality of the horizontal GPS position. Lower HDOP numbers are optimal, higher numbers are undesirable. •...
Page 131: Satellite Plot
GPS I NFORMATION ECEIVER Receiver Press: GPS (satellite) button > Receiver tab • Receiver ID • Firmware Version • Product Serial Number • Internal Serial Number • TerraStar Unlocked • RTK Unlocked Ag Leader PN 4002083 Rev. N...
Page 132: Gps Information - Omnistar Tab
Base Station Press: GPS (satellite) button > Base Station tab • Latitude • Longitude • Distance to Base • Common Satellites Relay Press: GPS (satellite) button > Relay tab (Relay tab will vary depending on connected Relay model) • Device Name •...
Page 133: Rtk/Ntrip Information (Paradyme/Geosteer Only)
Displays a number between 0 and 100%. • WiFi Status Displays status of WiFi router; either Connected or Disconnected. • WiFi Signal Strength Displays a number between 0 and 100%. STAR S ETTINGS Differential Source Receiver OmniSTAR General Ag Leader PN 4002083 Rev. N...
Page 134 Press: Home button > Setup (wrench) button > GPS button > Receiver Setup (wrench) button > General > OmniSTAR (Differential Source drop-down menu) > Setup (wrench) button Note: If using the GPS 2500 receiver, see “OmniSTAR Settings — GPS 2500” on page 119.
Page 135: Omnistar Settings - Gps 2500
- VBS - OmniSTAR VBS is a "sub-meter" level of service. - HP/XP - The OmniSTAR XP service is more accurate than VBS, but slightly less accurate than HP. The OmniSTAR HP (High Performance) service is the most accurate of the three options. Ag Leader PN 4002083 Rev. N...
Page 136: Gps Information For 2500 Rtk
• Fast Restart Checking this box before the vehicle is shut down allows the receiver to utilize shutdown time to acquire the appropriate satellites in order to ensure a quick and efficient startup. This reduces the time taken for satellite convergence after startup, and thus increases accuracy in the field.
Page 137: 2500 Rtk Setup
Press to enter feature code unlocks. Unlock codes can be purchased through AgLeader. Receiver Press: Home button > Setup (wrench) button > GPS button > Receiver Setup (wrench) button > Differential Source Setup (wrench) button Ag Leader PN 4002083 Rev. N...
Page 138 RTK Setup • RTK Radio Channel Press button to set the RTK radio channel. Base Station and Rover must be set to the same channel. RTK Radio Channel Channel: Firmware Version 6.0...
Page 139: Guidance Guidance
Pressing the Setup (wrench) button on the Guidance Tab opens the guidance system settings for the selected guidance system. Note: In order to use guidance with the display, you must have a GPS receiver capable of a GPS output rate of 5 Hz or more. Ag Leader PN 4002083 Rev. N...
Page 140: Lightbar Settings
IGHTBAR ETTINGS ETUP Lightbar Settings Press: Home button > Setup (wrench) button > GPS button > Lightbar Settings button LIghtbar Settings • LED Spacing Enter the distance represented by each square of the lightbar (6-72 in.). • Mode Chase - center the vehicle by followig the indicator Spacing External Lightbar LED Brightness...
Page 141: New Pattern
(recommend vehicle having forward motion to get a good heading). Create AB line using Current Location and Inputting Heading • uses current location and input heading, line extends 1 mile before and after the A point Ag Leader PN 4002083 Rev. N...
Page 142: Adaptive Curve
Patterns are automatically saved when the B point is set (A point for A+ pattern). For more information “AutoSave” on page 133 Note: On straight AB lines, if you complete a swath that is longer than the previous one, the display automatically extends the guidance path for the following swaths.
Page 143: Identical Curve
For more information see “AutoSave” on page 133 DENTICAL URVE Use the Identical Curve pattern to follow gentle contours in the field. This pattern provides guidance based on the original curve driven. Select Pattern Pattern Ag Leader PN 4002083 Rev. N...
Page 144: Create Ab Line Using 2 Points
Press: Map button > Guidance tab (in Mapping Toolbox) > New Pattern button > Identical Curve Pattern Selection System defaults pattern type to last used. Press the pattern icon to select a different pattern. - Implement Width (from Implement Setup) - Guidance Width input box - Enable Tramlines checkbox Press...
Page 145: Select Pattern
1. Next, you must set the Field Edge. You may do this Pivot Field Edge when the Pivot Field Edge window appears on your display. Feet Inches Shift By Distance 0 ft 30 in Inward Outward From here, you may choose one of three options: Ag Leader PN 4002083 Rev. N...
Page 146: Smartpath
• Shift By Distance This sets the field edge as the distance and direction in relation to the AB Line created. In the Pivot Field Edge Distance portion of the window, enter the distance in feet and inches. • Shift By Rows This sets the field edge as the number of crop rows multiplied by the number of spacing.
Page 147: Inputting Paths Into Smartpath
“Once the AB line is created, you can switch between the AB line and SmartPath patterns by pressing the AB/SmartPath toggle.” on page 131). After you turn around on your first pass, the system guidance will follow a maroon-colored line parallel to your previously-driven pass. Ag Leader PN 4002083 Rev. N...
Page 148: Select A Previous Smartpath Pass
As you continue using the SmartPath, Smart the map screen will display three lines: Reset • (A) The Base Path Appears as a black line, is the initial Nudge: 30 in SmartPath that you created on the first Total: 0 in pass.
Page 149 A screen will notify user that the patterns Pattern saved as 2013-01-22_16:47:07 is being saved with a default name using Nudge: 30 in the date and time. Patterns can be Total: 0 in renamed or deleted. Ag Leader PN 4002083 Rev. N...
Page 150: Manage Patterns
ANAGE ATTERNS PATIAL Pattern Press: Map button > Guidance tab (in Mapping Toolbox) > New Pattern button Spatial Sort allows the user to select any guidance Load Pattern pattern in the display, sorted by distance from the GPS location. 01/02/2014 2014-01-02_ 40.0000 Straight...
Page 151: Reset Pattern
Total: 0.0 The Group Manager allows the user to add a new Group Manager pattern or load an existing pattern to a Group. Once a Group is created, it can be saved and reloaded. Load Ag Leader PN 4002083 Rev. N...
Page 152: Save
The Pattern Cycle Button allows the user to easily cycle between patterns with a Straight single button press. Patterns will cycle in the order they were created or added, Reset starting back at the beginning of the list, once the last patterns is reached. Total: 0.0 When loading a Pattern Group, the Group Pattern Group Pattern Settings...
Page 153: Guidance Options
Remark A button "re-marks" the A point by moving it to the current position while maintaining the same heading. A brief message appears in the on-screen lightbar, stating "Point A Remarked." UDGE Note: Only Straight patterns offer two Nudge settings. All other patterns have a single nudge setting. Ag Leader PN 4002083 Rev. N...
Page 154: Shift
Straight Straight Nudge allows you to adjust the swaths by a specified distance. Reset Reset Small Nudge (single arrow) shown on left. Nudge: 30.0 in Nudge: 90.0 in Large Nudge setting (double arrow) shown on Total: 0.0 in Total: 0.0 in right (Straight Patterns Only).
Page 155: Steering
User can still manually control coverage logging with the on-screen coverage button. AutoSwath is unaffected by this selection. UNING OnTrac Tuning Press: Map button > Guidance tab (in Mapping Toolbox) > Setup (wrench) button > OnTrac Tuning tab Ag Leader PN 4002083 Rev. N...
Page 156: Lightbar
Motor Aggressiveness — determines how Guidance Options aggressively the motor engages. Nudge OnTrac Tuning Lightbar Shift Steering Tramlines Heading Aggressiveness — determines how Save Motor Aggressiveness aggressively the system reacts to achieve the correct Save Heading Aggressiveness heading. Group Cross-Track Error — adjusts how aggressively the Cross-Track Error Pause vehicle reacts to changes in cross-track error.
Page 157 An audible warning is sounded to alert the operator a Tramline is reached when the vehicle is ½ a swath width away. Tramlines are also numbered under the Pass Number. This number will flash multiple times when the Tramline is reached for a visual warning. Ag Leader PN 4002083 Rev. N...
Page 158 Firmware Version 6.0...
Page 159: Autosteer Setup Screen
Vehicle components. configure and monitor system parameters. System status of your GPS corrections. For more information, refer to the Display or GPS operators manual. configure and monitor account parameters. My Account Ag Leader PN 4002083 Rev. N...
Page 160: Vehicle
To return to the previous screen, press the Back icon. Press the Back icon from the AutoSteer Setup screen to return to your Display menus. EHICLE Vehicle Press: Vehicle button Select the desired vehicle configuration procedure button: create and calibrate a new vehicle Setup Wizard manage or change selected vehicle Manage...
Page 161: Manage Vehicle
To make a vehicle profile the Active Vehicle, select vehicle from list and press the Select button. The confirmation box will appear. Press the checkmark button and then Back icon to return to the AutoSteer Setup menu. Ag Leader PN 4002083 Rev. N...
Page 162: Edit
Manage Select Vehicle Edit Vehicle Vehicle Press: Vehicle button > Manage Vehicle button > Select Vehicle > Edit button Select the vehicle from the list and press the Edit button. The wizard will ask for the following items: • Wheel Base •...
Page 163: Export Profile To A Usb Drive
It must be flat with the cable connectors facing the front, back, left, or right. This step tells the AutoSteer system which way the ECU is physically facing in the cab so the internal sensors can orient themselves. Ag Leader PN 4002083 Rev. N...
Page 164: Adjust Lateral Offset
• OnTrac2 ECU Tilt Zero Measurements 1 and 2: The ECU has a tilt sensor in it to help take into account side hills and bumps while the vehicle is AutoSteering. While the vehicle is sitting still on a flat location, the sensor averages its readings to get an idea of what “level”...
Page 165: Steering Adjust
The Steering Adjust screen enables you to improve your vehicle AutoSteering performance. You can change the response rate of the selected item with the screen slide bar: • The turtle icon indicates slower (smooth) response. • The rabbit icon indicates faster (aggressive) response. Ag Leader PN 4002083 Rev. N...
Page 166: Steering Components
TEERING OMPONENTS Steering Components Vehicle Press: Vehicle button > Steering Components This screen enables you to adjust steering components. The list of components displayed varies depending on your individual installation. OnTrac2 ECU The OnTrac2 ECU is the box that connects the AutoSteer controller to all AutoSteer sensors and actuators. The OnTrac2 ECU screen provides indicators showing the ECU firmware version, engaged status, MDU power status, and communication status.
Page 167: System Menu
The System Health screen provides diagnostic and status information for various aspects of steering system. The overview screen displays the status of the components. Select an item for which you want a detailed status. Ag Leader PN 4002083 Rev. N...
Page 168: Log Files
ANAGE ETTINGS Manage Settings System Press: System button > Manage Settings button The Manage Settings screen enables you to: • Save or delete the current log files. • Save the current database or import a database. • Reset all the current settings to the default factory settings. Log Files The log files contain system data that can be used for diagnostic and troubleshooting purposes.
Page 169: Database
1. Press the “Manage Settings” button. 2. Select Reset Factory Default. 3. Press the “Reset” button. 4. Press the checkmark button. Current settings set to the default factory settings. CCESSORIES Accessories System Press: System button > Accessories button Ag Leader PN 4002083 Rev. N...
Page 170: Technician
The Accessories menu is used to activate or deactivate optional sensors. Currently only the remote engaged switch is available. These options are always displayed when available. Once activated, the system is aware that the sensor is installed and functional. When options are functional diagnostic information is gathered and any malfunction of the sensor is reported through the diagnostic manager.
Page 171: Details
Press: My Account button > Details button The Details button gives access to information about components installed on the system. Select the item for which you want to view details and the information about the selected item appears. Ag Leader PN 4002083 Rev. N...
Page 172 Firmware Version 6.0...
Page 173: Tillage
Your Operating Configuration will then be viewable when you start a new Field Operation with the Field Operation Wizard. ONFIGURATION ETUP Select Your Specific Configuration Configuration Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > select your specific configuration > Setup (wrench) button Ag Leader PN 4002083 Rev. N...
Page 174: Load Configuration
The Configuration Setup screen appears. The Configuration Setup appearance of this screen will vary depending upon Vehicle your particular operating configuration. Massey Ferguson Massey Ferguson, Tillage Vehicle Implement: Tillage Controller: None Offsets 30 ft Full Swath: Sections: Speed Input Auxiliary Input Offsets Equipment...
Page 175 Note: Pressing the Map View button will cycle between the available map screen views, and the appearance of the Map View button changes. For additional information on Map screen items, see “Run screens” on page Ag Leader PN 4002083 Rev. N...
Page 176 Firmware Version 6.0...
Page 177: Planting
(from front to back). When finished, press to continue. 7. Select Implement Options Under the Planter Monitor drop-down menu, select Seed Monitor Module or KINZE Planter Monitor Module. Ag Leader PN 4002083 Rev. N...
Page 178: Autoswath
• Split Rows Enabled Check this box to enable the display to log data from the planter’s Split Row units. (For split row-enabled planters, you will need to create separate implement configurations for Split Row and non-Split Row operations). • Planter Section Clutch Control Check the Planter Section Clutch Control check box if you are using Row Shutoff module.
Page 179 The complete configuration should now appear on the Configuration Setup screen and is now able to be selected when starting a new Field Operation. Note: After completing this configuration, in order for it to become active, you must adjust Seed Monitor settings in Seed Monitor Setup. Ag Leader PN 4002083 Rev. N...
Page 180 Firmware Version 6.0...
Page 181: Row Shutoff
Do not rely solely upon the appearance of the On-Screen map. The on screen map will not show gaps and overlaps caused by incorrect GPS Offsets or AutoSwath Look-Ahead settings. Ag Leader PN 4002083 Rev. N...
Page 182: Automatic Autoswath Control
UTOMATIC WATH ONTROL Select Your Specific Configuration Configuration Automatic Swath Control Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > select your specific configuration > Setup (wrench) button > Automatic Swath Control button The Automatic Swath Control feature turns sections Automatic Swath Control off and on automatically based upon the following Planting...
Page 183: Checking Autoswath Performance For Row Shutoff
AutoSwath’s performance. When adjusting the look-ahead numbers from the suggested settings, it is recommended that you observe multiple trials to confirm the operations’ accuracy. • If you encounter overplanting or underplanting problems, see “Fixing Overplanting and Underplanting in AutoSwath” on page 168 Ag Leader PN 4002083 Rev. N...
Page 184: Fixing Overplanting And Underplanting In Autoswath
IXING VERPLANTING AND NDERPLANTING IN WATH AutoSwath Function — Turn Off Look Ahead Problem — Underplanting Recommended Action — Decrease look-ahead number Result — The AutoSwath anticipates headlands later and turns the planter off later. Problem — Overplanting Recommended Action — Increase look-ahead number Result —...
Page 185: Rate Control
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your specific configuration > Setup (wrench) button > Controller Settings button The Controller Settings screen consists of at least two tabs: the Channel Tabs, shown for each channel being controlled; and the Auxiliary Tab. Ag Leader PN 4002083 Rev. N...
Page 186: Channel Tab Settings
Channel Tab settings Controller Settings • Gear Ratio Channel 1 Auxiliary Channel 2 Ratio of the revolutions of the hydraulic drive as compared to one revolution of the seed meter. Gear Ratio • Shaft Speed Calibration 1.533 Allowable Calibration number representing the pulses that equal Shaft Speed Error Calibration...
Page 187: Control Valve Settings - Servo
30 % • Rate Not Responding Threshold The percentage of seed rate error that triggers the alarms. • Rate Not Responding Time The amount of time that the error occurs before the alarm sounds. Ag Leader PN 4002083 Rev. N...
Page 188: Hydraulic Seed Controller Settings For Specific Planters
YDRAULIC ONTROLLER ETTINGS FOR PECIFIC LANTERS Note: The settings, provided below, should be a good starting point for controller settings. However, always take the time to calibrate the seed meters, check for proper seed placement in the field, and make system setting adjustments as needed.
Page 189: Hydraulic Seed Meter Calibration Numbers
John Deere Vacuum: Standard Vacuum: ProMAX™ Vacuum: Precision Planting eSet® Vacuum: VenHuizen AccuVac Kit Mechanical: Finger Mechanical: Brush Meter Case IH Vacuum Cyclo® KINZE EdgeVac® Mechanical: Finger White Great Plains Mechanical: Standard Mechanical: Twin Row Ag Leader PN 4002083 Rev. N...
Page 190: Stepper Seed Rate Control
TEPPER ONTROL The Stepper Seed Control module allows Rawson ACCU-RATE Variable Rate Controller to control up to three hydraulic motor drives via the display. Configure the Stepper Seed Rate Control module in the following order. 1. Configure Stepper Seed Rate Control module “Create Planting Configuration”...
Page 191: Channel Tabs
This fixed ground speed setting compensates for delays in acquiring an initial ground speed when starting from a stand still. The setting determines the target seed meter RPM when the setting is active. Ag Leader PN 4002083 Rev. N...
Page 192: Gear Ratio Calculations For Seed Rate Motors
ATIO ALCULATIONS FOR OTORS The Gear Ratio is a setting that appears on the Controller Tab for the Stepper Seed Meter Motor Drive. It is the ratio of the revolutions of the hydraulic drive as compared to one revolution of the seed meter. This setting is used to determine how fast the Stepper Seed Rate Motor should operate to achieve the proper RPM of the seed meter during planting operations.
Page 193: Gear Ratio Drawing - For Multiple Drive Combinations
5. Repeat this process for multiple hydraulic drives. Enter the gear ratio for each motor under the appropriate tab. Note: Enter the number into the other channels for additional motor drives if they have the same total gear ratio. Ag Leader PN 4002083 Rev. N...
Page 194: Gear Ratio Drawing Shaft Drives
Gear Ratio Drawing Shaft Drives Seed Rate Drive Setting. Table: Shaft Ratio 2 Planter Brand Driven Drive Case IH Planters John Deere Planters White Planters Note: These values are for the shaft only. Drive/Driven value between the Seed Rate Motor and Planter Drive Sprocket must still be determined.
Page 195: Planter Options Screen
Press: Map button > Settings button > Planter Drives tab > Prime Seed Meter button Planter Drives (rpm) Prime Planter Drives Seed Meter Press: Map button > Meter RPM button > Planter Drives > Prime Seed Meter button Ag Leader PN 4002083 Rev. N...
Page 196: Calibrating Seed Rate Meters
A message displays, stating “Seed Meter Prime in Progress.” While this message displays, the seed meter will turn one (and only one) revolution automatically. When complete, return to the Seed Rate Planter Control screen. ALIBRATING ETERS The Meter Calibration number allows the seed meter to communicate the correct seed population to the display.
Page 197: Rate Control: Map Screen
Press the area of the box that shows a particular variety, and a green bar highlights that variety. The Rate 1 and Rate 2 are then shown on the Rate buttons. Ag Leader PN 4002083 Rev. N...
Page 198: Rate Control Settings
• (B) Target Rate • (C) Actual Rate Two items, Target Rate and Actual Rate, appear on each Product Tab shown in the Product Control Toolbox. The Target Rate is the desired planting rate. The Actual Rate is communicated by the shaft rotation sensor.
Page 199: Loading Prescriptions
HOWING RESCRIPTIONS ON THE CREEN On the Map screen’s Mapping Toolbox, press the Legend Setup (wrench) tool and the Legend Select screen appears. Notice that the Rx (prescription) button appears at this screen. Ag Leader PN 4002083 Rev. N...
Page 200: Troubleshooting
1. Press the Rx button to show a legend of the Legend Select prescription rate. S46R1 Varieties Rate Load Clear Map References 2. After pressing the Rx button, the 2.74 prescription rate appears on the Legend. S46R1 Soybeans sds/ac This legend is not editable. 33000 33000 •...
Page 201: Hydraulic Seed Control: Zero Flow Offset Variation
Error Message: “Drive Stalled Drive #” Possible Cause: The hydraulic drive motor has stopped rotating. Solution: Check the stepper seed motor to see if it is restricted from turning, and that the hydraulic drive is working. Ag Leader PN 4002083 Rev. N...
Page 202 Error Message: “Meter Not Moving - Drive #” Possible Cause: Either the Seed Meter Calibration failed, or the Seed Meter Prime failed Solution: Make sure that the tractor’s hydraulic outlet is turned on. Error Message: “Seed Drive at Maximum RPM Drive #” Possible Cause: Starting the priming routine when the hydraulic motor is not on Solution: - Slow the planter unit’s ground speed.
Page 203: Down Force
To enable Down Force, check the Down Force Implement Wizard: Implement Options button on the Implement Options screen of the Planter Monitor Wizard. None Split Rows Enabled Planter Section Clutch Control Down Force Ag Leader PN 4002083 Rev. N...
Page 204: Setup Down Force Configuration
At the Down Force Options screen, the operator can Operating Configuration Wizard: Down Force Options choose a Down Force configuration from the drop Down Force Configuration down menu: 2 Channel, 4 Sensor Channel Sensor The rows listed are the recommended rows where the sensors should be installed.
Page 205 Maximum Force is used to limit the down force created by the actuator. The default is 425 lbs same as the factory airbag. Gauge Wheel Load Alarm sets alarm to notify operator when system goes below Minimum Gauge Wheel Load for a set amount of time (Time Threshold). Ag Leader PN 4002083 Rev. N...
Page 206 The pressure and duty cycle settings are to help the display control the hydraulics. The defaults should be correct. Hydraulic Pressure (Grayed out for Monitor Only). Operating Limits Pressure Duty Cycle Ag Leader Valve Block Calibration Minimum Medium Maximum 2800 Firmware Version 6.0...
Page 207: Calibrate Pressure Sensor
Gauge Wheel and Down force being applied to 150 lb row unit. Press bar graph to advance to next 100 lb 50 lb graph. Bar graph may also contain graphs for Advanced Seed Monitoring. Ag Leader PN 4002083 Rev. N...
Page 208: Planter Options Screen
Down Force is not shown when in Monitor Only Down Force 190 lb 400 lb mode. 300 lb 200 lb 100 lb LANTER PTIONS CREEN Settings Down Force Press: Map button > Settings button > Down Force tab Down Force Press: Advance Seed Monitoring button >...
Page 209: Planter Performance Screen
Technical support may request that you look at Enabled Enabled Sensor 4 Status Sensor 4 Status 0.00 PSI 0.00 PSI Hydraulic Pressure Hydraulic Pressure these screens for help in diagnosing a problem. ORCE LARM SCREENS Ag Leader PN 4002083 Rev. N...
Page 210 Down Force Inadequate Down Force System hydraulic pressure is at maximum pressure down force system does not achieve acceptable gauge wheel load Down Force Inadequate Recommendation: Planter does not weigh enough to handle the field conditions. Low Gauge Wheel Load Down Force Down force system does not achieve acceptable gauge wheel load User defined alarm to signal operator if planter is loosing planting...
Page 211: Seed Tube Monitor Module
“Vehicle Offsets” on page 85 6. Swath Section Offsets For more information, see “Swath Section Offsets” on page 86 • For information on the Auxiliary Input Settings (Switch Mapping) feature, see “Auxiliary Input” on page 82 Ag Leader PN 4002083 Rev. N...
Page 212: Seed Monitor Setup
ONITOR ETUP Select Your Specific Configuration Configuration Seed Monitor Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your specific configuration > Setup (wrench) button > Seed Monitor button Seed Monitor • The Split Rows and Standard Rows settings show Split Rows Standard Rows Speed Source...
Page 213: Seed Tube Sensor Configuration
- Split-rows must configure the Seed Tube Monitor Module for both Standard Row configurations and Split Row Configurations. Both configurations are then saved in the display, and settings for each planting configuration are automatically applied when you specify the machine configuration at the Field Operation Configuration Wizard. Ag Leader PN 4002083 Rev. N...
Page 214: Planter Options
LANTER PTIONS Settings Seed Monitor Press: Map button > Settings button > Seed Monitor tab Seed Monitor Press: Advanced Seed Monitoring button > Setup (wrench) button > Seed Monitor tab The Planter Options screen adjust Seed Tube Planter Options Monitor Module alarm thresholds. Planter Drives Seed Monitor Down Force...
Page 215: Seed Monitor Diagnostics
High and Low buttons assign a percentage of error that will trigger the rate alarm. • The Disable High and Disable Low buttons deactivate the respective high or low rate alarms. • The Select All button selects all rows to change the alarm threshold for the entire group. Ag Leader PN 4002083 Rev. N...
Page 216: Seed Monitor Thresholds
ONITOR HRESHOLDS Thresholds Settings Seed Monitor Press: Map button > Settings button > Seed Monitor tab > Thresholds button Adjust Seed Tube Monitor Module alarm thresholds. Seed Monitor Thresholds Corn Double Seed Threshold 3 in Poor Spacing Threshold 5 in OMMAND CREEN XAMPLES...
Page 217: Planting Map Screen - Zoom To Extent
• Pressing the Map View button will cycle between the available map screen views, and the appearance of the Map View button changes. • At the Zoom to Extent map view, the Map Legend shows varieties. Ag Leader PN 4002083 Rev. N...
Page 218: Planting Map Screen - Zoom Detail
LANTING CREEN ETAIL 38.4 Corn C1291 • (A) GPS Status 3200 Varieties 32000 • (B) Total Field Acres C1966 C1291 sds/ac C1291 36000 • (C) On-screen Lightbar 36000 • (D) Ground Speed • (E) Diagnostics button • (F) Productivity tab (Variety) •...
Page 219: Legend Setup
Run screen map appears on the left-hand side of the 92B12 Legend Setup screen. To change the color of one of S46R1 these varieties, highlight that variety and then press a color on the color palette at right. Press when finished. Ag Leader PN 4002083 Rev. N...
Page 220: Advanced Seed Monitoring
DVANCED ONITORING RAPH Tapping subsequently will toggle the bar graph between all the following seed placement performance graphs. Population 32000 sds/ac 120 % 100 % 80 % 60 % Singulation 95.5 % 100 % 98 % 96 % 94 % 92 % Spacing Quality 96.2 %...
Page 221: Planter Performance Screen
Displays the average spacing quality for the planter, or selected sections of the planter, along with the highest and lowest. - spacing quality is a measure of the percent of seeds being properly placed so that the spacing is as expected in the seed trench. Ag Leader PN 4002083 Rev. N...
Page 222: Row Performance Screen
• (F) Singulation Displays the average Singulation for the planter, or selected sections of the planter, along with the highest and lowest rows. - singulation is a measure of the percent of seeds being properly metered so that one and only one seed drops from each seed cell of the seed meter.
Page 223: Virtual Seed Trench
The yellow and red indicators show where there are seeding errors. The display does not log this information • Double Skip Poor Spacing • Play/Resume button • Pause button • Zoom In button • Zoom Out button Ag Leader PN 4002083 Rev. N...
Page 224 Firmware Version 6.0...
Page 225: Kinze Planter Monitor Module
Seed Monitor Planter Configuration Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your specific configuration > Setup (wrench) button > Seed Monitor button > Planter Configuration button Ag Leader PN 4002083 Rev. N...
Page 226: Ground Speed Settings
Planter Configuration • Front Units and Rear Units Planter Configuration Ground Speed EdgeVac Front Units Rear Units Sensors to adjust the number of front and Magnetic Calibrate Pickup rear planting units, if necessary. Speed Source • Shaft RPM Sensors Shaft RPM Sensors Row Spacing Calibrate...
Page 227: Edgevac
Planter Monitor information, complete the detection process for each muxbus sensor. Note: Be sure that all sensors are unplugged before beginning the process. If any sensors are plugged in, the Muxbus Detection process will abort. If this occurs, unplug all sensors and retry procedure. Ag Leader PN 4002083 Rev. N...
Page 228 1. To start the Sensor Muxbus Detection process, make any settings changes necessary at the Planter Configuration screen and then press . For more information on these settings, see “KINZE Sensor Configuration” on page 211 Note: The Muxbus detection process will only start if sensor configuration has changed. 2.
Page 229: Sensor Information
• Model Number shared by each unit of the same model of seed tube sensor. • Baud Rate the speed of transmission between the muxbus sensor and the PMM module. Ag Leader PN 4002083 Rev. N...
Page 230: Kinze Seed Monitor Alarms
KINZE Seed Monitor Alarms Select Your Specific Configuration Configuration Seed Monitor Alarms Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your specific configuration > Setup (wrench) button > Seed Monitor button > Alarms To view the Seed Monitor Alarms screen, press the Seed Monitor Alarms Alarms button on the KINZE Planter Monitor Setup...
Page 231: Kinze Edgevac Calibration
Note: The appearance of this screen varies, depending upon whether you have one or two EdgeVac sensors. KINZE P LANTER ONITOR PTIONS Settings Planter Monitor Press: Map button > Settings button > Planter Monitor tab Ag Leader PN 4002083 Rev. N...
Page 232: Seed Monitor Diagnostics
Planter Monitor Press: Advanced Seed Monitoring button > Setup (wrench) button > Planter Monitor tab Make changes to the bar graph’s rate/spacing Planter Options display. Options include Planter Average, Freeze Planter Monitor Planter Drives and Scan, explained below. • Planter Average •...
Page 233: Kinze Display Items On Equipment Tab
The number of acres (hectares) that can be planted with the amount of seed remaining in the tanks. Tank Pressure The air pressure level for the Air Seed Delivery (ASD) system. Down Force - Measure of force on gauge wheel and force being applied to row unit. Ag Leader PN 4002083 Rev. N...
Page 234: Planter Monitor Module Screen
Shown is an example of a KINZE Planter 38.4 Monitor Module (PMM) with Row Shutoff sds/ac 546R1 30000 30000 and three Hydraulic Seed Control drives. 30000 29000 • (A) Mapping toolbox • (B) Product Control toolbox • (C) Meter RPM button Flow: 10560 sds/min Applied:...
Page 235: Troubleshooting
Operator’s manual for further instructions. Error Message: “Clean or replace sensor (Row #) as necessary”. Possible Cause: Population sensor dirty. Solution: Press OK to dismiss the error. Then clean the sensor and restart the system. Ag Leader PN 4002083 Rev. N...
Page 236 Error Message: “(Row #) mux bus data line short to mux bus ground”. Possible Cause: Population sensor’s mux bus signal wire is shorted to ground. Solution: Press OK to dismiss the error. The display then replaces the message window with an alarm text on the header bar at the top of the Run screen. This alarm text continues until the wire is fixed or the sensor is disabled.
Page 237 Solution: Press OK to dismiss the error. Check fan on the ASD system. Error Message: Air Compressor Sensor Too Low.” Possible Cause: The minimum air compressor tank pressure is not present. Solution: Press OK to dismiss the error. Check the air compressor. Ag Leader PN 4002083 Rev. N...
Page 238 Firmware Version 6.0...
Page 239: Liquid Rate Control
Use the drop-down menu to select a controller or press to add a controller. Press continue. 8. Assign Container Name Container names default to Main Tank. Press to enter a new name if desired. Ag Leader PN 4002083 Rev. N...
Page 240 9. Assign Container Capacity Press to enter the container capacity. Press to accept. 10. Enter Container Units Use the drop-down menu to select the container units. Once container has been configured press to continue. 11. Enter Swath Width Press to enter swath width. 12.
Page 241: Implement Offsets
“Setup Event” on page 45 MPLEMENT FFSETS Select Your Specific Configuration Configuration Offsets Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your specific configuration > Setup (wrench) button >Offsets button Ag Leader PN 4002083 Rev. N...
Page 242: Controller Settings
Implement Offsets screen appears, with each channel’s settings shown on its own tab. Defaults to the value entered during Configuration Wizard Boom sections can independently be offset forward or back (application only) Press to access Swath Section Offsets screen. Select Swath section to edit and press Edit button. Enter Offset for that specific section and Forward/Backward from rear axle.
Page 243: Creating Products
Product Templates are set up by using the on-screen wizard described in the following steps. Note: Prior to making a new product template, it is recommended to add the individual products to the list in the units recommended by the chemical label. Ag Leader PN 4002083 Rev. N...
Page 244 It is recommended to create product templates that contain the products applied for a crop type or time of the season. Examples are: • Pre-Emerge Burndown • Post-Emerge Corn • Post-Emerge Beans • Insecticide • Fungicide In each template the products can be checked on/off for the mix when loaded at the run screen. Note: Prior to making a new product template, it is recommended to add the individual products to the list in the units recommended by the chemical label.
Page 245: Load Configuration
Represents Product Mixes prior to firmware version 5.4 and mixes exported from SMS ONFIGURATION 1. Press: Select Event button. Select a Season, Grower, Farm, and Field on the Management Selection Select Event screen. For more information, see “Setup Event” on page 45 Ag Leader PN 4002083 Rev. N...
Page 246 2. Product Selection Select product from the drop-down list or press to create a new one. 3. Configure Product Mix When using a product template, the mix contents and amounts are defined at the map screen by: -a.activating or de-activating products -b.changing rate or total amount of a product -c.changing total amount of the product or overall rate of product application...
Page 247: Mix Calculator
Press in the product information section of the home screen. 0.0 lb/ac 0.0 lb 0.0 ac 0.0 lb/ac 0.0 lb Corn Post 0.0 ac Ag Leader PN 4002083 Rev. N...
Page 248 Select a product for each channel. Press to continue. For product templates, select which products to make active within the template. Press calculator to access the Mix Calculator screen. Firmware Version 6.0...
Page 249: Configuration Setup
DirectCommand configurations should adjust settings at the Equipment Configuration Settings screen. For more information, see “Equipment Settings” on page 79 • Speed Input Setup For more information, see “Speed Input Settings” on page 80 Ag Leader PN 4002083 Rev. N...
Page 250: Hardi Safe Track
• Calibrate Distance For more information, see “Calibrate Distance” on page 81 • AutoSwath settings (if using AutoSwath) For more information, see “AutoSwath” on page 84 • GPS Offsets Adjust GPS offsets for the Antenna Tab and the Hitch Tab. For more information, see “Vehicle Offsets”...
Page 251 • Threshhold The user-defined percentage of actual rate error allowed before an alarm sounds. • Timeout The number of seconds that an actual rate falls out of the error threshold before an alarm sounds. Ag Leader PN 4002083 Rev. N...
Page 252: Control Valve Settings - Pwm
Control Valve Settings - PWM • PWM Frequency Control Valve Settings The frequency that the PWM control valve is Control Valve: PWM 12 volt pulsed at. Settings can be found from the manufacturer of the valve. Typical settings Allowable PWM Frequency Error range from 100-125 Hz.
Page 253: Calibrate Pressure
> Setup (wrench) button > Auxiliary Input button > Assign button > Left Fence Row or Right Fence Row. For more information on Auxiliary Input Settings, see “Auxiliary Input” on page 82 Ag Leader PN 4002083 Rev. N...
Page 254: Load Configuration
38.4 15.0 lb/ac After specifying Fence Row Nozzle settings at the Auxiliary Input Assignment Coverage screen, the Fence Row Nozzle Coverage Overlap Indicators (A), which are shaped like triangles, appear on either side of the sections behind the vehicle icon. 544.8 lb/min Flow: 630 gal...
Page 255: Application Map Screen - Zoom To Detail
• Press Clear Map to permanently remove all map data from the active field operation. • Press Load Reference to load a map from a previous operation performed in that field to view as a background map. Ag Leader PN 4002083 Rev. N...
Page 256: Rate Control: Product Control Toolbox
ONTROL RODUCT ONTROL OOLBOX During DirectCommand Run Time operations, the Product Tabs are shown in the upper right-hand side of the Map screen. Press the Product Tabs, and an extended view shows the Rate 150.00 buttons, Manual Valve Control button, Prescription button, Rate 150.00 ExTran Increase and Rate Decrease arrows...
Page 257: Rate Control Settings
When spraying with one or more boom sections off, the system automatically reduces the minimum flow setting according to the reduced spray width. To adjust this setting, press and enter the desired numeric value. Ag Leader PN 4002083 Rev. N...
Page 258: Container Level Settings
ONTAINER EVEL ETTINGS When filling or emptying container, use the Rate Control Settings Container Level portion of the Rate Control Settings Rate Control Containers screen to update the amount of product in the Tank 1 - Product 1 containers. Full: 10 % Current: Container Level screen - (Partially Full)
Page 259: Tank Alarms
0.00 0.00 0.00 0.00 Product 2 Rate 1 Increment Minimum Flow Rate 2 0.00 0.00 0.00 0.00 Product 3 Minimum Flow Increment Rate 2 0.00 0.00 0.00 0.00 1. Press the Load Prescription button. Ag Leader PN 4002083 Rev. N...
Page 260: Showing Prescriptions On The Map Screen
2. The File Selection screen appears. File Selection 3. Highlight the correct .AGSETUP (prescription) or Name Field: SW 1/4 Product 1: 32% UAN Autopilot_dry.irx Product 2: Balance Flexx .shp (shape) file and press Product 3: Roundup Product 4: demo_2_liquid.irx Product 5: 4.
Page 261: Shape File Conversion
Autopilot_dry.irx Product 2: Balance Flexx Roundup Product 3: Product 4: demo_2_liquid.irx Product 5: demo_2_liquid_3_dry.irx demo_3_liquid,irx demo_3dry_1liq.irx Demo Field Planting Application Note: Select the product and units that the shape file prescription was made for. Ag Leader PN 4002083 Rev. N...
Page 262: Liquid Application Diagnostics
3. Select Data From Shape File Select Prescription Select the column that contains the product Product: NH3 recommendation rate. The list on the right side of the Column Column Preview dialog shows sample data from the selected column. 4. Select Units Units Select the controlling units for product application.
Page 263: Troubleshooting Directcommand Liquid Applications
Note: Boom offsets are measured from the center of the vehicle to the center of the boom section. 3. Adjust the turn on look-ahead and turn off look-ahead to fine-tune Automatic Swath Control performance. 4. Verify the boom offsets are appropriate for the sprayer. Ag Leader PN 4002083 Rev. N...
Page 264 Problem: No “As Applied” rate Solution: 1. Check cabling from the channel connection of the Liquid Control Module to the flow meter. 2. Check flow meter for product buildup and proper operation. Problem: Rate is erratic Solution: 1. Verify that the rate display smoothing option is check marked in the setup of the configuration. 2.
Page 265: John Deere Specific Instructions
The display will not control the rate based upon the target rate value entered into the system. Application rate is controlled exclusively by the SprayStar display. 1. SprayStar is a trademark of Deere & Company. Ag Leader PN 4002083 Rev. N...
Page 266: Spraystar Rinse Cycle
SprayStar Rinse Cycle When using the rinse cycle feature on the SprayStar, the display must have the boom sections on to allow the SprayStar to properly run the rinse routine. To ensure that boom sections are on: 1. Enter a target rate into the display. 2.
Page 267: Servo Control Valve Settings (By Manufacturer)
Raven Flow Control Valve, In-line or Bypass 100% 3" (Standard) Servo In-line or Bypass Mid-Tech, 3/4” Servo In-line or Bypass Mid-Tech, 1” Servo In-line or Bypass Mid-Tech, 1 1/2” Servo In-line or Bypass Mid-Tech, 2” Servo Ag Leader PN 4002083 Rev. N...
Page 268 Control Valve Valve Response Valve Response Response Flow Control Valve Configuration Threshold Dickey-john NH3 Heat In-line Servo Exchanger Flow Control Valve or Sprayer Model Control System (and year if applicable) Apache 510/710/ 1010/1210 (2006 In-line Servo 100% and up) All Case IH sprayers when AIM Command In- 100%...
Page 269 14, 16 (2006 and PWM 12-volt Hagie 39-pin Spray II switch box Calibrated Reflow 100% (2006 and 2007) John Deere 4700, No rate control 47X0, 49X0 provided Miller Nitro N1 and Pump Servo 100% Ag Leader PN 4002083 Rev. N...
Page 270 Flow Control Valve or Sprayer Model Control System (and year if applicable) Miller Nitro N4 Pump Servo 100% (Imperia Montana Paruda Calibrated Reflow 100% l) or 11.4 (Metric) RoGator 864, 874, **500- PWM Ground 1064, 1074 RoGator 1054 Pump Servo 100% RoGator 1254 Pump Servo...
Page 271: Liquid Servo Settings Description
This setting represents the maximum duty cycle that is sent to the control valve without producing any hydraulic flow from the PWM valve. Using too high of a Zero Offset value can cause the product control system to not properly shut off. See PWM valve manufacturer information for recommended settings. Ag Leader PN 4002083 Rev. N...
Page 272: Dickey-John Nh3 Conversions
• Allowable Error Default Value: 2% 2% - 3% is the normal dead band setting range. - Too low of a setting value can cause the product control system to continually hunt for the target application rate. - Too high of a setting will cause excessive product application error. NH3 C ICKEY ONVERSIONS...
Page 273: Miscellaneous
Determines how far ahead the system looks to turn the swath sections off. This setting compensates for delay in the product control system when the boom sections are turned off. • Outside Boundary Option Determines the behavior of the sections when exiting the field boundary or prescription-mapped area. Ag Leader PN 4002083 Rev. N...
Page 274: Auxiliary Input Settings
• Coverage Option Based on the coverage option selected, this setting determines the behavior of the swath section when entering/exiting an already applied area or field boundary. Options available include: Minimize Skip, Minimize Overlap, and User Defined Percentage. Auxiliary Input Settings •...
Page 275 When selected, granular product application of a strip-till toolbar will be shut off if fan speed drops below the Min Speed setting. • Rate Threshold Percentage difference between the Actual Rate and the Target Rate when the Rate Not Responding Message is displayed on the Run screen. Ag Leader PN 4002083 Rev. N...
Page 276: Fertilizer Default Product Settings
ERTILIZER DEFAULT RODUCT ETTINGS Abbreviated Percentage (in terms of lbs.100 lbs.) name for display and Material Type Density predefined P (P K (K name for Anhydrous Liquid under 5.14 lbs./gal. Ammonia pressure (at 60°F) 28% UAN Liquid 28% UAN 10.67 30% UAN Liquid 30% UAN...
Page 277: Enable Virtual Terminal And Task Controller
Use 480 Mask Size Function Instance The user will have to setup a configuration for the Task Controller also. See Note: “Task Controller” for more information on setting up Task Controller configuration. on page 93 Ag Leader PN 4002083 Rev. N...
Page 278: Setup
ETUP Use drop-down menu to select the System Type • Sprayer • Spreader Use drop-down menu to select Controller Make and Model Hardi - 5500 (with JobCom) Bogballe - Calibrator Uniq (Zurf, Uniq, ICON, 2003) UNIA Group - BREZG Reco/Sulky - Vision-X KUHN - Quantron LH Agro - LH5000 RDS Pro...
Page 279 PPLICATION Use keyboard to enter the Configuration Name Use keypad to input the number of sections Ag Leader PN 4002083 Rev. N...
Page 280: Status Screen
TATUS CREEN The status screen provides the user with readout of the connected controller’s target rate, actual rate, section status, and connection status. The target rate is not available for edit from the VT screen. Target rate can only be adjusted Note: from the Run Screen.
Page 281: Settings Screen
Press Manage Configurations button to edit system configurations. A user can add, remove, edit, or select an active configuration. The module will save up to 4 configurations. LARM ETTINGS Press Alarm Settings button to edit alarm thresholds. Ag Leader PN 4002083 Rev. N...
Page 282: Diagnostics
Warning Enabled – With this setting enabled, the user will get a “Rate Not Responding” alarm when the actual rate does not fall within the threshold and timeout settings. The user will not receive an alarm if this setting is disabled. Rate Not Responding Threshold –...
Page 283: Create Configuration
For more information, see “Calibrating an Injection Pump” on page 268 Rate Response Warning • Error Threshold The user-defined percentage of actual rate error allowed before an alarm sounds. Ag Leader PN 4002083 Rev. N...
Page 284: Flow Monitor Warning
• Error Delay The number of seconds that the actual rate falls out of the error threshold before an alarm sounds. Flow Monitor Warning • Error Threshold The percentage of perceived application error, based on the discharge flow sensor. • Enable Warning The Enable Warning check box allows you the option of displaying the Flow Monitor Warning.
Page 285: Priming An Injection Pump
• In order for a Direct Injection tank to agitate the product, you must set the agitator motor switch on Run (which agitates the product continuously) or Pulse (which agitates the product intermittently). Ag Leader PN 4002083 Rev. N...
Page 286: Load Configuration
3. Acknowledge the Warning A warning appears, stating that you must circulate the product back to the Direct Injection tank. Acknowledge the warning by pressing 4. Start Pump and Set Desired Speed Injection Pump Prime The Injection Pump Prime screen appears. The Use increase/decrease arrows to start pump and set to desired speed.
Page 287: Injection Diagnostics
Liquid Module PN: 4000394. The injection control is based off of the vehicle that has been configured for the liquid DirectCommand control channel. Once configured, the Injection pump uses the same switch inputs and ground speed input that has been configured for the liquid system. Ag Leader PN 4002083 Rev. N...
Page 288: Direct Injection: Pump Doesn't Run
Direct Injection: Pump Doesn’t Run Power can be checked at multiple locations. First is the connection at the Injection module where the battery Boom indicators See “Boom sections power cable plugs in. The second turn blue on run not turning blue” in manual location is the output connection found on the injection module.
Page 289: Battery Power Pin Outs
The injection module will only get feedback from this sensor when the pump is rotating. If the analog sensor is not providing a feedback to the module, the pump will run full speed and will not change speeds manually. Ag Leader PN 4002083 Rev. N...
Page 290: Direct Injection: Application Error
NALOG PEED Module Auxiliary Connection 3-Pin Conxall 12-Pin Socket Signal >9V at max pump speed Ground Direct Injection: Application Error The injection module requires that a pump calibration be performed before actual application can occur. The calibration number found on the tag of the Verify factory calibration injection pump’s digital speed sensor needs to be divided by a factor of 10 number is pump cal/10...
Page 291: Direct Injection: Inlet Restriction
• Perform Calibration Press the Perform Calibration button to begin the calibration procedure for the Direct Injection pump. The pump will not run until this calibration has been performed. Ag Leader PN 4002083 Rev. N...
Page 292: Rate Response Warning
Rate Response Warning • Error Threshold The user-defined percentage of actual rate error allowed before an alarm sounds. • Error Delay The number of seconds that an actual rate falls out of the error threshold before an alarm sounds. Flow Monitor Warning •...
Page 293: Installation
For Liquid Application see “Create Configuration” on page 223. For Granular Application see “Create Configuration” on page 293. Sensors can also be set up using Serial Control or can be use for site verification. Ag Leader PN 4002083 Rev. N...
Page 294: Crop Sensor Setup
ENSOR ETUP The Crop Sensor Setup screen is where you can adjust the rate displayed on the Map screen Equipment Tab’s VI Bar Graph. You can access the Sensor Setup screen in one of two ways: Select Your Specific Configuration Configuration Crop Sensor Press: Home button >...
Page 295: Sensor Setup
Rate Table Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your specific configuration > Setup (wrench) button > Crop Sensor button > Use Application Rate Table checkbox (Check) Ag Leader PN 4002083 Rev. N...
Page 296 38.4 15.0 lb/ac lb/ac 544.8 lb/min 630 gal 100% 80 ft OptRx View Target Rate VI Map Rate Average VI Table 0.328 Press: Map View button > Rate Table button Crop Sensor Rate Table The display can have 2-16 ranges. Each Range is Number of Ranges Lower Bound Rate...
Page 297: Determining Where To Scan A Reference Strip
Start 4. Recording Reference Strip When you are driving the Reference Strip, appears in the Equipment Tab. This bar Recording 321 counts the number of seconds that you record the reference strip. Ag Leader PN 4002083 Rev. N...
Page 298 Note: In order to create an accurate Reference Strip, record for at least 300 seconds (5 minutes) in Corn and North American Wheat and 150 seconds (2.5 minutes) in Europe. 5. File Name 0.49 Press the Stop button when you wish to 30% UAN 30% UAN gal/ac...
Page 299: Crop Sensor Settings
• Max Rate (shown at Crop Sensor Setup) The highest amount of N that should be applied. • Min Rate (shown at Crop Sensor Setup) The lowest amount of N that should be applied. Ag Leader PN 4002083 Rev. N...
Page 300 • N Refers to Nitrogen being applied. • N Algorithm The OptRx Crop Sensor Module uses an N algorithm to calculate an N rate through a Sufficiency Index reading. Near Infared Reflective - Red Reflective NDVI Normalized Difference Vegetation Index = Near Infared Reflective + Red Reflective Near Infared Reflective - Red Edge Reflective NDRE Normalized Difference Red Edge...
Page 301 Solution: Perform the following actions, depending upon the possible cause of the error: If 1), check cabling. If 2), check the OptRx Diagnostic screen to determine if the OptRx Crop Sensors are still communicating. Ag Leader PN 4002083 Rev. N...
Page 302 Firmware Version 6.0...
Page 303: Create Configuration
CAN A or CAN B. Locked UnLocked CAN A No Functionality Setup using Ag Leader Menus Operate using Ag Leader Run Screens CAN B Setup using Virtual Terminal Screens Setup using Virtual Terminal Screens Operate using Virtual Terminal Screens Operate using Ag Leader Screens for more information on using Virtual Terminal.
Page 304 ETUP ONFIGURATION Select Your Specific Configuration Configuration NORAC UC5 Press: Home > Setup (wrench) button > Configuration (tractor) button > Configuration tab > (your particular Operating Configuration) > Setup (wrench) button > NORAC UC5 button The NORAC UC5 Setup screen appears. Norac UC5 •...
Page 305 If you change the flow setting by more than 20 percent, you should Retune. ONFIGURATION Press: Select Event button. Select Event Select a Season, Grower, Farm, and Field on the Management Selection screen. For more information, see “Setup Event” on page 45 Ag Leader PN 4002083 Rev. N...
Page 306: Engage Button
ONFIGURATION Once a configuration has been completed, the Map View button appears at the bottom of the Home screen. Press the Map View button to see the Map screen. Engage button If the NORAC UC5 Boom Height Control is included in your Operating Configuration, then the NORAC Engage button appears on the display’s Task Bar.
Page 307: Boom Height Control Options Screen
Height / Roll Temperature Left Outer 91 cm 21.1 C Left Inner 21.1 C 89 cm 102 cm 21.1 C Main Lift 21.1 C Right Inner 84 cm 81 cm Right Outer 21.1 C Boom Frame Ag Leader PN 4002083 Rev. N...
Page 308 Firmware Version 6.0...
Page 309 4. Add Granular Functionality Spinner Granular Press then to add Spinner Spreader functionality to the implement. Application Spreader 5. Select Controller Use the drop-down menu to select a controller or press to add a controller. Press continue. Ag Leader PN 4002083 Rev. N...
Page 310 6. Select Controller Device Select DirectCommand from the Device drop-down menu. Select either, Spinner Spreader Control 3CH, 5CH, or Stepper Spreader Control from the Direct Type drop-down menu. Press to continue. 7. Enter Controller Name Controller name defaults to DirectSpreader. Press to accept, or press to enter a new name if desired.
Page 311: Controller Settings
The settings shown at this screen vary, depending upon whether your spreader uses a PWM Control Valve or a Servo Control Valve. Use the Control Valve Configuration drop-down menu to choose the appropriate configuration for your machine. Ag Leader PN 4002083 Rev. N...
Page 312: Spreader Control: Pwm Control Valve
Settings for a PWM Control Valve are described below. Settings for a Servo Valve are described at “Spreader Control: Servo Control Valve” on page 297 The Spinner Tab appears behind the channel tabs. The Spinner Tab is where Fan Speed settings are shown.
Page 313: Spreader Control: Servo Control Valve
The Maximum Conveyor Speed setting determines the maximum RPM of the conveyor that controls product distribution to the application point. Spreader Control: Spinner Tab To view Fan Speed Calibration settings, press the Spinner Tab. Operators with Spinner Spreaders that use PWM valves will see additional active settings. Ag Leader PN 4002083 Rev. N...
Page 314: Creating Single Products
Spreader Control • Fan Speed Calibration Channel 1 Channel 2 Channel 3 Spinner The number of pulses that are generated by the sensor during one revolution of the spinner dish. The default Fan Speed 4 pls/rev setting is 4. Calibration •...
Page 315: Creating Dry Fertlizer Blends
Note: Any liquid herbicides set up within the system can be added to create an impregnated blend product. 5. Select the desired component from the drop-down menu. More than 7 products can be put part of a Mix/Blend but only 7 or fewer can be active at the same time. Ag Leader PN 4002083 Rev. N...
Page 316 A new product can be set up at this time by pressing and following the Product Setup Wizard. Press to add selected product or p ress to return to Add Mix/Blend screen without adding a product. 6. Press to add an additional component. 7.
Page 317 Product Mix screen which is available in the event setup wizard or by pressing a product line on the home screen. A product can not be active with a rate of zero. When all product mixes have been configured press Ag Leader PN 4002083 Rev. N...
Page 318 4. Select Region and Controlling Product Select Region from drop-down menu or use press keyboard button to name region. Select Controlling Product for the Mix/Blend. Press to complete the process of setting up the dry blend or p ress to return to Home screen without setting up an event.
Page 319: Run Time Operations
See “Spreader Control: Static Calibration” on page 306. • Product Density This density value (shown in pounds per cubic foot, or lb./ft.3), is stored with each product. Press to edit if needed. Ag Leader PN 4002083 Rev. N...
Page 320: Conveyor Rate Look-Up
Note: For proper machine performance and accuracy, you should check the Product Density daily. • Feed Gate 1 Opening Represents the Feed Gate opening for Conveyor 1. Measure the depth of product on the conveyor to ensure accurate feed gate setting value. •...
Page 321: Fan Frame & Feed Gate Actuator Settings
Enter the routine time that it takes to turn the conveyor one revolution. 4. Press Start Press the Start button, and when the routine is finished press 5. Acknowledge the second warning. Return the spinner hydraulic control to a field-ready condition. Ag Leader PN 4002083 Rev. N...
Page 322: Spreader Control: Static Calibration
Spreader Control: Static Calibration You must perform a conveyor discharge calibration for each granular product control channel (bin) for the equipment configuration. This process is outlined below and on the following page. The static calibration procedure is performed before applying in field conditions. 1.
Page 323: Spreader Control: In-Field Calibration
Problem: AutoSwath is checked on, but the spreader will not turn on. 1. Make sure the ground speed is registering a value greater than zero on the display. Ag Leader PN 4002083 Rev. N...
Page 324 2. Make sure the applicator is inside of the field boundary. Problem: Conveyor turns off in the middle of the pass. Solution: Check the display firmware and module firmware to see if they are running the latest version. Problem: Total Applied does not match Actual Weight Applied. Solution: 1.
Page 325: Load Configuration
When product container is low or empty, system automatically advances product application to the next designated container in the sequence. Note: Container Sequencing functionality is only supported in the Ag Leader Integra display beginning with display firmware upgrade 6.0. Ag Leader Versa display does not support sequencing functionality.
Page 326: Map Screen
3. Press the Add Container Sequence button to add container sequencing to current configuration. 4. Press Container icon to select containers to be sequenced. Note: System defaults container sequence to ascending order during initial setup. User can select starting container when configuration loads to the Map Screen.
Page 327: Creating Products
“Events” on page 27 9. Press to continue to the Options screen. 10. Use the drop-down menu to select controlling units for products to be applied. 11. Press to accept and continue to Map screen. Ag Leader PN 4002083 Rev. N...
Page 328 CREEN (A) Single Rate control display for all containers in a sequence. Container level indicator displays the combined total for all containers in the sequence. (B) Manage individual container level edits for all containers when using container sequencing (see image to the left). Rate Control Settings are further explained in “Rate Control Container Settings are detailed in...
Page 329 The system disables Automatic sequencing. User is required to re-enable Automatic Sequencing for the appropriate container. To perform calibration procedures, see “Spreader Control: Static Calibration” on page 306 “Spreader Control: In-Field Calibration” on page 307 Ag Leader PN 4002083 Rev. N...
Page 330 Firmware Version 6.0...
Page 331: Create Air Seeder Configuration
5. Add Strip Till Functionality to the Implement Granular Press then to add Strip Till functionality to the implement. Strip Till Application 6. Select Controller Use the drop-down menu to select controller or press to add a controller. Press continue. Ag Leader PN 4002083 Rev. N...
Page 332 7. Select Controller Device Select DirectCommand from the Device drop-down menu. Select Granular Strip-Till Control from the Device Type drop-down menu. Press to continue. 8. Enter Controller Name Controller name defaults to DirectStrip Till. Press to accept, or press to enter a new name if desired.
Page 333 1. Select Vehicle Use drop-down menu to choose a vehicle, or press to enter a new vehicle. Press continue. Note: It is recommended that Vehicle Offset Information be entered before continuing with the configuration process. Ag Leader PN 4002083 Rev. N...
Page 334 2. Select Implement Select an implement from the drop-down list menu, or press to create a new implement. Press to continue. 3. Select Planter/Seeder Type Use drop-down menu and select Air Seeder from the list. Press to continue. 4. Enter Implement Information Press and enter implement Make and Model.
Page 335 The complete configuration should now appear under the Planting heading located on the Configuration tab of the Configuration Setup screen. The Operating Configuration will now be able to be selected when starting a new Field Operation with the Field Operation Wizard. Ag Leader PN 4002083 Rev. N...
Page 336: Controller Settings
ONTROLLER ETTINGS Select Your Specific Configuration Configuration Controller Settings Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > select your specific configuration > Setup (wrench) button >Controller Settings button Controller Settings screen appears, with each channel’s settings shown on its own tab. Controller settings viewed at the Strip Till Control window vary depending on Control Valve Configuration type selected including PWM Control Valve, a Servo Control Valve, or a Linear Actuator configuration.
Page 337: Strip Till Control: Pwm Control Valve
This setting is used when controlling a granular strip-till toolbar. Linear Actuator/Clutch Settings Note: When using Linear Actuator Control, the system requires the Control Valve Configuration on all three channels to be set the same. Ag Leader PN 4002083 Rev. N...
Page 338 Strip Till Control • Actuator Response 1 Channel 1 Channel 2 Channel 3 Auxiliary Determines the speed of the actuator when product Control Valve Configuration control error exceeds the Response Threshold setting. Single Bin Actuator Represents the fast speed of the actuator. Decreasing Actuator Actuator Allowable...
Page 339: Actuator/Clutch Logic
Note: The Base Amount is the total weight of product for the fertilizer blend. The Base Amount does not need to match the actual volume of product that will be applied, but is used only to establish the ratio of all products to the total volume. Ag Leader PN 4002083 Rev. N...
Page 340: Meter Prime
5. Press to start the process of adding components to the fertilizer blend. Note: Any liquid herbicides set up within the system can be added to create an impregnated blend product. 6. Select the desired component from the list box. New components can be set up at this time if required. 7.
Page 341 Channel 2 Channel 3 Auxiliary Control Valve Configuration Single Bin Actuator Actuator Allowable Actuator Response Shaft Speed Response 1 Response 2 Error Threshold Calibration 180 pls/rev 18 % 90 % Max Metering Speed 100 rpm Ag Leader PN 4002083 Rev. N...
Page 342: Run Time Operations
1.91 15.0 lb/ac 0.00 0.00 Potash lb/ac 0.00 0.00 The Start Prime button (A) begins the meter prime lb/ac 0.00 routine and each meter shaft will rotate the number 0.00 of revolutions as defined on the Air Cart Prime Screen. Start 3500 Prime...
Page 343: Strip Till Control Screen
You must perform a calibration for each granular product control channel (bin) for the equipment configuration before applying in field conditions. This process is outlined below and on the following page. The Static CFR Calibration Procedure performs an automated routine to calibrate each metering circuit. Ag Leader PN 4002083 Rev. N...
Page 344 Static Calibration 3500 Press: Map button > Strip Till Control button > Static Calibration button 1. Read Static Calibration warning A warning appears, advising to disable the blower fan circuit and prepare to catch any product dispensed in an appropriate container. Press to continue.
Page 345: Static Cfr Calibration Procedure For Ground Drive Systems
The In-Field CFR Calibration procedure performs an automated routine to adjust the calibration number for the selected metering circuit. This calibration is performed if there is a difference between the amount of product logged as compared to what was actually applied. To do an In-Field Calibration procedure, Ag Leader PN 4002083 Rev. N...
Page 346: Strip Till Control: Auxiliary Tab
press the In-Field Calibration button on the Strip-Till Control screen, and the In-Field CFR Calibration Wizard appears. 1. Select Metering Circuit to Calibrate Use the drop-down menu to select the channel to calibrate, and press to continue. 2. Enter Actual Weight The Accumulated Weight is shown in the top portion of the screen.
Page 347 1. Verify the current firmware is running on the display and Application Rate Module. 2. Check to make sure the nominal rate in the display matches the nominal rate in the serial- controlled console. Ag Leader PN 4002083 Rev. N...
Page 348 ERTILIZER EFAULT RODUCT ETTINGS Abbreviated Percentage (in terms of lbs.100 lbs.) name for display and Material Type Density predefined P (P K (K name for Ammonium Ammonium nitrate nitrate Ammonium Ammonium phosphate phosphate Ammonium Ammonium sulfate sulfate Urea Urea Potash Potash Triple Triple...
Page 349: Calibration Sequence
2. Calibrate Header Sensor This sets the height when the display stops recording area as the header is raised at the end of the pass. Stop height calibration is required for each grain type. Ag Leader PN 4002083 Rev. N...
Page 350: Calibrate Distance
3. Input Header Offset For combines with offset headers, this compensates for the distance between the center of the vehicle, and the center of the header's swath. 4. Perform a Vibration Calibration The vibration calibration is used to compensate for the amount of force that is measured by the flow sensor with no grain flow.
Page 351: Input Header Offset
> Setup (wrench) button > Grain Calibration button > Setup (wrench) button > Perform Vibration Calibration button Note: This is prompted at the Home screen the first time a crop time is harvested. Ag Leader PN 4002083 Rev. N...
Page 352: Temperature Calibration
1. Run Separator Start the separator and feeder house with the proper header attached. Run at full speed. CAUTION: Do not harvest a crop during the Vibration Calibration process. 2. Press Start With the combine separator running at full operating speed with the header engaged, press the Start button. The display counts down 60 seconds.
Page 353: Manual Moisture Setting
2. Calibration Load warning Read warning, press when finished. 3. Harvest Calibration Load Harvest a load - ideal load weights are between 3,000 and 6,000 pounds (1,361 to 2,721 kilograms). 4. End Load Press: End Calibration Ag Leader PN 4002083 Rev. N...
Page 354 5. Calibration Load warning Read warning, press when finished. 6. Name Load Display will give load a default name of time and date. Use to change the load name. 7. Empty Grain and Weigh Load Empty the grain tank completely onto a truck or wagon, and weigh it with an accurate scale. Record each individual load weight to be entered into the display.
Page 355 “Setup Event” on page 45 ONFIGURATION Once a configuration has been completed, the Map View button appears at the bottom of the Home screen. Press the Map View button to see the Map screen. Ag Leader PN 4002083 Rev. N...
Page 356 • (A) GPS Status • (B) Total Field Area Corn Corn C1545 Yield • (C) Ground Speed Yield (Avg) bu/ac 235 + • (D) Diagnostics button 215 - 235 Moisture (Avg) 195 - 215 15.1 175 - 195 0 - 175 •...
Page 357: Map Options
• Press Clear Map to permanently remove all map data from the active field operation • Press Load Reference to load a map from a previous Load Clear Map operation performed in that field to view as a Reference background map. Ag Leader PN 4002083 Rev. N...
Page 358 CREEN ELAY When the Map screen is running in a Zoom Detail view, instantaneous coverage (A) is shown automatically. However, there is a time lag between when grain enters the combine through the Header and is logged by the Flow Sensor in the Clean Grain Elevator.
Page 359: Variety Tracking Menu And Automatic Variety Tracking
• If you have selected Automatic Variety Tracking, a message will tell you that the display has detected a different variety, and that you should manually change the region. Ag Leader PN 4002083 Rev. N...
Page 360: Importing Variety Maps
• If you have selected Automatic Region Changing, a message tells you that the display has detected a different variety, and that the display is automatically changing to a different region. MPORTING ARIETY Variety maps can be imported from SMS software. The SMS software uses planting data to create a variety reference map which is saved as an .AGSETUP file.
Page 361: Grain Harvest Diagnostics
Raw value of temperature sensor. • Proximity Sensor Shows if Elevator Mount Unit sensor is covered with grain. • Relay Status Shows on or off. • Motor Current Measure of Elevator Mount Unit (EMU) current, shown in amps. Ag Leader PN 4002083 Rev. N...
Page 362 Firmware Version 6.0...
Page 363: Configuration Setup
Lexion 670 configuration. Lexion 670, 30 ft Platform Implement: 30 ft Platform Controller: Lexion 670 Offset Full Swath: 30.000 feet Rows: Speed Input Grain Calibration Automatic Swath Control Header Equipment Map Delays Offset Settings Ag Leader PN 4002083 Rev. N...
Page 364: Calibration Information
Note: Adjustment of Combine Settings and the Header Sensor Calibration is performed through the CLAAS CEBIS monitor. • Vehicle Offsets For more information, see “Vehicle Offsets” on page 85 • Speed Input The ground speed source can be changed by pressing the Speed Input button. This opens the Speed Input screen, where you can choose a primary speed source of GPS, Wheels or Radar.
Page 365: Grain Weight Calibration
Manual 15.0 % Moisture to the desired value. Press when finished. Use Manual Moisture Note: The list shown in the CLAAS Calibration screen only shows loads harvested during the current season. Ag Leader PN 4002083 Rev. N...
Page 366: Diagnostics Screen For Claas Quantimeter
CLAAS Q CREEN FOR UANTIMETER Once an operating configuration is 1.06 created for a CLAAS Quantimeter Soybeans Soybeans harvest configuration, and a field Yield Yield 118.6 bu/ac operation configuration is created at the Moisture 136 + 116 - 136 Home screen, you can view map screen 15.9 96 - 116 76 - 96...
Page 367: Bridge Module
CEBIS monitor. Solution: Set the swath width in the CEBIS monitor to match the swath width of the operating configuration in the display. Error Message: Crop Type Changed: “The current configuration is no longer valid” Ag Leader PN 4002083 Rev. N...
Page 368 Possible Cause: The display has detected that the crop type specified in the CEBIS monitor has changed to a crop type that is different than what is specified in the display’s field operation configuration. Either: Solution: 1. Change the crop type specified in the CEBIS monitor back to what is specified in the display.
Page 369: Agsetup
The Adobe Reader software comes pre-installed on most personal computers. If Adobe Reader is not installed on your computer the program is available for download at no charge. A link to the Adobe download site is located at the Ag Leader Web site. URRENT ORMATS .AGSETUP...
Page 370 EGACY ORMATS RESCRIPTION YPES • .irx The .irx file supports multiple product recommendations in a single file. • .shp, .shx, .dbf (shape file group) What is commonly called a shape file is actually a collection of three different files. All three of the files are required and must be present on the USB drive for the system to use shape file groups for variable rate product application.
Page 371: Unauthorized Access
Warranty is not provided for damage resulting from abuse, neglect, accidents, vandalism, acts of nature, or any causes that are outside of the normal intended use of the display. Ag Leader Technology shall not be liable for indirect, incidental, or consequential damages to the dealer, end user, or third parties arising from the sale, installation, or use of any Ag Leader Technology product.
Page 372: Proprietary Technology Notice
Ag Leader is not responsible for any damage or loss incurred as a result of access to the locked-down features by unauthorized personnel and you as owner of the display agree to indemnify and hold harmless Ag Leader, its, partners, subsidiaries, agents, affiliates, and/or licensor(ee)s, as applicable, for any unauthorized access to the locked-down features.
Page 373: Edit Pattern
138 flow min 345 configuration settings 333 flow offset 345 configuration tab flow rate 345 add button 21 flow sensor 342 console button 16 followed path 132 copy all files 333 Full Permission 36 Ag Leader PN 4002083 Rev. N...
Page 374 legend select 341 boundary 341 gear ratio clear map 341 example 177, 179 data 341 multiple drives 177, 178 guidance 341 single motor drive 176 load reference 341 gear ratio calculation 176 marker 341 GPS button 16 reference 341 grain harvest diagnostics 345 legend setup button 341 grain settings screen 23 load reference 341...
Page 375 Rx 341 variety tracking 342, 343 messages 343 save button 132 vibration calibration 335 season 33 number 336 sensor force 345 setup buttons 16 weight calibration 337 console 16 wet bushels 340 GPS 16 Ag Leader PN 4002083 Rev. N...
Page 376 wet weight 340 yield 340, 341 Firmware Version 6.0...

Save PDF
