Planter Options Screen; Priming Seed Rate Meters - Ag Leader Integra Display Operator's Manual

Seed Ratio Calculation Example Procedure for Shaft Drives
This example assumes a single drive motor. Step 5 notes that this process has multiple steps for more
than one hydraulic drive.
1. Beginning with the Seed Rate Motor, count the number of teeth on the drive sprocket. Then count the
number of teeth on the driven sprocket.
2. Divide the number of teeth on the driven sprocket by the number of teeth on the drive sprocket. This
is the ratio of the Seed Rate motor.
3. Repeat the process for each sprocket combination in the drive system back to the meter.
Shaft Ratio 2" on page 178.
4. Take the ratio of the Seed Rate Motor and multiply it by the ratio of the other sprocket combinations.
5. Repeat this process for multiple hydraulic drives. Enter gear ratio for each motor under the appropriate
tab.
Note: Enter the number into the other channels for additional motor drives if they have the same total gear
ratio.
P O
LANTER

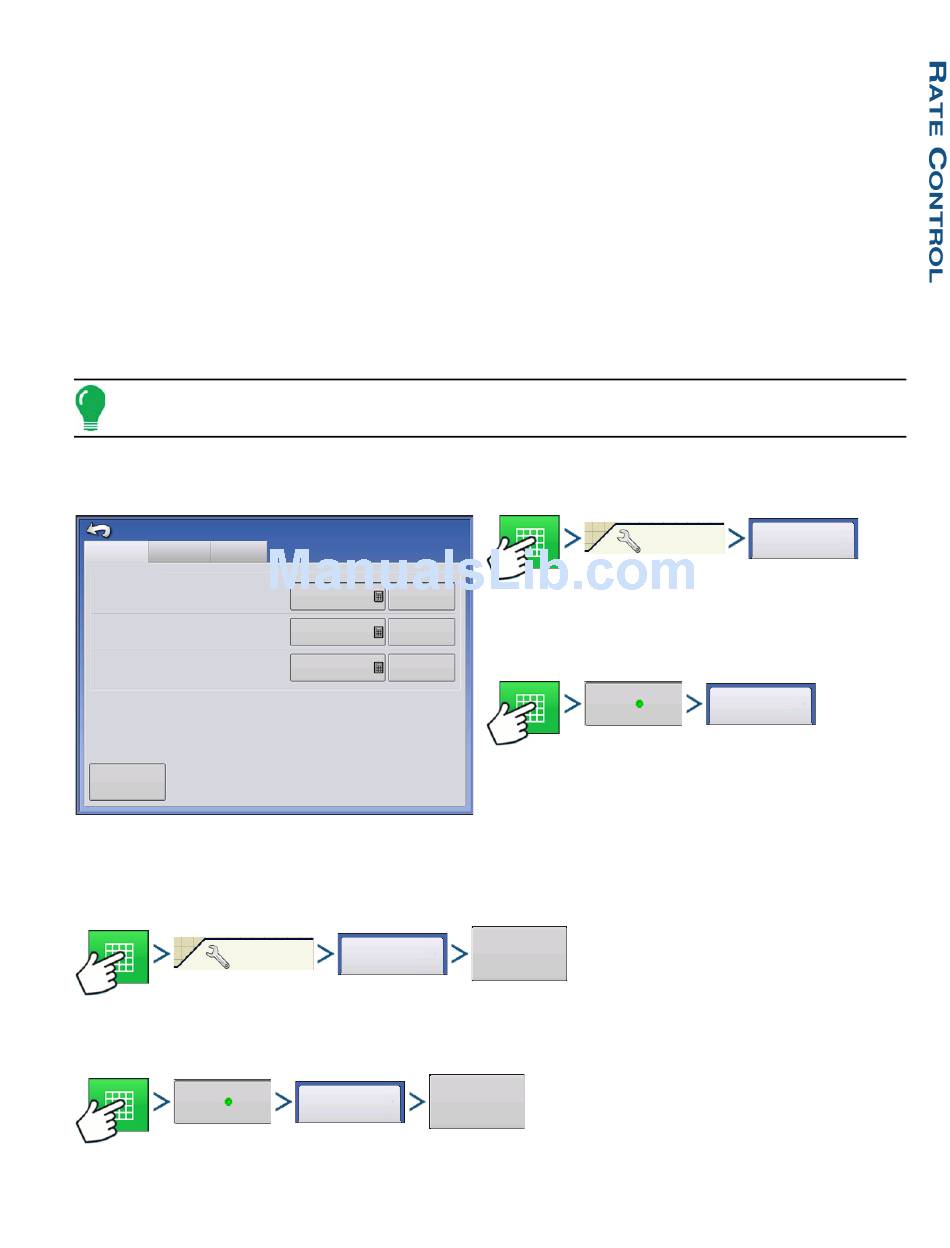

Planter Options
Planter Drives Seed Monitor
Down Force
Meter Calibration
CSX55A12SS
CSX56A11VT3PRO
CSX56B10CONV
Prime
Seed Meter
P S
RIMING EED
The Seed Meter Prime is used to charge the seed meter when filling with seed.
Settings
Press: Map button > Settings button > Planter Drives tab > Prime Seed Meter button
or
Planter Drives (rpm)
1
70
Press: Map button > Meter RPM button > Planter Drives > Prime Seed Meter button
