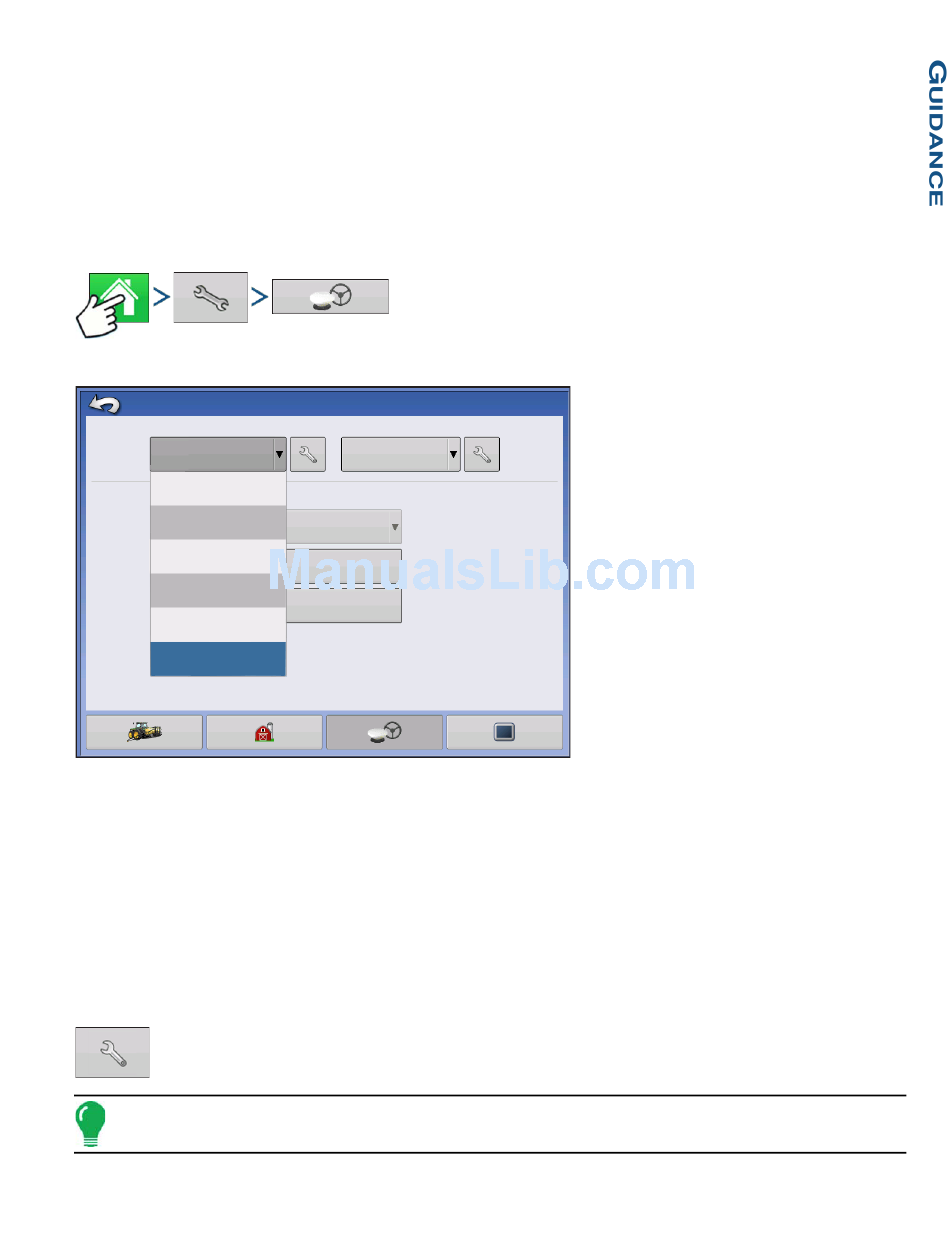

Press: Home button > Setup (wrench) button > GPS button
GPS/Guidance Setup
Steering
SteerCommand
Manual Guidance
OnTrac2+ (CAN A)
OnTrac2 (CAN B)
ParaDyme/GeoSteer
OnTrac3
SteerCommand
• Operator Presence Alarm
The Operator Presence Alarm disengages guidance control if the operator does not have any interaction
with the display for a specified period of time. Use the drop-down menu to specify the period of time before
guidance is automatically disengaged.
• Lightbar Settings
For more information, see
• Required Differential Correction for Guidance
When un-checked allows guidance to operate without differential correction.
Pressing the Setup (wrench) button on the Guidance Tab opens the guidance system
settings for the selected guidance system.
Note: In order to use guidance with the display, you must have a GPS receiver capable of a GPS output rate
of 5 Hz or more.
