Crop Sensor Settings

VI Zero:
VI Minimum:
Reference Strip: East Field
VI Reference: 0.500
• VI Zero
The threshold below which the Crop Sensor applies a zero rate. This setting is used to prevent applying N
over bare ground or permanently damaged crops.You may enter in a value either by pressing
you may enter in the current VI value by pressing the Set to Current button.
• VI Minimum
The threshold below which the Crop Sensor applies the minimum rate. This setting is used to apply a
minimum amount of N on ground with damaged crops.You may enter in a value either by pressing
or you may enter in the current VI value by pressing the Set to Current button.
Note: The minimum rate may be adjusted at the Crop Sensor screen, which is accessed by pressing the
Algorithm Settings button. For more information, see
• Reference Strip
The name of the Reference Strip that you entered during the Configuration procedure.
• VI Reference
Value of a healthy crop biomass used in reference for calculating the proper N application rate
• Algorithm Settings
Press this button to access the Sensor Setup screen, where you can adjust the rate displayed on the Crop
Sensor tab's VI Bar Graph. For more information, see
G
LOSSARY OF
• Active VI
The Vegetation Index (VI) that the OptRx sensors read instantaneously during field operations.
• Max Rate (shown at Crop Sensor Setup)
The highest amount of N that should be applied.
• Min Rate (shown at Crop Sensor Setup)
The lowest amount of N that should be applied.
Ag Leader PN 4002083 Rev. N
Set to
0.000
Current
Set to
0.000
Current
O R T
PT X ERMINOLOGY

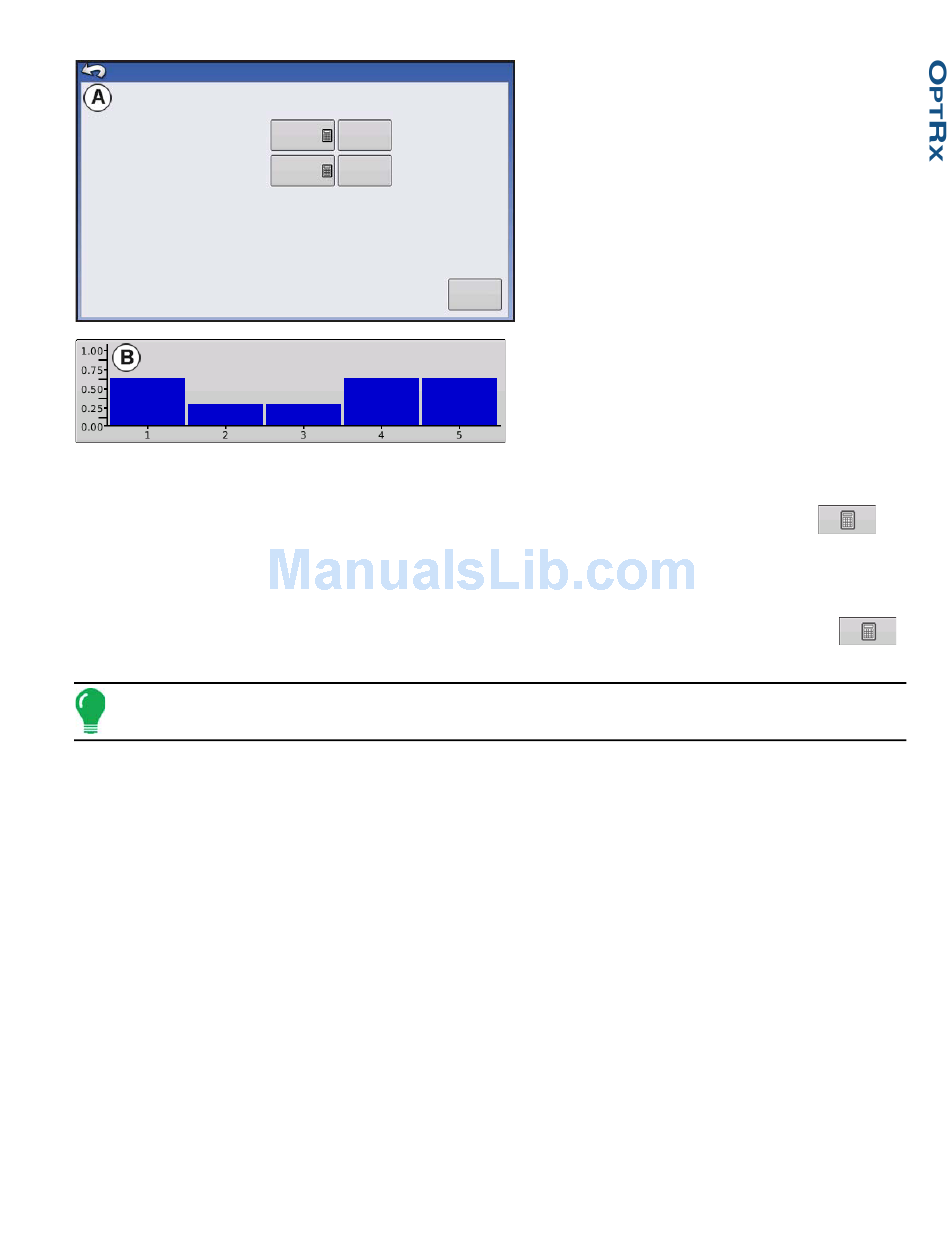

The Crop Sensor Settings screen (A) is
where you can adjust application rate settings
specified by the OptRx Crop Sensor module.
The VI Zero and VI Minimum settings are used
as a buffer to prevent applying the wrong
amount of N or applying it in areas where doing
so would be ineffective.
Algorithm
Settings
To access the Settings screen, press the OptRx
Crop Sensor button, located in the box
containing the Map screen's VI Bar Graph (B).
"Crop Sensor Setup" on page
"Crop Sensor Setup" on page 278
A
PPLICATION
, or
,
278.
.
283
