ISOBUS Settings
Virtual Terminal
Enable Virtual Terminal
Broadcast Display Speed
(ISO GBSD)
Auxiliary Module Support
Use 480 Mask Size
Function Instance
0
Module or Smart Switchbox, to be used with ISOBUS ECUs that support AUX-N auxiliary functions.
• Use 480 Mask Size
Checking this box sets the display mask size from 600 pixels to 480 pixels. Some ISOBUS ECUs have
problems scaling their Object Pools to the 600 pixel mask. The 480 pixel size is more common and should
reduce or eliminate scaling issues such as overlapping text, or missing display items.
• Virtual Terminal Functional Instance
Always set to 0 except when there are multiple VTs on the ISO Bus. Use
Reboot Display
• Task Controller Function Instance
Always set to 0 except when there are multiple TCs on the ISO Bus. Use
Reboot Display
90
Task Controller
Enable Task Controller
Function Instance
0
Once a Virtual Terminal has been enabled
will appear in the task bar. Toggle between the
Virtual Terminal run screen and other display
functions by pressing the VT button.
• Broadcast Display Speed (ISO GBSD)
Checking this box allows speed source currently being
utilized by the display to be broadcast over the ISOBUS
to the implement ECU.
• Auxiliary Module Support
Checking this box allows the Ag Leader Auxiliary Input

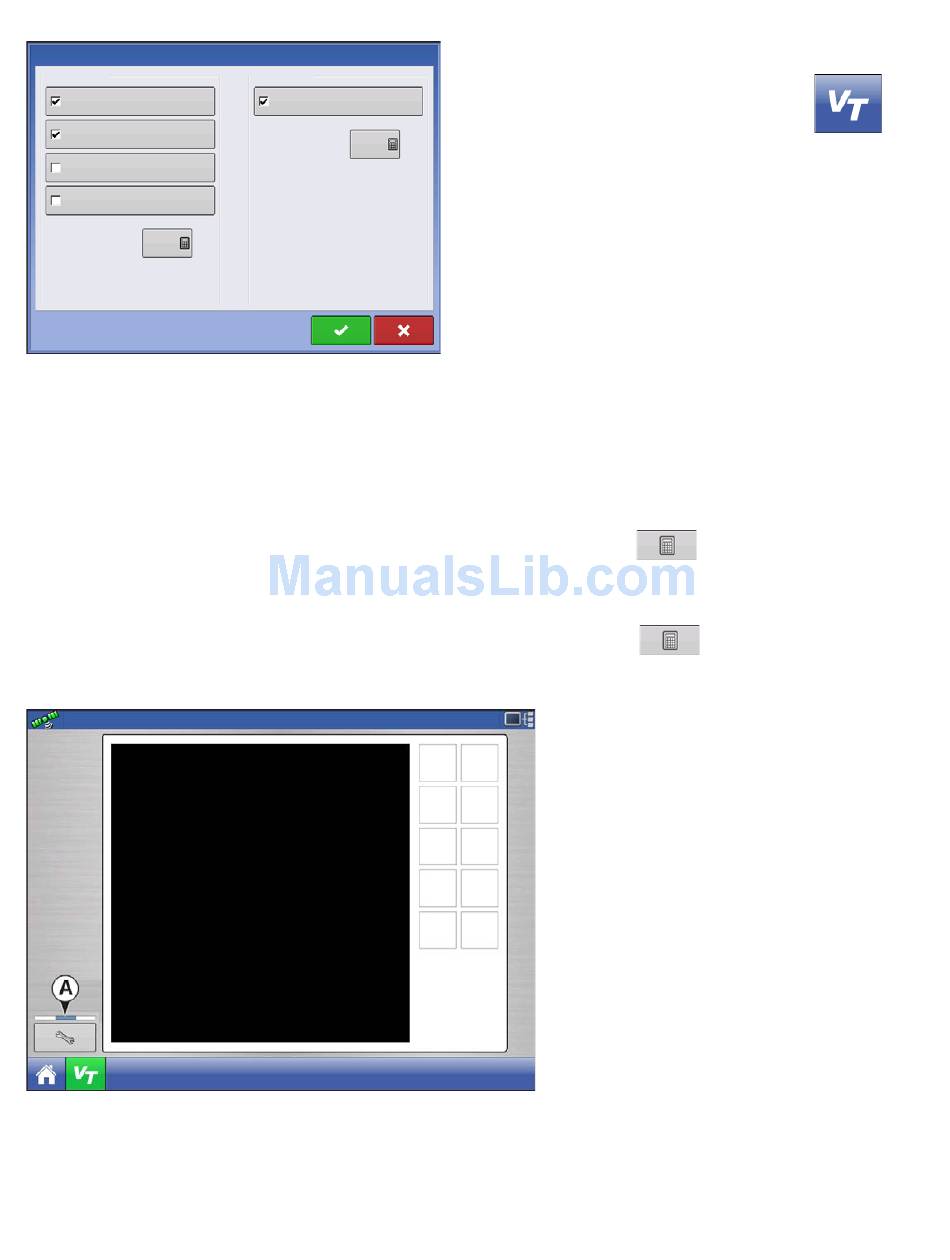

When an ISOBUS compliant implement
is connected to the display for the first
time, the implement WSM sends its
graphic interface, called the Object Pool,
to the display. Status bar (A) appears
while Object Pools are being loaded. This
process might take several minutes
depending on the number of Object Pools
being loaded. Once loaded, object pools
are stored in the display memory.
to change instance.
to change instance.
