Direct Injection: Application Error - Ag Leader Integra Display Operator's Manual

A S
NALOG
Signal
Ground

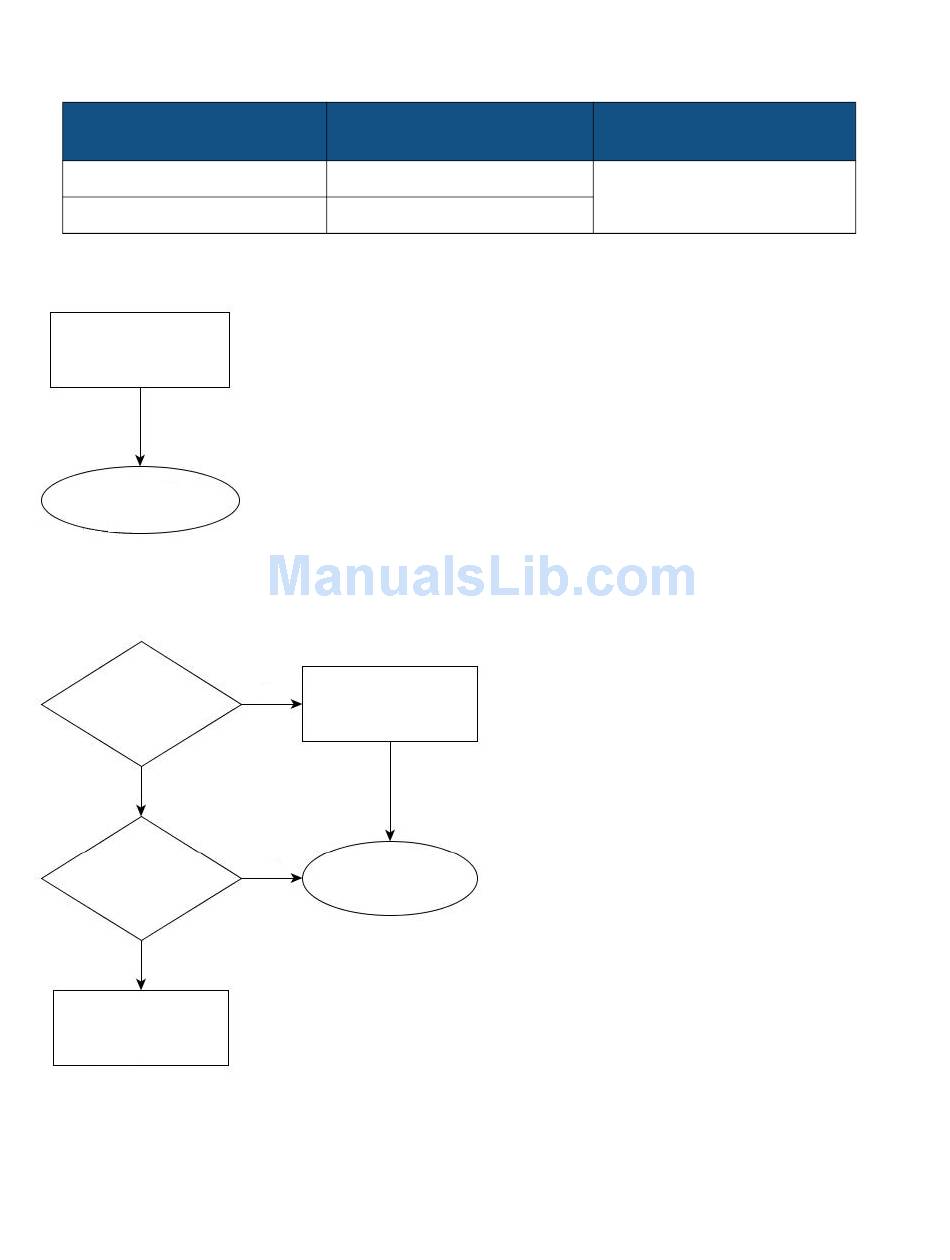

Direct Injection: Application Error

Verify factory calibration
number is pump cal/10
Refer to injection
calibration routine
Direct Injection: Discharge Flow Sensor Error
Status light on run
screen showing green
Yes
LED light on the
injection pump flashing
Yes
Check error threshold
found in the controller
274
P O
PEED IN
Module Auxiliary Connection
A
B
The injection module requires that a pump calibration be performed before
actual application can occur. The calibration number found on the tag of the
injection pump's digital speed sensor needs to be divided by a factor of 10
before entering it as the factory calibration number. If the factory cal
number is entered wrong, the pump calibration routine will not finish due to
a high application error.
Notes:
• The pump calibration will fail if error is >10% from the factory calibration
number.
• If the calibration fails check pump and plumbing for physical damage or excess
wear.
Check injection
No
diagnostics to see if
Refer to manufacturer
No
documentation to test
UTS
12-Pin Socket
The discharge flow sensor is used as a system
check to see if product is actually exiting the
output of the pump. The sensor is a shuttle
valve that allows feedback for every stroke of
the pump. If Flow Monitor Warning is enabled,
the display will provide a message if the
discharge flow sensor falls out of its calibrated
value. See table below for pin locations.
3-Pin Conxall
>9V at max pump speed
