2. Drive from start to end points
Position the vehicle at the start marker. Press the green-colored Start button and drive the vehicle for the
predetermined distance.
Note: The display must be set on 0.0 before driving the calibration distance.
3. Stop at end of calibration distance
When the vehicle crosses the end marker of the predetermined distance, press the red-colored Stop button.
Press to continue to final step.
4. Calibration complete
The speed sensor calibration number has been calculated from the actual distance driven. Press FINISH
to complete calibration and store the calculated value.
Notes:
• Calibration settings can be manually adjusted if desired by pressing Enter CAL Number and making small
changes to the setting.
• To verify the calibration, repeat the previous steps.

KINZE EdgeVac Calibration

Seed Monitor

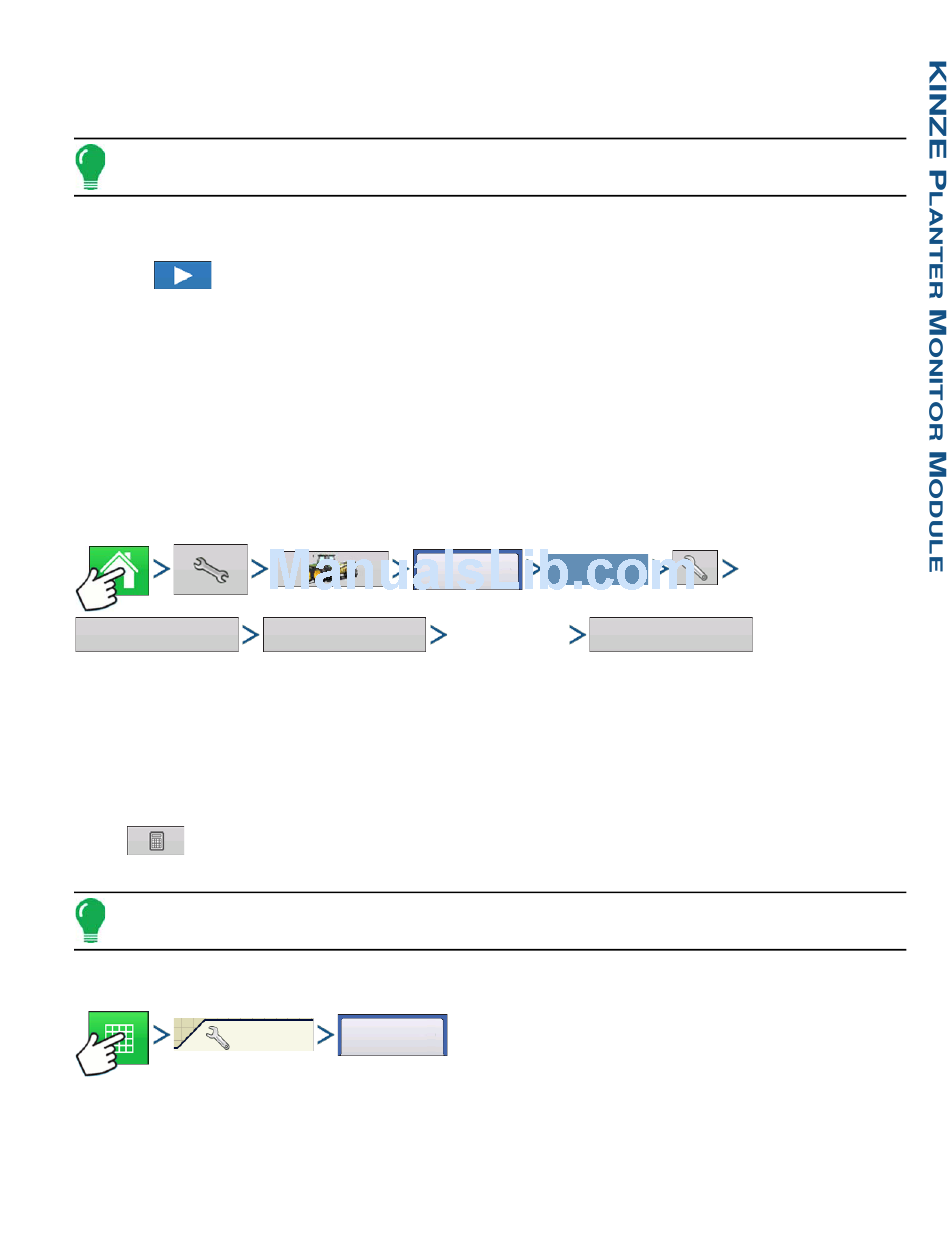

Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Seed Monitor button > Planter Configuration button >
EdgeVac box > Calibrate button
Customers who have purchased the EdgeVac® seed meters should perform an EdgeVac Calibration
once a year to make sure that it is correct.
Press the Calibrate button.
Press to enter the actual value taken from the hand-held calibration sensor at the vacuum
sensor.
Note: The appearance of this screen varies, depending upon whether you have one or two EdgeVac sensors.
KINZE P
LANTER
Settings
Press: Map button > Settings button > Planter Monitor tab
or
Ag Leader PN 4002083 Rev. N
Configuration
EdgeVac box
Planter Configuration
M O
ONITOR PTIONS
Planter Monitor
Select Your Specific
Configuration
Calibrate
P
LANTING
