with a red ball.
Note: Guidance extends beyond the end of curved swaths. This makes it possible to get LED guidance back
onto the swath if the vehicle drives past the end of a swath. The extended swath lines do not appear on screen.

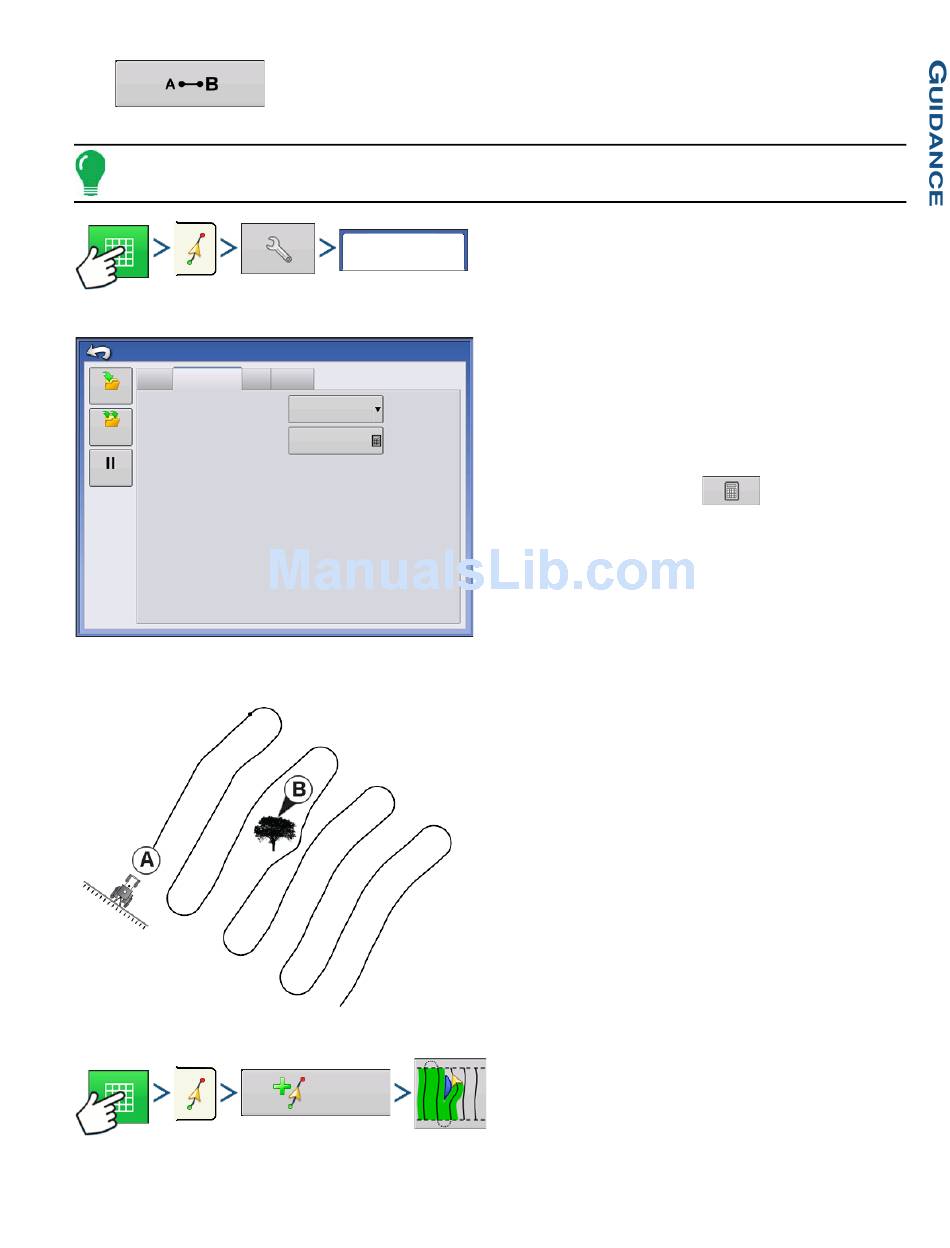

Press: Map button > Guidance tab (in Mapping Toolbox) > Setup (wrench) button > Adaptive Curve tab
Guidance Options
Adaptive Curve
Nudge Shift
Save
New Pass
Save
Heading Threshold
Group
Pause
I C
DENTICAL URVE

Select Pattern

Ag Leader PN 4002083 Rev. N
Press to mark point B. The AB line appears on the map screen and point B is marked
Adaptive Curve
Lightbar
Heading Change
100
New
Pattern
• You can adjust the degree heading at which the system
generates the next pass by doing the following: Go to
the Guidance screen and press the Options button. The
Guidance Options screen appears; press the Adaptive
Curve button. At the New Pass drop-down menu, select
Heading Change, then use
degree number of your Heading Threshold.
Patterns are automatically saved when the vehicle
turns for the first time. For more information see
"AutoSave" on page 133
Use the Identical Curve pattern to follow gentle
contours in the field. This pattern provides guidance
based on the original curve driven.
to enter in the
.
127
